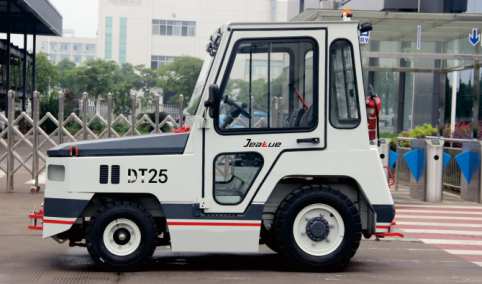

32-38 Ton Internal Combustion Towing Tractor-DT25/30
Model: F2.8/CUMMINS
Max Drawbar Pull:25/30kN
Travel Speed(Loaded/Unloaded):10/38km/h
Description
DT25/30 four-seats internal combustion luggage tractor uses the American CUMMINS engine as the power source, which has the advantages of strong power, excellent performance, comfortable driving and riding, beautiful appearance, low labor intensity, high work efficiency, and low maintenance rate. lt can be widely used for traction operations in dry airports, ports, stations, warehouses, and other places.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Safety Protection:
Traction Pin anti decoupling protection device.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Low brake energy storage alarm.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Seat safety switch.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Product Features:
Multiple imported or domestic engines and transmissions can be selected, with good power and economy. Vacuum assisted hydraulic dual circuit four-wheel braking with extremely high reliability and safety.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Adopting spiral springs and hydraulic cylinder shock absorbers for vibration reduction, making driving and riding smoother and more comfortable.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
The driver’s cab has an open front windshield and a ventilated double-layer insulated roof, providing good comfort.JEAKUE 32/38 Ton Internal Combustion Towing Tractor-DT25/30
Specifications
| Parameter | Value |
|---|---|
| Rated Capacity | 32000 / 38000 kg |
| Min. Ground Clearance | 150 mm |
| Overall Length | 3220 mm |
| Overall Width | 1450 mm |
| Height | 1990 mm |
| Wheelbase | 1600 mm |
| Front Overhang | 720 mm |
| Rear Overhang | 900 mm |
| Towing Coupler Height (Up/Down) | 405 / 304.8 mm |
| Turning Radius | 2950 mm |
| Service Weight | 4000 / 4300 kg |
| Max Drawbar Pull | 25 / 30 kN |
| Travel Speed (Loaded/Unloaded) | 10 / 38 km/h |
| Max. Gradeability | 35% |
| Model | F2.8 / CUMMINS |
| Emission Standard | Tier 4 Final |
