30 Ton Four Seats Electric Baggage Tractor-ET30N
Battery:76.8V / 840Ah, 309.12V / 228Ah Lithium iron phosphate Battery
Max Drawbar Pull:25 kN
Travel Speed (Loaded/Unloaded):10 / 25 km/h
Description
The ET30N four seater electric luggage tractor is a vehicle used to tow luggage/cargo, and belongs to the electric rear drive tractor platform product. The battery of this model is vertically arranged at the front of the vehicle body, with independent front wheel suspension. The rear axle is equipped with plate springs and hydraulic shock absorption tube shock absorption mechanism. The entire vehicle is equipped with front disc and rear drum vacuum pump assisted braking, and adopts an electronic assisted circulating ball steering system, which is comfortable to drive and ride.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Safety Protection:
Traction Pin anti decoupling protection device.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Traction Pin decoupling alarm system.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Low brake energy storage alarm.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Seat safety switch.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Product Features:
The battery adopts lithium iron phosphate battery, with long cycle life and good safety, and is equipped with automatic fire extinguishing device and refrigerant heat management system.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Using water cooling to cool down the drive motor and controller, ensuring normal operation in high temperature environments (high- pressure vehicles).JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor

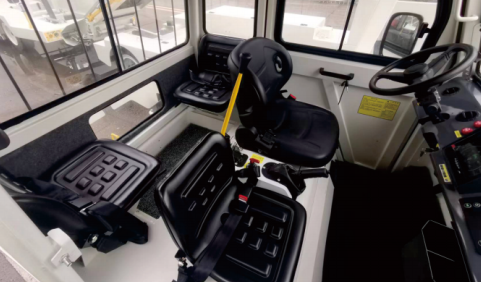

The driver’s cab is equipped with four seats, which can accommodate four people at the same time and ensure that the view of the rear hook is not affected.JEAKUE 30 Ton Four Seats Electric Baggage Tow Tractor
Specifications
| Parameter | Value |
|---|---|
| Rated Capacity | 30000 kg |
| Min. Ground Clearance | 150 mm |
| Overall Length | 3420 mm |
| Overall Width | 1450 mm |
| Height | 2100 mm |
| Wheelbase | 1625 mm |
| Front Overhang | 725 mm |
| Rear Overhang | 1070 mm |
| Towing Coupler Height (Up/Down) | 450 / 350 mm |
| Turning Radius | 3000 mm |
| Service Weight | 4180 kg |
| Max Drawbar Pull | 25 kN |
| Travel Speed (Loaded/Unloaded) | 10 / 25 km/h |
| Max. Gradeability | 35% |
| Type | Lithium iron phosphate Battery |
| Voltage/Capacity (L/H) | 76.8V / 840Ah, 309.12V / 228Ah |
