1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Model: F2.8/CUMMINS

Max Transmission Capacity:1080kg

Travel Speed (Unloaded):25km/h

Description

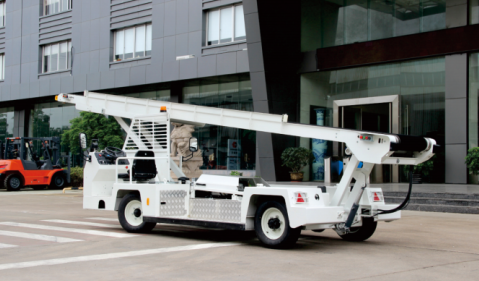

The BLD80 Belt Loader is a specialized equipment used for loading and unloading luggage, parcels, and mail for airport passengers. It has the characteristics of beautiful appearance, wide field of view, wide lifting range, strong carrying capacity, and convenient maintenance, and can meet the usage requirements of all aircraft models.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Safety Protection:

The engine has anti second start function.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Driver out of position vehicle unable to move.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Product Features:

Reasonable design of conveyor belt structure and advanced technology.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Chassis rigid support, high vehicle stability.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Equipped with emergency evacuation hand pump, safer and more reliable.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

Different engines for option.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLD80

       Specifications

Parameter Value
Max Transmission Capacity 1080 kg
Max. Working Height 4560 mm
Overall Length 8090 mm
Overall Width 2120 mm
Height 2000 mm
Wheelbase 2990 mm
Conveyor Belt Transmission Speed 200–500 mm/s
Turning Radius 6000 mm
Service Weight 4200 kg
Front Axle Load 2600 kg
Rear Axle Load 1600 kg
Travel Speed (Unloaded) 25 km/h
Max. Gradeability 15%
Model F2.8 / CUMMINS
Emission Standard Tier 4 Final
