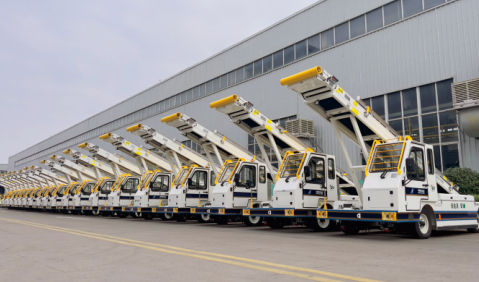

1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Battery:309.12V/228Ah Lithium iron phosphate Battery
Max Transmission Capacity:1080kg
Travel Speed (Unloaded):≥26km/h
Description
The Belt Loader(BLB80) is a specialized equipment used for loading and unloading cargo such as luggage, parcels, and mail for airport passengers. The vehicle can meet the service requirements of all aircraft models in civil aviation at present. The control interface is simple and easy to understand, easy to operate, with strong power and excellent performance; Equipped with emergency evacuation electric and manual pumps to ensure safe use of vehicles.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Safety Protection:
The lifting cylinder is equipped with a hydraulic lock.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Interlocking system for walking and belt conveyor.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Assisted ride support system with active braking.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Product Features:
The battery is lithium iron phosphate battery, equipped with automatic fire extinguishing device and refrigerant heat management system.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Adopting a fully hydraulic steering system, the steering is more lightweight and flexible.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Chassis rigid support, high vehicle stability, equipped with emergency evacuation hand pump, more safe and reliable.JEAKUE 1.08 Ton Self-Propelled Conveyor Belt Loader-BLB80
Specifications
| Parameter | Value |
|---|---|
| Max Transmission Capacity | 1080 kg |
| Max. Working Height | 4560 mm |
| Overall Length | 8090 mm |
| Overall Width | 2120 mm |
| Height | 2200 mm |
| Wheelbase | 2990 mm |
| Conveyor Belt Transmission Speed | 160–500 mm/s |
| Turning Radius | 6000 mm |
| Service Weight | 4200 kg |
| Front Axle Load | 2200 kg |
| Rear Axle Load | 2000 kg |
| Travel Speed (Unloaded) | ≥26 km/h |
| Max. Gradeability | 10% |
| Type | Lithium iron phosphate Battery |
| Voltage/Capacity | 309.12V / 228Ah |
