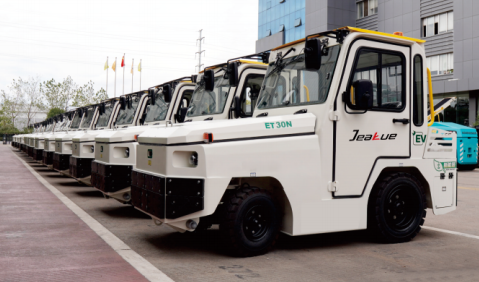

30 Ton Electric Baggage Tractor-ET30N

Battery:76.8V / 840Ah, 309.12V / 228Ah Lithium iron phosphate Battery

Max Drawbar Pull:25 kN

Travel Speed (Loaded/Unloaded) :10 / 25 km/h

Description

The ET30N new energy tractor uses the lithium iron phosphate battery of CATL as the power source, and is equipped with a battery fire extinguishing device that is safe and comfortable. The electronic power steering feels excellent and comfortable. This type of tractor has strong power, excellent performance, compact structure, beautiful appearance, pollution-free, low noise and other advantages, and can be widely used for traction operations in airports, ports, postal services, railways, food, tobacco, manufacturing,warehouses and other places.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N

Safety Protection:

Traction Pin anti decoupling protection device.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N
Traction Pin decoupling alarm system.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N
Low brake energy storage alarm.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N
Seat safety switch.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N

Product Features:

The front axle adopts longitudinal swing arm independent suspension, coil spring and hydraulic cylinder shock absorber, and the rear axle is equipped with leaf spring and hydraulic cylinder shock absorber, which can effectively improve driving comfort.JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N
The battery adopts lithium iron phosphate battery, with long cycle life and good safety, and is equipped with automatic fire extinguishing device and refrigerant heat management system(high-pressure vehicles);JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N
Using water cooling to cool down the drive motor and controller, ensuring normal operation in high temperature environments (high- pressure vehicles).JEAKUE 30 Ton Electric Baggage Tow Tractor-ET30N

           Specifications

Parameter Value
Rated Capacity 30000 kg
Min. Ground Clearance 150 mm
Overall Length 3420 mm
Overall Width 1450 mm
Height 2000 mm
Wheelbase 1625 mm
Front Overhang 725 mm
Rear Overhang 1070 mm
Towing Coupler Height (Up/Down) 450 / 350 mm
Turning Radius 3000 mm
Service Weight 4000 kg
Max Drawbar Pull 25 kN
Travel Speed (Loaded/Unloaded) 10 / 25 km/h
Max. Gradeability 35%
Type Lithium iron phosphate Battery
Voltage/Capacity (L/H) 76.8V / 840Ah, 309.12V / 228Ah
