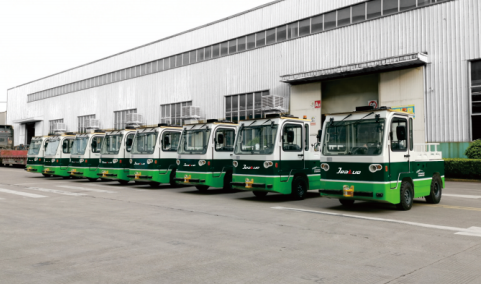

25 Ton Electric Baggage Tractor-ET25
Battery:80V/800Ah307.2V/210Ah Lithium iron phosphate Battery
Max Drawbar Pull:25kN
Travel Speed (Loaded/Unloaded):10/25km/h
Description
The key components of the electric luggage tractor ( ET25) are made of well-known domestic and foreign brands, with superior performance, energy conservation and environmental protection,beautiful appearance, convenient maintenance, and high work efficiency. It is widely used in industries such as airports, postal services,railways, food, tobacco, manufacturing,etc.JEAKUE 25 Ton Electric Baggage Tractor-ET25
Safety Protection:
Traction Pin anti decoupling protection device.JEAKUE 25 Ton Electric Baggage Tractor-ET25
Low brake energy storage alarm.JEAKUE 25 Ton Electric Baggage Tractor-ET25
Seat safety switch.JEAKUE 25 Ton Electric Baggage Tractor-ET25
Product Features:
The front and rear axles are equipped with leaf spring and hydraulic damping cylinder shock absorber, which can effectively improve driving comfort.JEAKUE 25 Ton Electric Baggage Tractor-ET25
The battery is lithium iron phosphate battery battery with long cycle life and good safety, and is equipped with automatic fire extinguishing system.JEAKUE 25 Ton Electric Baggage Tractor-ET25
The driver is located in the left front of the vehicle, with a wide field of view and few blind spots.JEAKUE 25 Ton Electric Baggage Tractor-ET25
The battery is equipped with low-temperature charging and heating function, and it also has high charging efficiency in an environment of -20°to 0°C.JEAKUE 25 Ton Electric Baggage Tractor-ET25
Specifications
| Parameter | Value |
|---|---|
| Rated Capacity | 25000 kg |
| Min. Ground Clearance | 200 mm |
| Overall Length (L/H) | 3465 / 3380 mm |
| Overall Width | 1450 mm |
| Height | 2000 mm |
| Wheelbase | 1620 mm |
| Front Overhang | 1175 mm |
| Rear Overhang | 670 mm |
| Towing Coupler Height (Up/Down) | 440 / 350 mm |
| Turning Radius | 3040 mm |
| Service Weight (L/H) | 4300 / 3500 kg |
| Max Drawbar Pull | 25 kN |
| Travel Speed (Loaded/Unloaded) | 10 / 25 km/h |
| Max. Gradeability | 35% |
| Type | Lithium iron phosphate Battery |
| Voltage/Capacity (L/H) | 80V / 800Ah, 307.2V / 210Ah |
