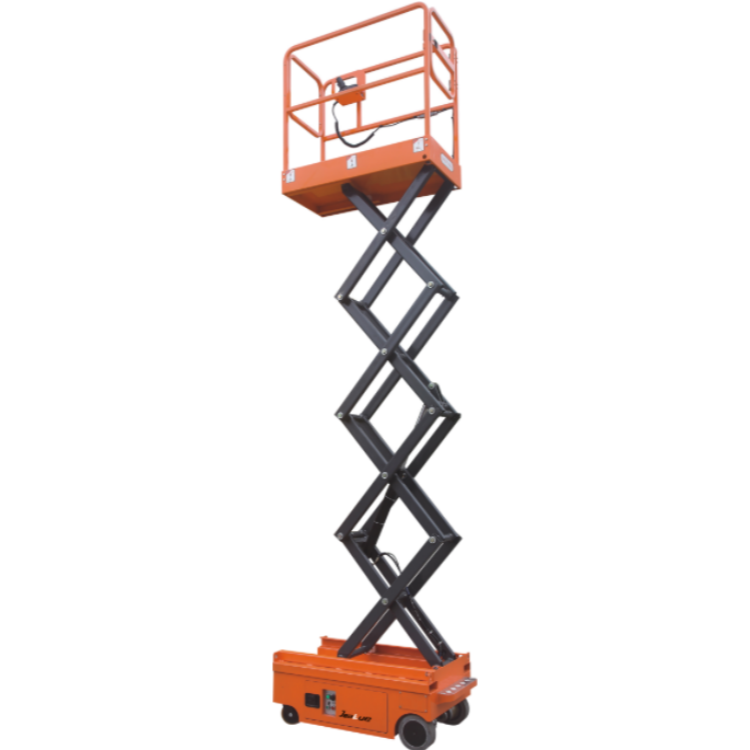

0.3Ton(661.39lb) 5-6.8M(16.40/22.31ft) Tiny Self-propelled Scissor Work Platform
Maximum working height:5-6.8M(16.40/22.31ft)
Max. Platform Height:3-4.8M(9.84/15.75ft)
Max. Lift Capacity:0.3Ton(661.39lb)
Battery：2×12/60 Ah Lead-acid Battery
Description
 |
 |
Specification
| Parameters | Unit | FSJY3 | FSJY3.9 | FSJY4.8 |
| Lift Rated Capacity | kg | 300 | 300 | 300 |
| Maximum working height | mm | 5000 | 5900 | 6800 |
| Maximum platform height | mm | 3000 | 3900 | 4800 |
| Overall Length | mm | 1180 | 1180 | 1180 |
| Overall Width | mm | 760 | 760 | 760 |
| Overall Height | 1830 | 1930 | 1990 | |
| Platform size | mm | 1170×600 | 1170×600 | 1170×600 |
| Ground clearance | mm | 60 | 60 | 60 |
| Wheel base | mm | 990 | 990 | 990 |
| Minimum turn radius | mm | 1200 | 1200 | 1200 |
| Driving Motor | V/kw | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 |
| Lifting Motor | V/kw | 24/0.8 | 24/0.8 | 24/0.8 |
| Running speed (platform Stowed ) | km/h | 4 | 4 | 4 |
| Running speed ( platform Elevated ) | km/h | 0.8 | 0.8 | 0.8 |
| Rising/falling speed | sec | 20/30 | 20/30 | 20/30 |
| Battery | V/Ah | 2×12/60 | 2×12/60 | 2×12/60 |
| Charger | V/A | 24/10 | 24/10 | 24/10 |
| Maximum climbing ability | % | 10-15 | 10-15 | 10-15 |
| Maximum working allowable angle | / | 2° | 2° | 2° |
| Driving Wheel | mm | Φ230×80 | Φ230×80 | Φ230×80 |
| Front wheel | mm | Φ150×60 | Φ150×60 | Φ150×60 |
| Overall Net Weight | kg | 490 | 600 | 760 |
