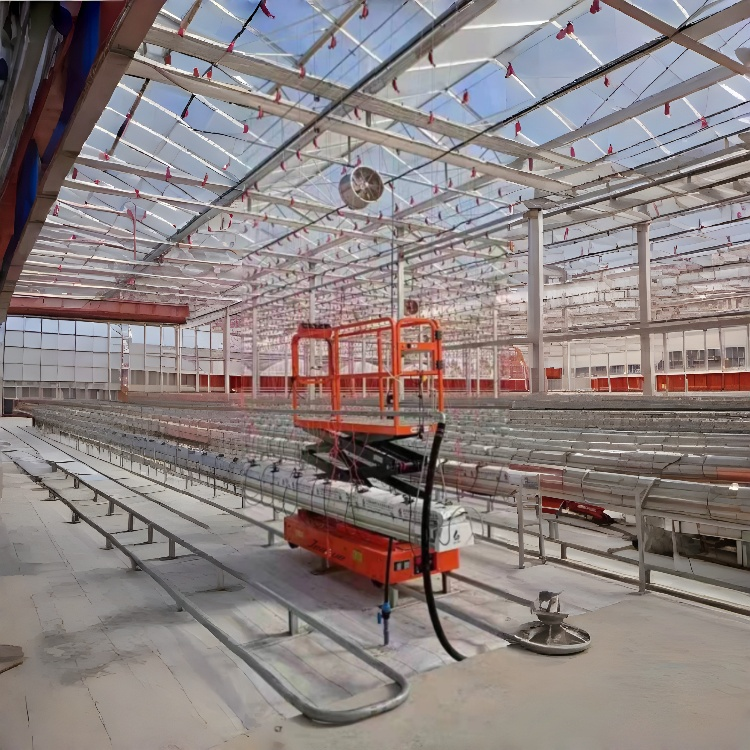

0.15-0.2Ton(330.69/440.92lb) 5-6M(16.40/19.69ft) Rail Type All Eletric Scissor Lift Platform

Maximum working height:5-6M(16.40/19.69ft)

Maximum platform height:3-4M(9.84/13.12ft)

Max. Lift Capacity:0.15-0.2Ton(330.69/440.92lb)

Battery:2x12V/80/100Ah Lead-acid Battery

Description

Parameters	Unit	GSJT0.2-3	GSJT0.2-4	GSJT0.2-3W	GSJT0.2-4W
Lifting capacity	kg	200	150	200	150
Maximum working height	mm	5000	6000	5000	6000
Maximum platform height	mm	3000	4000	3000	4000
Minimum platform height	mm	600	705	600	705
Whole length	mm	1935
Whole width	mm	770		1020
Whole width	mm	1655	1760	1655	1760
Platform size	mm	1910×510		1910×650
Minimum ground clearance	mm	70
Distance between track centrelines	mm	550		800
Diameter / thickness of track	mm	48/2.5~4.0
Driving Motor	v/kw	24/0.5
Lifting Motor	v/kw	24/2.2
Running speed	km/h	0~3.5
Rising/falling speed	sec	12/14	18/20	12/14	18/20
Battery	V/Ah	2×12/80		2×12/108
Charger	V/A	24/15
Wheel	mm	φ200×50
Overall Net Weight	kg	520	590	590	660
