0.3Ton(661.39lb) 4-6M(13.12/19.69ft) Whole-electromotion Aerial Order Picker

Max.Working Height:4-6M(13.12/19.69ft)

Max. Platform Height:2.7-4.5M(8.86/14.76ft)

Max. Lift Capacity:0.3Ton(661.39lb)

Battery:2x12V/100Ah Lead-acid Battery

Description

Parameters	Unit	FSEP3-2.7-YZ	FSEP3-3.0-YZ	FSEP3-4.0-YZ	FSEP3-4.5-YZ
Max. Platform Height	mm	2700	3000	4000	4500
Working Height	mm	4000	4450	5000	6000
Ground Clearance	mm	45	45	45	45
Lift Rated Capacity	kg	300	300	300	300
Platform Size	mm	600X700	600X700	600×700	600X700
Max. Drive Speed(platform Stowed)	km/h	4	4	4	4
Max. Drive Speed (platform Elevated)	km/h	1.6	1.6	1.6	1.6
Min.turning Radius	mm	1600	1600	1690	1690
Max.Climbing Capacity	%	15~20	15~20	15~20	15~20
Driving Wheel Size	mm	Φ230×80	Φ230×80	Φ230×80	Φ230×80
Caster Size	mm	Φ230×80	Φ230×80	Φ230×80	Φ230×80
Driving Motor	v/kw	2X24/0.4	2X24/0.4	2X24/0.4	2X24/0.4
Lifting Motor	v/kw	24/1.6	24/1.6	24/1.6	24/1.6
Aneroid Battery	v/Ah	2×12/100	2X12/100	2×12/100	2X12/100
Charger	v/A	24/15	24/15	24/15	24/15

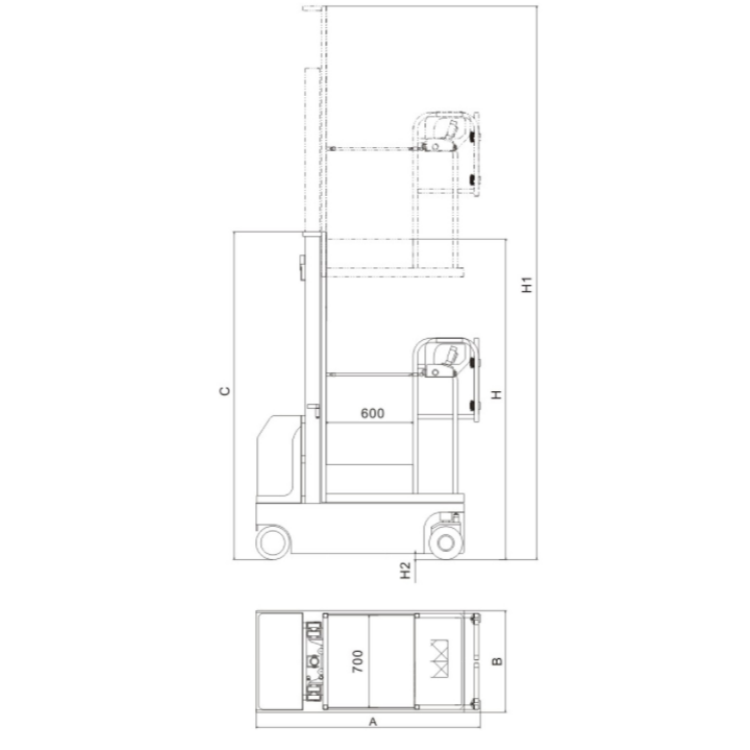

Overall Length(A)	mm	1540	1540	1620	1620
Overall Width(B)	mm	760	760	760	760
Overall Height(C)	mm	1900	2050	1920	2080
Overall Net Weight	kg	600	620	830	850
