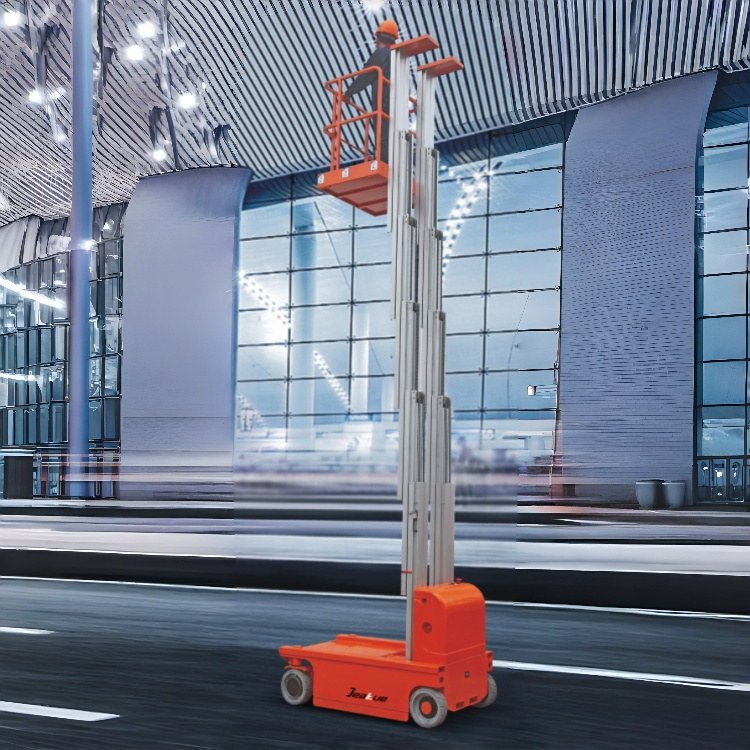

0.15-0.2Ton(330.69/440.92lb) 9-10.5M(29.53/34.45ft) Self – Propelled Aluminium Work Platform
Max. Platform Height:7.5-9M(24.61/29.53ft)
Max. Machine Height:9-10.5M(29.53/34.45ft)
Max. Lift Capacity:0.15-0.2Ton(330.69/440.92lb)
Battery：2x12V/150 Ah Lead-acid Battery
Description
Specification
| Parameters | Unit | FAWP7.5-2000 | FAWP9-2000 |
| Max. Platform Height | mm | 7500 | 9000 |
| Max. Machine Height | mm | 9000 | 10500 |
| Min. Platform Height | mm | 680 | 680 |
| Ground clearance | mm | 20 | 20 |
| Lift Rated Capacity | kg | 200 | 150 |
| Platform size | mm | 1000x700x1100 | |
| Max. Drive Speed (platform Stowed) | km/h | 3~4 | |
| Max.Drive Speed(platform Elevated) | km/h | 0.6~1 | |
| Minimum turn radius | mm | 1800 | |
| Max. Climbing Capacity | % | 20 | |
| Driving Wheel Size | mm | Φ305×100 | |
| Directional Wheel Size | mm | Φ305×100 | |
| Driver Motor | V/kw | 2×2.4/0.5 | |
| Lifting Motor | V/kw | 24/2.2 | |
| Battery | V/Ah | 2×12/150 | |
| Charger | V/A | 24/25 | |
| Pothole protection system | / | Mechanical control | |
| Overall Length | mm | 1700 | |
| Overall Width | mm | 1000 | |
| Overall Height | mm | 2000 | 2100 |
| Overall Net Weight | kg | 1100 | 1250 |
