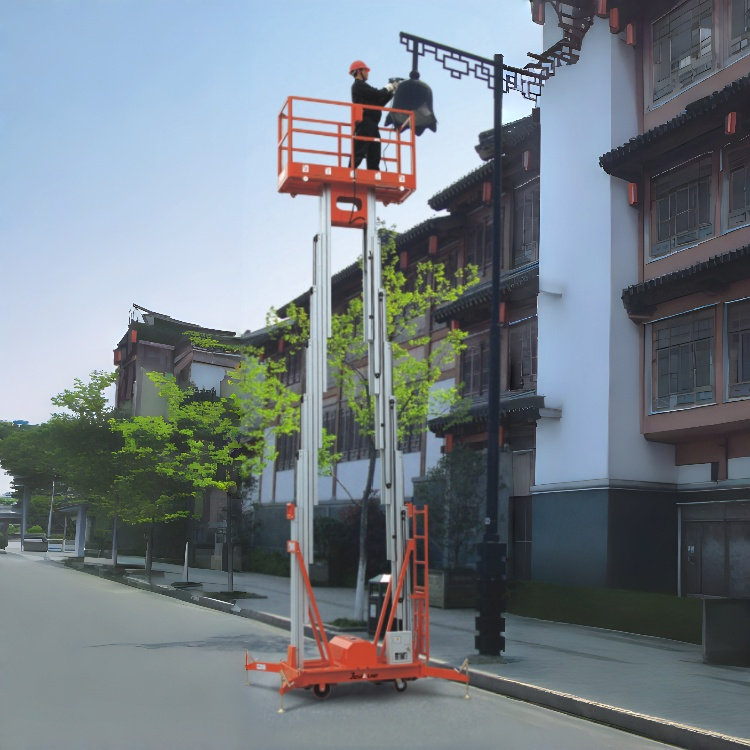

0.2-0.3Ton(440.92/661.39lb) 7.7-13.7M(25.26/44.95ft) Mobile Aluminium Work Platform(dual mast)
Max. Platform Height:6-12M(19.69/32.81ft)
Working Height:7.7-13.7M(25.26/44.95ft)
Max. Lift Capacity:0.2-0.3Ton(440.92/661.39lb)
Battery：2x12V/60Ah Lead-acid Battery
Description
Specification
| Parameters | Unit | AWP6-2000 | AWP8-2000 | AWP10-2000 | AWP12-2000 |
| Max. Platform Height | mm | 6000 | 8000 | 10000 | 12000 |
| Working Height | mm | 7700 | 9700 | 11700 | 13700 |
| Ground Clearance | mm | 80 | 80 | 80 | 80 |
| Lift Rated Capacity | kg | 300 | 300 | 250 | 200 |
| Platform Size | mm | 1500×600 | 1500X600 | 1620X600 | 1740×600 |
| Outspread Size | mm | 1950X1850 | 1950X1850 | 2130X1980 | 2550X2500 |
| Electrical Source | AC V | 220 | |||
| DC V | 24 | ||||
| Battery | v/Ah | 2×12/60 | |||
| Charger | v/A | 24/10 | |||
| Lifting Motor | v/kw | 220/1.5 | |||
| v/kw | 24/2.2 | ||||
| Overall Length | mm | 1550 | 1550 | 1670 | 1790 |
| Overall Width | mm | 900 | 900 | 900 | 900 |
| Overall Height | mm | 1970 | 1970 | 2070 | 2070 |
| Overall Net Weight | AC kg | 480 | 580 | 680 | 780 |
| DC kg | 510 | 610 | 710 | 810 | |
