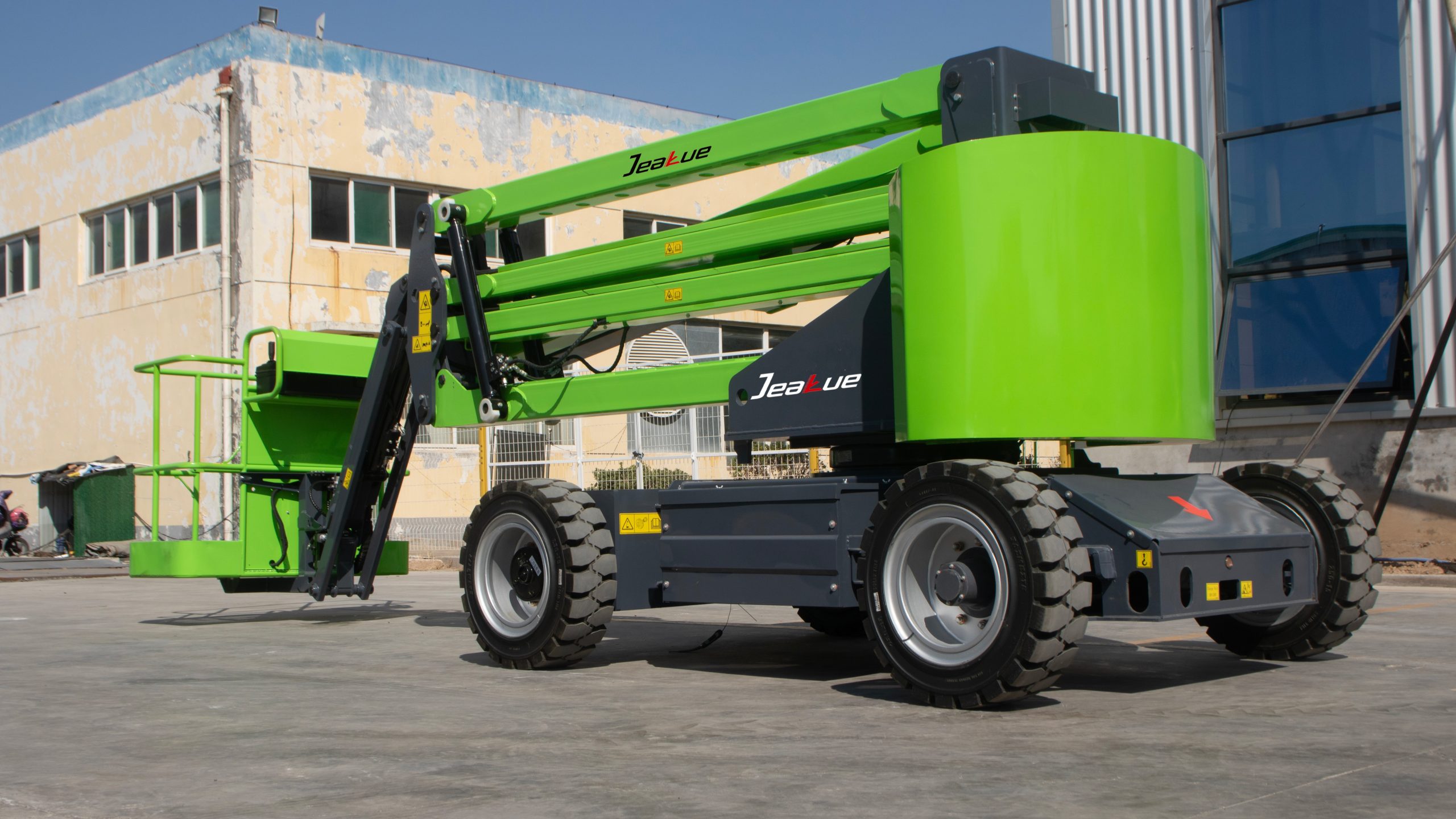

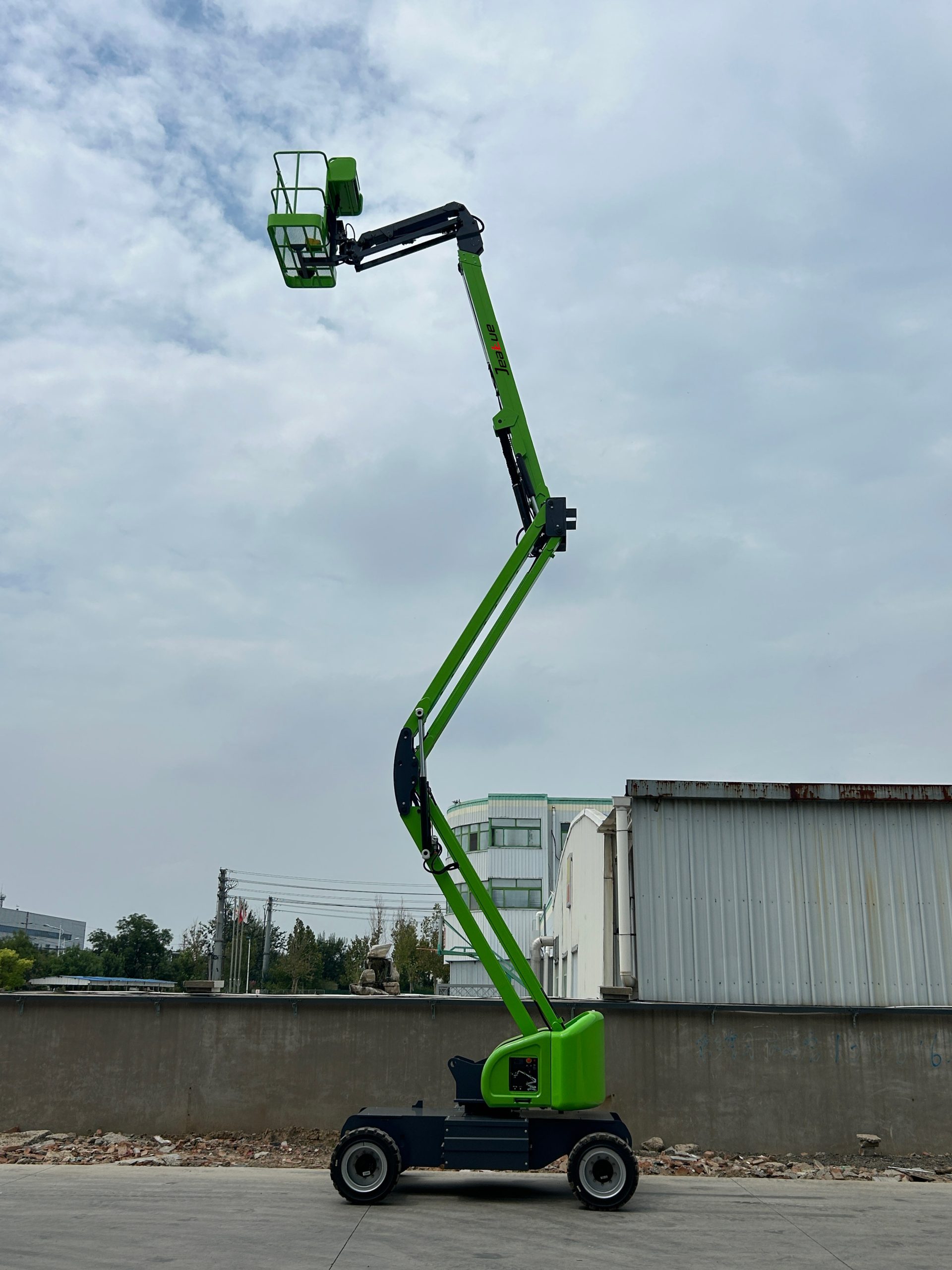

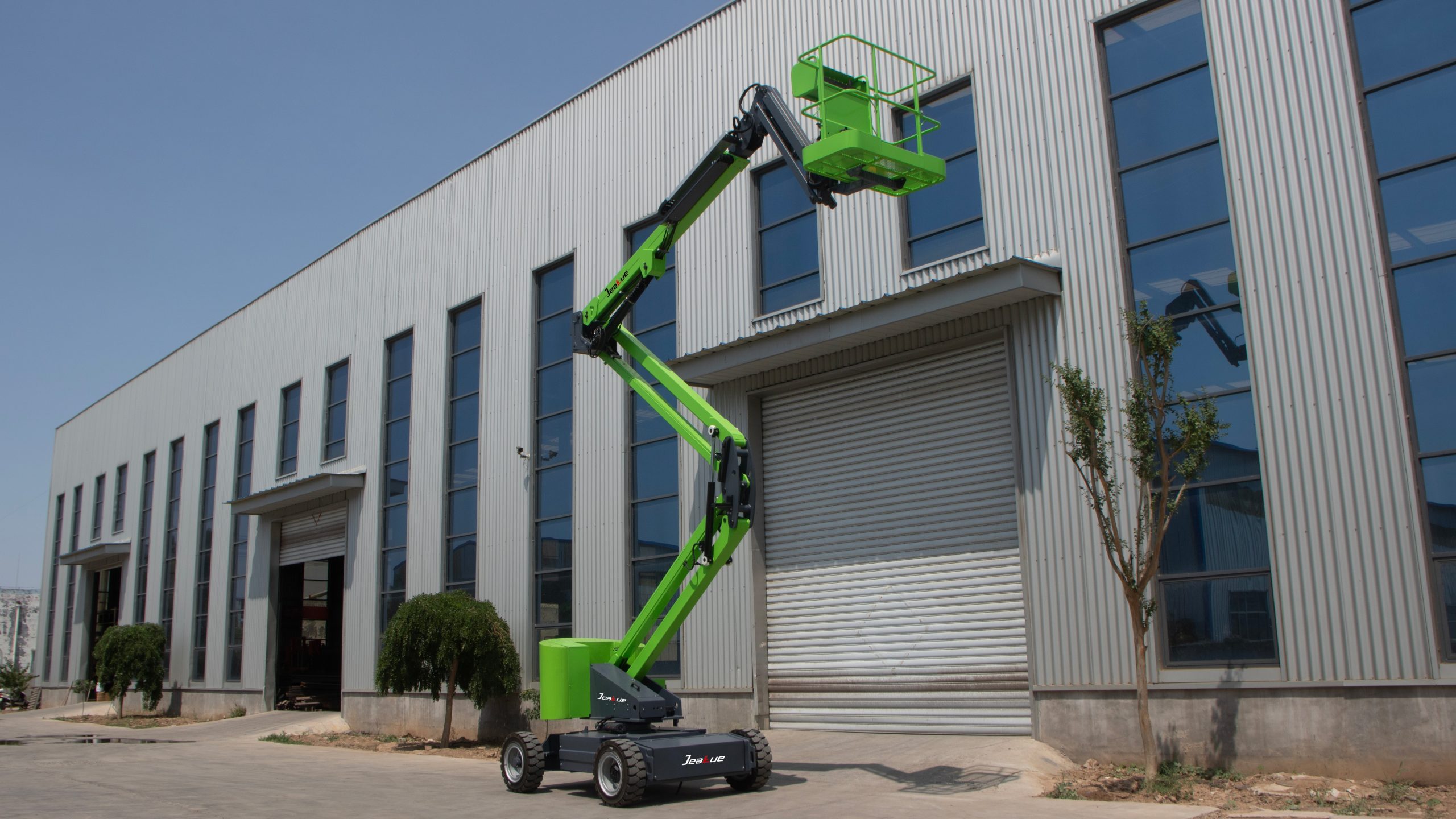

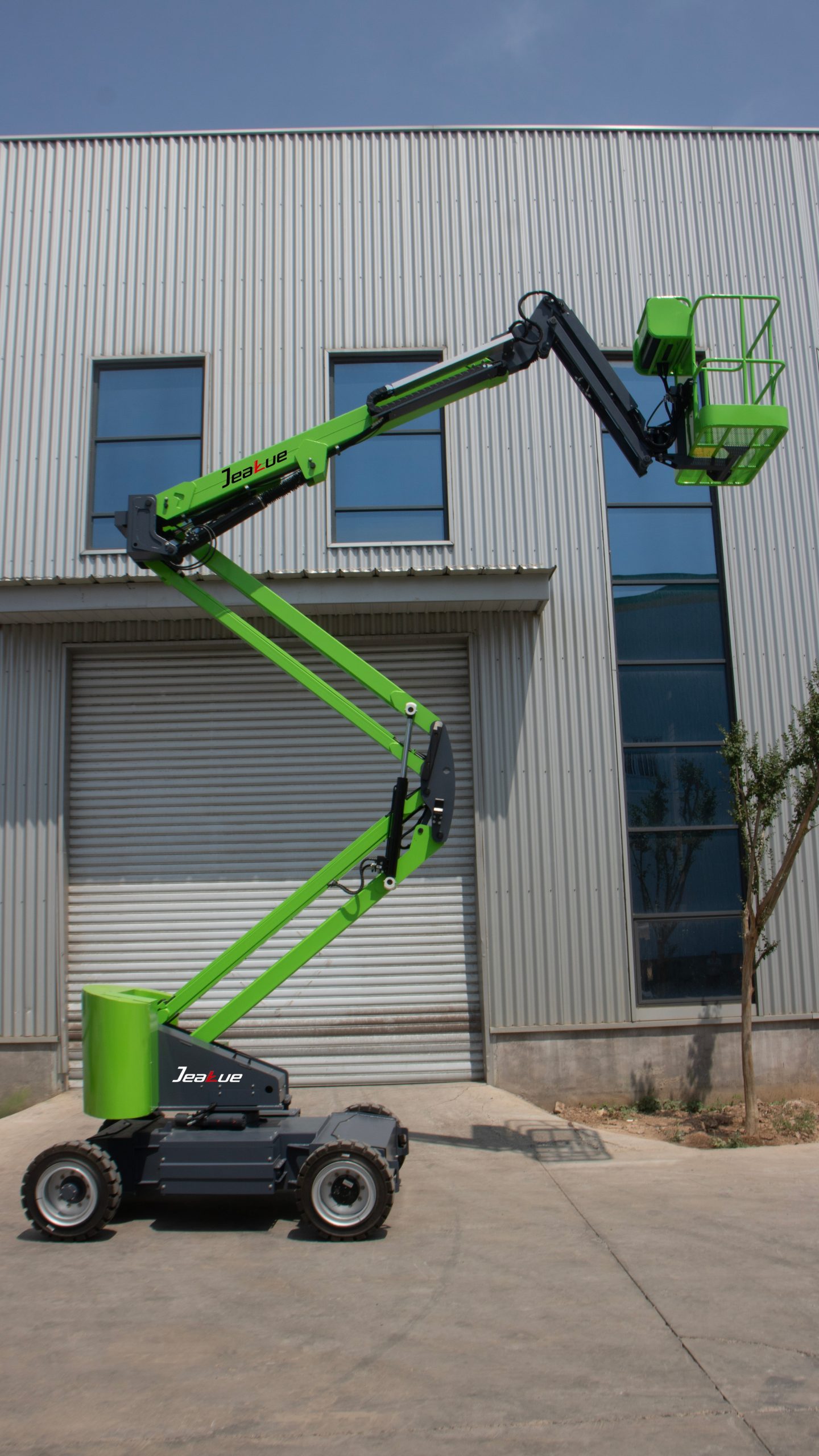

0.23 Ton(507.06 lb) 14.2-17.8M(46.59 ft/58.40 ft) Electric Articulating Boom Lift-V12/V14M/V16M
Max.Working Height:14.2-17.8M(46.59 ft/58.40 ft)
Max. Platform Height:12.2-15.8M(40.03 ft/51.84 ft)
Max. Lift Capacity:0.23 Ton(507.06 lb)
Description
Specifications
| Parameters | Value | ||
| Model | V12 | V14M | V16M |
| Max. Working Height | 14.2m | 15.8m | 17.8m |
| Max. Platform Height | 12.2m | 13.8m | 15.8m |
| Max. Up and Over Clearance | 6.2m | 7.1m | 7.6m |
| Max. Working Radius | 6.5m | 7.4m | 8.9m |
| Platform Dimensions (Length x Width) | 1.2*0.7m | 1.4*0.76m | 1.4*0.7m |
| Length-Stowed | 5.6m | 6.3m | 6.9m |
| Width | 1.68m | 1.95m | 2.2m |
| Height-Stowed | 1.98m | 2.0m | 2.1m |
| Wheelbase | 2.0m | 2.0m | 2.36m |
| Ground Clearance-Center | 0.25m | 0.25m | 0.32m |
| Max. Lift Capacity | 230kg | 230kg | 230kg |
| Platform Occupancy | 2 | 2 | 2 |
| Platform Rotation | / | ±80° | ±80° |
| Jib rotation | ±70° | ±70° | ±70° |
| Turntable Rotation | 355° | 355° | 355° |
| Drive Speed-Stowed | 5.0km/h | 5km/h | 5km/h |
| Gradeability-Stowed | 30% | 35% | 30% |
| Max. Working Angle | 3° | 3° | 3° |
| Turning Radius (outside) | 2.8m | 3.5m | 4.7m |
| Drive and Steer | 2×2 | 2×2 | 2×2 |
| Weight | 4320kg | 4860kg | 6300kg |
| Tire | 28*9-15 | 28*9-15 | 250-15 |
| Battery | 48V/220Ah | 48V/220Ah | 48V/300Ah |
| Pump Motor | 4kw | 4kw | 4kw |
| Drive Motor | 3.3kw | 3.3kw | 3.3kw |
| Control Voltage | 12V/24V | 12V/24V | 12V/24V |
| Charger | 48V/20A | 48V/20A | 48V/35A |
| Hydraulic Tank | 20L | 20L | 20L |
| Emergency Power System | 12V/24V | 12V/24V | 12V/24V |
| LFP Battery | optional | optional | optional |
| Solid Rough Terrain Tire | optional | optional | optional |
