0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20

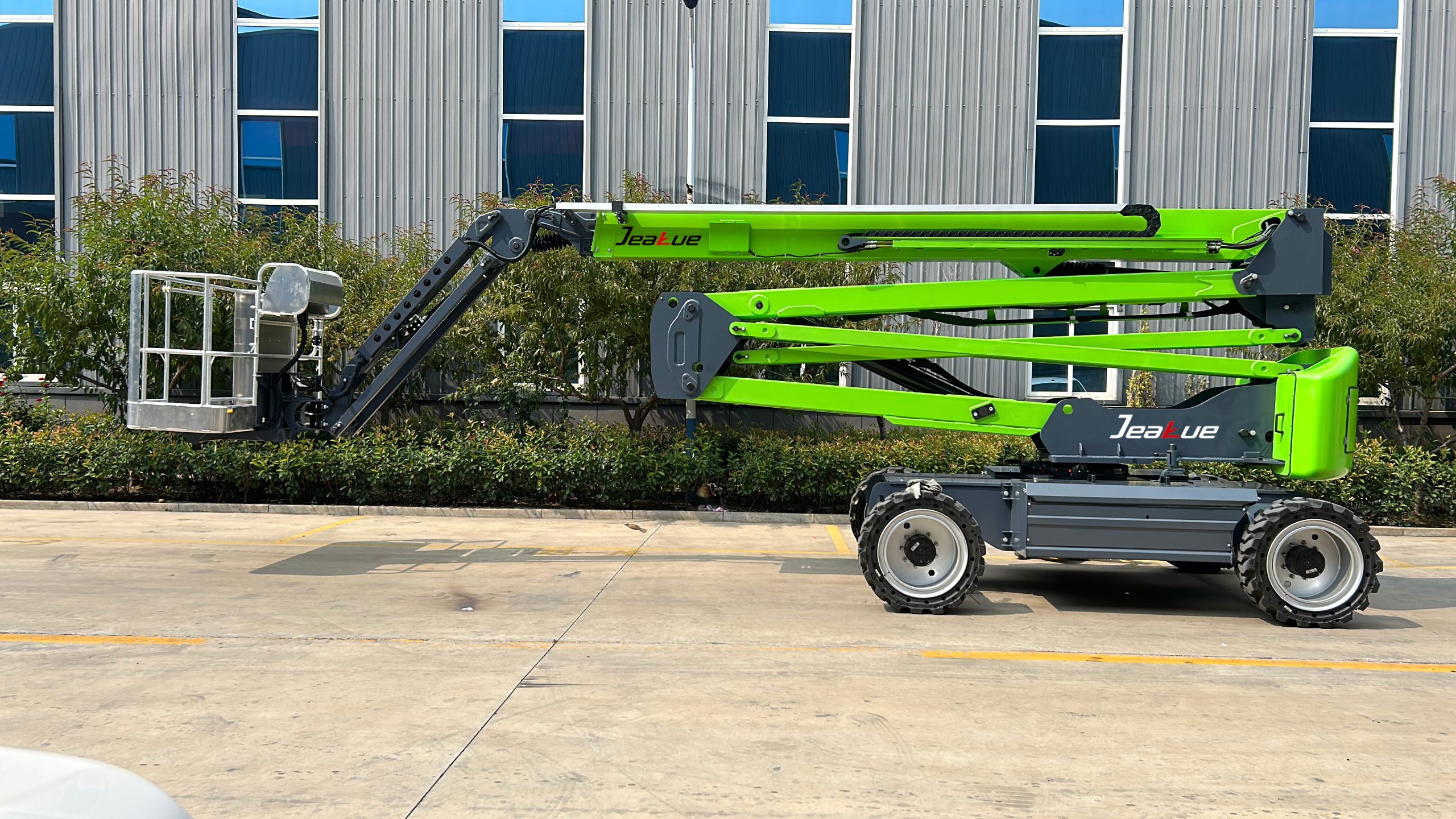

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20 - Image 2

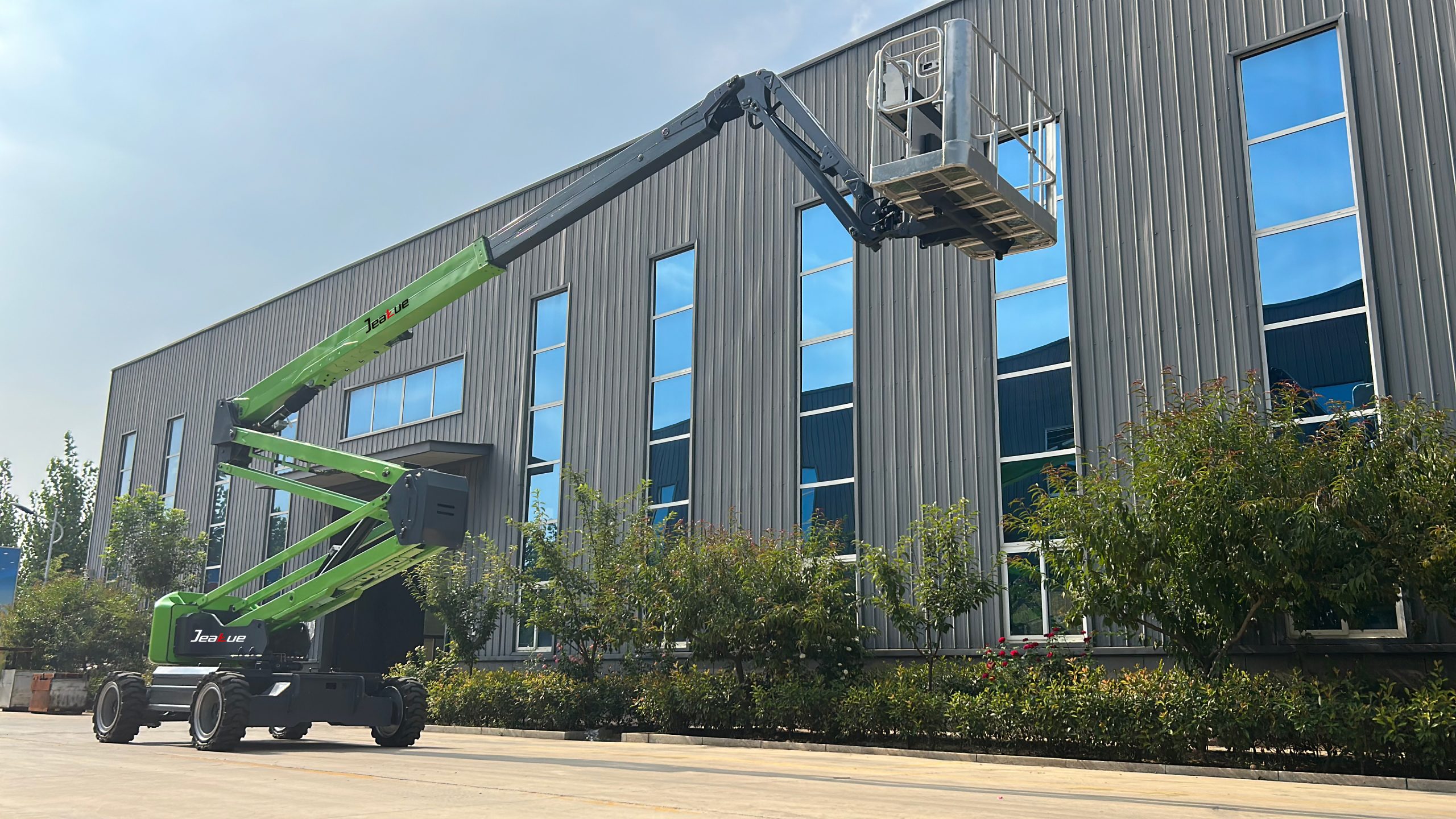

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20 - Image 3

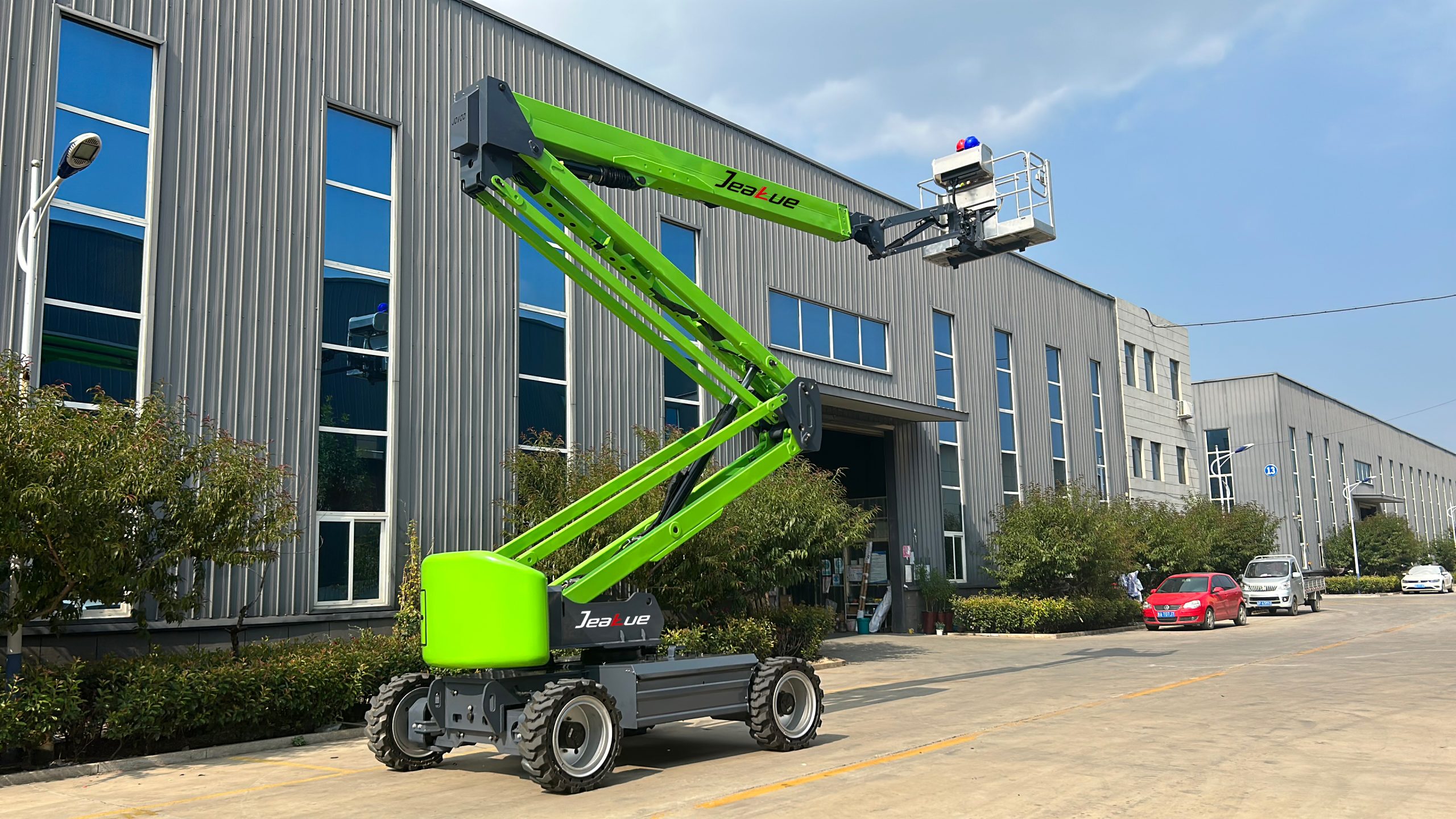

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20 - Image 4

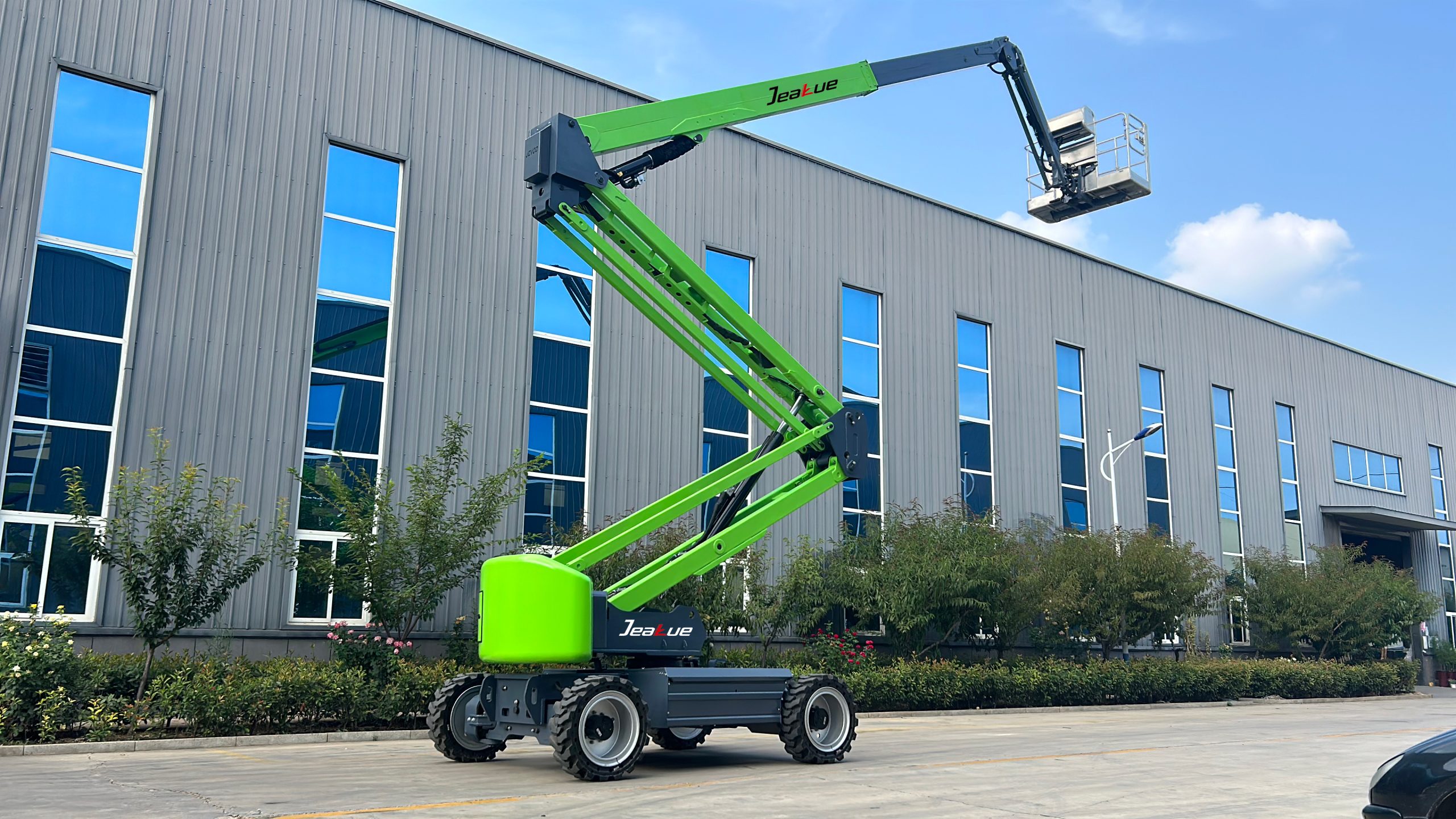

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20 - Image 5

0.23-0.35Ton(507.06 lb/771.62 lb) 20.2-22.5M(66.27 ft/73.82 ft) Electric Articulating Boom Lift-V18/V20

Max.Working Height:20.2-22.5M(66.27 ft/73.82 ft)

Max. Platform Height:18.2-20.5M(59.71 ft/67.26 ft)

Max. Lift Capacity:0.23-0.35Ton(507.06 lb/771.62 lb)

Categories: , ,

Add to quote

Description

Specifications

Parameters Value
Model V18 V20
Max. Working Height 20.2m 22.5m
Max. Platform Height 18.2m 20.5m
Max. Up and Over Clearance 8.0m 9.4m
Max. Working Radius 11.6m 11.8m
Platform Dimensions (Length x Width) 1.8*0.76m 1.8*0.76m
Length-Stowed 8.49m 8.49m
Width 2.49m 2.49m
Height-Stowed 2.38m 2.38m
Wheelbase 2.5m 2.5m
Ground Clearance-Center 0.3m 0.3m
Max. Lift Capacity 230kg (unrestricted)/350kg (restricted) 230kg (unrestricted)/350kg (restricted)
Platform Occupancy 2/3 2/3
Platform Rotation ±80° ±80°
Jib rotation ±70° ±70°
Turntable Rotation 360° continuous 360° continuous
Drive Speed-Stowed 5.0km/h 5.0km/h
Gradeability-Stowed 45% 45%
Max. Working Angle 5° 5°
Turning Radius (outside) 4.18m 4.18m
Drive and Steer 4×2 4×2
Weight 9100kg 10000kg
Tire 33×12-20 33×12-20
Battery 48V/400Ah 48V/400Ah
Pump Motor 10-12kw 10-12kw
Drive Motor 3.3kw 3.3kw
Control Voltage 12V 12V
Charger 48V/60A 48V/60A
Hydraulic Tank 105L 105L
Emergency Power System 12V 12V
LFP Battery optional optional
Solid Rough Terrain Tire optional optional

Boom Lift Series
Boom lift series offers platform height from 8 to 56 meters, with electric and diesel power developed onthe same platform, applicable for a wide range of aerial jobs. All of these boom lifts are suitable forstandard container transport.JEAKUE 0.23/0.35 Ton Electric Articulating Boom Lift-V18/V20

Electric Articulating Boom Lift
Electric Articulating Boom Lift has a maximum working height of 11.3 to 22.5 meters, with a maximum loadof 350kg. Its electric-powered and articulating boom design provide a sustainable and flexible solution foraccessing elevated areas. Lithium and Lead-acid batteries are optional based on your work need.JEAKUE 0.23/0.35 Ton Electric Articulating Boom Lift-V18/V20

Electric Telescopic Boom Lift
Electric Telescopic Boom Lift has a maximum working height of 18 to 28.3 meters, with a maximum loadof 450kg. LFP and LA batteries are optional for your work requirements. It has Strong four-wheel off-roadability to adapt to multiple terrains. Energy saving, zero-emission, and little maintenance cost.JEAKUE 0.23/0.35 Ton Electric Articulating Boom Lift-V18/V20

Towable Boom Lift
Towable Boom Lift has a maximum working height of 10 to 17.85 meters, with a maximum load of 200kg. Itis equipped with battery power, zero pollution and noise. The automatic leveling system ensures a stableand safe work condition.JEAKUE 0.23/0.35 Ton Electric Articulating Boom Lift-V18/V20

Crawler Spider Boom Lift
Spider Boom Lift has a maximum working height of 10 to 19.3 meters, with a maximum load of 200kg. Ithas compact design and light self weight for easy mobility and storage. Flexible turning ability providesprecise positioning and efficient work. The durable rubber track is anti-skid and can walk through uneventerrains.JEAKUE 0.23/0.35 Ton Electric Articulating Boom Lift-V18/V20
