0.12-0.16Ton 8-14M Portable Type Aerial Work Platform-AMP-20/26/32/40
Load Capacity(kg):120-159 (264.55-350.54lb)
Working height max(m):8-10-12-14 (314.96-393.70-472.44-551.18in)
Weight standard(kg):355/405-400/440-427/477-554/595 (782.67/892.87-881.85/970.03-941.37/1051.61-1221.36/1311.70lb)
Description
Product Highlights
Easy transport
★The unique rear mast slide and lightweight design make this model easy to load into a light truck. Outrigger storage, wide forklift handling slots, transport fixing holes and crane lifting lug holes increase the convenience of transportation.
Sturdy mast and platform
★The sturdy aviation aluminum profile mast provides users with comfort and safety at any height.
Doorway passing ability and flexible maneuverability
★This series of models (except AMP40)can easily pass through standard doorways without tilting.
Closer working distance
★The compact X-shaped foot point allows the machine to get closer to the wall, so that the operator is only an arm’s length away from the work point.

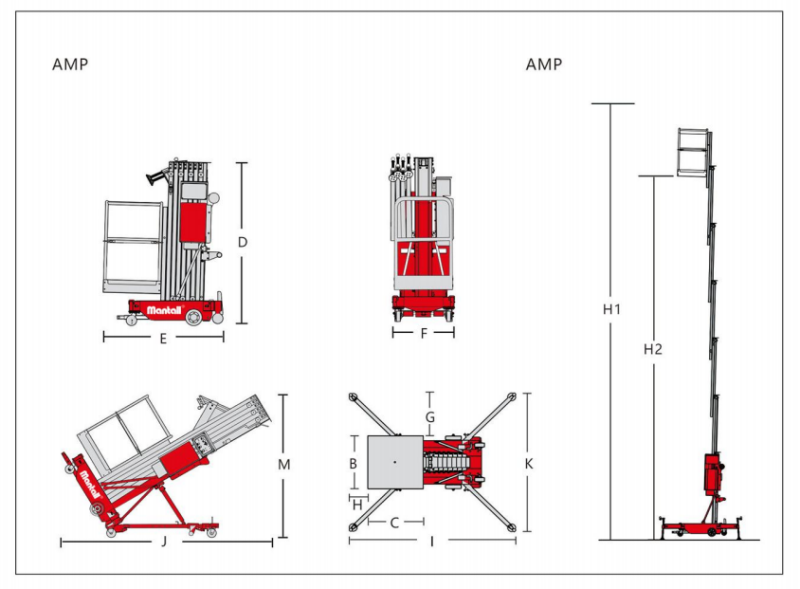

PRODUCT PARAMETERS
| Model | AMP-20 | AMP-26 | AMP-32 | AMP-40 |
| Working height max m (H1) | 8 | 10 | 12 | 14 |
| Platform height max m (H2) | 6 | 8 | 10 | 12 |
| Lift capacity kg | 159 | 159 | 159 | 120 |
| Basket size (B*C) m | 0.69×0.68 | 0.69×0.68 | 0.69×0.68 | 0.69×0.68 |
| Stowed size (E*F*D) m | 1.27*0.74*1.97 | 1.36*0.78*1.97 | 1.42*0.78*1.97 | 1.46*0.78*2.76 |
| Height, tilted back (M) m | – | – | – | 1.98 |
| Length, tilted back (J) m | – | – | – | 2.87 |
| Outrigger footprint (I*K) m | 1.77×1.49 | 1.77×1.49 | 1.99×1.72 | 2.27×1.98 |
| Wall access front/side (H*G) m | 0.18/0.45 | 0.18/0.45 | 0.23/0.55 | 0.42/0.65 |
| Power (AC/DC) | 220V/110V/12V | |||
| Weight (AC/DC) kg | 355/405 | 400/440 | 427/477 | 554/595 |
Standard Features
| Aluminum platform basket | Lower beeper warning |
| Polyurethane non-mark tyres | Tilt device (only for AMP40) |
| Leverage ro-ro device | Maintenance-free Battery |
| Lifting ears | Emergency Lower Down |
| Two controls: platform control and ground control | Outrigger storage frame |
Options Features
| Door type standard/ narrow platform | Tool box |
| Fiber glass platform | Top limit protection auto-stop device |
| DC power | Working Flashing Light |
| Staircase bracket | Equipment protection cover |
