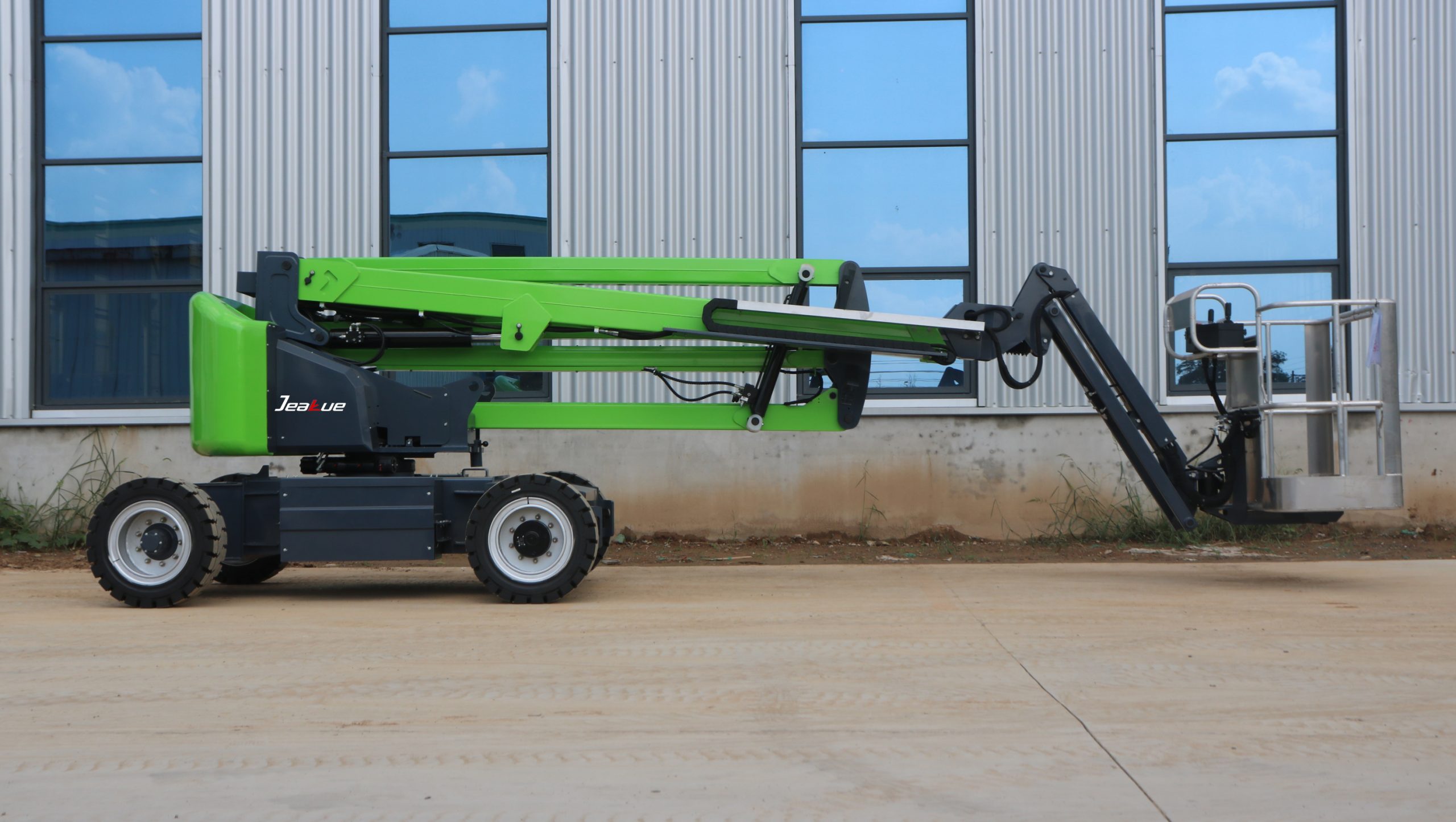

0.23Ton(507.06 lb) 15.8-17.7M(51.84 ft/58.07 ft) Electric Articulating Boom Lift-V14/V16
Max.Working Height:15.8-17.7M(51.84 ft/58.07 ft)
Max. Platform Height:13.8-15.7M(45.28 ft/51.51 ft)
Max. Lift Capacity:0.23Ton(507.06 lb)
Description
Specifications
| Parameters | Value | |
| Model | V14 | V16 |
| Max. Working Height | 15.8m | 17.7m |
| Max. Platform Height | 13.8m | 15.7m |
| Max. Up and Over Clearance | 7.0m | 7.5m |
| Max. Working Radius | 7.5m | 8.9m |
| Platform Dimensions (Length x Width) | 1.4*0.7m | 1.4*0.7m |
| Length-Stowed | 6.5m | 7.2m |
| Width | 1.76m | 1.90m |
| Height-Stowed | 2.0m | 2.0m |
| Wheelbase | 2.0m | 2.0m |
| Ground Clearance-Center | 0.25m | 0.25m |
| Max. Lift Capacity | 230kg | 230kg |
| Platform Occupancy | 2 | 2 |
| Platform Rotation | ±80° | ±80° |
| Jib rotation | ±70° | ±70° |
| Turntable Rotation | 355° | 355° |
| Drive Speed-Stowed | 5.0km/h | 5.0km/h |
| Gradeability-Stowed | 35% | 30% |
| Max. Working Angle | 3° | 3° |
| Turning Radius (outside) | 2.83m | 2.97m |
| Drive and Steer | 2×2 | 2×2 |
| Weight | 5960kg | 6630kg |
| Tire | 250-15 | 250-15 |
| Battery | 48V/300Ah | 48V/300Ah |
| Pump Motor | 4kw | 4kw |
| Drive Motor | 3.3kw | 3.3kw |
| Control Voltage | 24V | 24V |
| Charger | 48V/35A | 48V/35A |
| Hydraulic Tank | 20L | 20L |
| Emergency Power System | 24V | 24V |
| LFP Battery | optional | optional |
| Solid Rough Terrain Tire | optional | optional |
Boom Lift Series
Boom lift series offers platform height from 8 to 56 meters, with electric and diesel power developed onthe same platform, applicable for a wide range of aerial jobs. All of these boom lifts are suitable forstandard container transport.JEAKUE 0.23 Ton Electric Articulating Boom Lift-V14/V16
Electric Articulating Boom Lift
Electric Articulating Boom Lift has a maximum working height of 11.3 to 22.5 meters, with a maximum loadof 350kg. Its electric-powered and articulating boom design provide a sustainable and flexible solution foraccessing elevated areas. Lithium and Lead-acid batteries are optional based on your work need.JEAKUE 0.23 Ton Electric Articulating Boom Lift-V14/V16
Electric Telescopic Boom Lift
Electric Telescopic Boom Lift has a maximum working height of 18 to 28.3 meters, with a maximum loadof 450kg. LFP and LA batteries are optional for your work requirements. It has Strong four-wheel off-roadability to adapt to multiple terrains. Energy saving, zero-emission, and little maintenance cost.JEAKUE 0.23 Ton Electric Articulating Boom Lift-V14/V16
Towable Boom Lift
Towable Boom Lift has a maximum working height of 10 to 17.85 meters, with a maximum load of 200kg. Itis equipped with battery power, zero pollution and noise. The automatic leveling system ensures a stableand safe work condition.JEAKUE 0.23 Ton Electric Articulating Boom Lift-V14/V16
Crawler Spider Boom Lift
Spider Boom Lift has a maximum working height of 10 to 19.3 meters, with a maximum load of 200kg. Ithas compact design and light self weight for easy mobility and storage. Flexible turning ability providesprecise positioning and efficient work. The durable rubber track is anti-skid and can walk through uneventerrains.JEAKUE 0.23 Ton Electric Articulating Boom Lift-V14/V16
