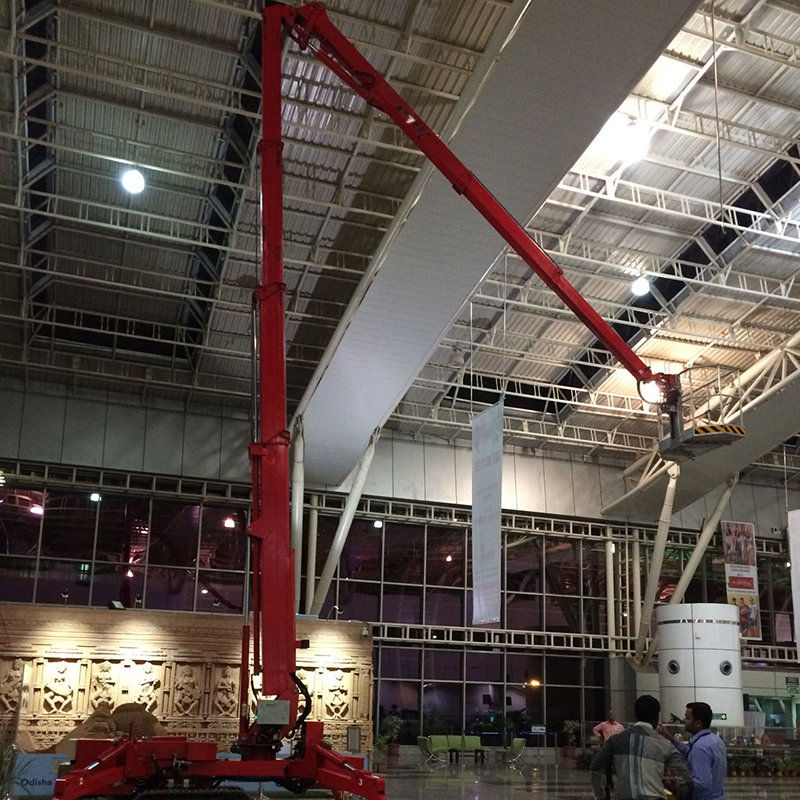

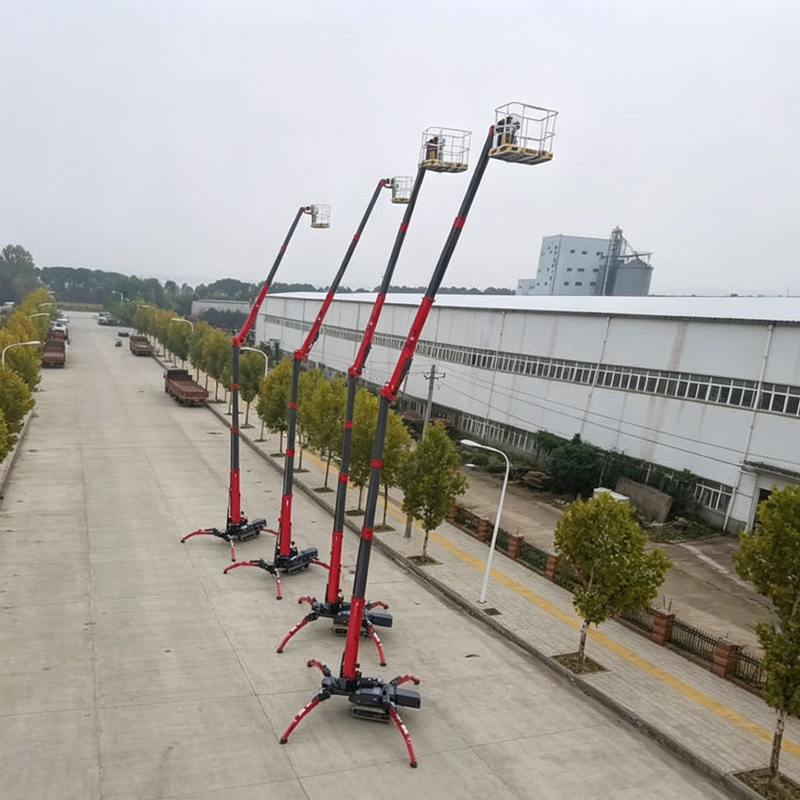

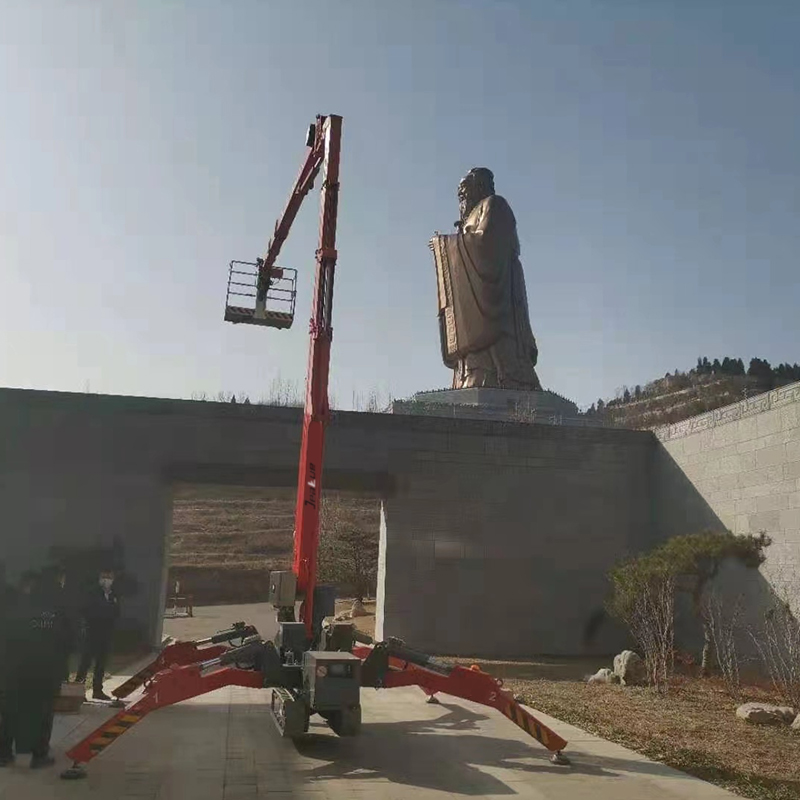

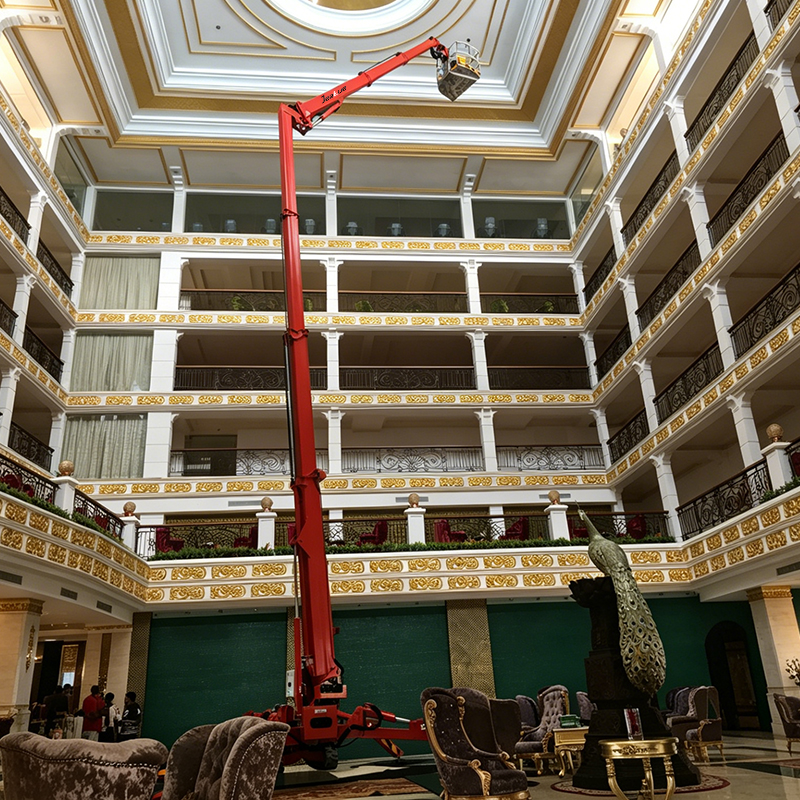

0.2 Ton Articulated Spider Lift – X24
Maximum Working Height: 24.00m
Maximum Working Radius: 22.00m
Safe Working Load: 200kg
Overall Weight: 3450kg
Description
| Parameter | Value |
|---|---|
| Model: | X24 |
| Max. Working Height: | 24.00 m |
| Max. Platform Height: | 22.00 m |
| Load Capacity: | 230 kg |
| Max. Horizontal Working Radius: | 10.60 m |
| Basket Rotation: | 180° |
| Turntable Rotation: | 360° non-continuous |
| Working Platform Size: | 0.9 × 0.8 × 1.1 m (customizable basket size) |
| Transport Length: | 4.62 / 5.46 m |
| Transport Width: | 0.83 m |
| Transport Height: | 1.95 m |
| Travel Speed: | 0–2.5 km/h (0–0.69 m/s) |
| Max. Working Slope: | 20% |
| Max. Climbing Gradient: | 30% |
| Total Weight: | 3450 kg |
| Power: | 14.9 kW |
| Electric Motor: | 220 V, 2.2 kW |
