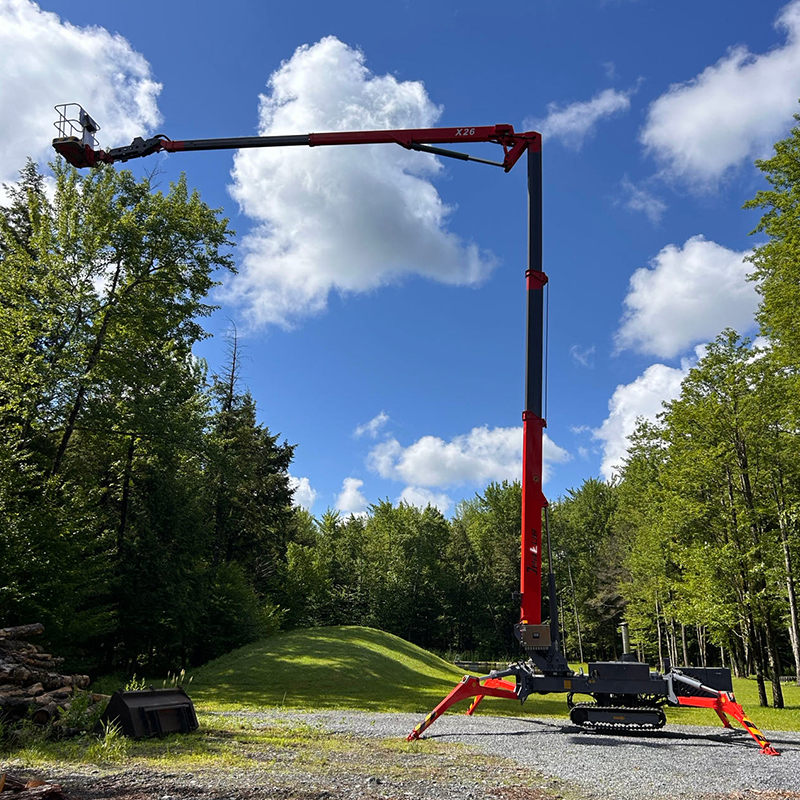

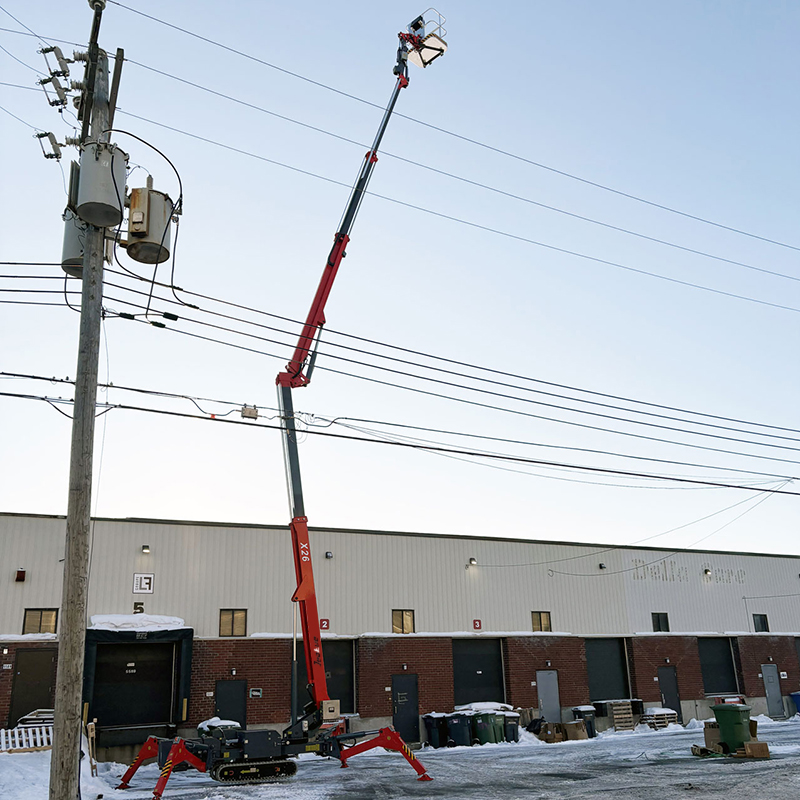

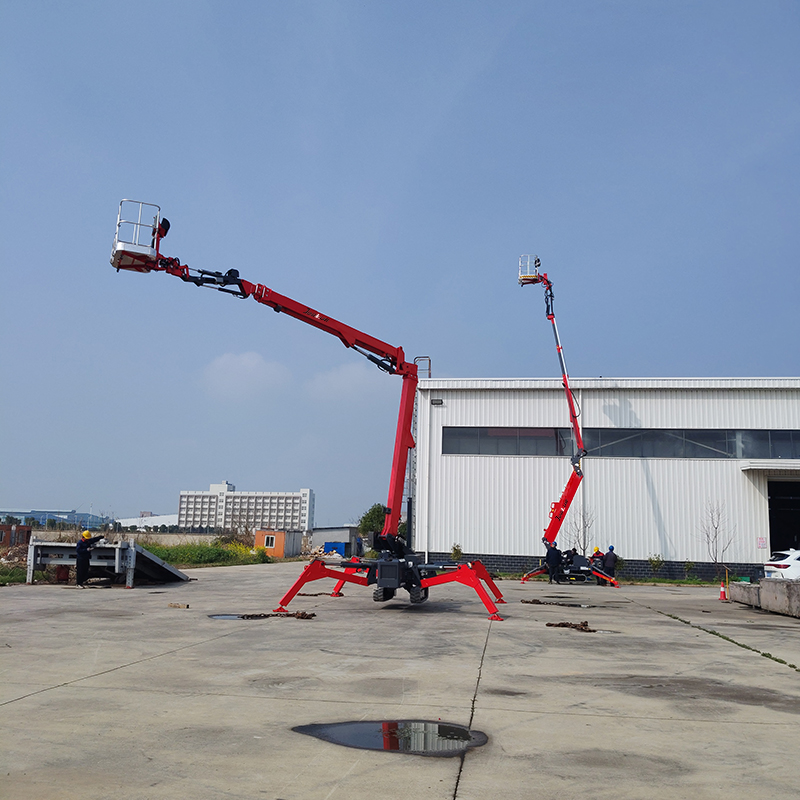

0.23 Ton Articulated Spider Lift – X26
Maximum Working Height: 26.00m
Maximum Working Radius: 14.00m
Safe Working Load: 230kg
Overall Weight: 3980kg
Description
| Parameter | Value |
|---|---|
| Model: | X26 |
| Max. Working Height: | 26.00 m |
| Max. Platform Height: | 24.00 m |
| Load Capacity: | 230 kg |
| Max. Horizontal Working Radius: | 14.00 m |
| Basket Rotation: | 180° |
| Turntable Rotation: | 360° continuous / non-continuous |
| Working Platform Size: | 1.2/1.5 × 0.8 × 1.1 m (customizable basket size) |
| Transport Length: | 6.69 / 5.59 m |
| Transport Width: | 0.90 m |
| Transport Height: | 2.10 m |
| Travel Speed: | 0–2.0 km/h (0–0.55 m/s) |
| Max. Working Slope: | 20% |
| Max. Climbing Gradient: | 30% |
| Total Weight: | 3890 kg |
| Power: | 18.2 kW |
| Electric Motor: | 220 V, 2.2 kW |
