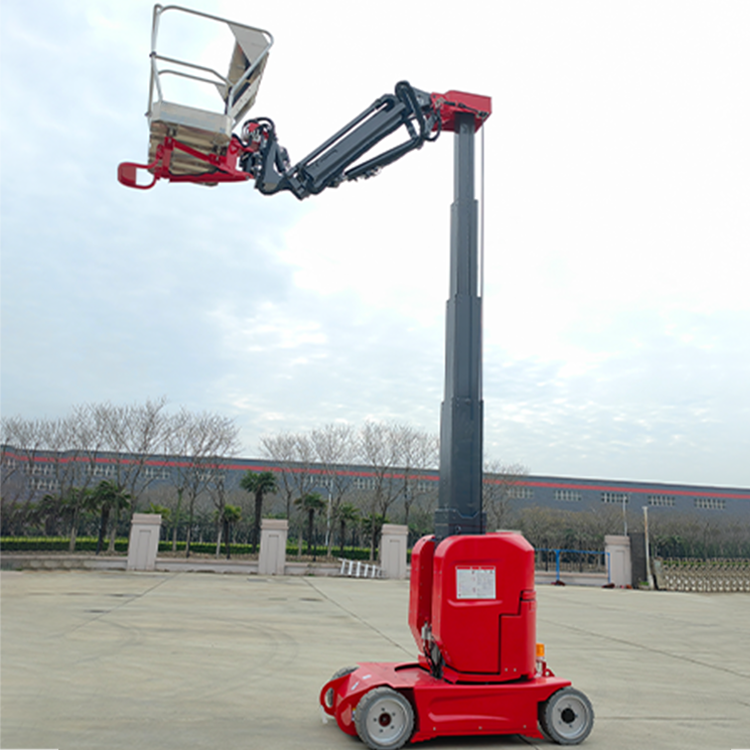

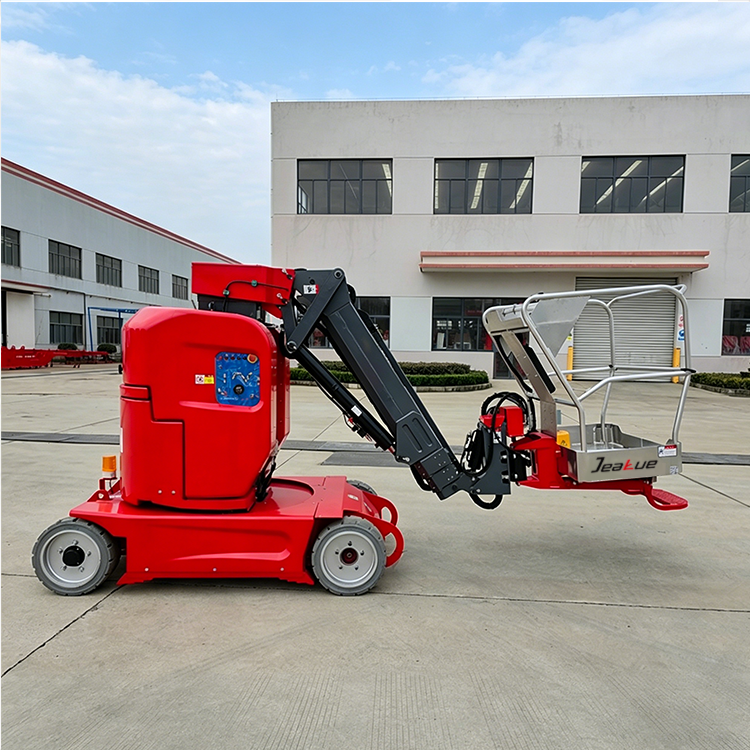

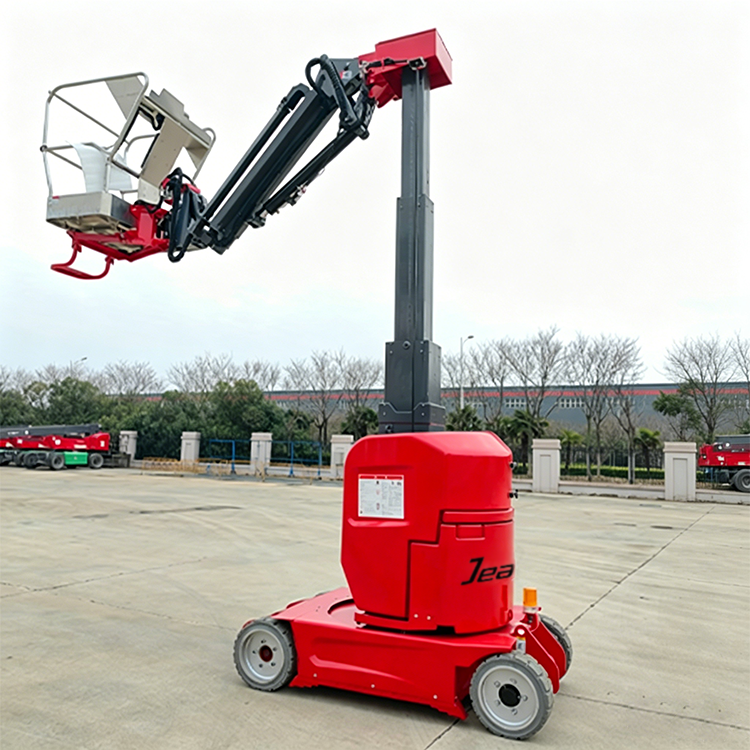

0.2Ton 12M Self-Propelled Aerial Work Platform-IMP-120J
Load Capacity(kg):200 (440.92(lb))
Working height max (m):12 (472.44(in))
Weight(kg):4770 (10516.05(lb))
Description
Product Highlights
★The IMP120J turntable can rotate 345 ° with zero tail swing, and the front section of the telescopic arm is equipped with a swing oil cylinder, which make the platform rotation range reach ± 45°, significantly increasing the user’s operating range.
★ Adopting AC motor drive greatly reduces maintenance costs for users.
★With 25% gradeability, it can drive 6 km/h and is easy to move and transport.
★Adopting a unique sleeve style design, the aluminum alloy platform railing, bidirectional control between platform and ground, lower down buzzer warning and emergency lower down switch.
PRODUCT PARAMETERS
| Model | IMP120J |
| Dimension | |

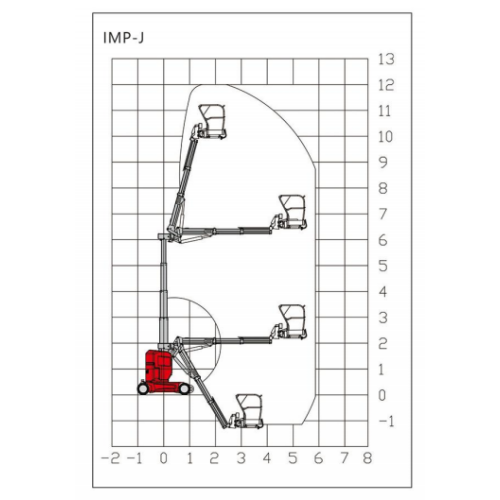

| Max. Working Height | 12m |
| Max Platform Height | 10m |
| Max Outreach (Restricted/Unrestricted) | 6m |
| Turntable rotation | 345°Non-continuous |
| Turntable tailswing | 0 |
| Jib swing | -60°/+75° |

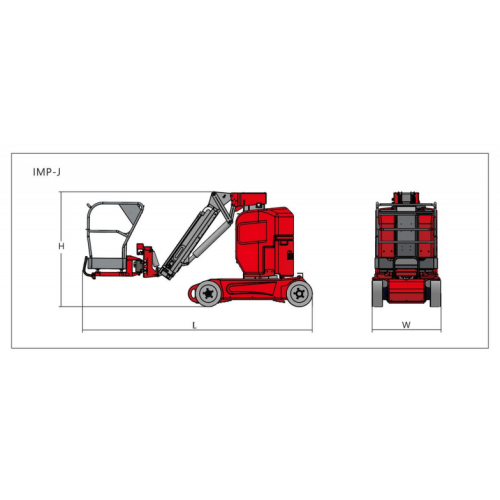

| Length (stowed)(L) | 4.03m |
| Width(stowed)(M) | 1.2m |
| Height (stowed)(H) | 1.99m |
| Wheelbase | 1.6m |
| Ground clearance | 0.07m |
| Ground clearance (deployed potholes) | 0.12m |
| Platform size (LW²H) | 1.1×0.8×1.1m |
| Performance | |
| Max. platform occupancy (indoor/Outdoor) | 2pers |
| Lift capacity | 200kg |
| Driving speed (stowed) | 6km/h |
| Driving speed (raised) | 0.7km/h |
| Gradeability | 25% |
| Turning radius (inside/outside) | 0.75/2.6m |
| Max. tilt(front to back/side to side | 2.5° |
| Tire specification/type | 457×178×308mm |
| Power | |
| Battery voltage/capacity | 48V/240Ah |
| Control voltage | 24V |
| Drive mode | 2WD×2WS |
| Charger input voltage | 220V |
| Charger output current | 40A |
| Hydraulic system volume | 40L |
| Weight | |
| Weight (indoor/outdoor) | 4770kg |
| Standard | GB/CE |
Standard Features
| Proportional control | Fault diagnosis system | Buzzer |
| Solid Non-marking Tires | Tilt sensor | Fixed Pothole guards |
| Emergency Lower down | Drive at full height | Overload sensor |
| Emergency stop button | Automatic braking system | Forklift and lifting holes |
Options Features
| Fiberglass Platform | Air line to platform |
| Motion alarm | GPS |
| Tool Box | Platform working light |
| Top Stop Sensor | Power socket to platform |
| Platform working light |
 |
 |
