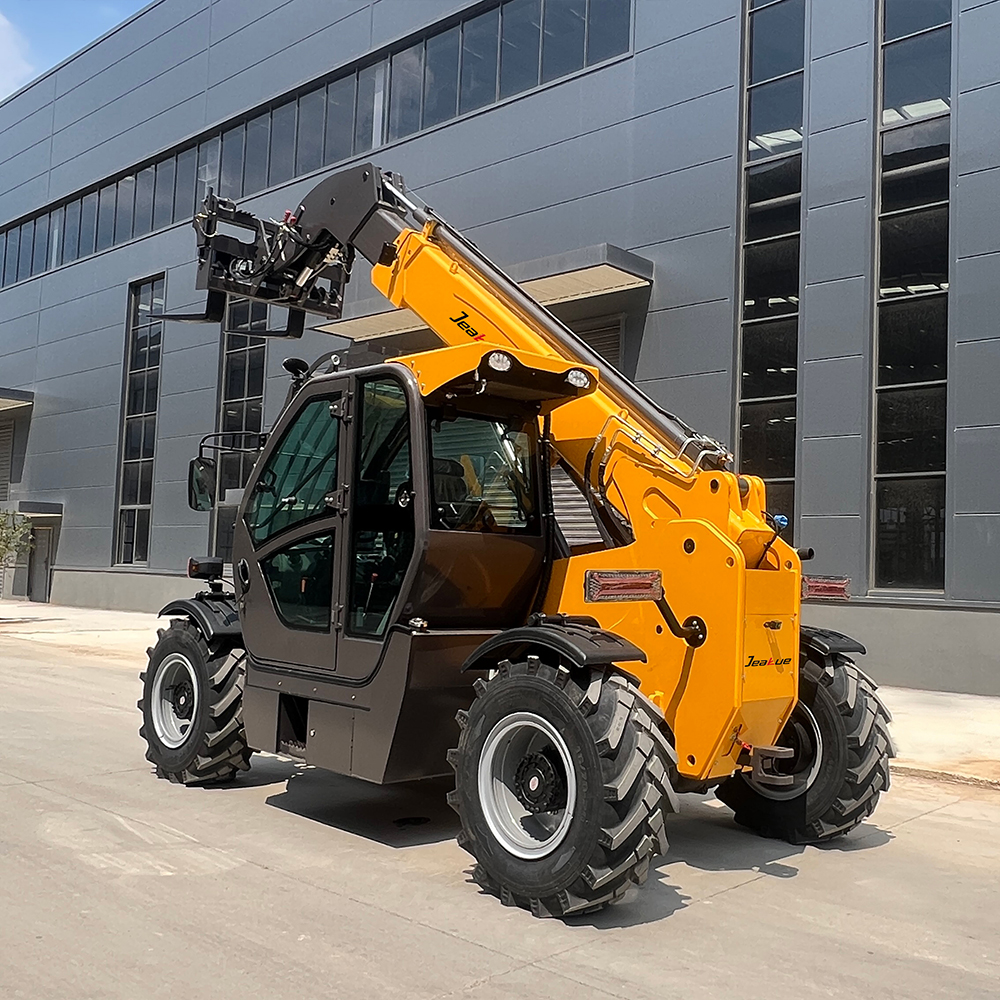

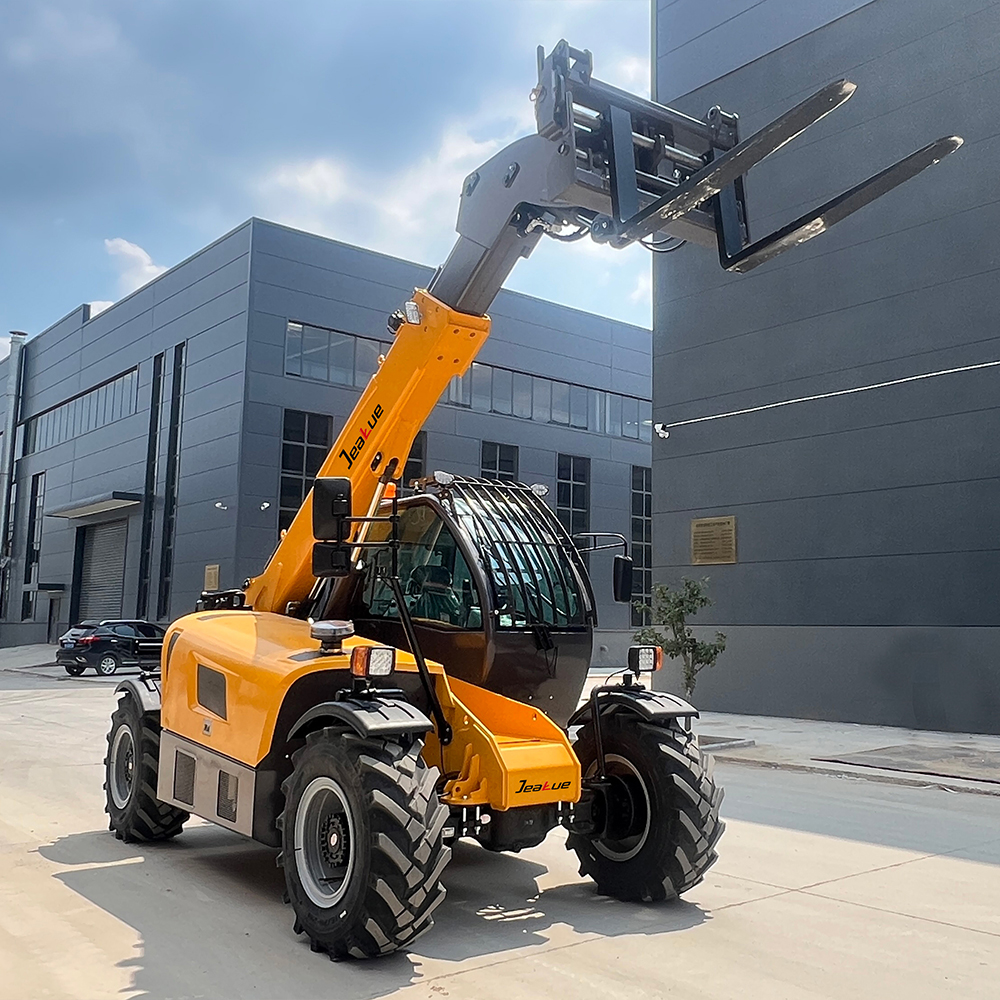

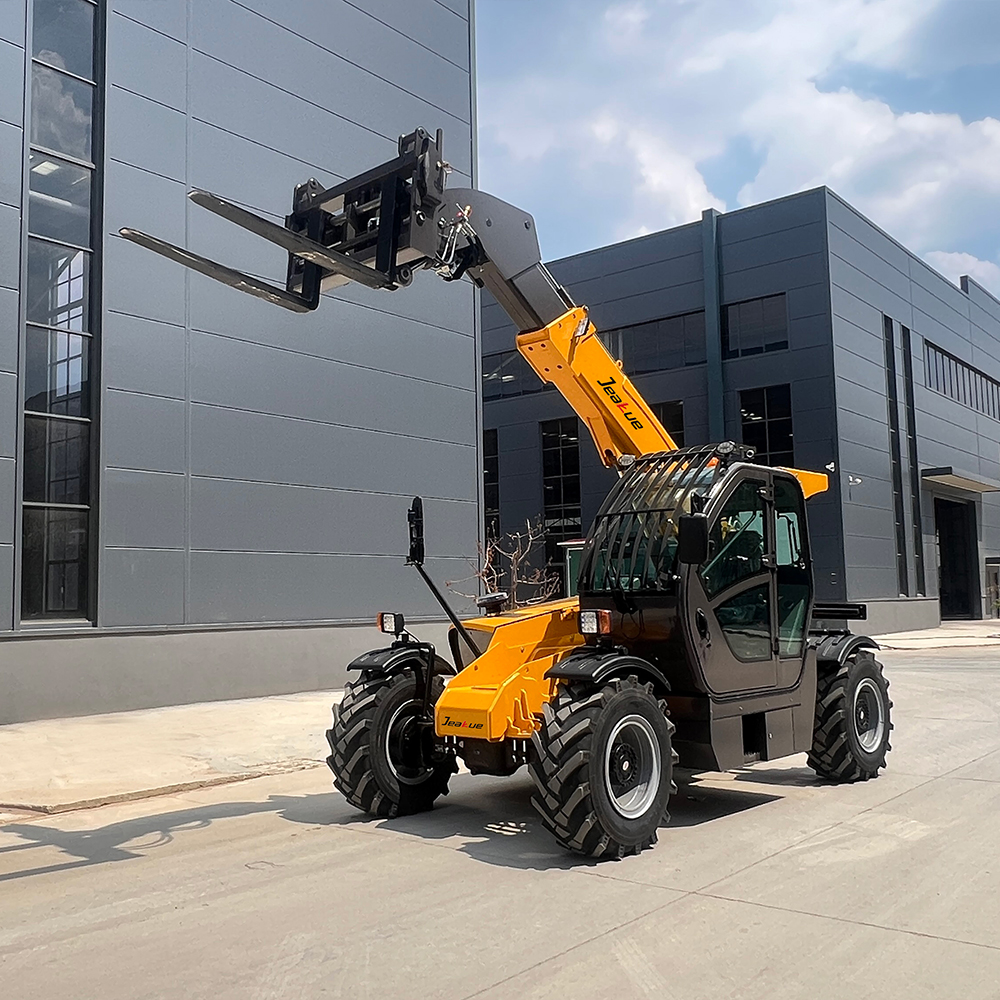

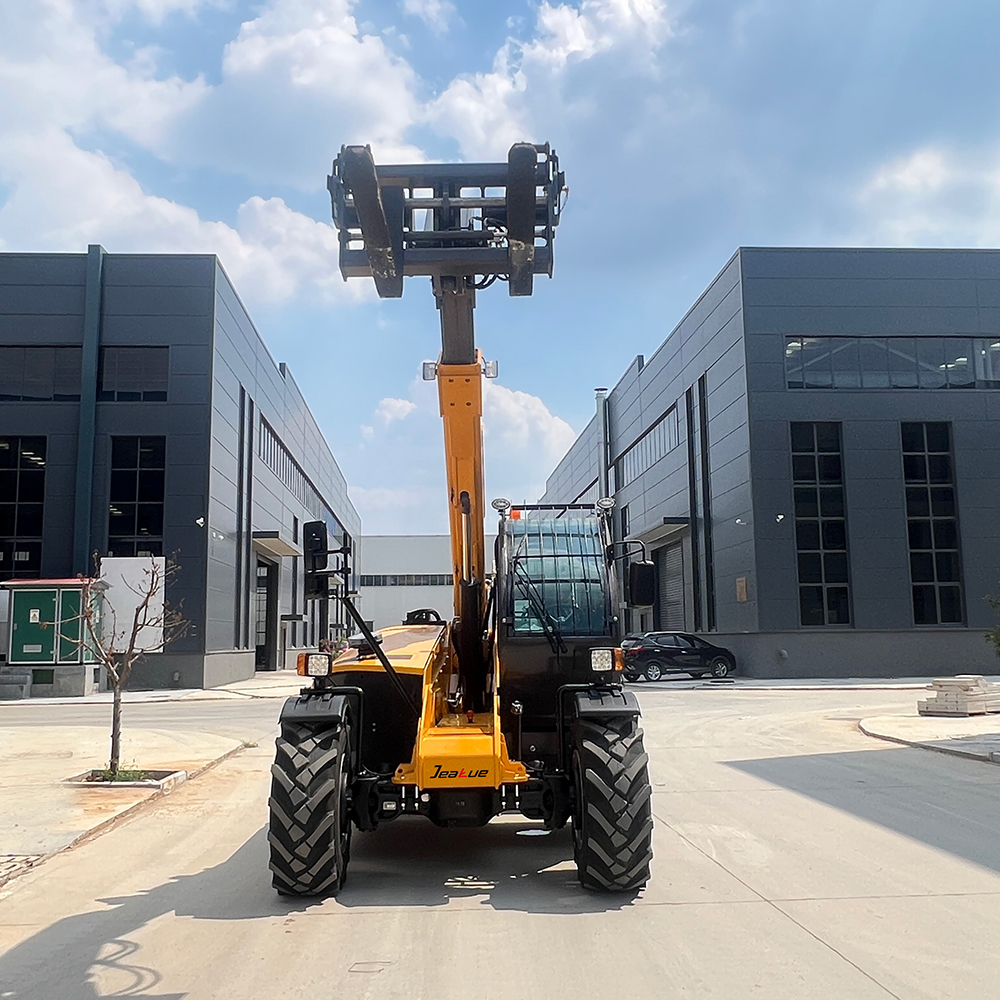

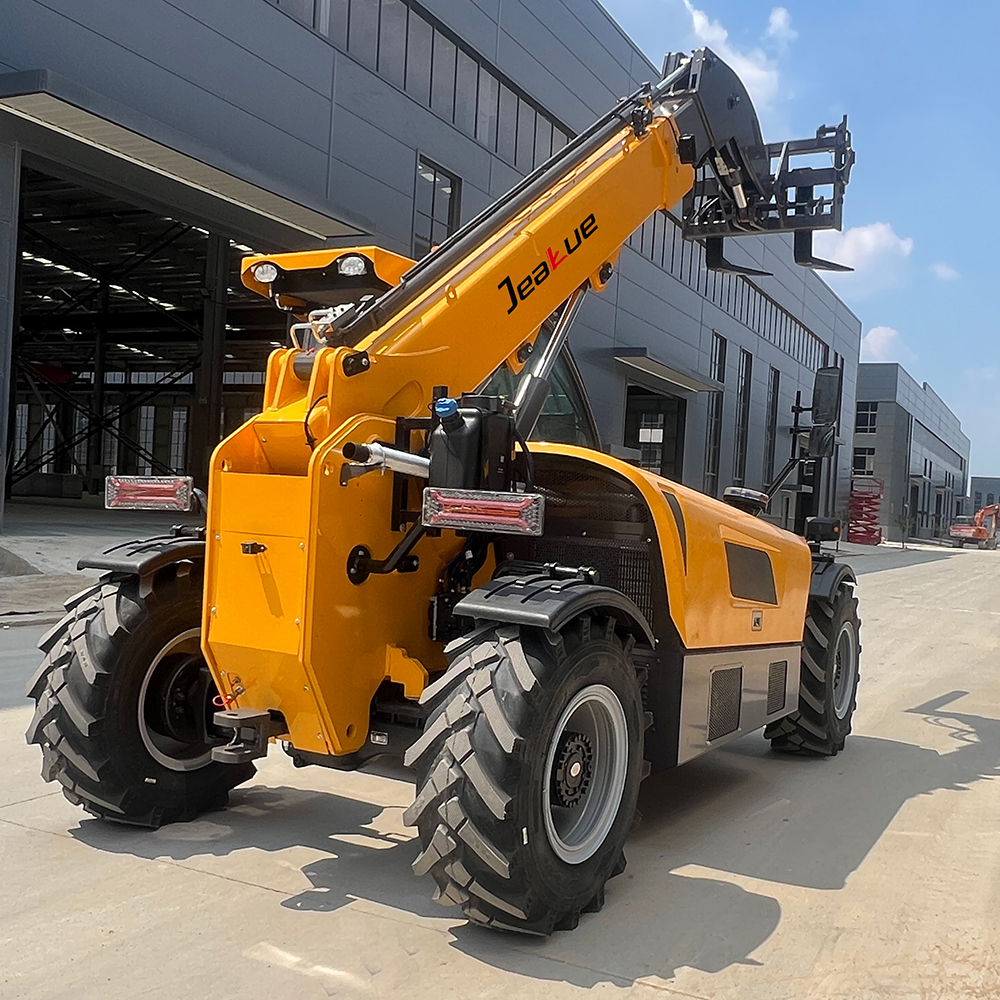

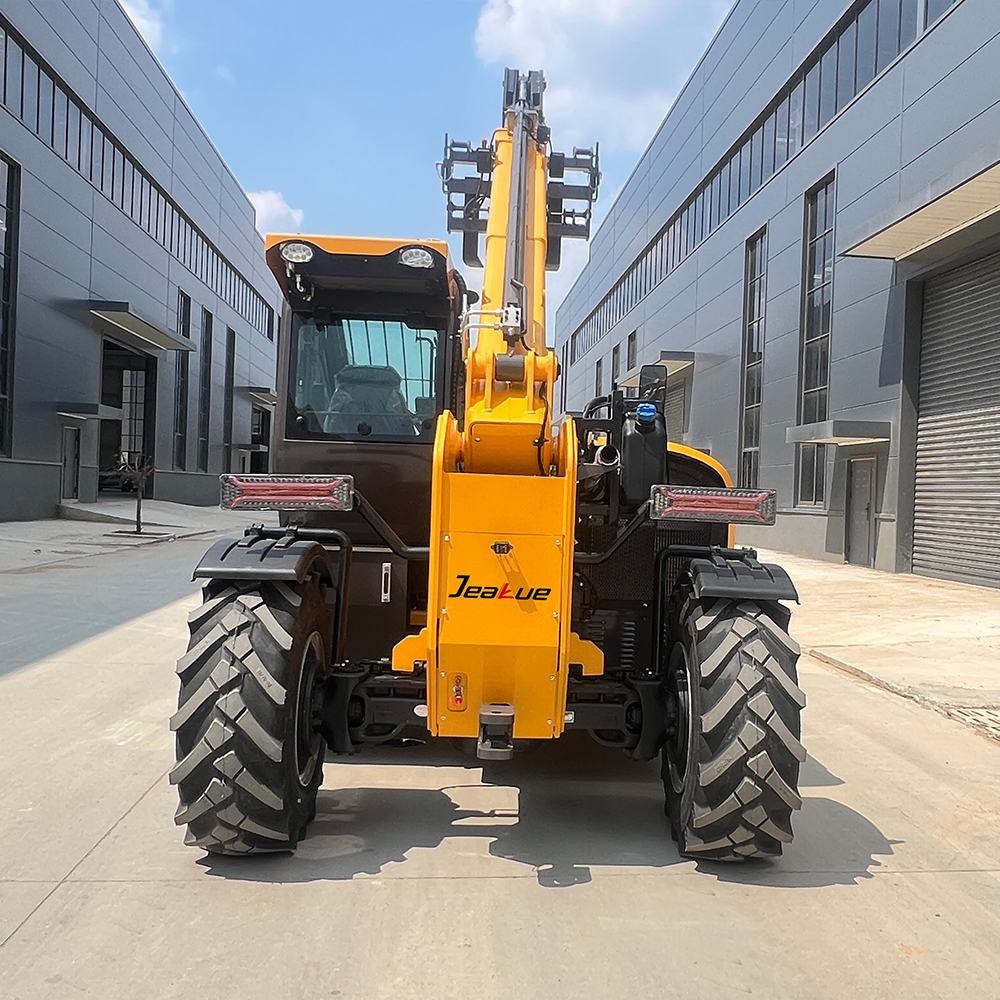

3.5 Ton Diesel Telehandler Forklift-T3507

3.5 Ton Diesel Telehandler Forklift-T3507 - Image 2

3.5 Ton Diesel Telehandler Forklift-T3507 - Image 3

3.5 Ton Diesel Telehandler Forklift-T3507 - Image 4

3.5 Ton Diesel Telehandler Forklift-T3507 - Image 5

Lifting height:7000mm
Rated load:3500Kg
Power:76Kw/103hp
Tyre:16/70-20 Pneumatic

Categories: -Diesel, –Material Handling, –Telehandlers

Add to quote

Description

Specification
Max. capacity	3500 kg
Max. lifting height	7.0 m
Max. outreach	3.2 m

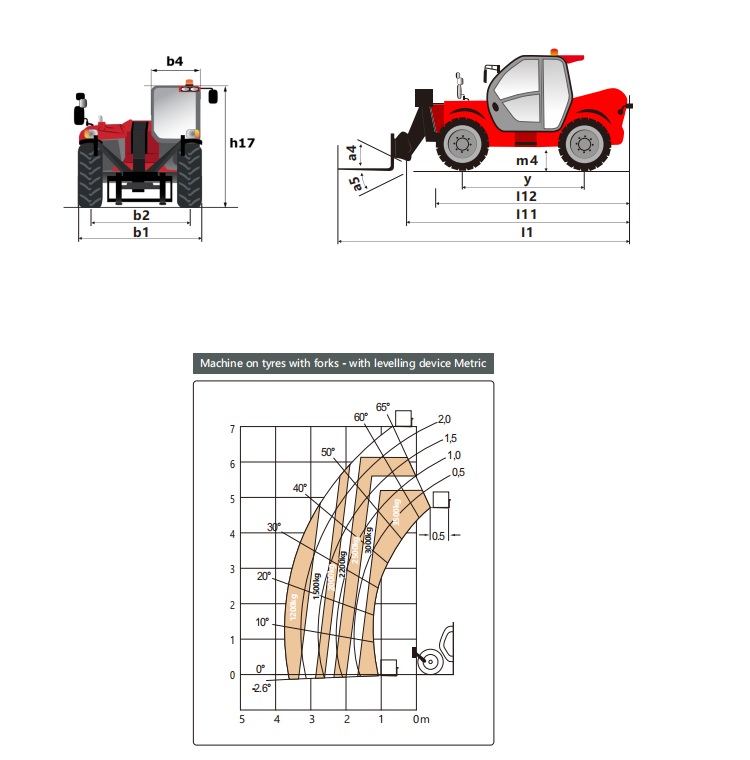

Overall length to carriage （l110)	4.65 m
Length to face of forks (l1)	5.87 m
Min transport size (l12)	4.35 m
Overall width (b1)	2.2 m
Track width (b2)	1.78 m
Overall height (h17)	2.55 m
Wheelbase (y)	3.15 m
Ground clearance (m4)	0.35 m
Overall cab width(b4)	0.84 m
Tilt-up angle(a4)	12 °
Tilt-down angle (a5)	114 °
External turning radius(over tyres)	4.25 m
Unladen weight(with fork)	7600 kg
Tires type	Pneumatic
Standard tires (l/e/s)	16/70 -20
Forks length/ width/ section	1220 mm x 125 mm / 50 mm
Lifting	10 s
Lowering	7 s
Extension	12 s
Retraction	8.6 s
Crowd	4.8 s
Dump	3.4 s
Engine brand	Yunnei (optional brand)
Engine norm	National II
Max. fuel sulphur content	5000 ppm
Engine model	YN38GBZ
Number of cylinders / Capacity of cylinders	4 – 4400 cm³
I.C. Engine power rating – Power	103 Hp / 76 kW
Max. torque / Engine rotation	400 Nm @ 1400 rpm
Drawbar pull (Laden)	10000 daN
Transmission type	Torque converter (optional hydrostatic)
Number of gears (forward / reverse)	2/2
Max. travel speed	35 km/h
Parking brake	Automatic air-cut brake(optional wet brake)
Service brake	immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump(optional piston pump)
Hydraulic flow	120L
Engine oil	5.5L
Hydraulic oil	170L
Fuel tank	195L
Noise at driving position (LpA)	82 dB
Noise to environment (LwA)	105 dB
Vibration on hands / arms	< 2.50 m/s²
Steering wheels (front / rear)	2/2
Drive wheels (front / rear)	2/2
Safety cab homologation	FOPS level 2 cab

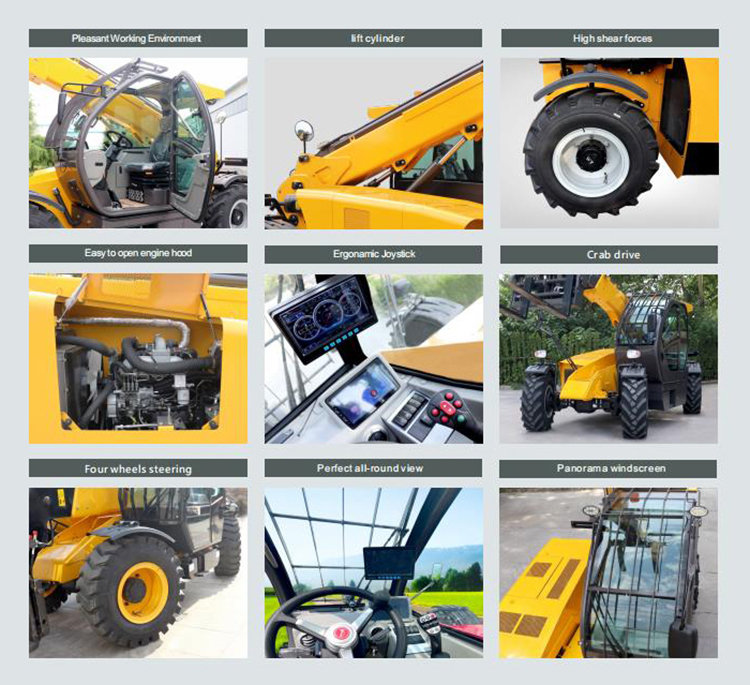

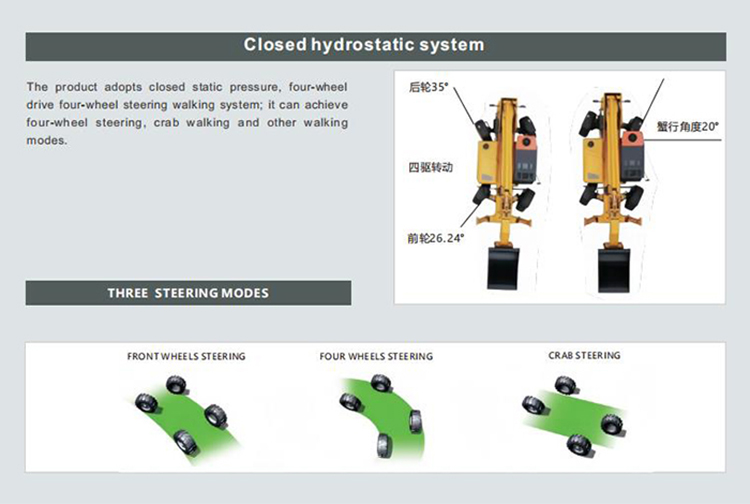

Closed hydrostatic system:The product adopts closed static pressure, four-wheeldrive four-wheel steering walking system; it can achieve four-wheel steering, crab walking and other walking modes.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3507

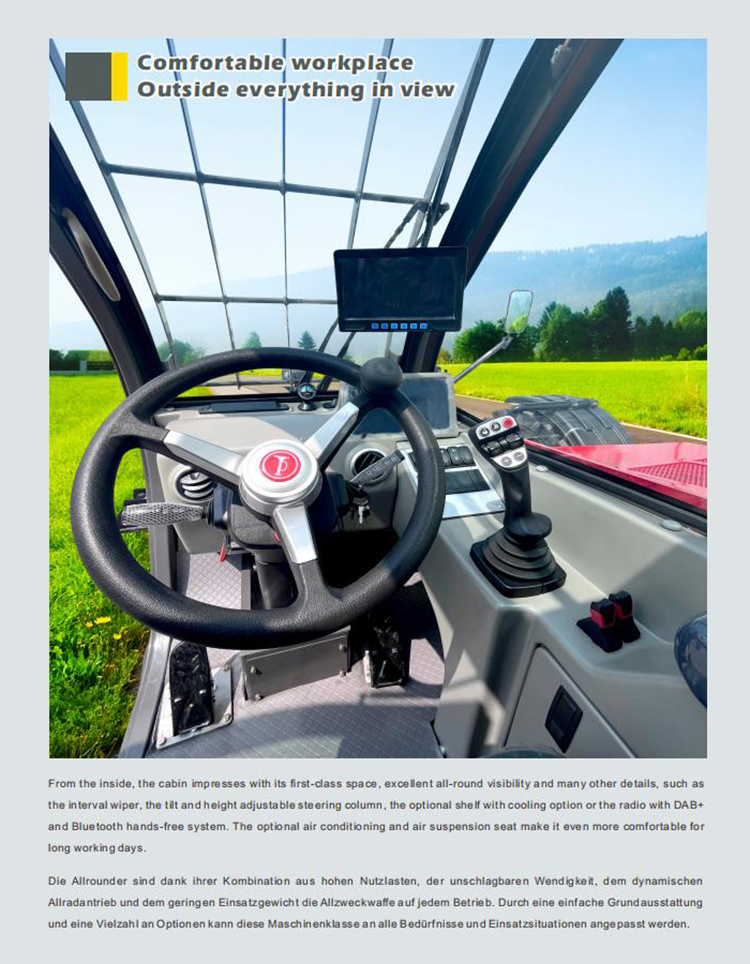

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3507
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3507
