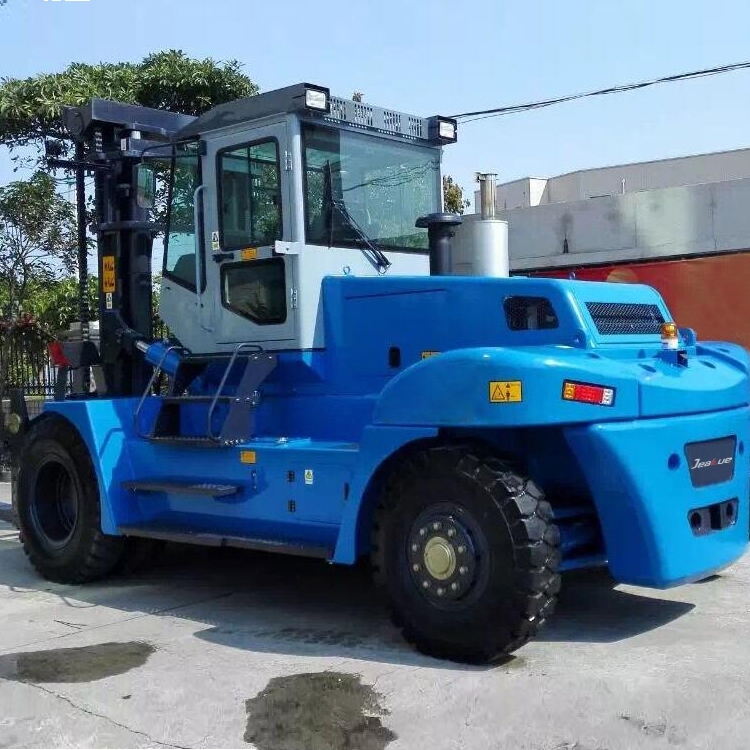

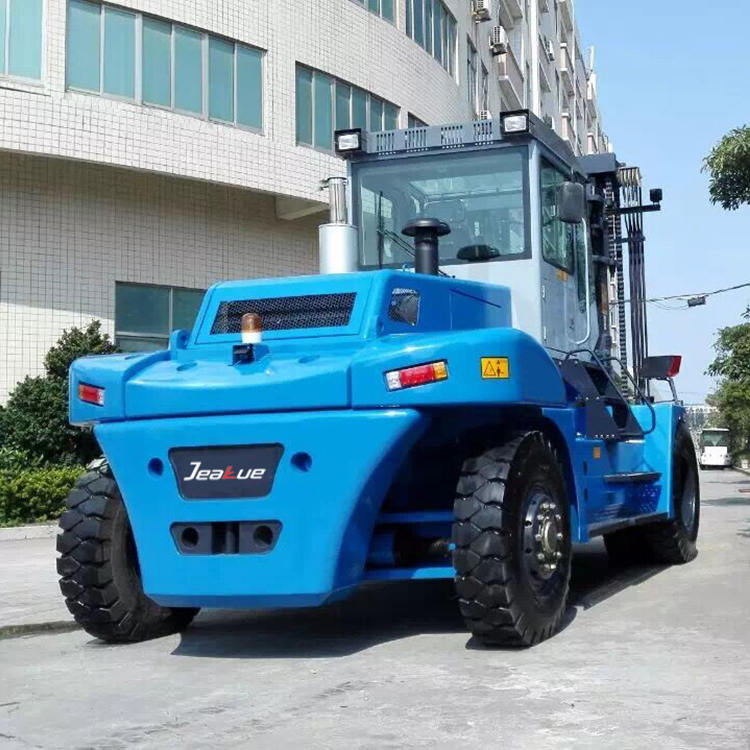

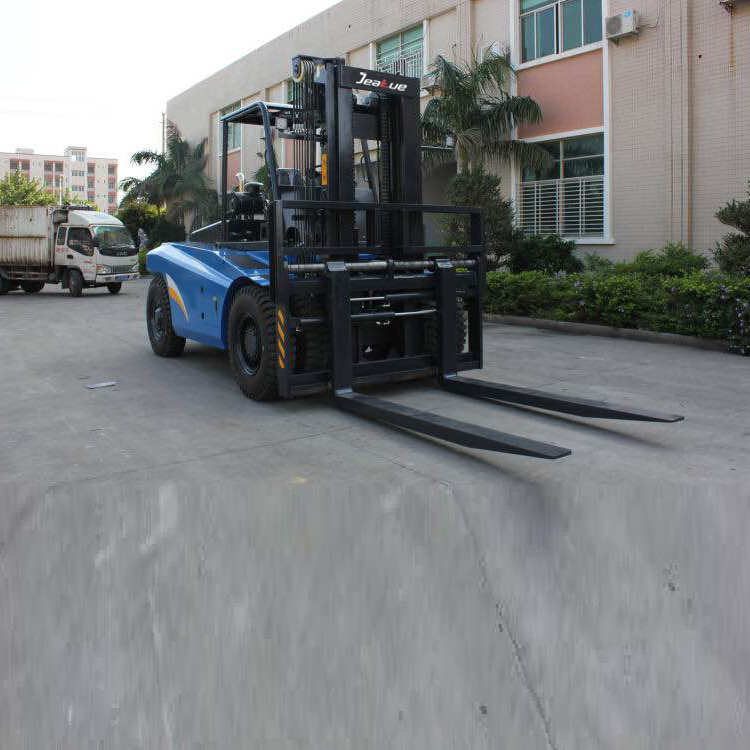

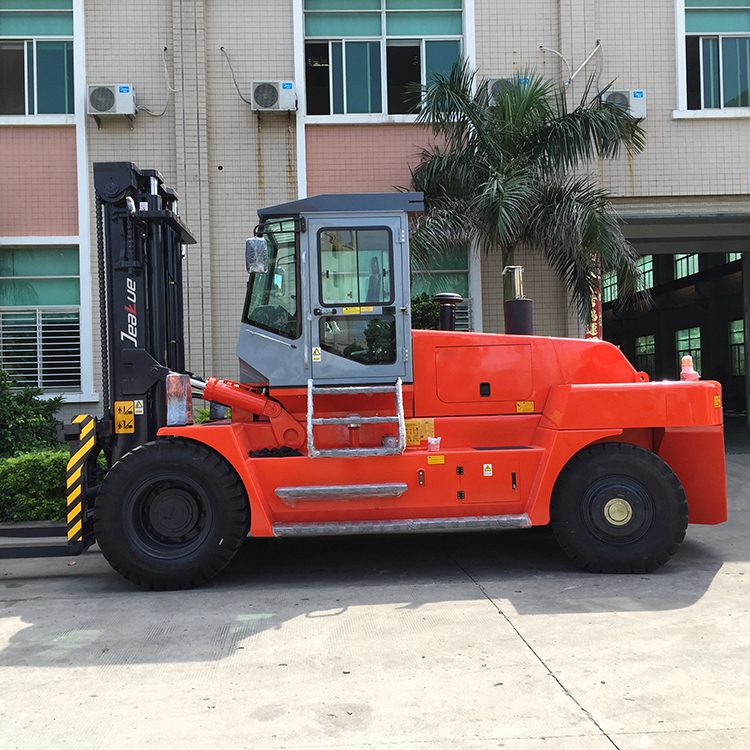

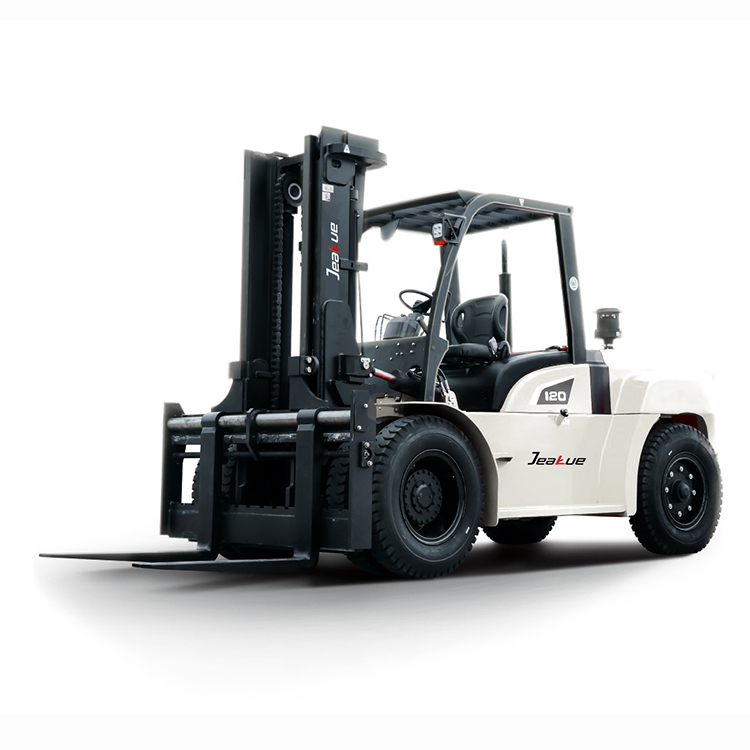

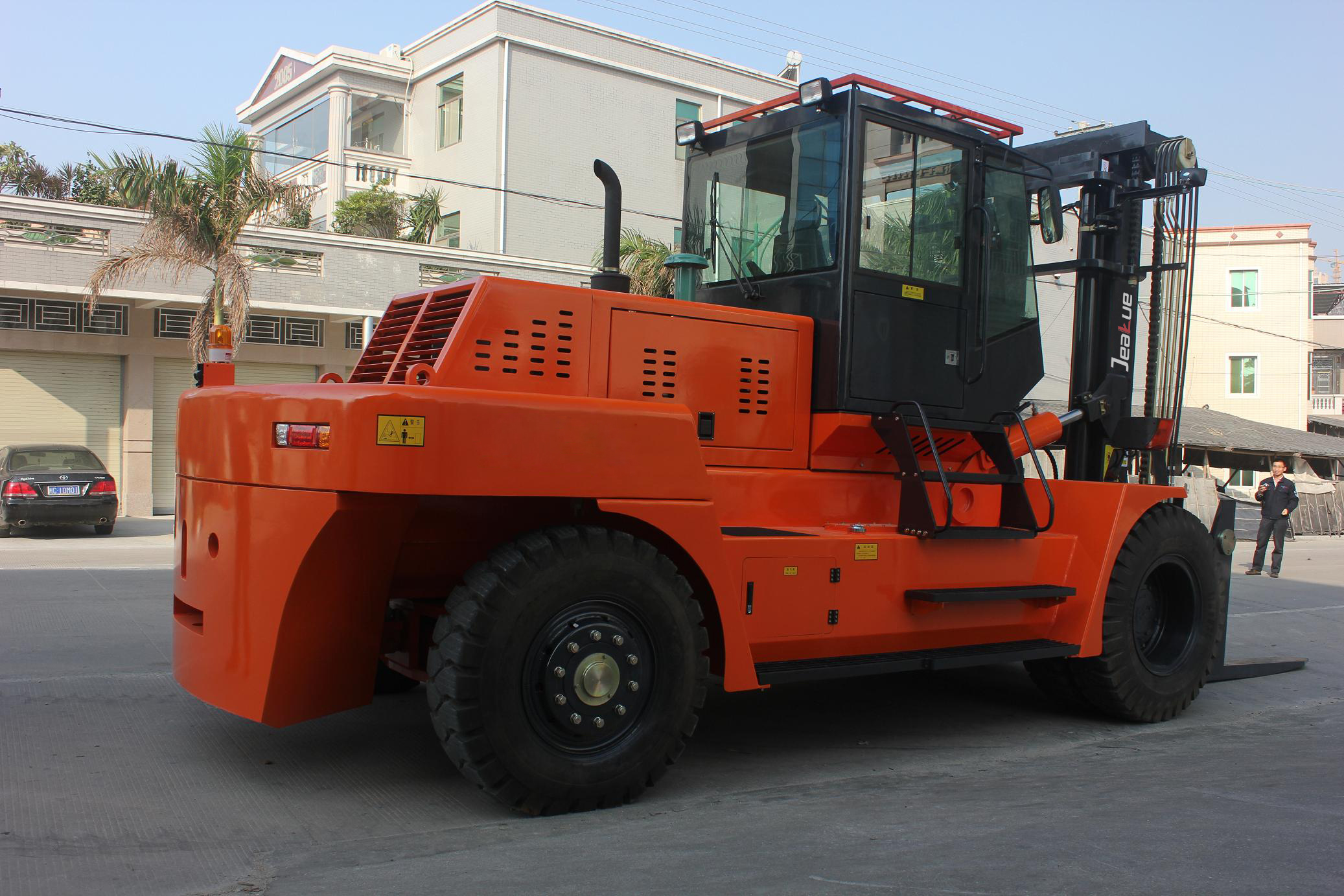

Description



Specifications

Items	Uint	FD-120	FD-135	FD-160S
Rated Load	Q(t)	12	13.5	16
Load center	mm	600	600	600
Wheelbase	D(mm)	3000	3000	3300
Weight	kg	18000	18500	19500
Tyre Specs.:Front	–	10.00-20-18PR	11.00-20-18PR	12.00-20-18PR Deep Tread
TyreSpecs.:Rear	–	10.00-20-18PR	11.00-20-18PR	11.00-20-18PR Deep Tread
Tyres Qty,front/rear(X-drive wheels)	–	4/2	4/2	4/2
Wheel tread: Front	mm	1677	1677	1740
Wheel tread:Rear	mm	2013	2013	2013
Mast/carriage tilt angle(front/rear)	Degree(°)	6/12	6/12	6/12
Mast height(fork lowering)	l(mm)	3100	3100	3140
Mast lifting height	P(mm)	3000	3000	3000
Max.lifting height	Q(mm)	4600	4600	4640
Height to head guard(height to cab)	A(mm)	3000	3000	3040
Overall length(without forks)	E(mm)	4855	4855	5155
Overall width	L(mm)	2250	2250	2400
Fork dimension	H/M(mm)	1200X180X90	1200X180X90	1200X180X90
Fork carriage width	N(mm)	2200	2200	2200
Mast min ground dearance(with load)	G(mm)	225	225	225
Wheelbase center min ground clearance(loaded)	C(mm)	350	350	350
Min.Turning radius	K(mm)	5200	5200	5500
Travel speed(loaded/unloaded)	km/h	23/26	23/26	23/26
Max.lifting speed(loaded/unloaded)	mm/s	220/270	220/270	205/255
Max. Lowering speed(loaded/unloaded)	mm/s	450/300	450/300	435/285
Traction	kN	90	90	90
Gradeablity(loaded/unloaded)	%	20/22	20/22	20/22
Driving brake	–	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc
Engine（China IV）	–	Yuchai engine	Yuchai engine	Yuchai engine
model	–	YCA07160-T400	YCA07160-T400	YCA07160-T400
Rated output/ Speed	kW/rpm	118/2200	118/2200	118/2200
Engine（China III）	–	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins
model	–	QSB4.5-C130	QSB4.5-C130	QSB4.5-C130
Rated output/ Speed	kW/rpm	97/2200	97/2200	97/2200
Engine（EU Stage V）	–	Cummins	Cummins	Cummins
model	–	B4.5 FR95730	B4.5 FR95730	B4.5 FR95730
Rated output/ Speed	kW/rpm	115/2000	115/2000	115/2000
Cylinder No.	–	6/4/4	6/4/4	6/4/4
Transmission gears(Front/rear)		2/2	2/2	2/2
Attachments working pressure	MPa	16	16	16
Attachments using oil amount	L/min	40	40	40

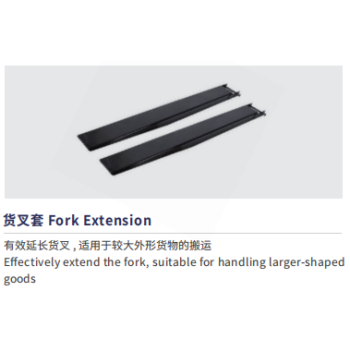

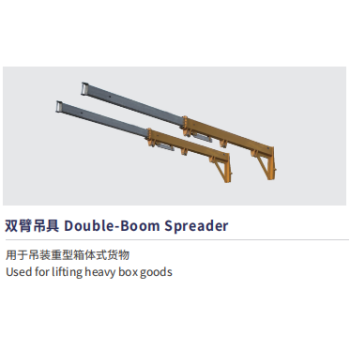

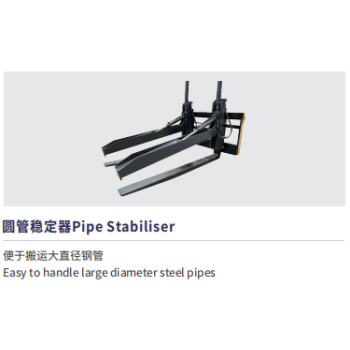

Optional attachment

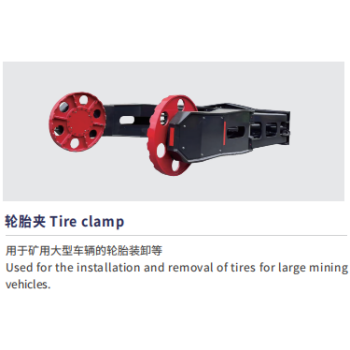

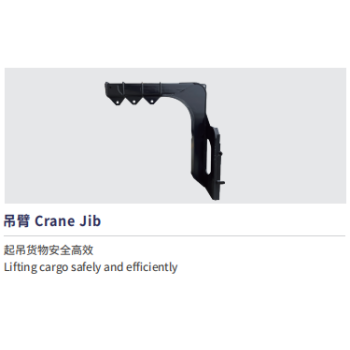

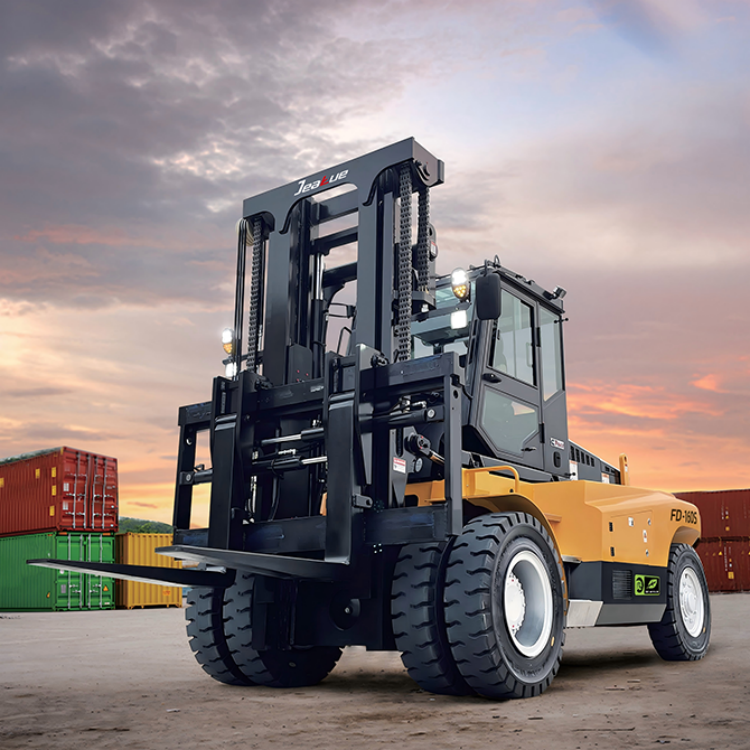

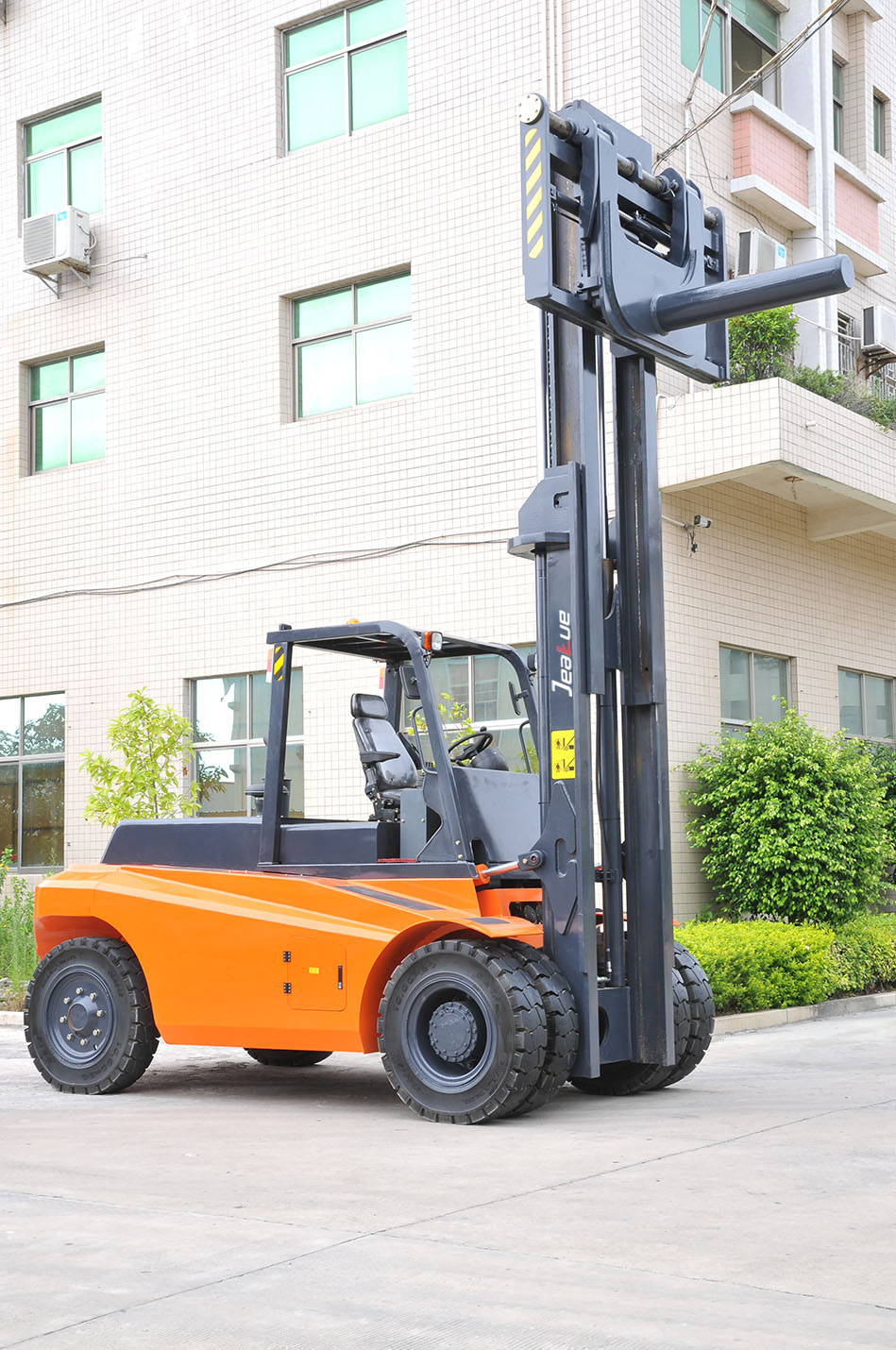

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Shenchuan(shanghai)Heavy Industrial Machinery Co.,ltd.(JEAKUE)is a collection of logis-ticshandling machinery and electric engineering machinery research and development, production, sales,and service as one of the national high-tech enterprises, professional equipment export industry leading en-terprises, the product range includes heavy-duty forklifts, telescopic handlers, electric engineering machinery, nonstandard custom products, etc.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The series heavy-duty forklifts are JEAKUE’s flagship products, which it developed independently.The models range from 10 to 65 tons, and the vehicle’s key components are manufactured by well-knownlocal or worldwide brands. After years of precipitation and accumulation, JEAKUE’s products have foundwidespread use in airports, ports, docks, steel mills, warehouses, logistics, handling, and other industries. ltsoverall machine comfort, stability, safety,and intelligence are industrial-leading, earning trust and recogni-tion from global customers.

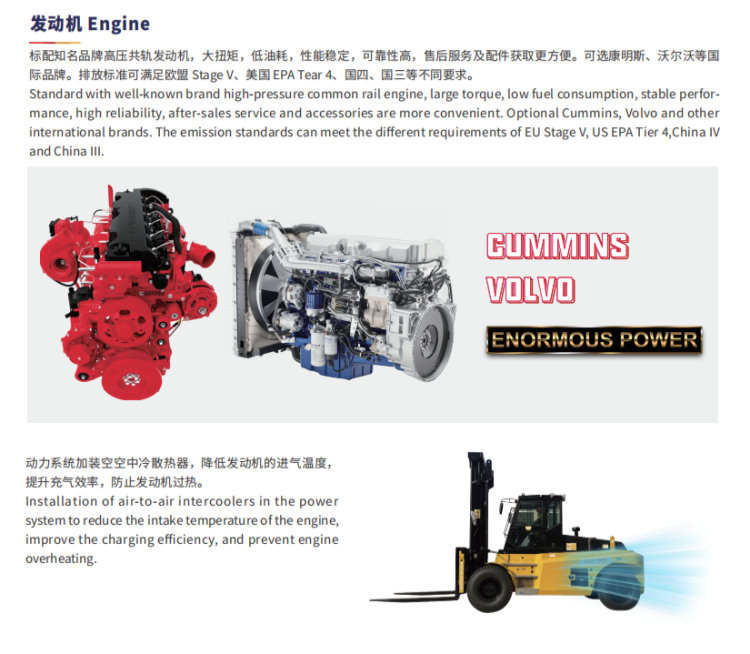

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Standard with well-known brand high-pressure common rail engine, large torque, low fuel consumption, stable perfor-mance,high reliability, after-sales service and accessories are more convenient. Optional Cummins, Volvo and otherinternational brands. The emission standards can meet the different requirements of EU Stage V, US EPA Tier4,ChinaIVand China Ill.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Installation of air-to-air intercoolers in the powersystem to reduce the intake temperature of the engine,improve the charging efficiency, and prevent engineoverheating.

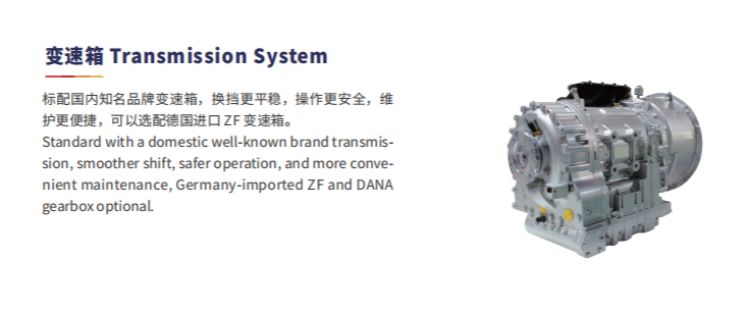

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Standard with a domestic well-known brand transmission, smoother shift, safer operation, and more convenient maintenance,Germany-imported ZF and DANA gearbox optional.

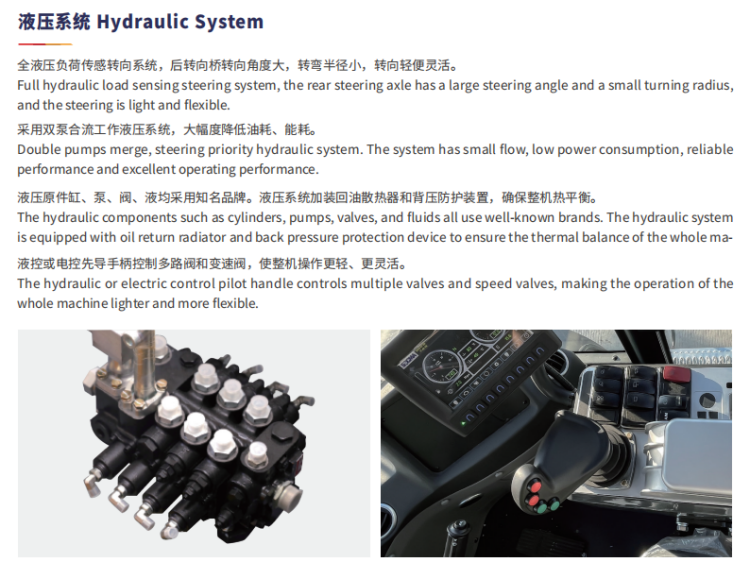

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Full hydraulic load sensing steering system, the rear steering axle has a large steering angle and asmall turningradius,and the steering is light and flexible.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Double pumps merge, steering priority hydraulic system. The system has small flow, low power consumption,reliableperformance and excellent operating performance.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The hydraulic components such as cylinders, pumps, valves, and fluids all use well-known brands. The hydraulic systemis equipped with oil retum radiator and back pressure protection device to ensure the thermal balance of the whole ma-

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The hydraulic or electric control pilot handle controls multiple valves and speed valves, making the operation of thewhole machine lighter and more flexible.

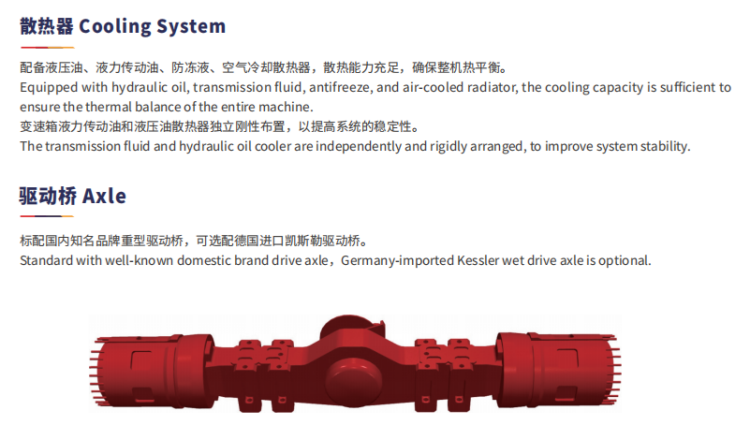

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Equipped with hydraulic oil, transmission fluid, antifreeze, and air-cooled radiator, the cooling capacity is sufficient toensure the thermal balance of the entire machine.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The transmission fluid and hydraulic oil cooler are independently and rigidly arranged, to improve system stability.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Standard with well-known domestic brand drive axle,Germany-imported Kessler wet drive axle is optional.

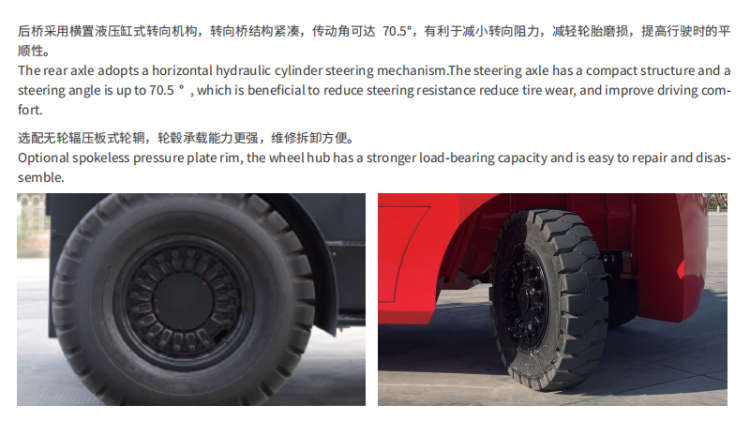

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The rear axle adopts a horizontal hydraulic cylinder steering mechanism.The steering axle has a compact structure and asteering angle is up to 70.5 ° , which is beneficial to reduce steering resistance reduce tire wear, and improve driving com-fort.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Optional spokeless pressure plate rim, the wheel hub has a stronger load-bearing capacity and is easy to repair and disas-semble.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.By using caliper disc brakes or wet brakes, ensures faster heat dissipation, more reliable braking and safer operation.

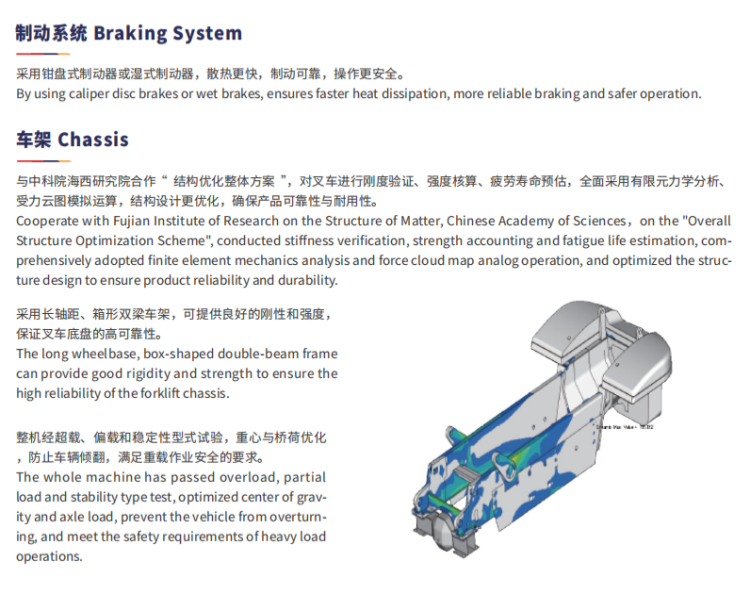

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Cooperate with Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences，on the “Overall Structure Optimization Scheme”, conducted stiffness verification, strength accounting and fatigue life estimation, comprehensively adopted finite element mechanics analysis and force cloud map analog operation, and optimized the structure design to ensure product reliability and durability.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The long wheelbase, box-shaped double-beam framecan provide good rigidity and strength to ensure thehigh reliability of the forklift chassis.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The whole machine has passed overload, partialload and stability type test, optimized center of grav-ity and axle load, prevent the vehicle from overturn-ing, and meet the safety requirements of heavy loadoperations.

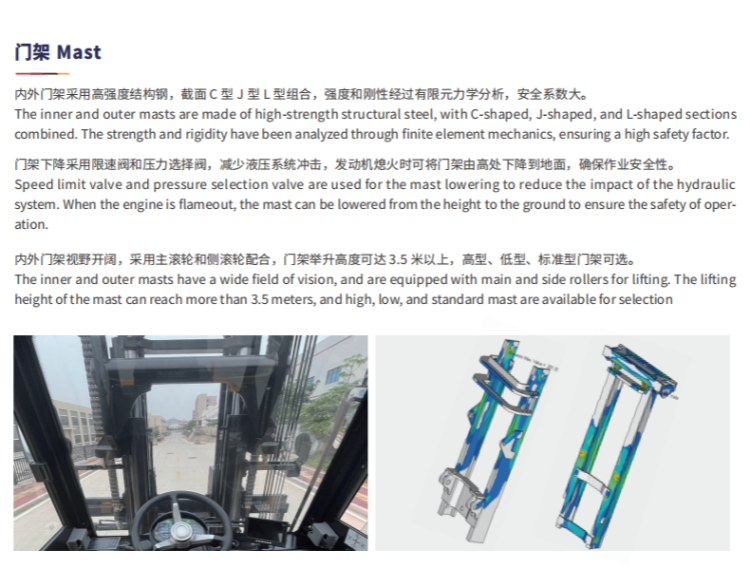

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The inner and outer masts are made of high-strength structural steel, with C-shaped, J-shaped, and L-shaped sectionscombined. The strength and rigidity have been analyzed through finite element mechanics, ensuring a high safety factor.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Speed limit valve and pressure selection valve are used for the mast lowering to reduce the impact of the hydraulicsystem. When the engine is flameout, the mast can be lowered from the height to the ground to ensure the safety of oper-ation.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The inner and outer masts have a wide field of vision, and are equipped with main and side rollers for lifting, The liftingheight of the mast can reach more than 3.5 meters, and high, low, and standard mast are available for selection

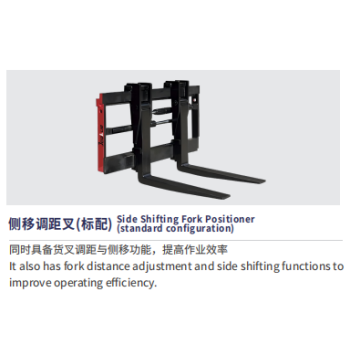

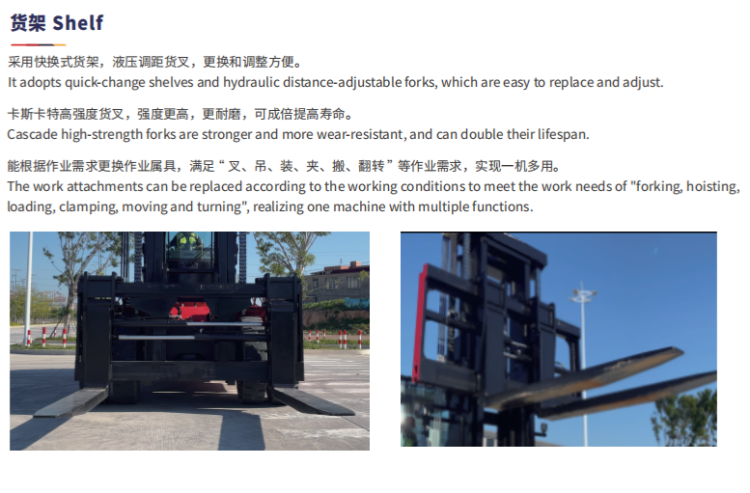

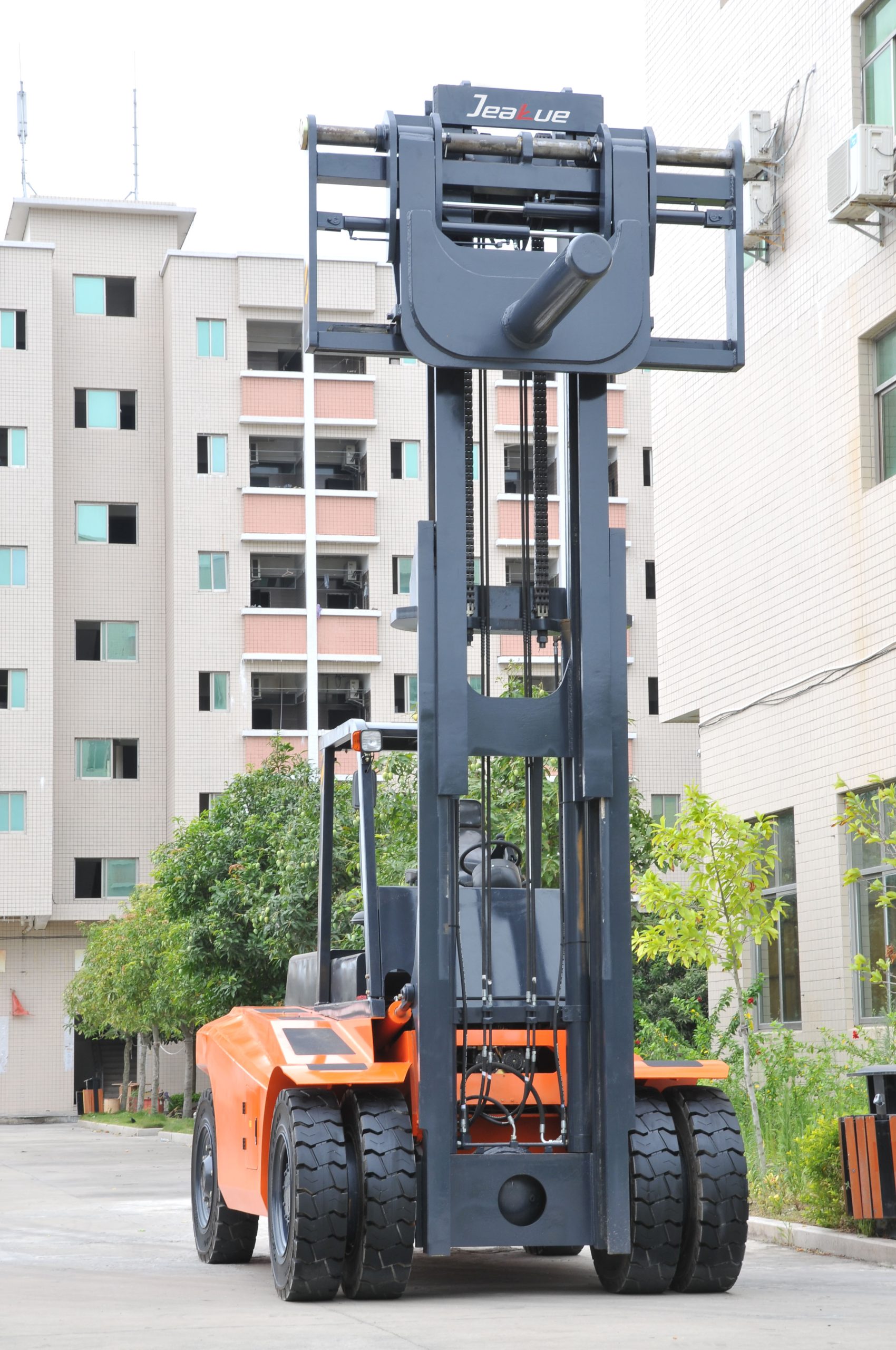

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.lt adopts quick-change shelves and hydraulic distance-adjustable forks, which are easy to replace and adjust.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Cascade high-strength forks are stronger and more wear-resistant, and can double their lifespan.

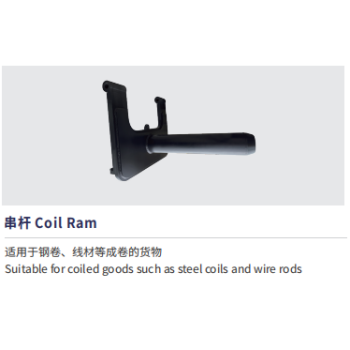

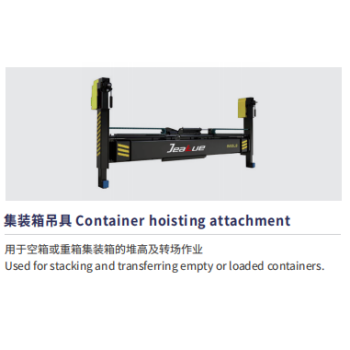

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The work attachments can be replaced according to the working conditions to meet the work needs of “forking,hoisting,loading, clamping,moving and tuming”, realizing one machine with multiple functions.

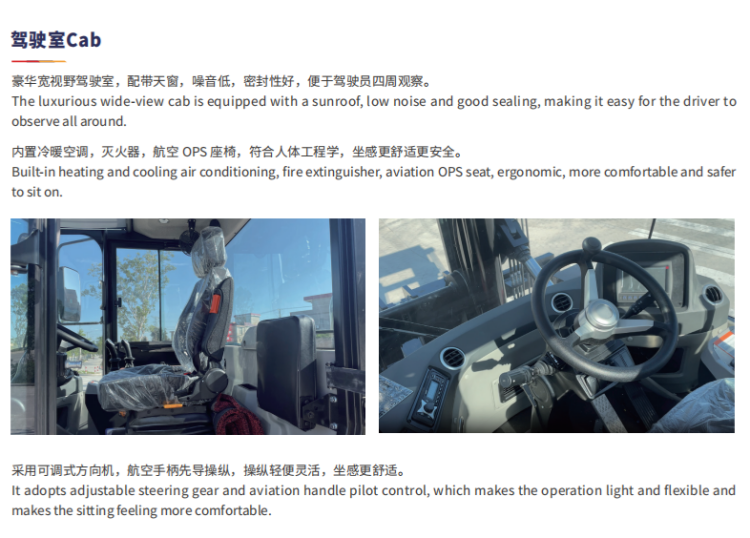

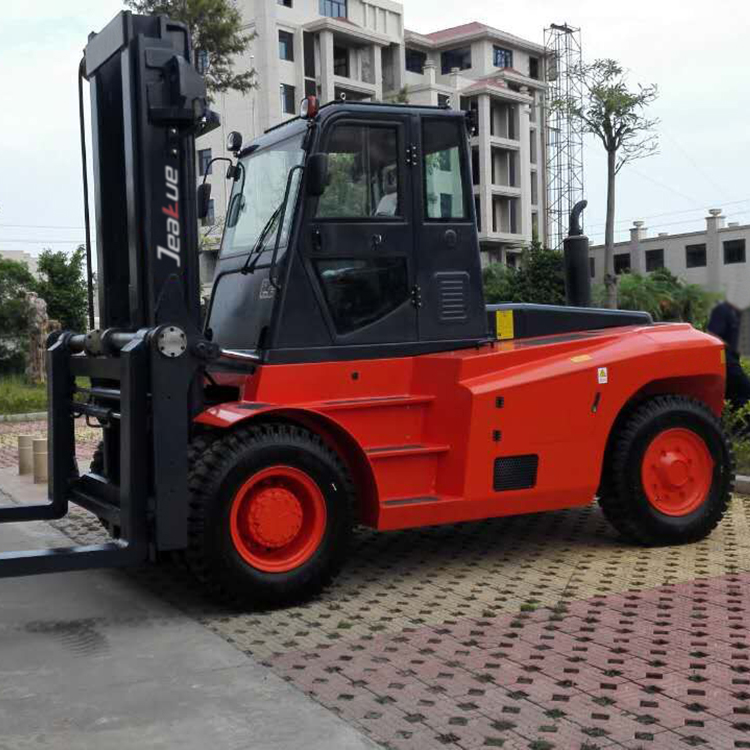

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The luxurious wide-view cab is equipped with a sunroof, low noise and good sealing, making it easy for the driver toobserve all around.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Built-in heating and cooling air conditioning, fire extinguisher, aviation OPSseat, ergonomic, more comfortable and saferto sit on.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.It adopts adjustable steering gear and aviation handle pilot control, which makes the operation light and flexible andmakes the sitting feeling more comfortable.

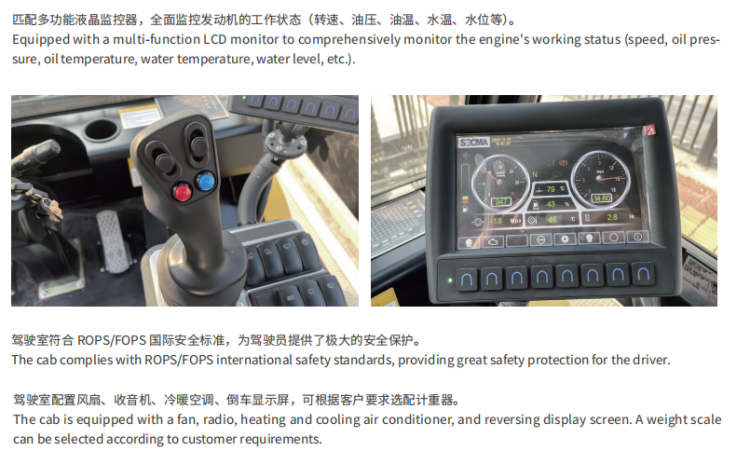

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Equipped with a multi-function LCD monitor to comprehensively monitor the engine’s working status (speed, oil pres-sure, oil temperature,water temperature, water level, etc.).

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The cab complies with ROPS/FOPS intemational safety standards, providing great safety protection for the driver.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The cab is equipped with a fan, radio, heating and cooling air conditioner, and reversing display screen. A weight scale can be selected according to customer requirements.

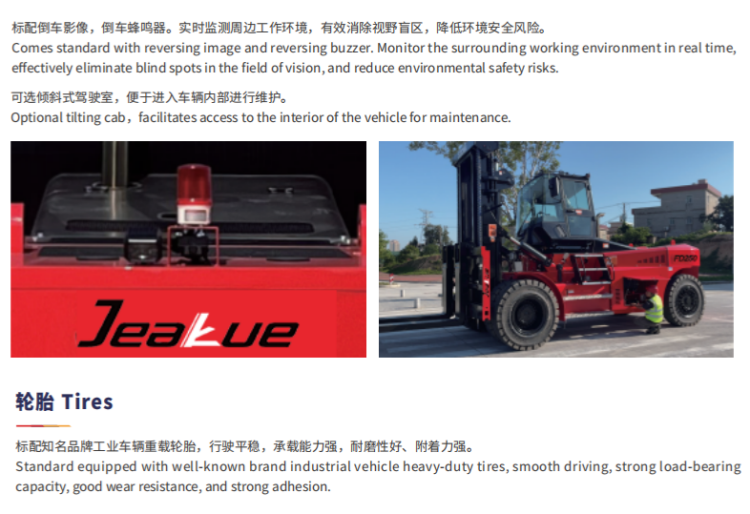

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Comes standard with reversing image and reversing buzzer. Monitor the surrounding working environment in real time,effectively eliminate blind spots in the field of vision, and reduce environmental safety risks.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Optional tilting cab，facilitates access to the interior of the vehicle for maintenance.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Standard equipped with well-known brand industrial vehicle heavy-duty tires, smooth driving, strong load-bearingcapacity, good wear resistance, and strong adhesion.

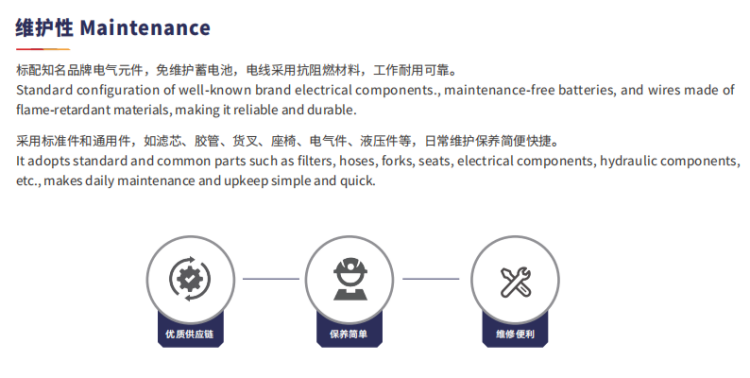

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.Standard configuration of well-known brand electrical components., maintenance-free batteries, and wires made offlame-retardant materials, making it reliable and durable.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.It adopts standard and common parts such as filters, hoses, forks, seats, electrical components, hydraulic components,etc., makes daily maintenance and upkeep simple and quick.

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.The combination of strength and efficiency

JEAKUE 12-16 Ton Balanced Heavy-Duty Diesel Forklift.In regions with developed heavy-duty handling, Shenchuan Heavy Industry’s 12-16-ton balanced heavy-duty forklifts have become powerful assistants for indoor and outdoor multi location logistics handling in various industries due to their excellent performance, reliable quality, and flexible handling
