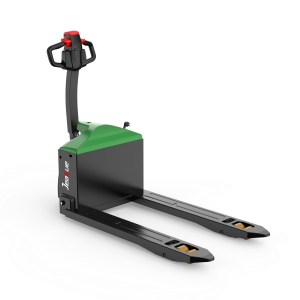

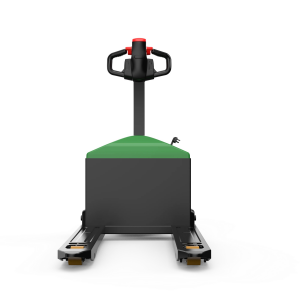

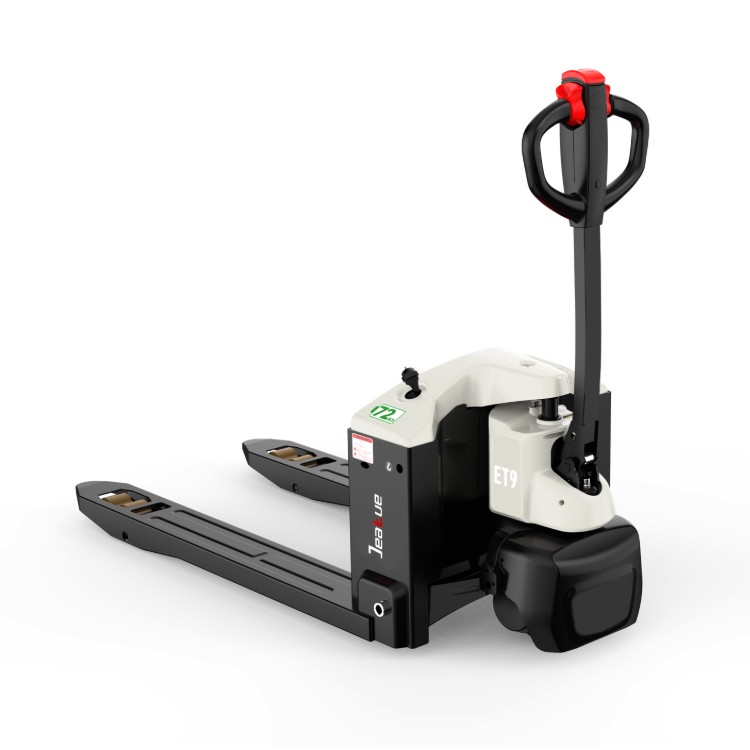

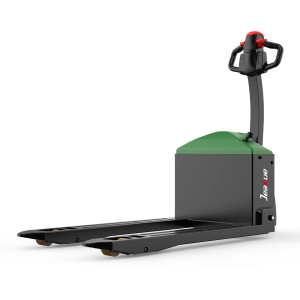

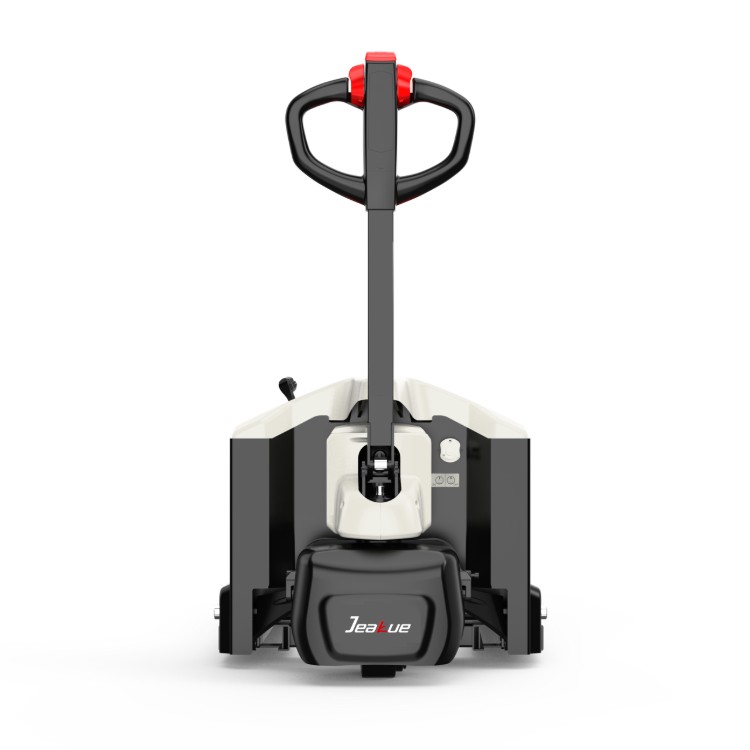

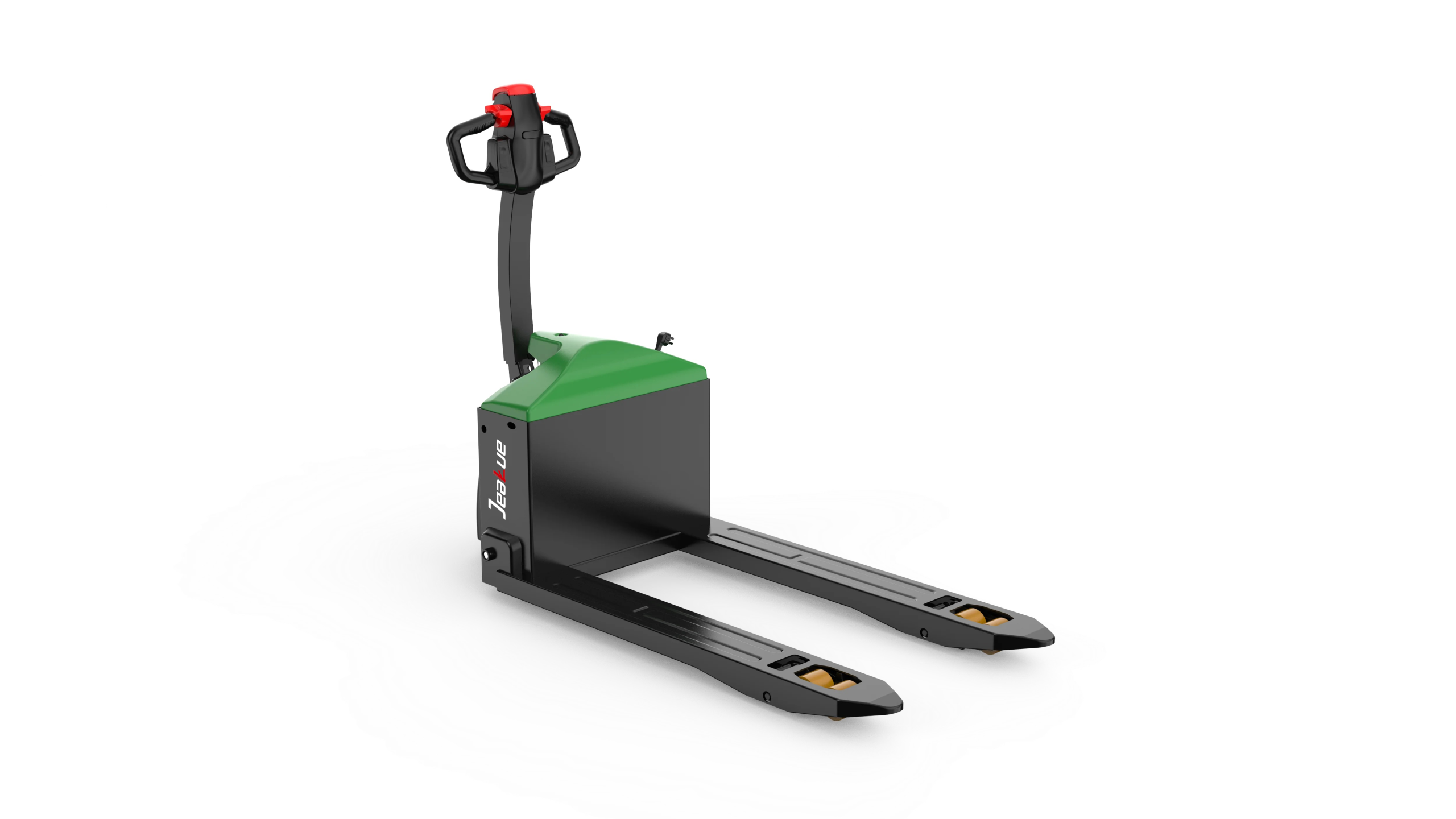

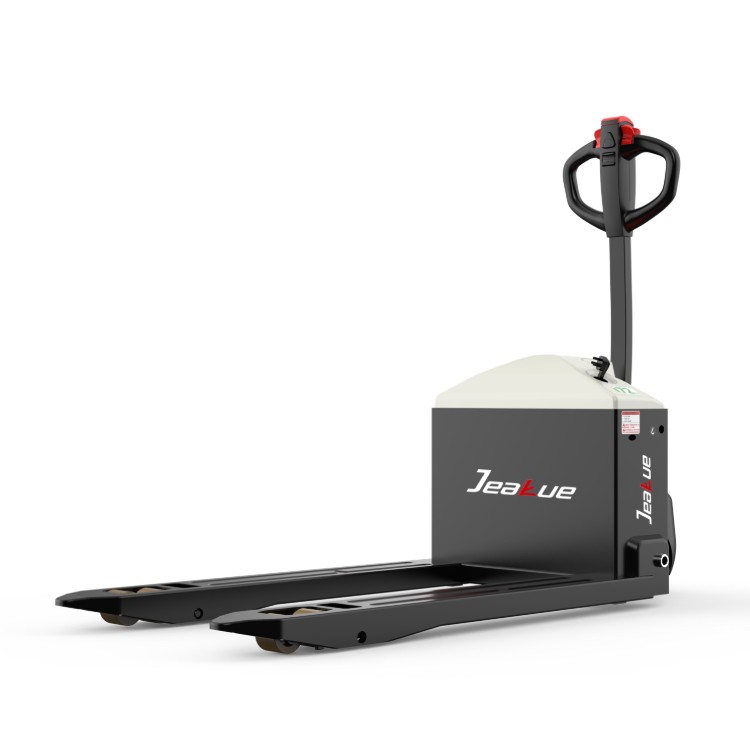

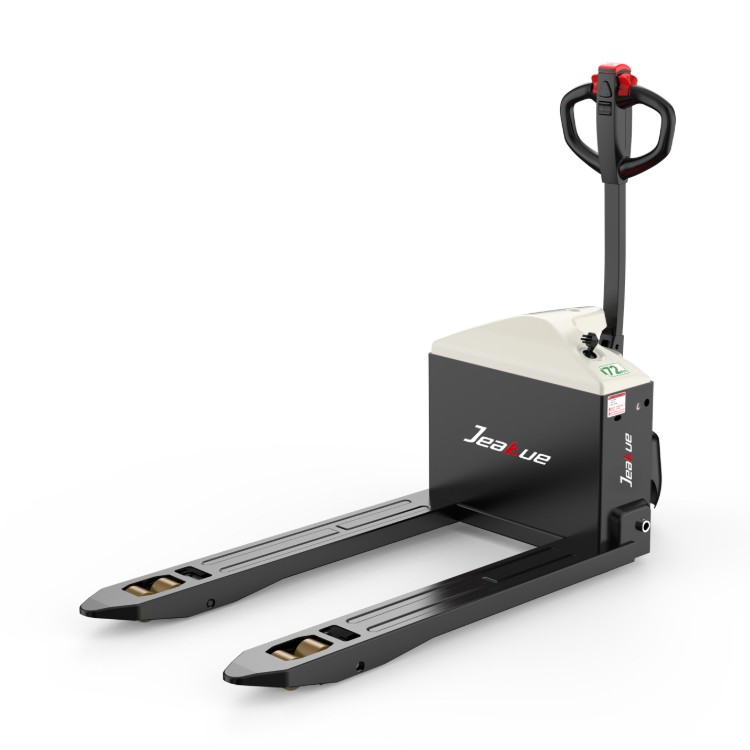

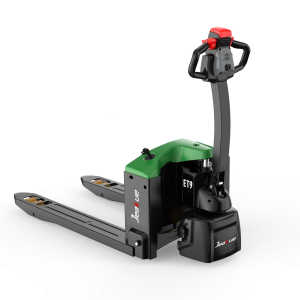

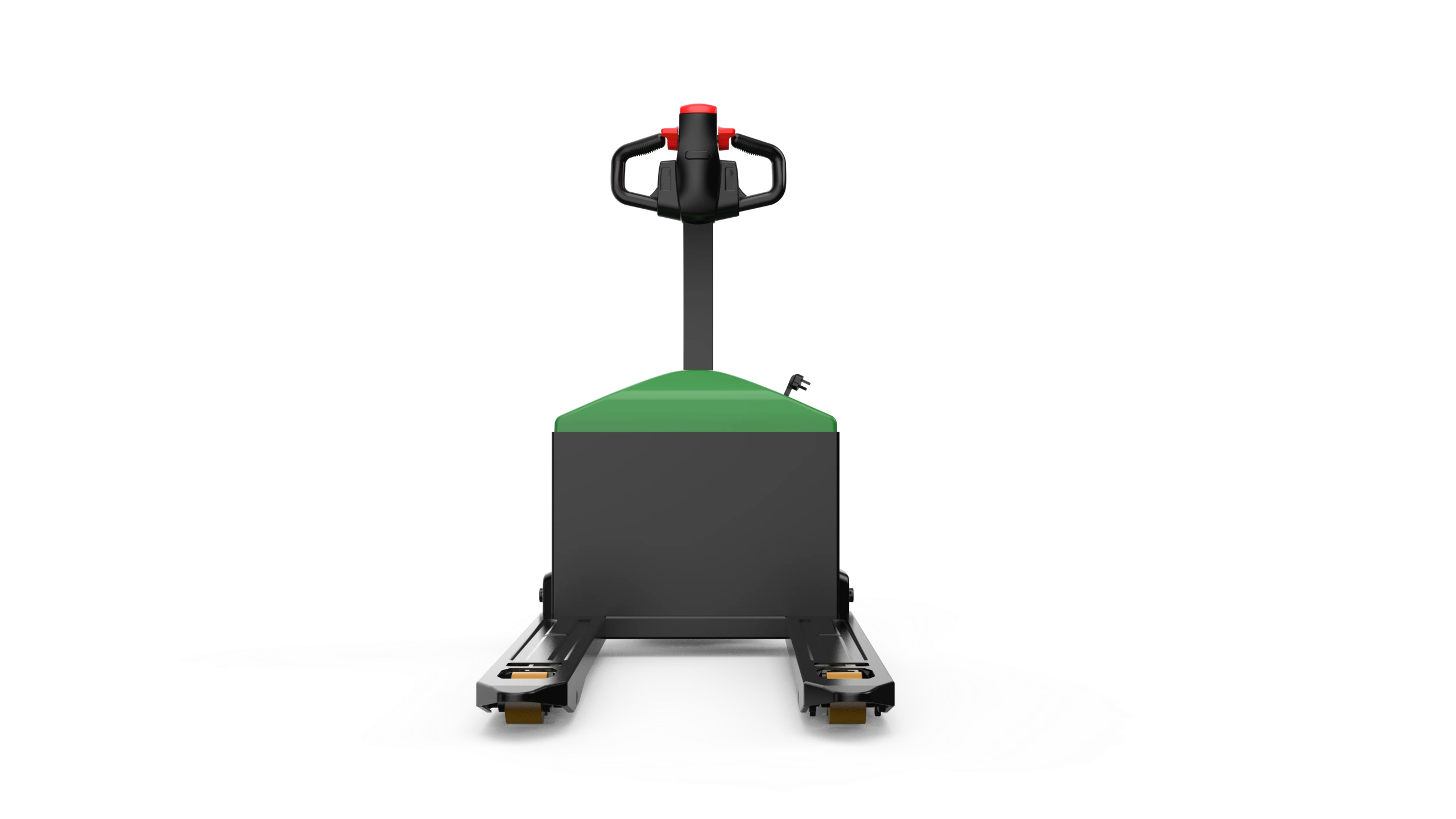

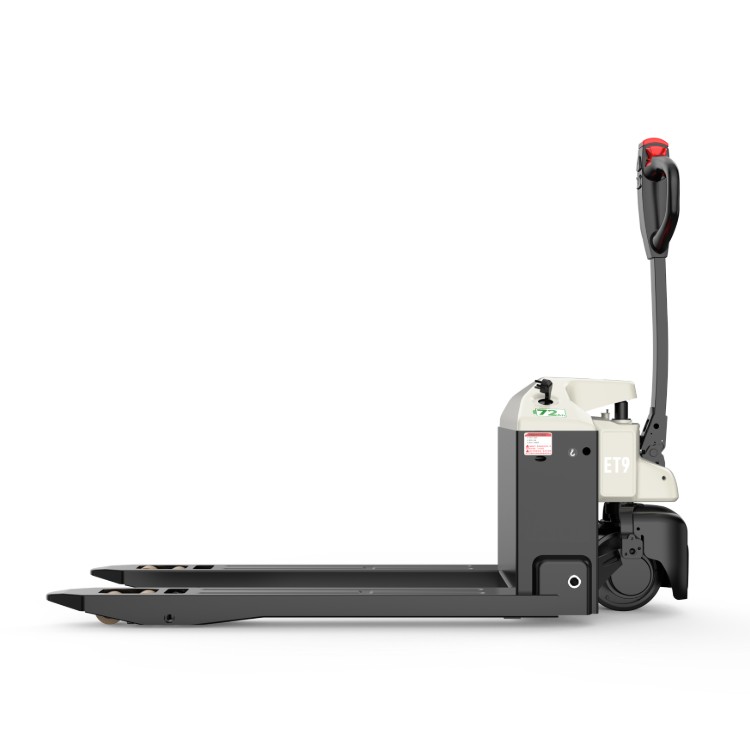

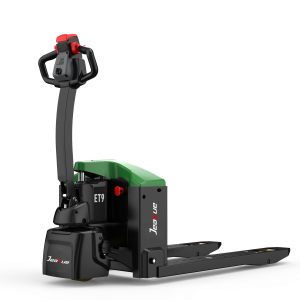

1.5 Ton (3306.93 lb) Lead-aid Battery Pallet Truck-ET9
Load Capacity:1500kg(3306.93 lb) Electric Pallet Truck
Battery Voltage:24V72AH lead-acid battery
Service Weight:154KG(319.67lb)
Description
 |
 |
 |
 |
 |
 |
Explore the ET9
The ET9 is a 1500 kg electric pallet truck that combines ergonomic design with dependable DC drive technology. Its compact chassis, built-in charger, and maintenance-free AGM battery ensure convenient operation and quick deployment in any environment. With smooth acceleration, precise steering, and rugged steel protection, this pallet truck delivers strength and simplicity in one.
1.Compact and maneuverable design
With a turning radius of only 1440 mm, theET9 operates easily in narrow aisles, retail backrooms, and truck loading areas. Its short chassis enhances control and precision even in tight corners.
2.Integrated charging convenience
The 24V/72Ah AGM battery and built-in charger make charging simple — plug in and recharge anywhere, without external equipment or downtime.
3.Turtle button for tight-space control
The vertical tiller “turtle mode” enables precise control when the handle is upright, offering exceptional maneuverability in confined areas for improved safety and flexibility.
4.Durable all-metal protection
A reinforced steel front cover protects the drive unit and battery, ensuring long-term reliability even in demanding industrial applications.
Application

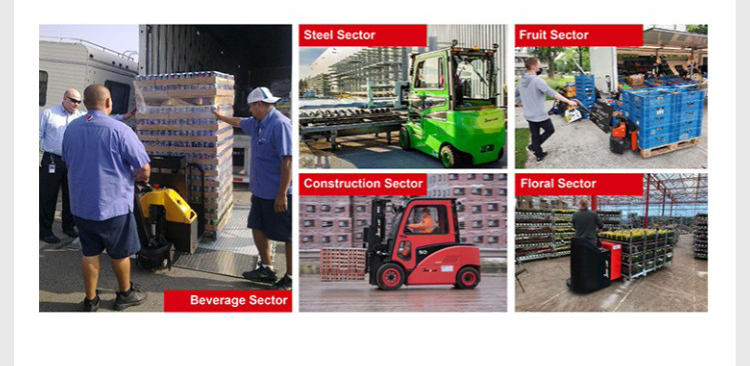

The ET9 is designed for efficient pallet transport across warehouses, supermarkets, production areas, and delivery operations. Its compact build and 1440 mm turning radius make it the perfect fit for narrow aisles, trucks, or small storage spaces. Whether you’re moving goods between workstations or loading pallets for transport, the ET9 ensures effortless maneuverability and dependable performance.
About the ET9
Built to redefine entry-level electric pallet handling, the ET9 brings together the best of compact design and robust performance. Powered by a 24V/72Ah maintenance-free AGM battery with an integrated charger, it eliminates downtime and simplifies charging anywhere. The vertical tiller with a “turtle button” enables operation in confined spaces, while the optional stabilizing wheels provide enhanced balance on uneven floors. A full-metal front cover ensures lasting protection for internal components. Designed with safety, productivity, and durability in mind, the ET9 is the smart alternative to manual pallet trucks — offering electric precision and reliability in a cost-efficient form.
FAQs
What is the maximum load capacity of the ET9?
The ET9 can lift and transport loads up to 1500 kg, making it ideal for general warehouse and retail logistics.
What type of battery does it use?
It comes equipped with a 24V/72Ah maintenance-free AGM battery that offers strong endurance and easy charging through an integrated system.
Is it suitable for narrow aisles and confined spaces?
Yes, the ET9 is built for tight spaces, with a compact 1618 mm overall length and a 1440 mm turning radius for agile movement.
How does the “turtle button” help?
The turtle button allows operators to drive the truck with the tiller in an upright position, enabling safe and slow movement in tight or crowded environments.
What features ensure operator safety and comfort?
The tiller with creep speed control, mechanical steering, and electromagnetic braking system all contribute to smooth, safe, and user-friendly operation.
PRODUCT PARAMETERS
| Load Capacity: | 1500kg(3306.93 lb) Electric Pallet Truck |
| Fork Dimensions: | 1150/150/55mm(45.28/5.91/2.17in)(Lxexs) |
| Distance between fork-arms: | 685/560mm(26.97/22.05in) |
| Battery Voltage/Nominal Capacity: | 24V/72Ah lead-aid battery |
| Turning Radius: | 1440mm(56.69in) |
| Lift Height | 105mm(4.13in) |
| Steering Design: | Mechanical |
| Service Weight: | 154KG(339.51lb) |
| Product Color： | Ivory/Red/Customization |

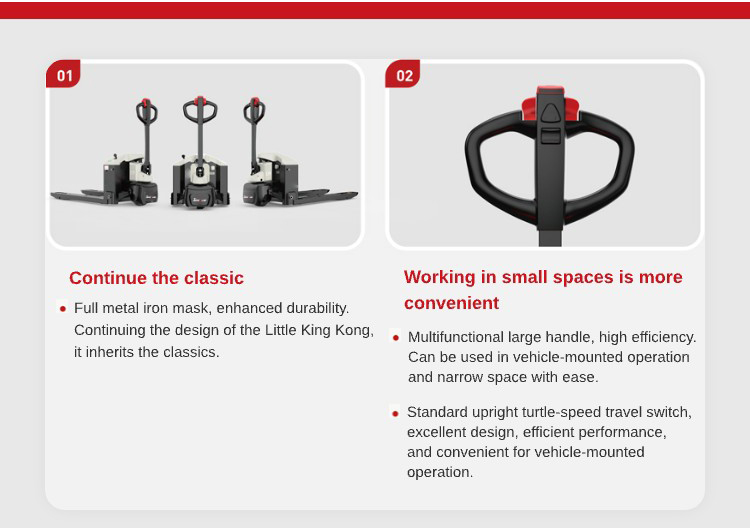

Continue the classic JEAKUE 1.5 Ton Electric Pallet Truck-ET9
Full metal iron mask, enhanced durability.Continuing the design of the Little King Kong,it inherits the classics.Jeakue electric pallet truck
JEAKUE 1.5 Ton Electric Pallet Truck-ET9 Working in small spaces is more convenientJeakue electric pallet truck
Multifunctional large handle, high efficiency.Can be used in vehicle-mounted operation and narrow space with ease.Jeakue electric pallet truck
Standard upright turtle-speed travel switch,excellent design, efficient performance,and convenient for vehicle-mounted operation.Jeakue electric pallet truck

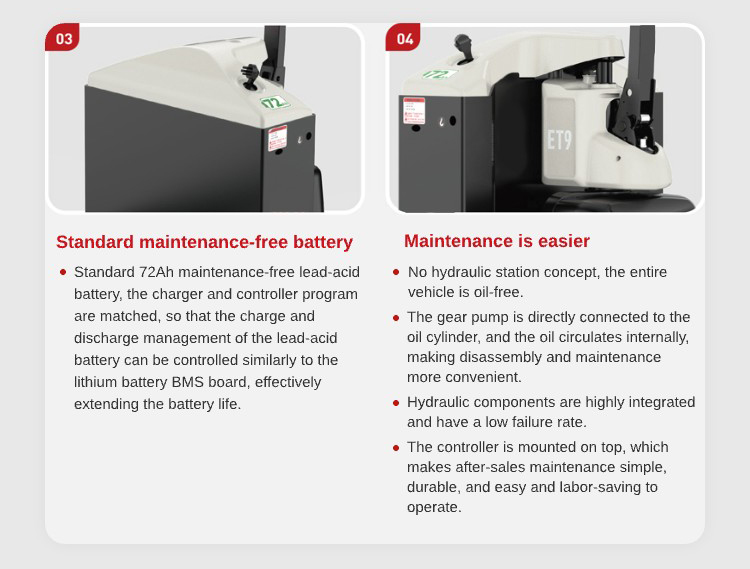

JEAKUE 1.5 Ton Electric Pallet Truck-ET9 Standard maintenance-free battery
Standard 72Ah maintenance-free lead-acid battery, the charger and controller program are matched, so that the charge and discharge management of the lead-acid battery can be controlled similarly to the lithium battery BMS board, effectively extending the battery life.Jeakue electric pallet truck
JEAKUE 1.5 Ton Electric Pallet Truck-ET9 Maintenance is easier
No hydraulic station concept, the entire vehicle is oil-free.The gear pump is directly connected to the oil cylinder, and the oil circulates internally,making disassembly and maintenance more convenient.Hydraulic components are highly integrated and have a low failure rate.The controller is mounted on top, which makes after-sales maintenance simple, durable, and easy and labor-saving to operate.Jeakue electric pallet truck

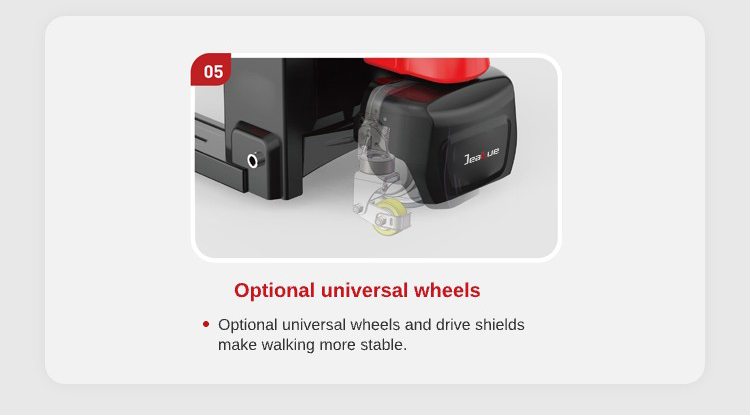

JEAKUE 1.5 Ton Electric Pallet Truck-ET9 Optional universal wheels
Optional universal wheels and drive shields make walking more stable.Jeakue electric pallet truck
