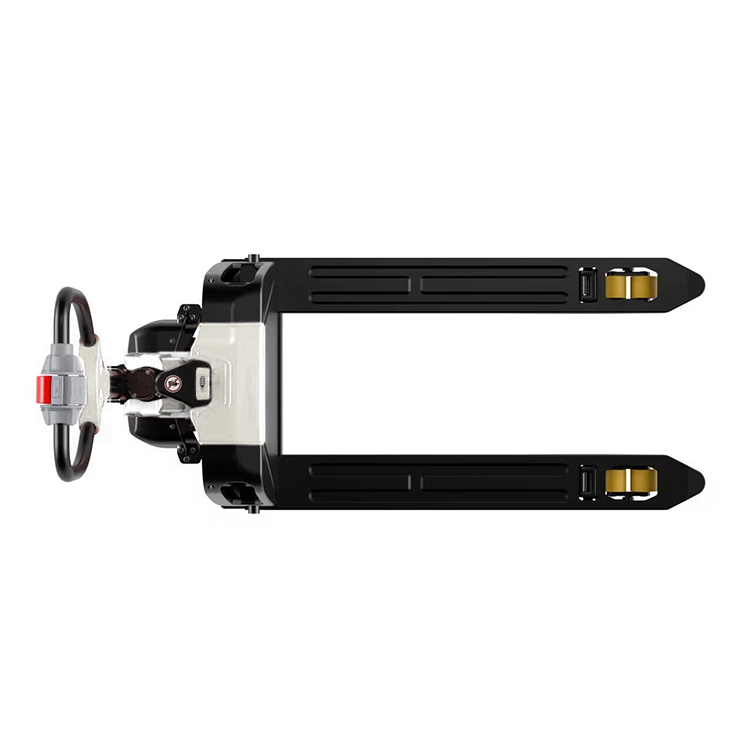

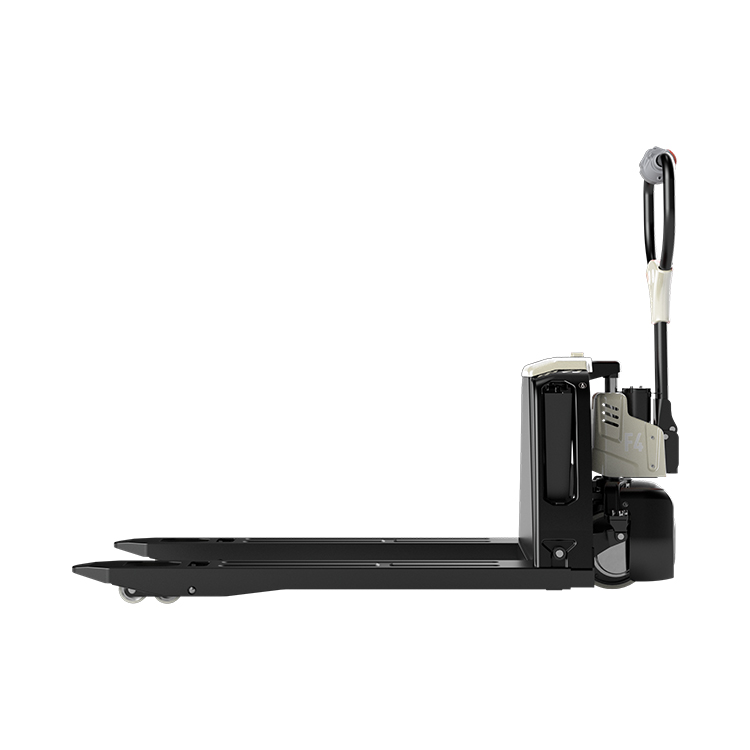

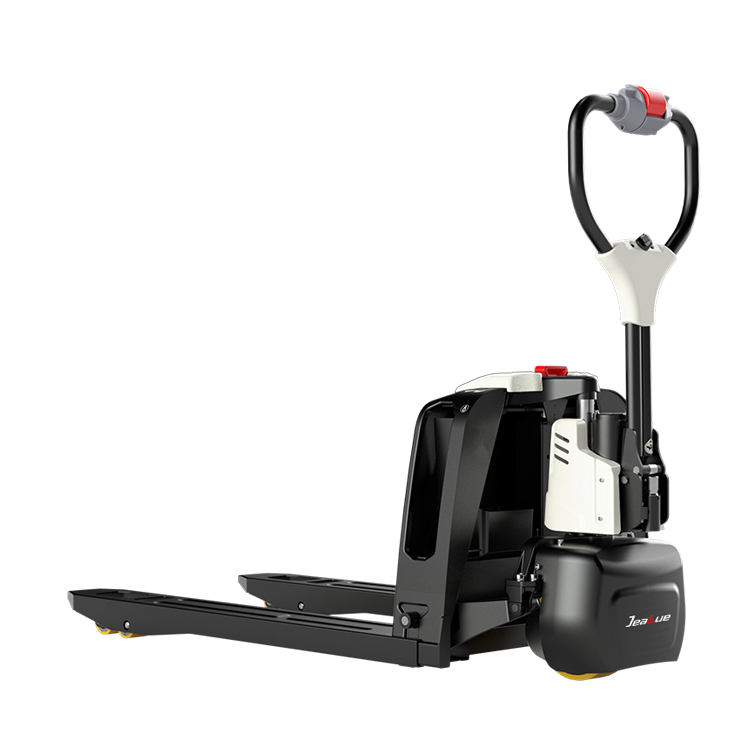

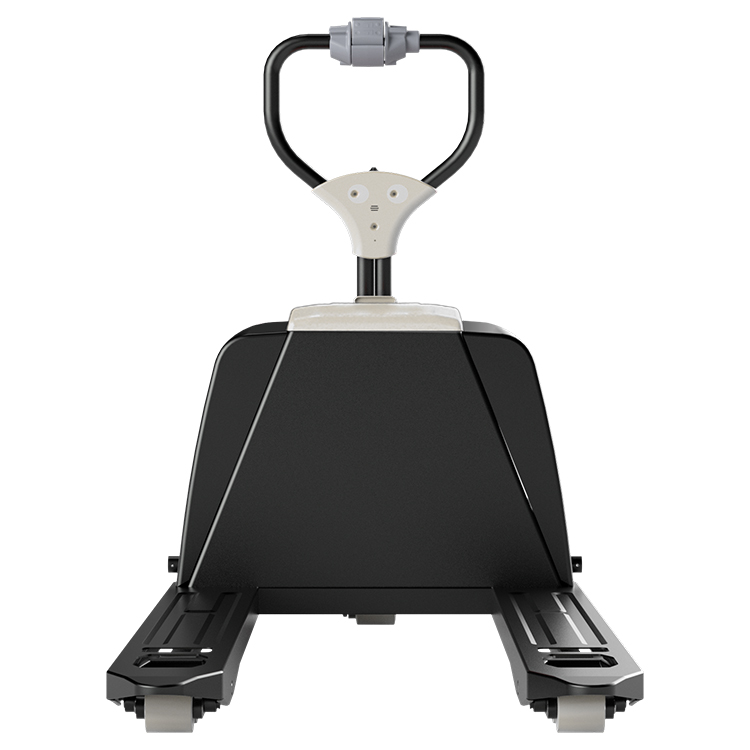

1.5 Ton (3306.93 lb) Lithium Battery Pallet Truck -F4
Rated Capacity: 1500kg(3306.93 lb)
Lift Height: 105mm(4.13in)
24V/20Ah Lithium battery
Description
 |
 |
 |
 |
 |
 |
Explore the F4
The F4 is designed as an all-rounder pallet truck that combines strength, flexibility, and compactness. With a 1.5-ton load capacity, removable Li-ion batteries, and a lightweight 120 kg build, the F4 adapts easily to both occasional and intensive applications. Its optional stabilizing wheels and customizable fork dimensions make it a truly versatile choice for different industries.
1.Flexible battery system
The F4 supports up to two removable 24V/20Ah Li-ion batteries, providing extended runtime for intensive applications or opportunity charging flexibility.
2.Compact & lightweight
With a short 400 mm fork face length and a low service weight of only 120 kg, the F4 is highly maneuverable in narrow aisles and confined spaces.
3.Optional stabilizing wheels
To safely handle heavier or uneven loads, the F4 can be equipped with stabilizing wheels, available from the factory or as retrofit.
4.Customisable forks
Available in various lengths and widths, the F4 adapts to different pallet standards and customer-specific applications.

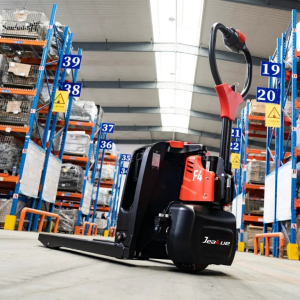

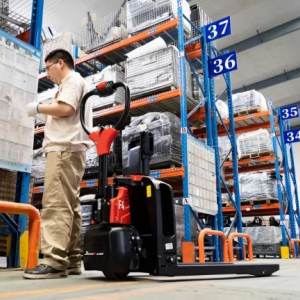

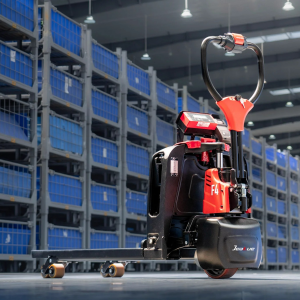

Application
The F4 is ideal for a wide range of environments, from light retail usage to intensive logistics operations. Its compact size (400 mm fork face length) and reduced service weight make it highly maneuverable in tight spaces, while its dual-battery slot design ensures continuous operation for long shifts. The optional stabilizing wheels enhance safety when handling large or heavy loads, making the F4 a dependable solution for warehouses, retail stores, and transport hubs.
About the F4
The F4 revolutionizes pallet truck performance with its combination of lightweight design, ergonomic handling, and flexible power options. Businesses can select from up to four removable 24V/20Ah Li-ion batteries to maximize uptime or use a single battery with a portable storage compartment for simpler needs.
With fork length and width options, and stabilizing wheels available as factory or retrofit options, the F4 is built to adapt to customer-specific requirements. As part of JK’s F Series platform, it ensures cost-effective distribution and configuration flexibility, delivering real value across diverse applications.
FAQs
What makes the F4 different from other pallet trucks?
The F4 is designed as an all-rounder, with multiple fork sizes, optional stabilizing wheels, and up to four removable Li-ion batteries, making it adaptable to both light and intensive applications.
How many batteries does the F4 support?
The F4 can be equipped with up to two 24V/20Ah Li-ion batteries in standard use, and up to four batteries as an option, ensuring maximum uptime for full-shift operations.
Is the F4 suitable for narrow aisles?
Yes. With a compact fork face length of just 400 mm and a reduced service weight of 120 kg, the F4 is highly maneuverable in tight and confined spaces.
What safety features does the F4 offer?
The F4 can be fitted with stabilizing wheels to reduce the risk of tipping on uneven surfaces and heavy loads, improving operator safety and load stability.
In what environments is the F4 most effective?
The F4 is versatile and can be used in retail, warehouses, and logistics centers. It is suitable for occasional handling as well as intensive, full-shift applications thanks to its modular battery system.
PRODUCT PARAMETERS
| Load Capacity | 1.5T Electric Pallet Truck(3306.93 lb) |
| Fork Dimensions: | 1150/150/55mm(45.28/5.91/2.17in)(lxexs) |
| Distance between fork-arms: | 685/560mm(6.97/22.05in) |
| Battery Voltage/Nominal Capacity: | 24V/20Ah Lithium battery |
| Turning Radius: | 1360mm(53.54in) |
| Lift Height： | 105mm(4.13in) |
| Steering Design: | Mechanical |
| Service Weight | 120Kg(264.55lb) |
| Product Color | Ivory/Red/Customization |

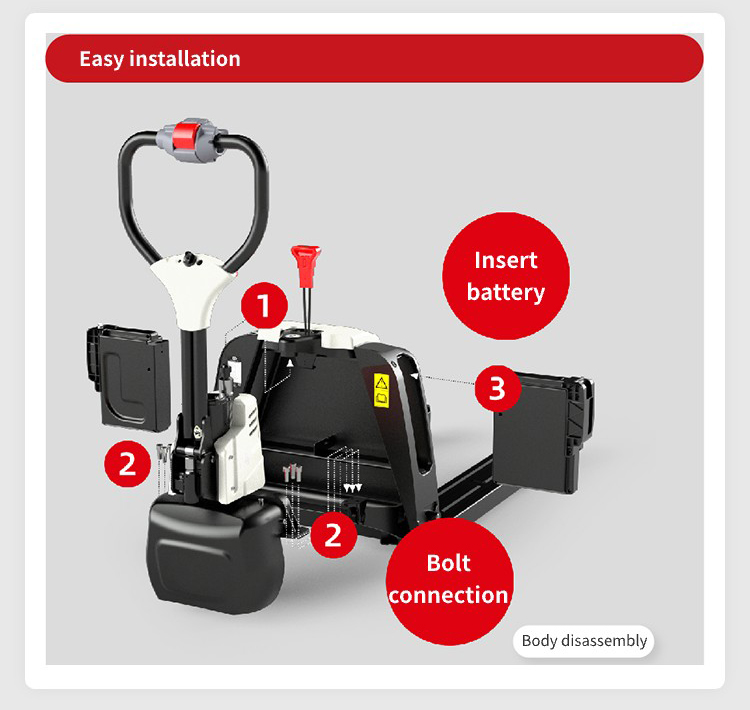

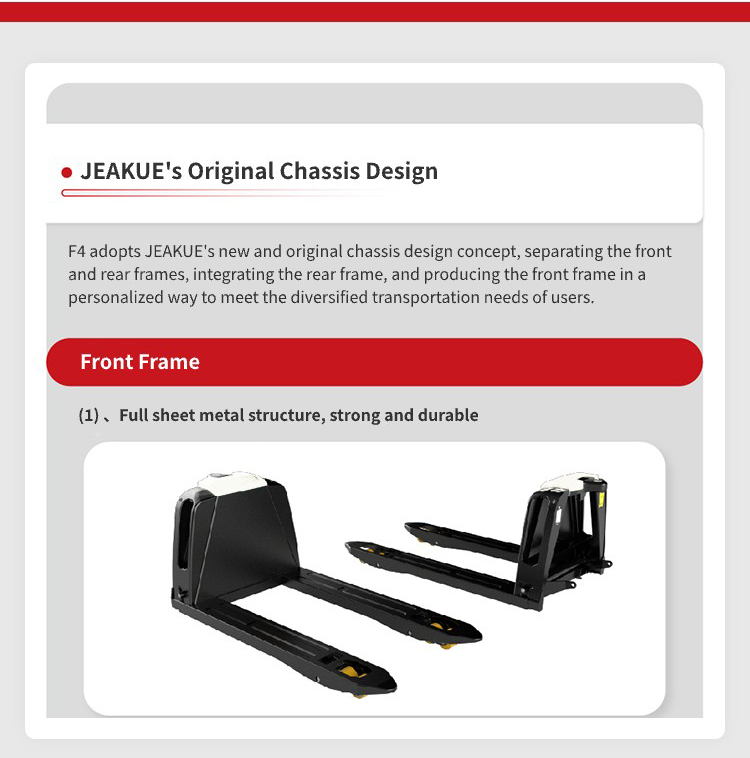

JEAKUE’s Original Chassis Design
Unlimited endurance, less storage and less transportation

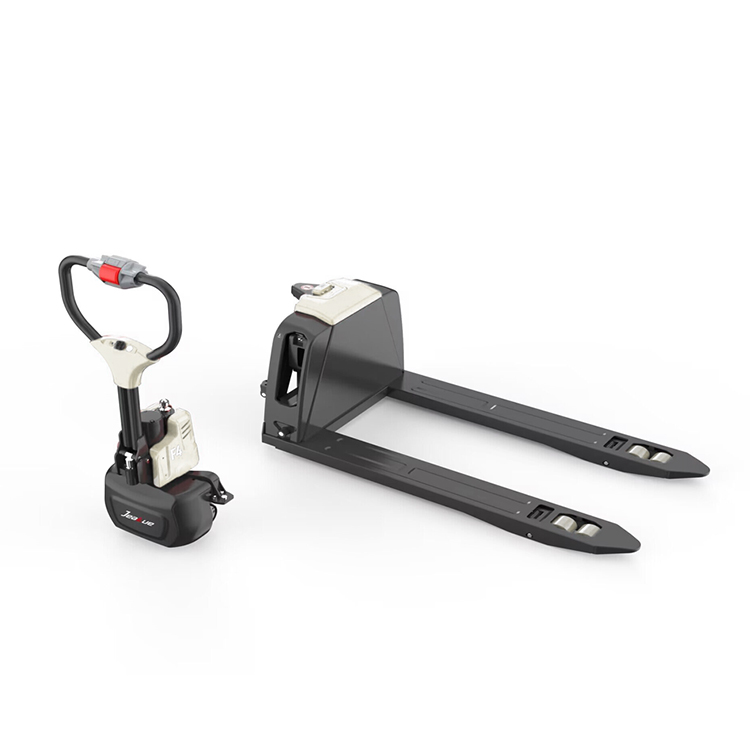

F4 adopts JEAKUE’s new and original chassis design concept, separating the front and rear frames, integrating the rear frame, and producing the front frame in a personalized way to meet the diversified transportation needs of users.
(1) Full sheet metal structure, strong and durable JEAUE 1.5 Ton Electric Pallet Truck -F4

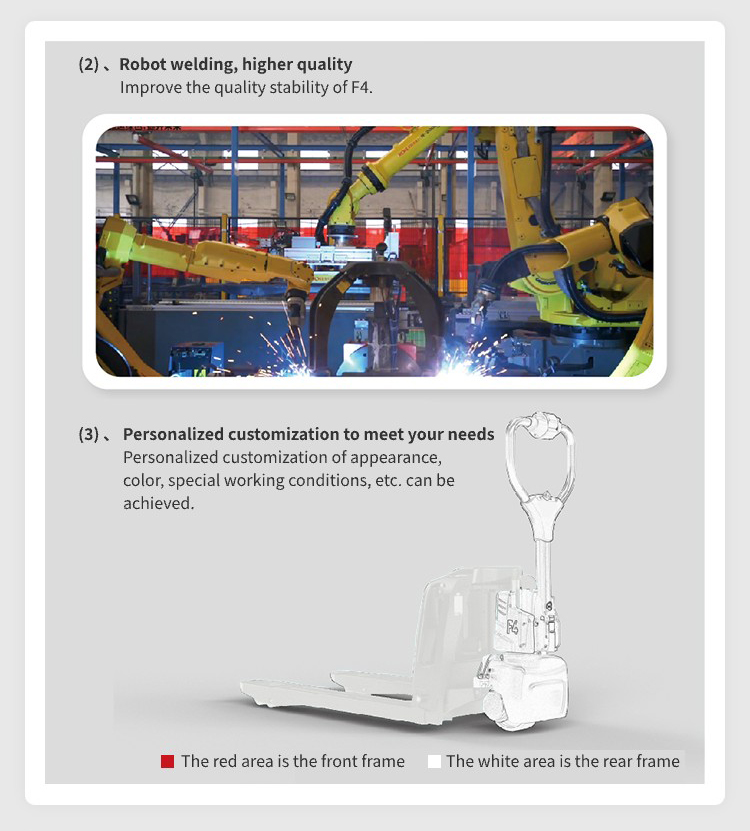

(2) Robot welding, higher quality
JEAKUE Improve the quality stability of F4.
(3) Personalized customization to meet your needs
Personalized customization of appearance, color, special working conditions, etc. can be achieved.
The red area is the front frame
The white area is the rear frame

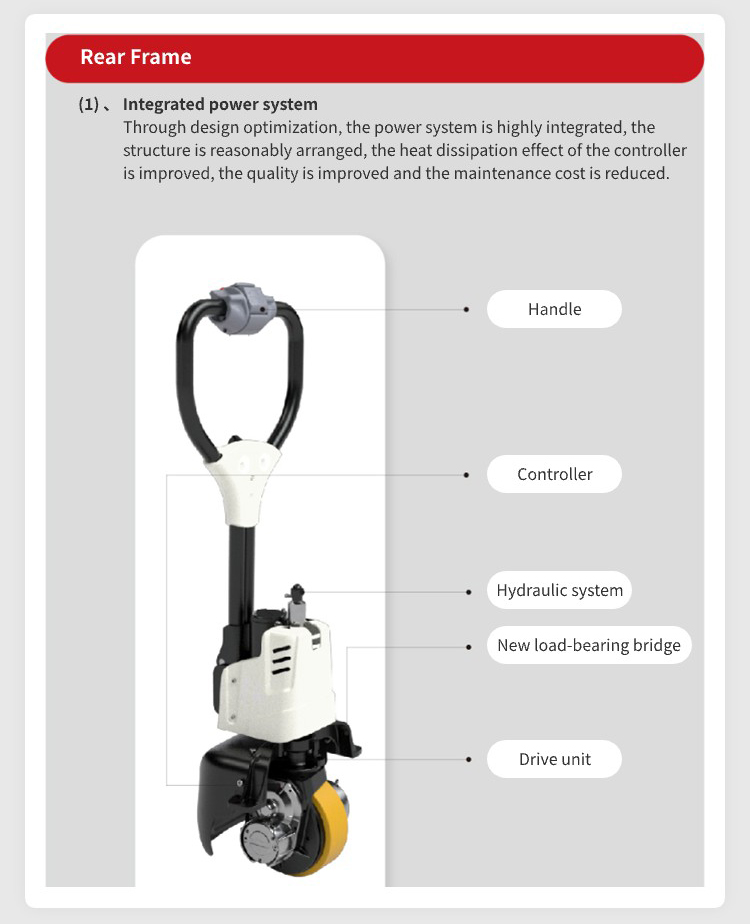

JEAKUE 1.5 Ton Electric Pallet Truck -F4(1) Integrated power system
Through design optimization, the power system is highly integrated, the structure is reasonably arranged, the heat dissipation effect of the controller is improved, the quality is improved and the maintenance cost is reduced.

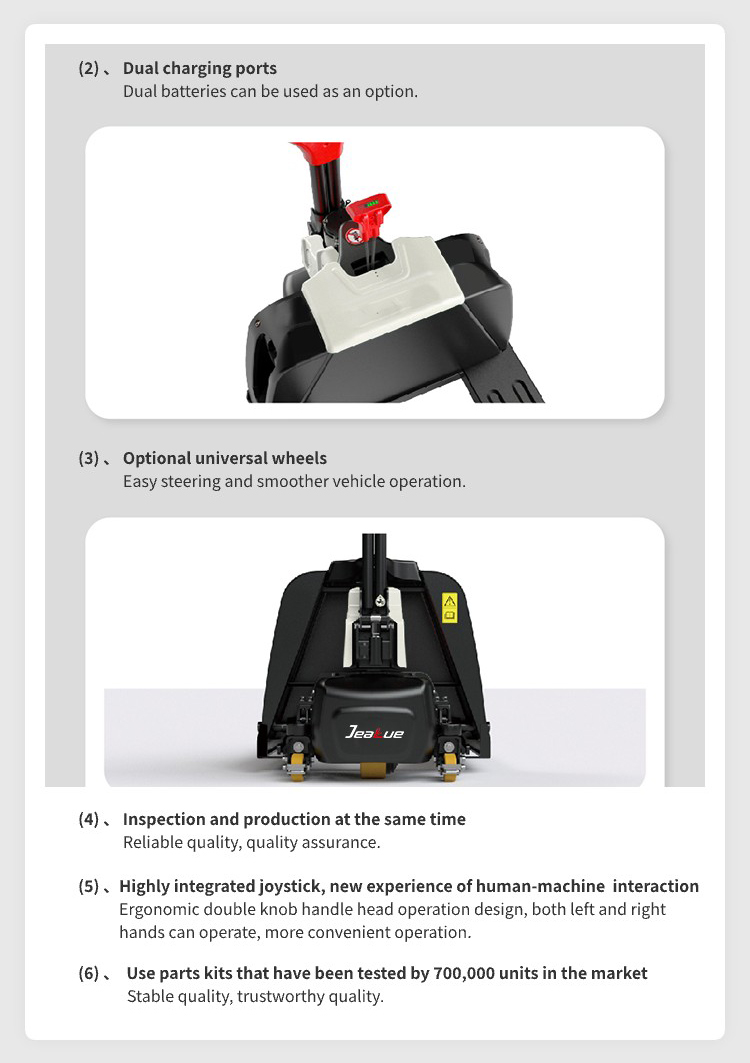

(2) Dual charging ports
Dual batteries can be used as an option
(3) Optional universal wheels JEAKUE 1.5 Ton Electric Pallet Truck -F4
Easy steering and smoother vehicle operation.
(4) Inspection and production at the same time Reliable quality, quality assurance.

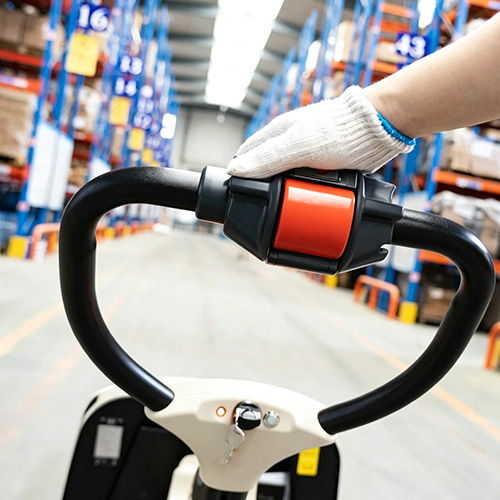

(5) Highly integrated joystick, new experience of human-machine interaction
Ergonomic double knob handle head operation design, both left and right hands can operate, more convenient operation.
(6) Use parts kits that have been tested by 700,000 units in the market
Stable quality, trustworthy quality.JEAKUE 1.5 Ton Electric Pallet Truck -F4

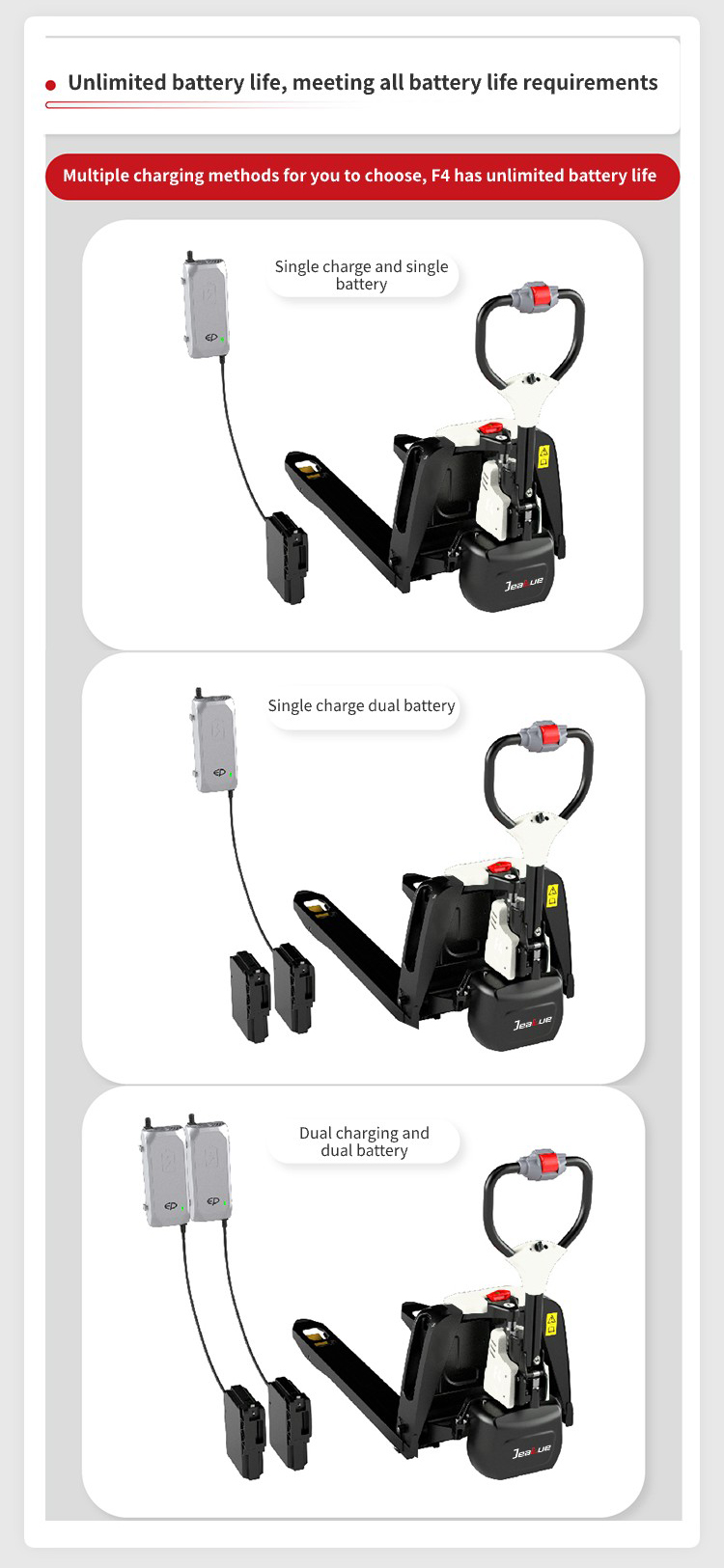

Unlimited battery life, meeting all battery life requirements
Multiple charging methods for you to choose, F4 has unlimited battery life
JEAKUE 1.5 Ton Electric Pallet Truck -F4 Single charge and single battery
Single charge dual battery
Dual charging and dual battery

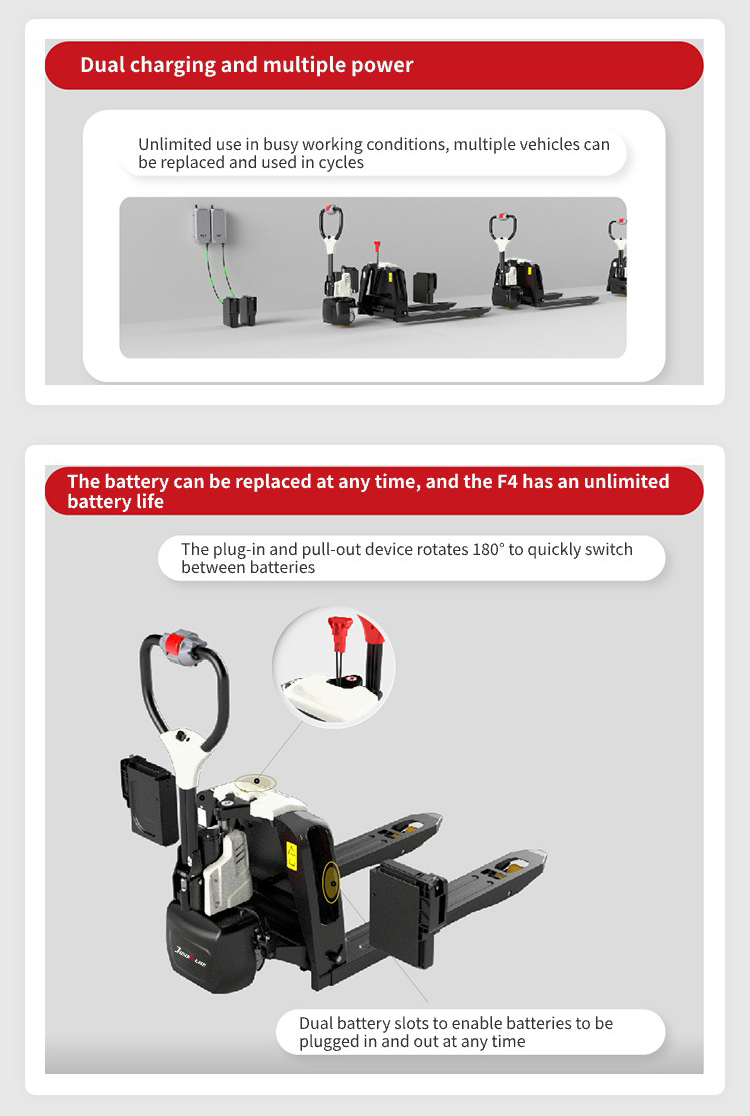

Dual charging and multiple power
Unlimited use in busy working conditions, multiple vehicles can be replaced and used in cycles
JEAKUE 1.5 Ton Electric Pallet Truck -F4 The battery can be replaced at any time, and the F4 has an unlimited battery life
The plug-in and pull-out device rotates 180° to quickly switch between batteries
Dual battery slots to enable batteries to be plugged in and out at any time

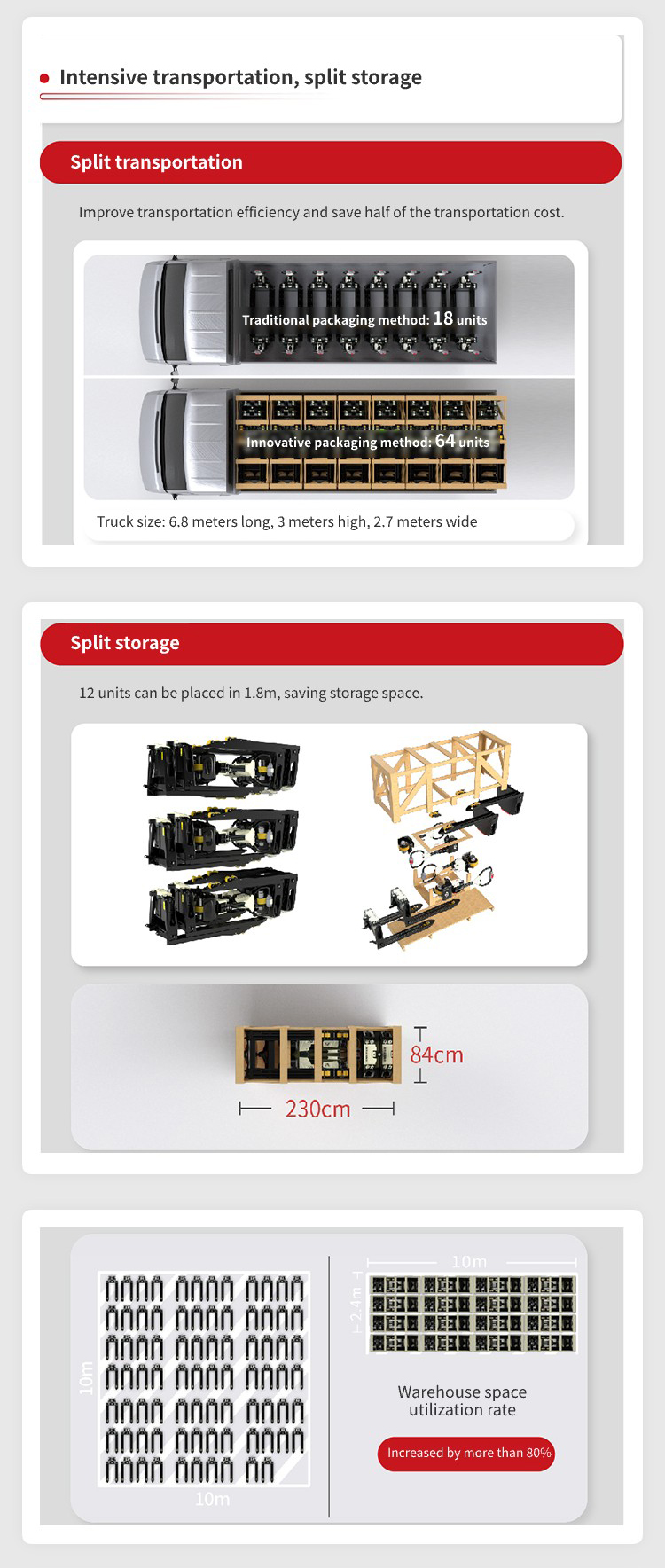

Intensive transportation, split storage JEAKUE 1.5 Ton Electric Pallet Truck -F4
Unlimited endurance, less storage and less transportatior
Split transportation JEAKUE 1.5 Ton Electric Pallet Truck -F4
Improve transportation efficiency and save half of the transportation cost.
Traditional packaging method: 18 units
Innovative packaging method: 64 units
JEAKUE 1.5 Ton Electric Pallet Truck -F4 Truck size: 6.8 meters long, 3 meters high, 2.7 meters wide
Split storage
12 units can be placed in 1.8m, saving storage space.
Warehouse space utilization rate
Increased by more than 80％
F4 adopts JEAKUE new and original chassis design concept,separating the front and rear frames,integrating the rear frame,andproducing the front frame in a personalized way to meet the diversifiedtransportation needs of users.
Front Frame. Jeakue electric pallet truck
(1)Full sheet metal structure,strong and durable
(2)Robot welding,higher qualityImprove the quality stability of F4.. JEAKUE electric pallet truck
(3)Personalized customization to meetyour needsPersonalized customization of appearance,color,special working conditions,etc.can be achieved.The red area is the front frame The white area is the rear frame
(1)Integrated power system
Through design optimization,the power system is highly integrated,the structure is reasonably arranged,the heat dissipation effect of thecontroller is improved,the quality is improved and the maintenancecost is reduced.
(2)Dual charging ports
Dual batteries can be used as an option.. JEAKUE electric pallet truck
(3)Optional universal wheels
Easy steering and smoother vehicle operation.
(4)Inspection and production at the same timeReliable quality,quality assurance.
(5)Highly integrated joystick,new experience ofhuman-machine interaction
Ergonomic double knob handle head operation design,both left andright hands can operate,more convenient operation.
(6)Use parts kits that have been tested by 700,000units in the market
Stable quality,trustworthy quality.. JEAKUE electric pallet truck
