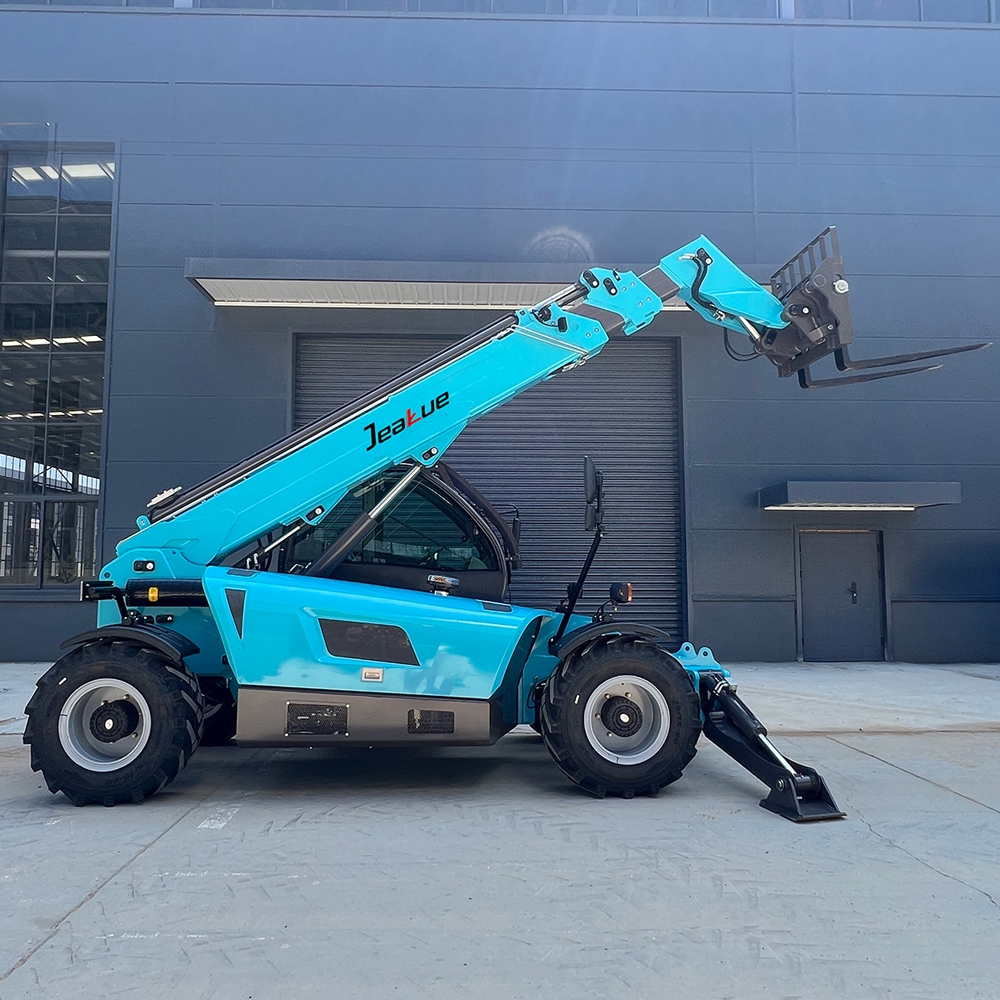

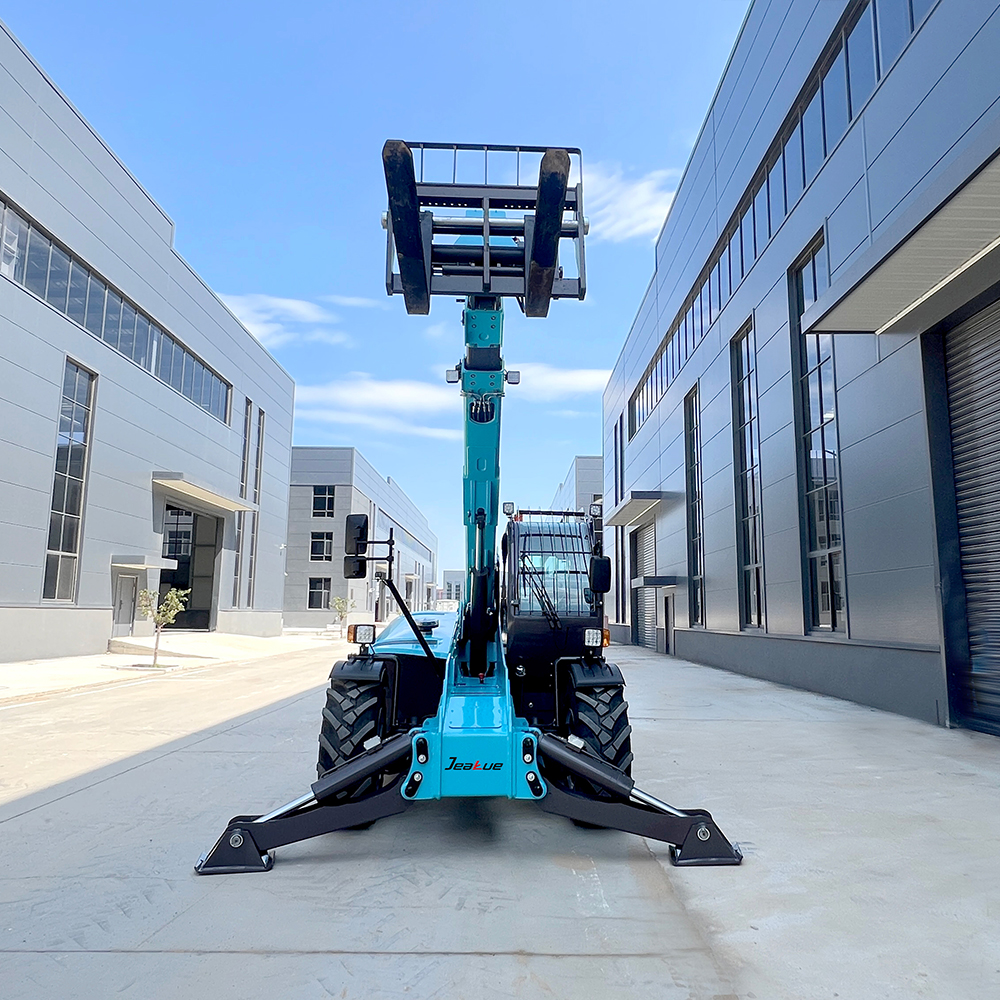

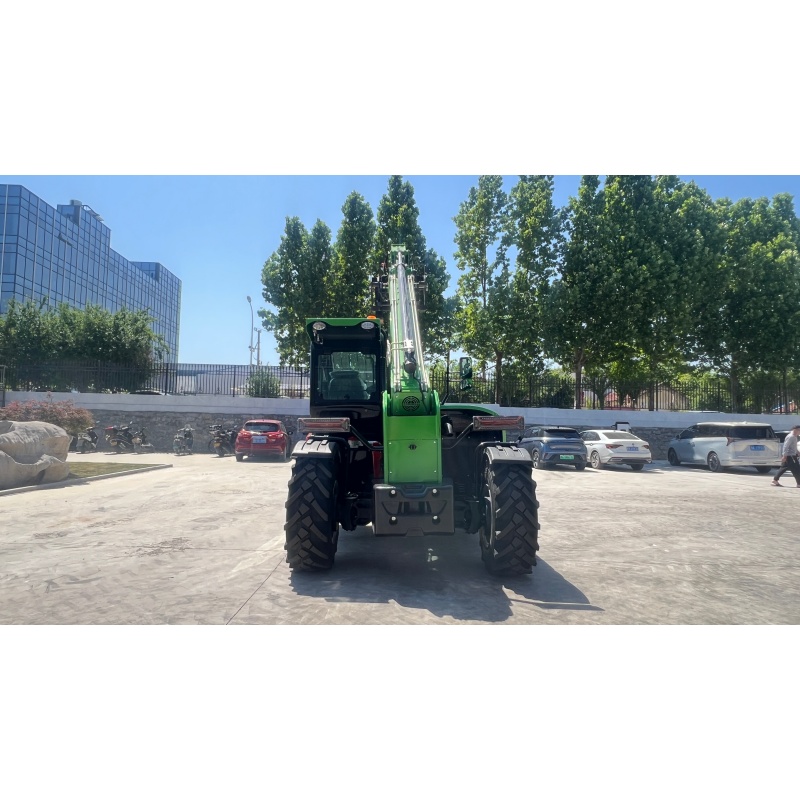

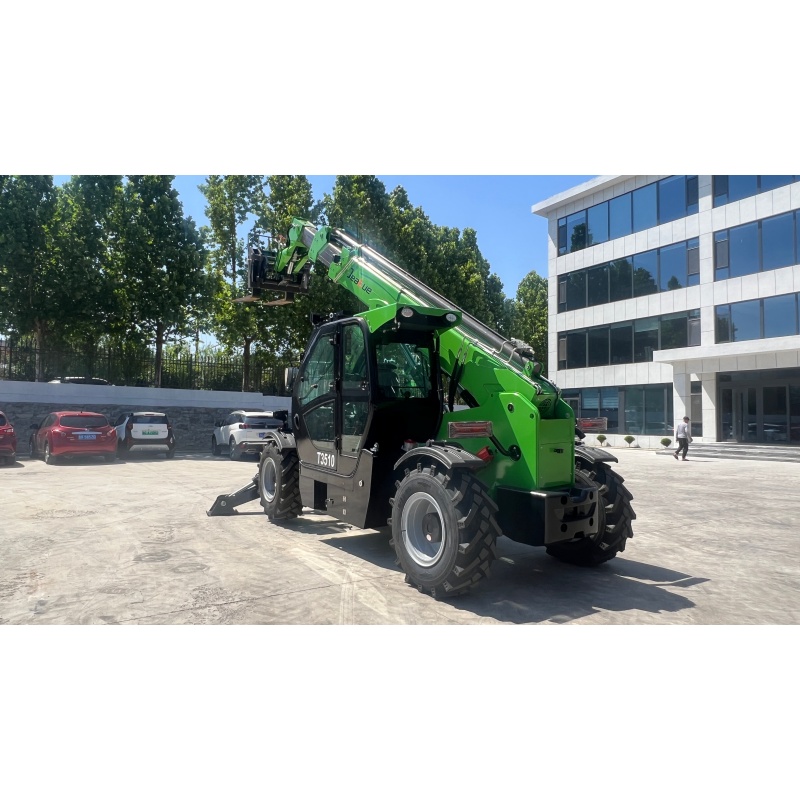

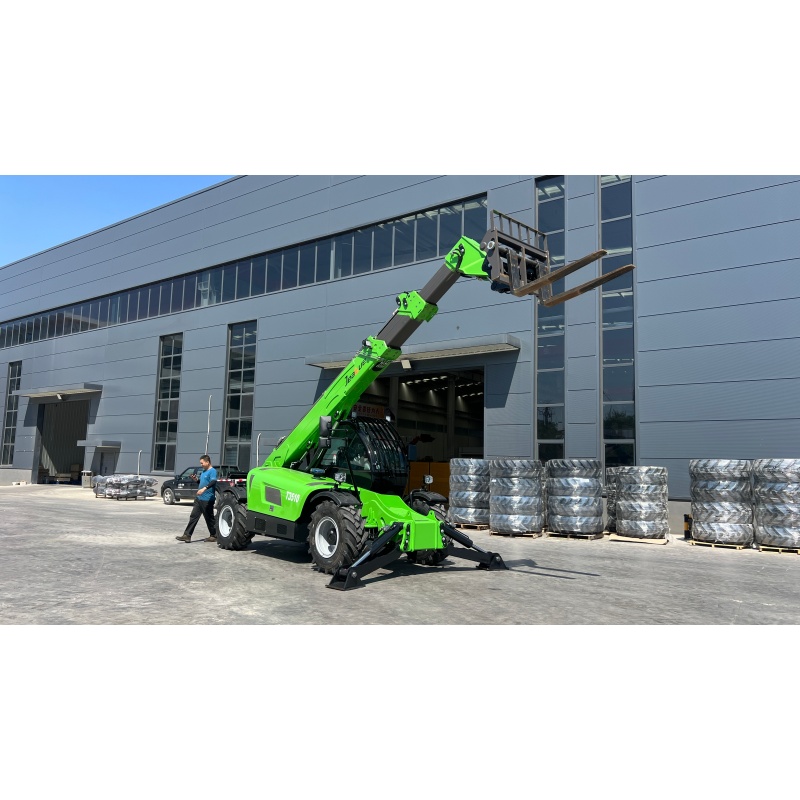

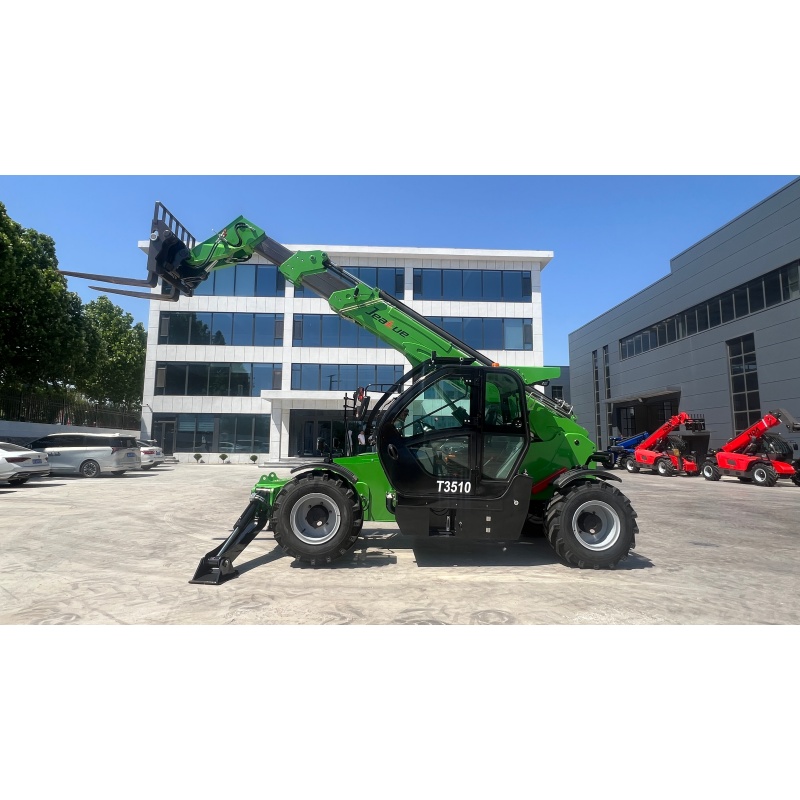

3.5 Ton Diesel Telehandler Forklift-T3510
Lifting height:10500mm
Rated load:3500Kg
Power:77.3Kw/103hp
Tyre:16/70-20 Pneumatic
Description


Specification |
|
| Max. capacity | 3500 kg |
| Max. lifting height | 10.6 m |
| Max. outreach | 5.7 m |
| Overall length to carriage (l110) | 5.8 m |
| Length to face of forks (l1) | 7.0 m |
| Min transport size (l12) | 5.05 m |
| Overall width (b1) | 2.2 m |
| Track width (b2) | 1.78 m |
| Overall height (h17) | 2.55 m |
| Wheelbase (y) | 3.15 m |
| Ground clearance (m4) | 0.35 m |
| Overall cab width(b4) | 0.84 m |
| Tilt-up angle(a4) | 12 ° |
| Tilt-down angle (a5) | 114 ° |
| External turning radius(over tyres) | 4.25 m |
| Unladen weight(with fork) | 9500 kg |
| Tires type | Pneumatic |
| Standard tires (l/e/s) | 16/70 – 20 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Lifting | 10 s |
| Lowering | 7 s |
| Extension | 12 s |
| Retraction | 8.6 s |
| Crowd | 4.8 s |
| Dump | 3.4 s |
| Engine brand | Yuchai (optional brand) |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4M22T – 105 |
| Number of cylinders / Capacity of cylinders | 4 – 4400 cm³ |
| I.C. Engine power rating – Power | 103 Hp / 77.3 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 10000 daN |
| Transmission type | Torque converter (optional hydrostatic) |
| Number of gears (forward / reverse) | 4/4 |
| Max. travel speed | 35 km/h |
| Parking brake | Automatic air – cut brake (optional wet braking) |
| Service brake | Immersed multi – discs braking on front & rear axles |
| Hydraulic pump type | Gear pump (optional piston pump) |
| Hydraulic flow | 120 L |
| Engine oil | 5.5 L |
| Hydraulic oil | 170 L |
| Fuel tank | 195 L |
| Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |

Features:From the beginning, the toughest applications were the measure of all things for the development of Hank telehandlers. Based on the know-how from wheel loader development, the machines were consistently designed for robustness and reliability. This can be seen, for example, in the torsionally rigid heavy-duty frame, which can safely absorb the high payloads of the machines due to its closed design and large material thicknesses.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3510
From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3510
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 3.5 Ton Diesel Telehandler Forklift-T3510
