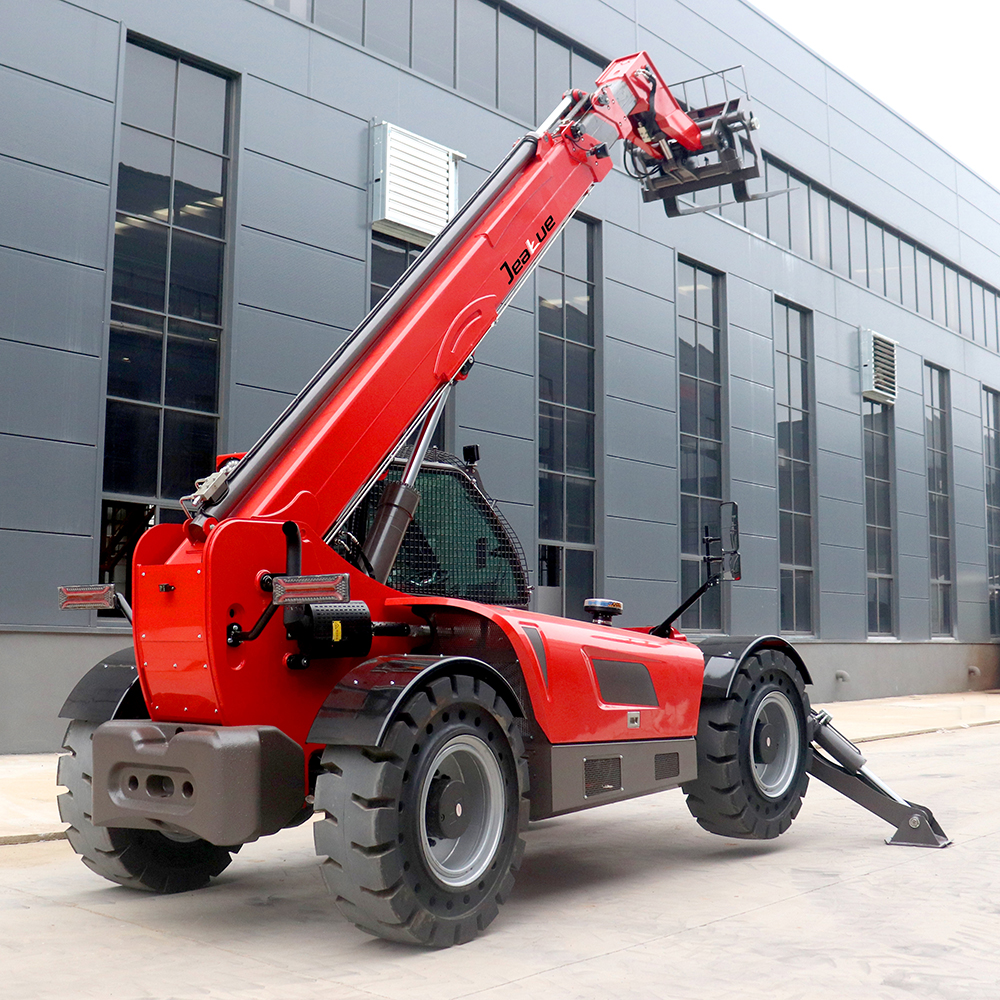

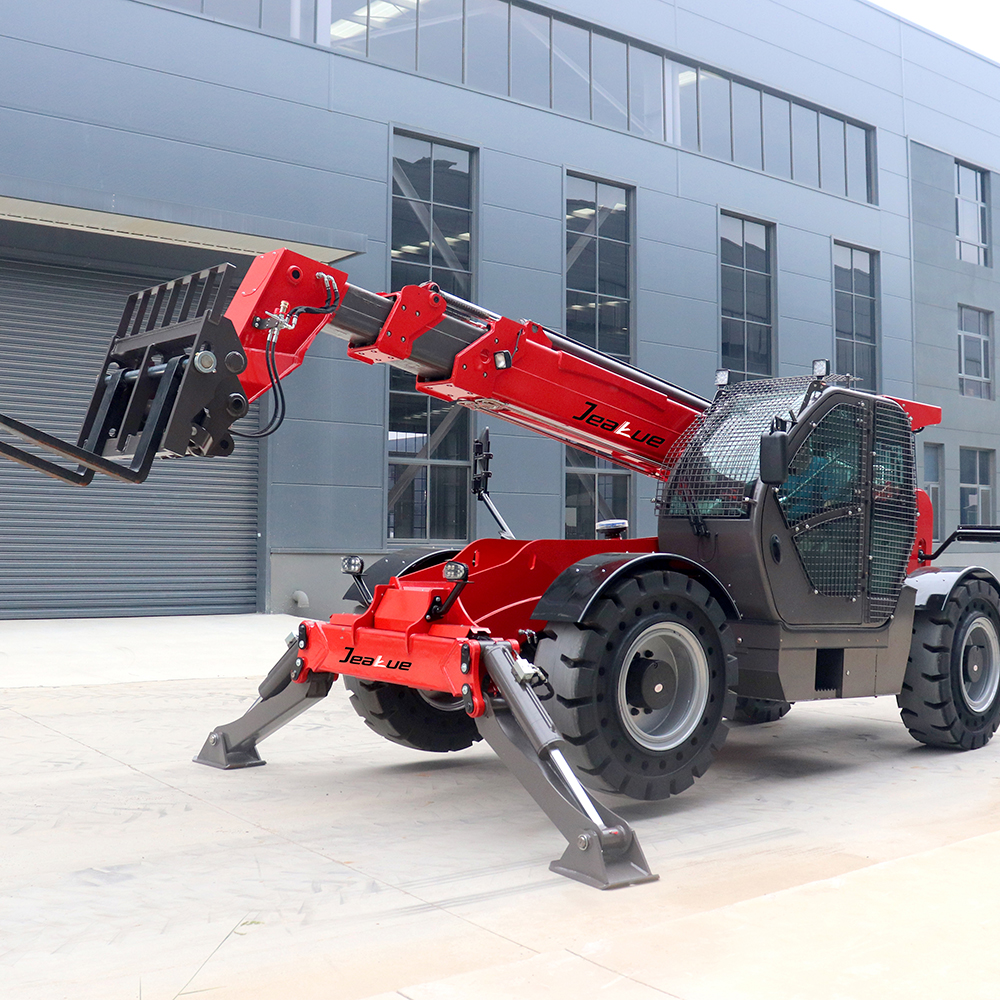

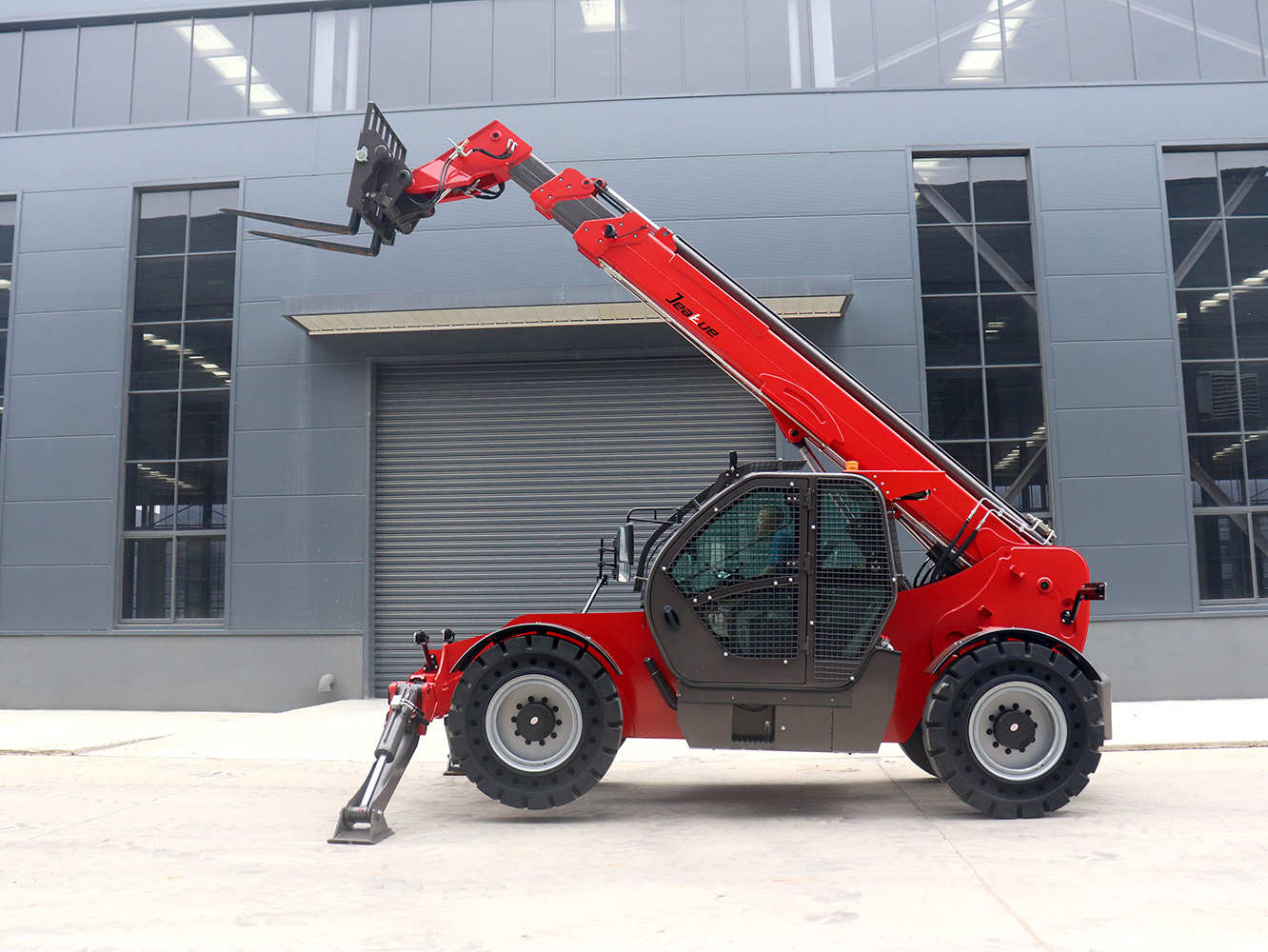

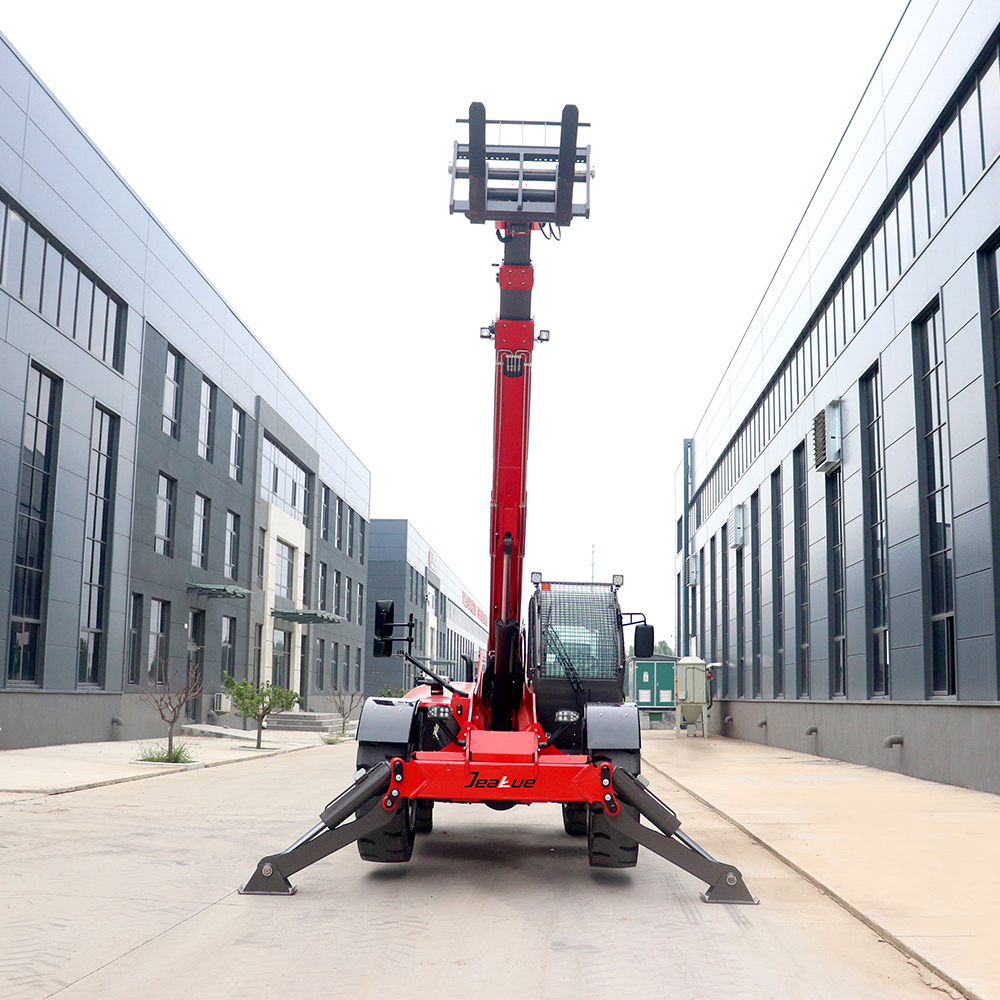

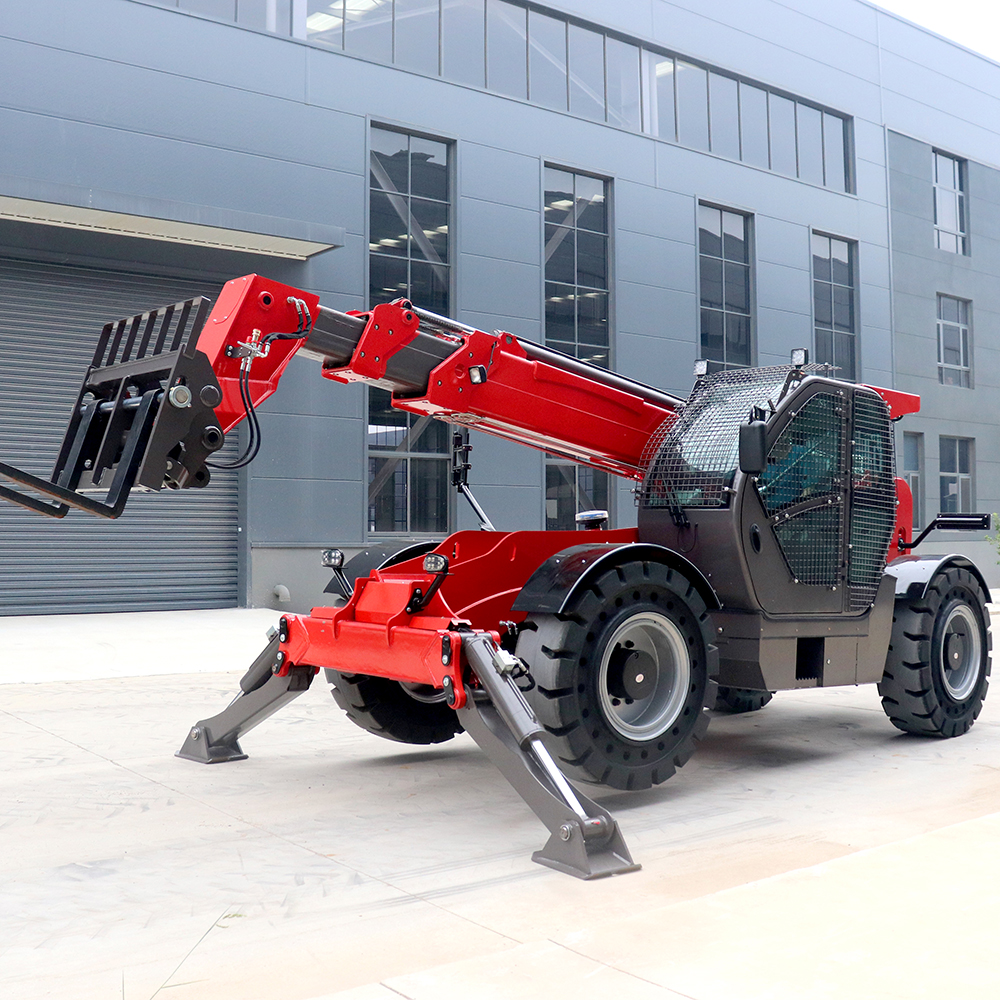

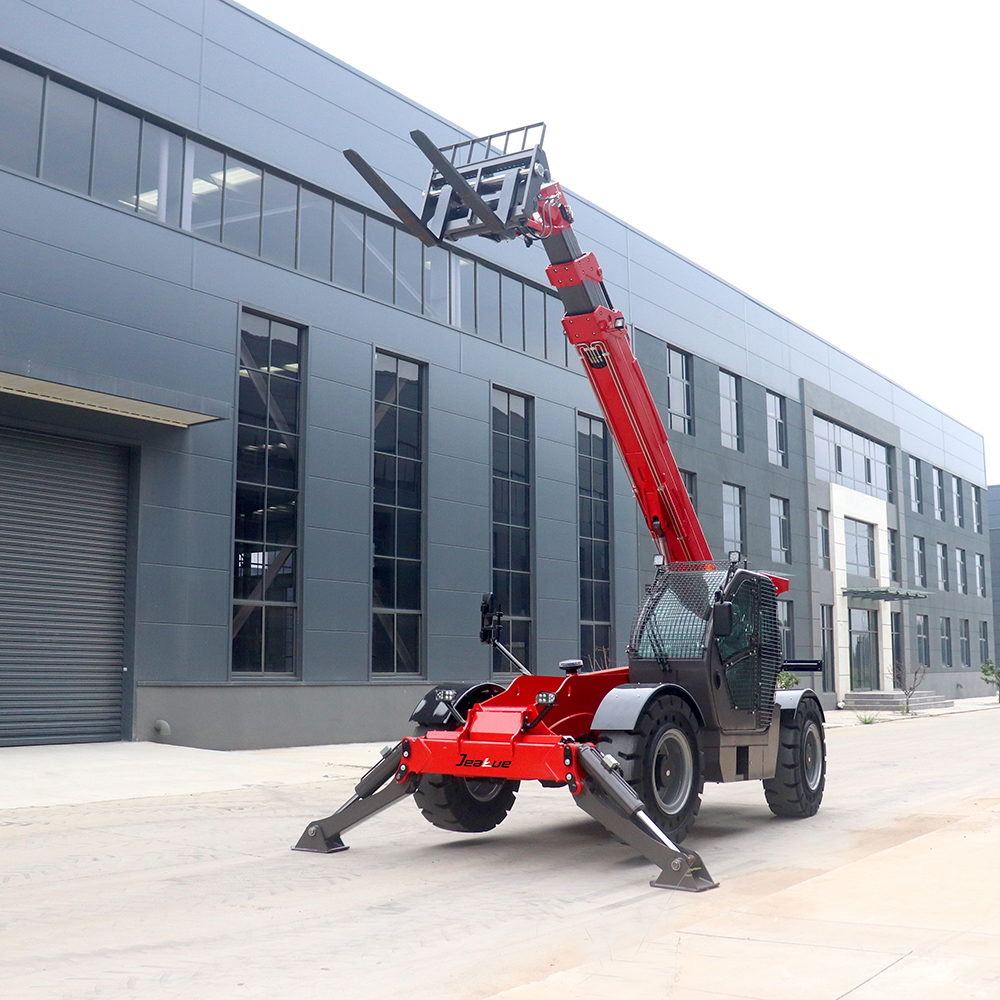

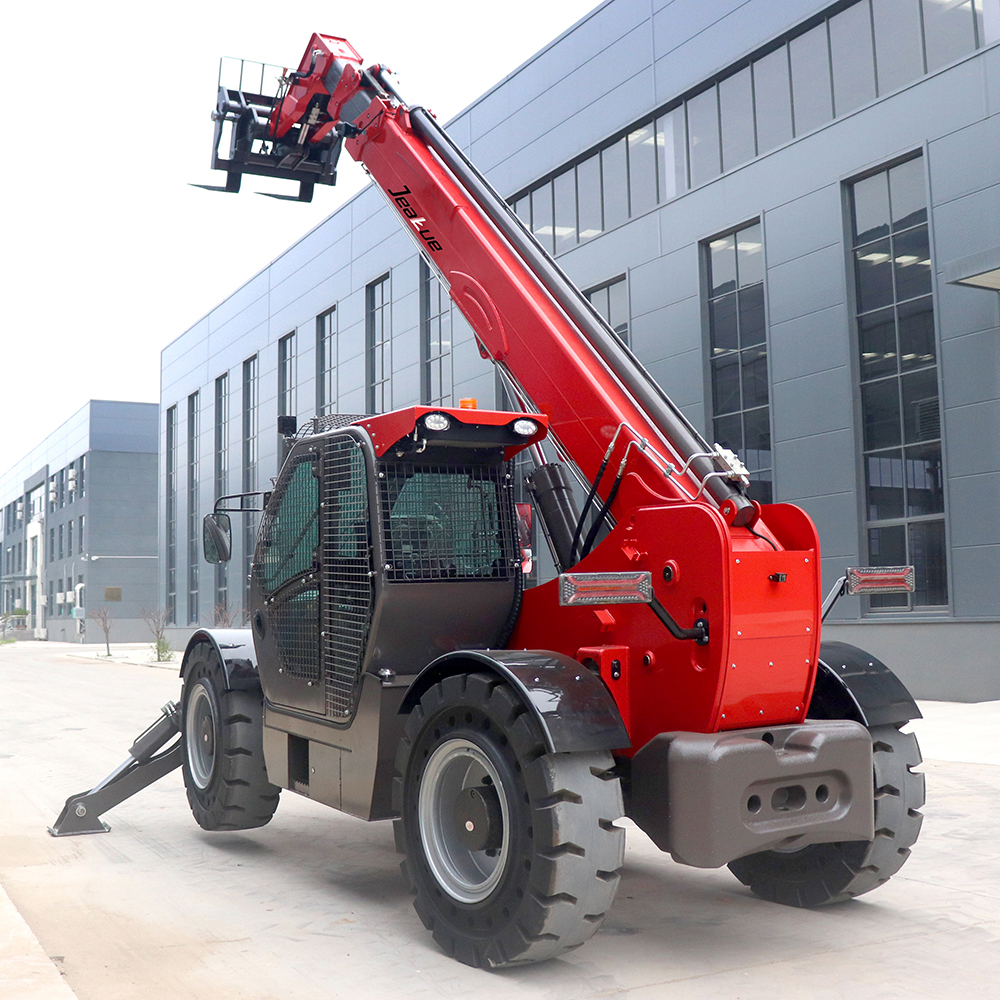

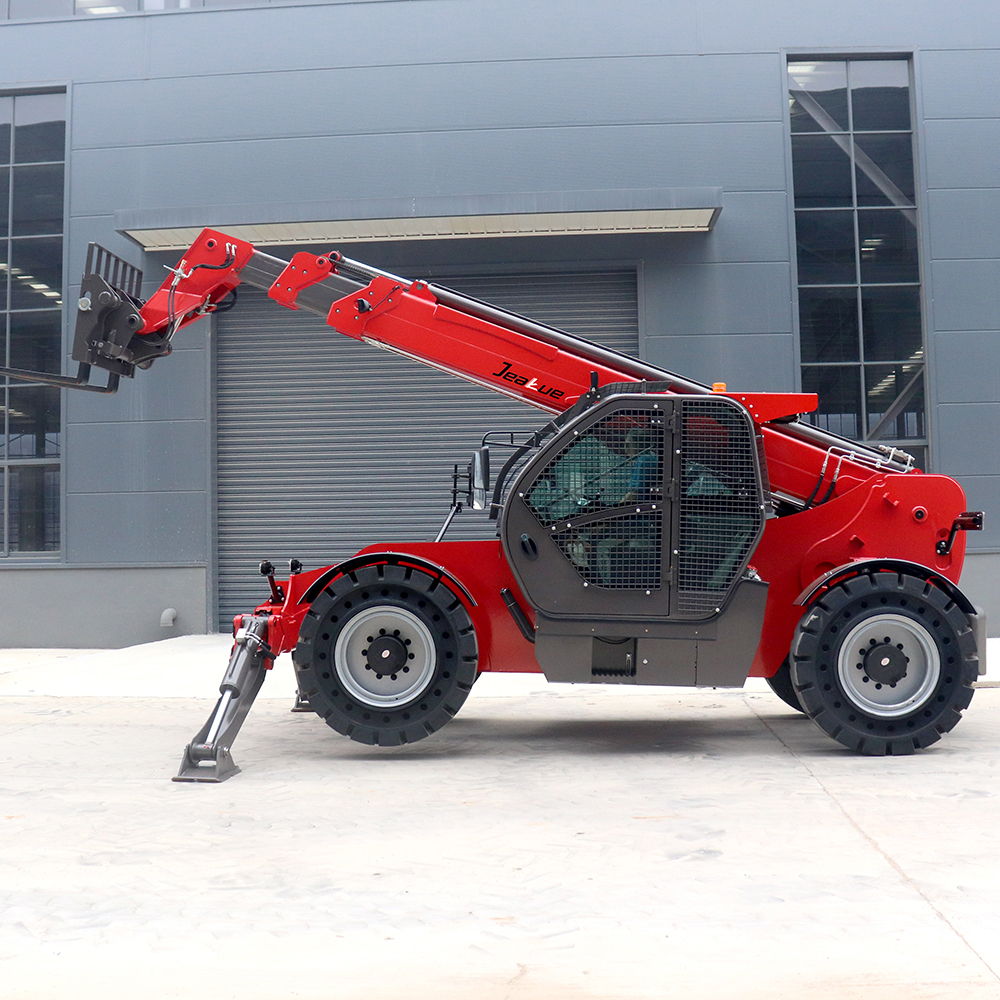

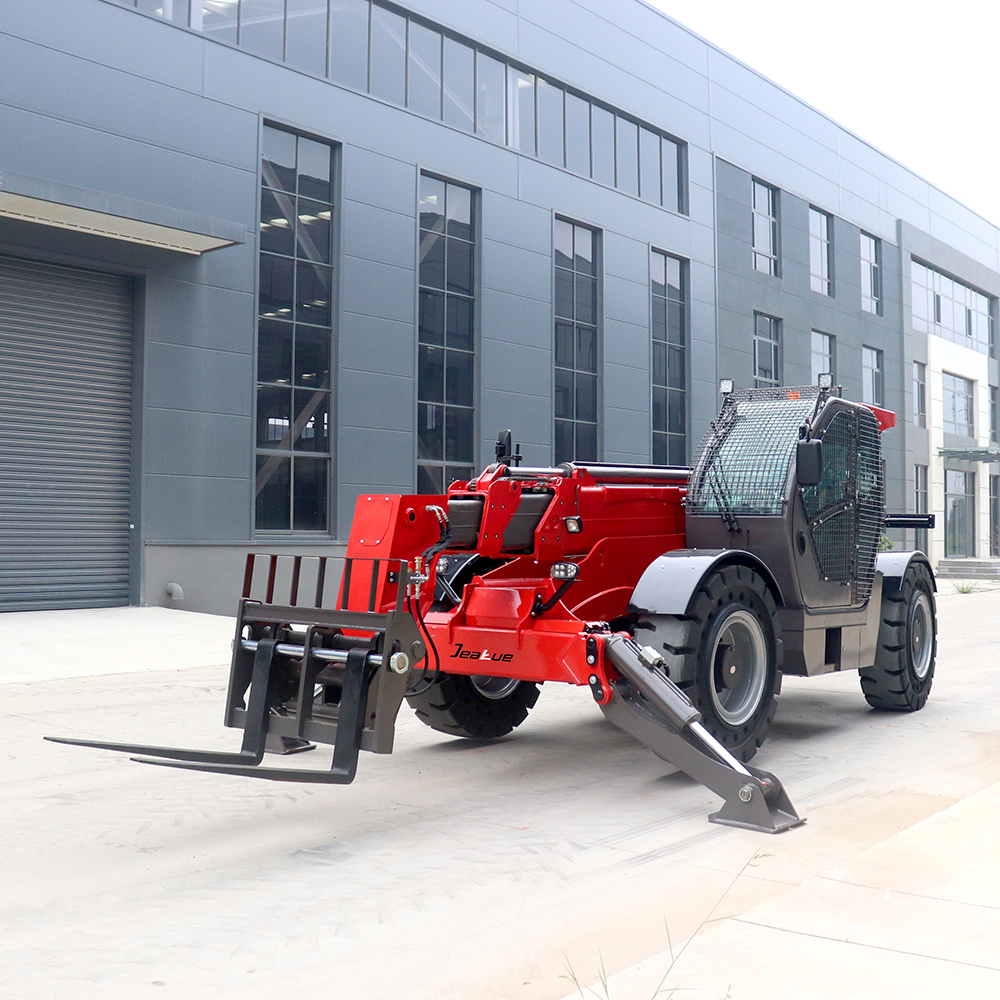

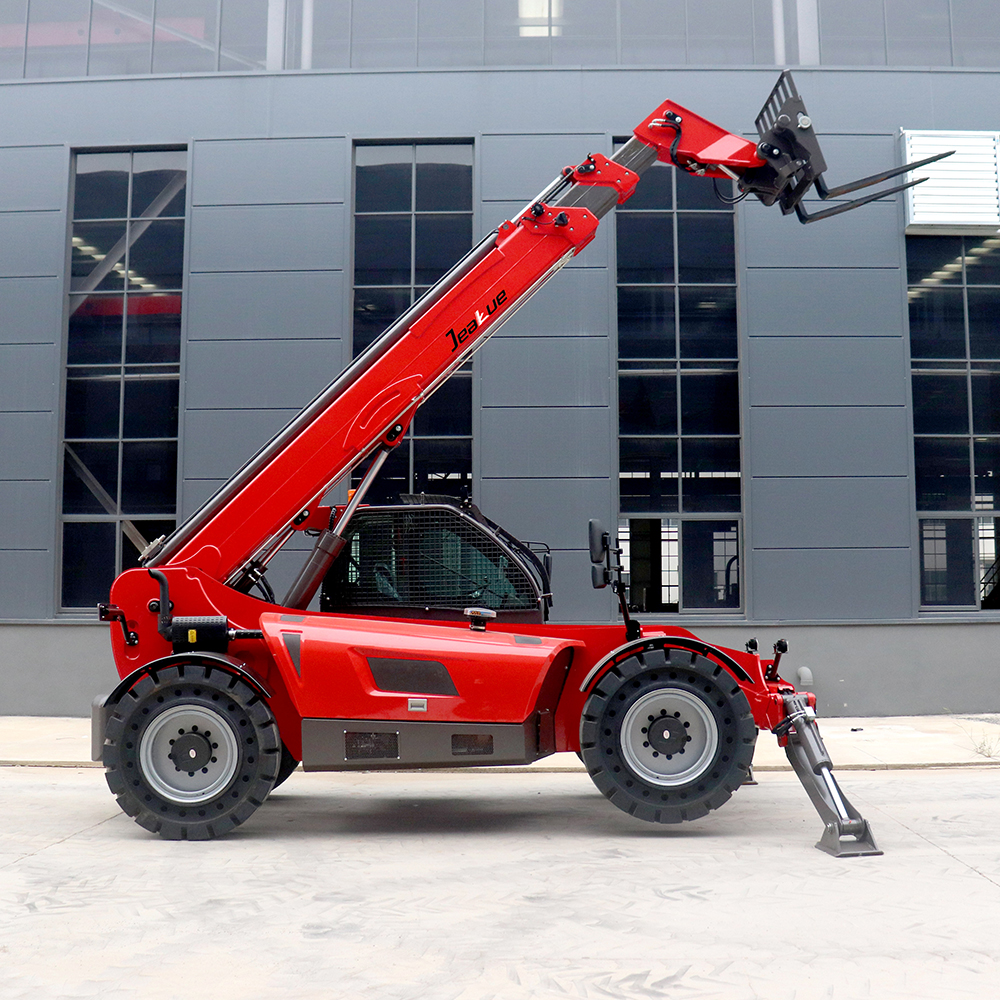

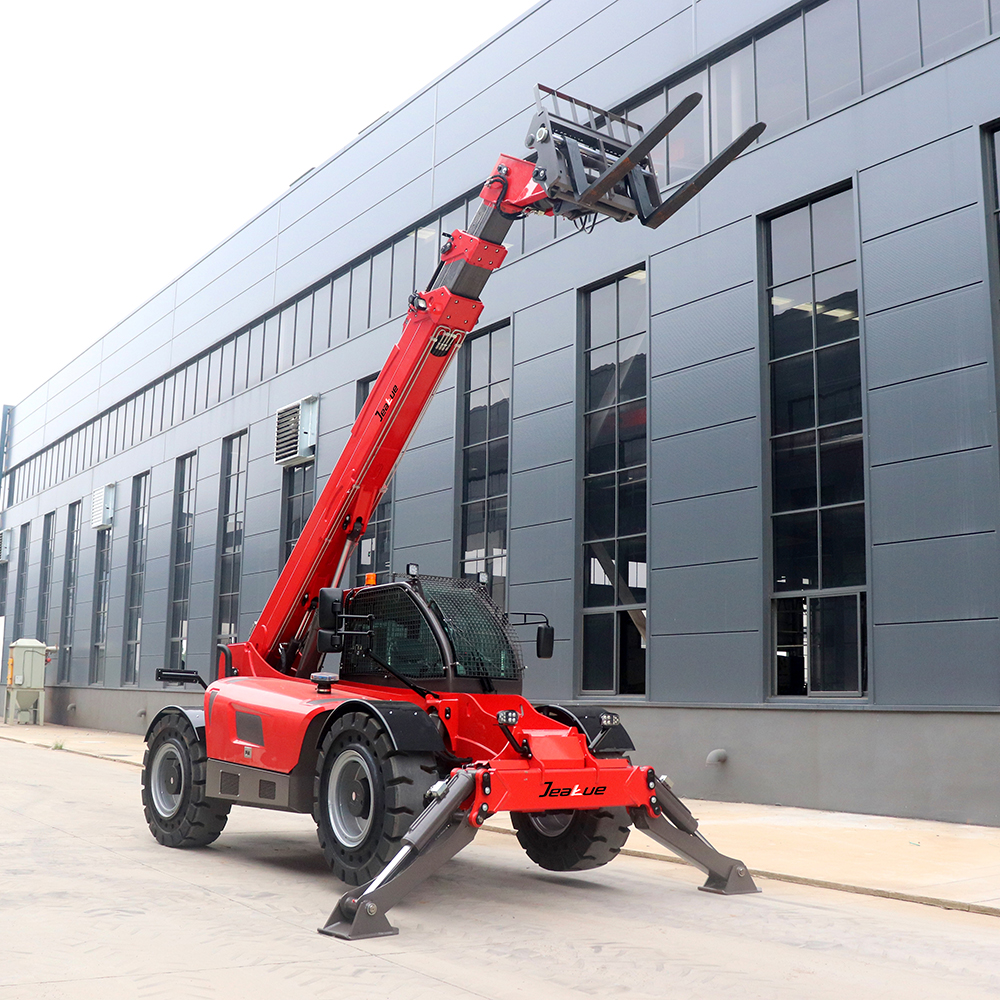

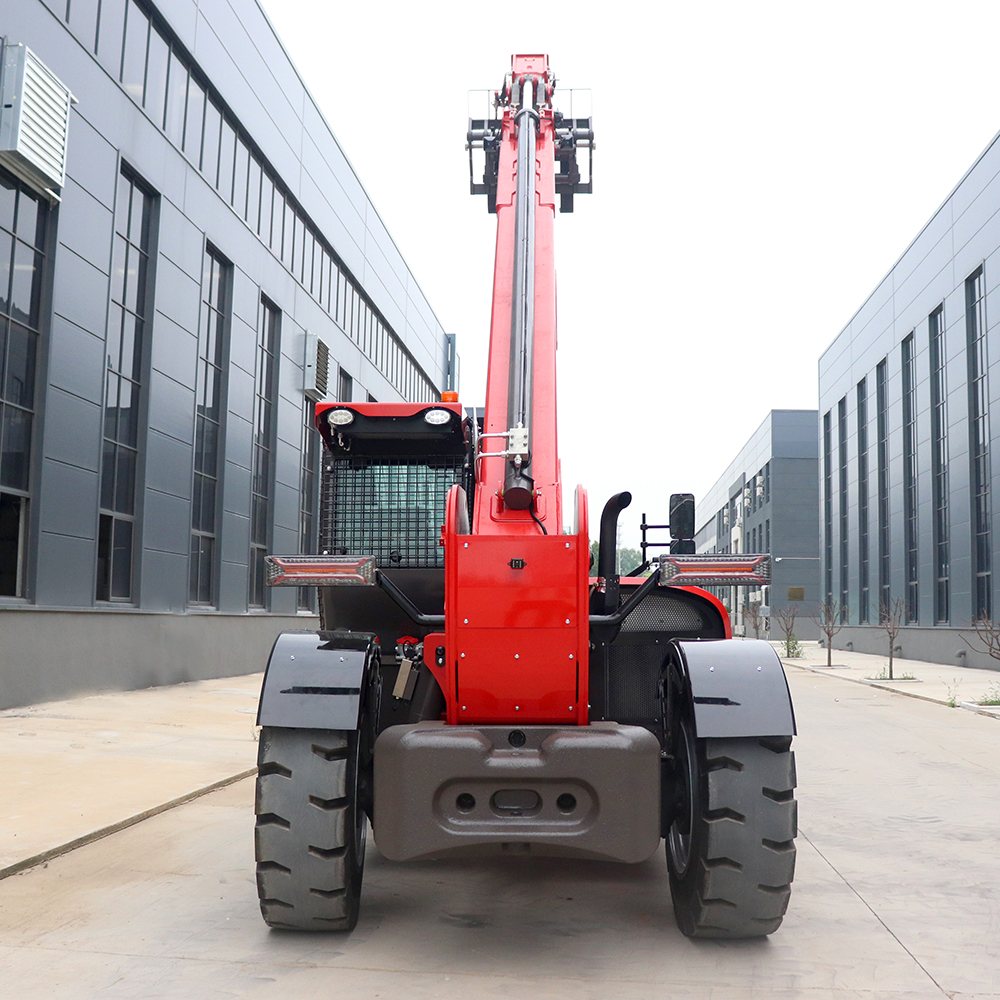

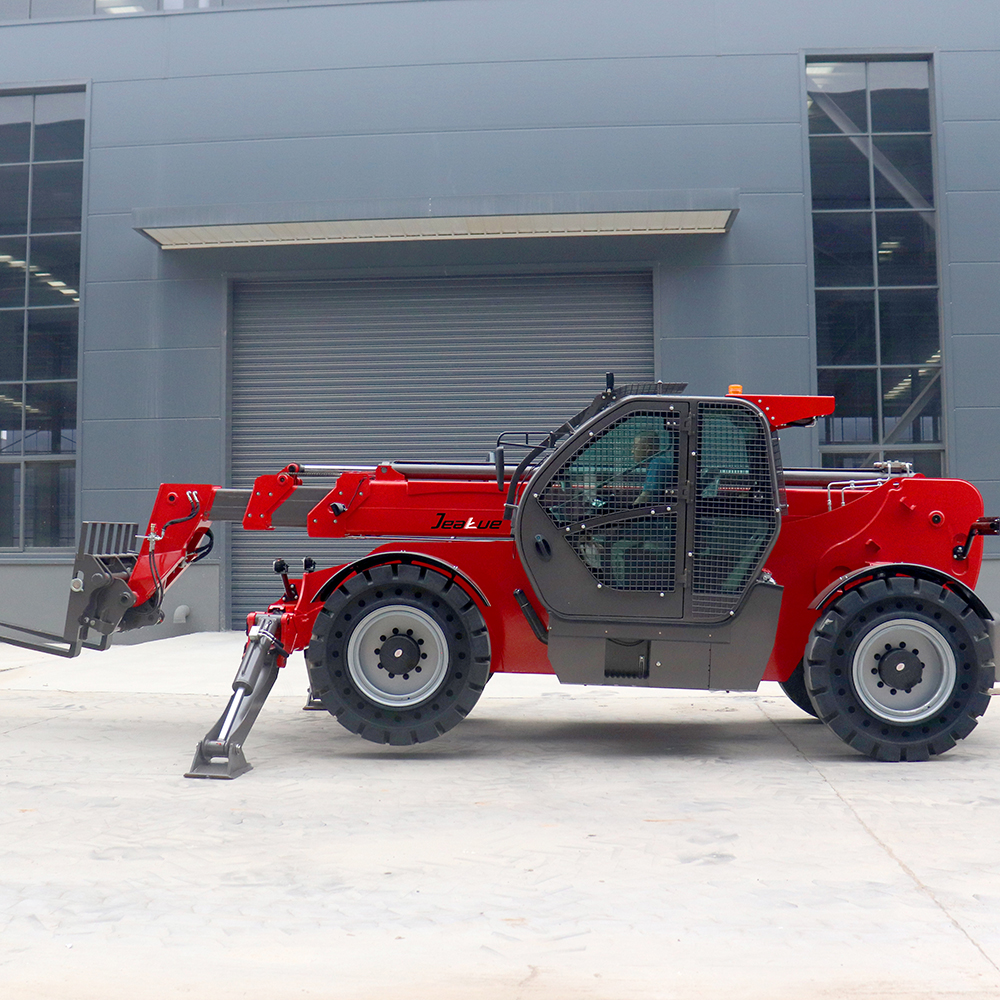

4 Ton Diesel Telehandler Forklift-T4014
Lifting height:13800mm
Rated load:4000Kg
Power:85Kw/114hp
Tyre:440/80-24 Tubeless
Description


Specification |
|
| Max. capacity | 4000 kg |
| Max. lifting height | 13.8 m |
| Max. outreach | 7.0 m |

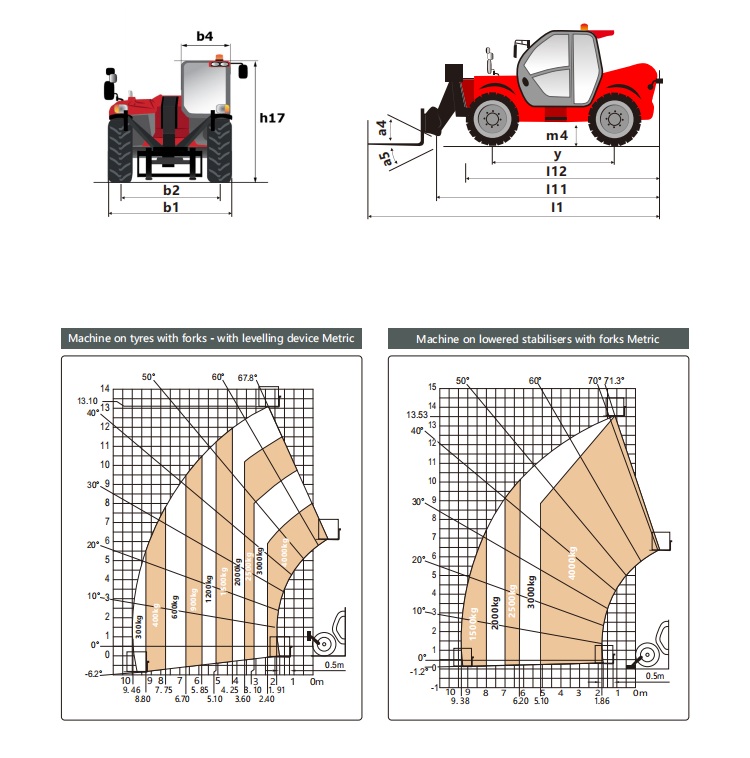

| Overall length to carriage (l110) | 6.4 m |
| Length to face of forks (l1) | 7.62 m |
| Min transport size (l12) | 5.6 m |
| Overall width (b1) | 2.35 m |
| Track width (b2) | 1.95 m |
| Overall height (h17) | 2.55 m |
| Wheelbase (y) | 3.6 m |
| Ground clearance (m4) | 0.38 m |
| Overall cab width(b4) | 0.84 m |
| Tilt-up angle(a4) | 12 ° |
| Tilt-down angle (a5) | 114 ° |
| External turning radius(over tyres) | 4.1 m |
| Unladen weight(with fork) | 13000 kg |
| Tires type | Tubeless |
| Standard tires (l/e/s) | 440/80-24 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Lifting | 16 s |
| Lowering | 12.4 s |
| Extension | 17.3 s |
| Retraction | 13 s |
| Crowd | 4.8 s |
| Dump | 4.0 s |
| Engine brand | Yuchai (optional brand) |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4J22T-125 |
| Number of cylinders / Capacity of cylinders | 4 – 4400 cm³ |
| I.C. Engine power rating – Power | 114 Hp / 85 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 9930 daN |
| Transmission type | Torque converter (optional hydrostatic) |
| Number of gears (forward / reverse) | 4/4 |
| Max. travel speed | 40 km/h |
| Parking brake | Automatic air-cut brake (optional wet braking) |
| Service brake | Immersed multi-discs braking on front & rear axles |
| Hydraulic pump type | Gear pump (optional piston pump) |
| Hydraulic flow | 150 L |
| Engine oil | 5.5 L |
| Hydraulic oil | 170 L |
| Fuel tank | 195 L |
| Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 106 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |

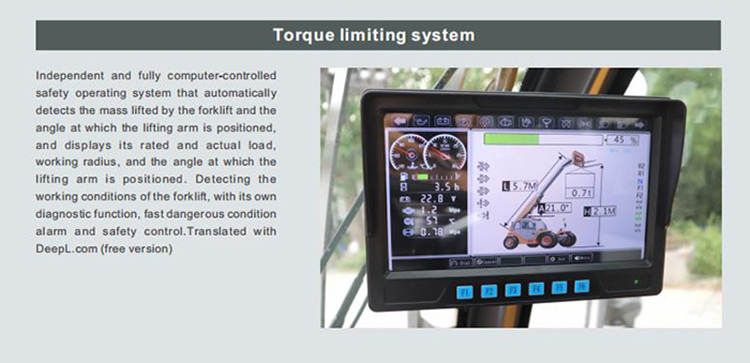

Torque limiting system:Independent and fully computer-controlled safety operating system that automatically detects the mass lifted by the forklift and the angle at which the lifting arm is positioned, and displays its rated and actual load, working radius, and the angle at which the lifting arm is positioned. Detecting the working conditions of the forklift, with its own diagnostic function, fast dangerous condition alarm and safety control.Translated with DeepL.com (free version) JEAKUE 4 Ton Diesel Telehandler Forklift-T4014

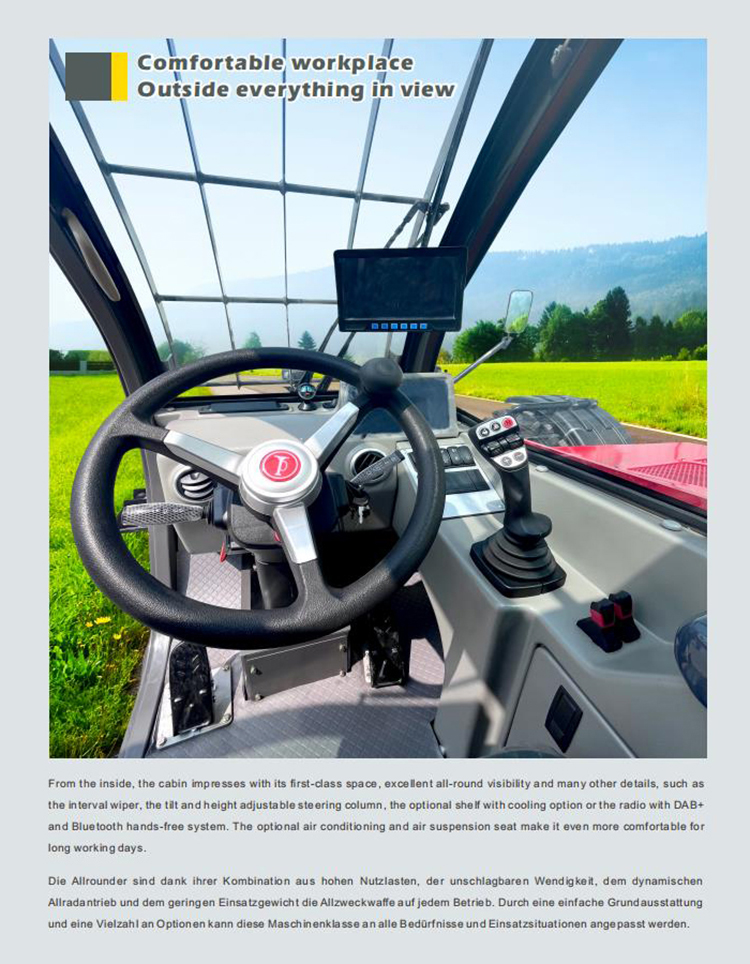

From the inside, the cabin impresses with its first-class space, excellent all-round visibility and many other details, such as
the interval wiper, the tilt and height adjustable steering column, the optional shelf with cooling option or the radio with DAB+ and Bluetooth hands-free system. The optional air conditioning and air suspension seat make it even more comfortable for long working days.JEAKUE 4 Ton Diesel Telehandler Forklift-T4014
Die Allrounder sind dank ihrer Kombination aus hohen Nutzlasten, der unschlagbaren Wendigkeit, dem dynamischen
Allradantrieb und dem geringen Einsatzgewicht die Allzweckwaffe auf jedem Betrieb. Durch eine einfache Grundausstattung
und eine Vielzahl an Optionen kann diese Maschinenklasse an alle Bedürfnisse und Einsatzsituationen angepasst werden.JEAKUE 4 Ton Diesel Telehandler Forklift-T4014
