Description

PRODUCT PARAMETERS

Load Capacity:	2000kg(4409.24 lb) Electric Pallet Truck
Fork Dimensions:	1150/150/55mm(45.28/5.91/2.17in)(lxexs)
Distance between fork-arms:	685/560mm(26.97/22.05in)
Battery Voltage/Nominal Capacity:	48V/10Ah Lithium battery
Turning Radius:	1390mm(54.72in)
Lift Height	105mm(4.13in)
Steering Design:	Mechanical
Service Weight:	130KG(286.60lb)
Product Color：	Ivory/Red/Customization

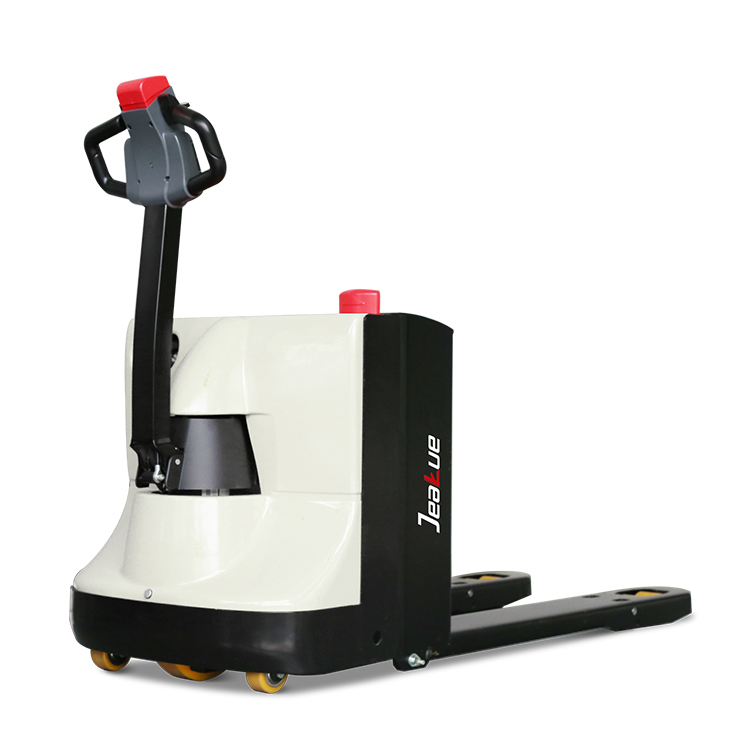

Comfortable operation JEAKUE 2 Ton Lithium Battery Electric Pallet truck-F520

Equipped with a high-definition LCD screen, the power, fault code and usage mode are accurately displayed, which is more intuitive.Linear accelerator meets the operating comfort of people with different speeds and improves the operating comfort.The handle head rebounds linearly, reducing the operating force and more in line with the human body design.Equipped with a high-definition LCD screen, the power, fault code and usage Emergency stop is placed in the middle to facilitate emergency power off in emergency situations.Three-speed handle operation position is convenient for emergency parking.Wide drive wheel increases the ground contact area and improves the driving texture.JEAKUE electric pallet truck

Reliable and durable

JEAKUE 2 Ton Lithium Battery Electric Pallet truck-F520 Mature power unit: JK’s self-developed and time-tested horizontal gearbox has reliable quality.The center of gravity of the vehicle is lowered, the chassis is solid, and the driving is more stable.All-metal body, integral casting top plate, internal reinforcement treatment, 8mm sheet metal thickness,higher body strength.Hydraulic lifting limit structure reduces electrical components and increases system reliability.JEAKUE electric pallet truck

Safety Assurance

Configured with CAN communication, the information exchange of key components of the whole vehicle is safer and smarter.Motor reverse regeneration system: Motor reverse regenerative braking,safer braking.Clear operation sequence to prevent accidental triggering of the vehicle. Three-gear operation position, effective braking.High torque power-off brake to prevent heavy loads from sliding down the slope.Sensitive and convenient reverse switch to prevent squeezing during operation.All-metal drive protection cover to meet CE requirements.JEAKUE electric pallet truck JEAKUE 2 Ton Lithium Battery Electric Pallet truck-F520

Easy maintenance

The main line has a reserved diagnostic port for easy reading of system information.The external frame drive cable routing avoids threading the shaft head.Convenient drive connection method, eliminating multiple fixing bolts.The hydraulic station is integrated with the oil cylinder to avoid the oil pipe passing through the frame.Quick-release lithium battery, the handle automatically locks, no need for repeated disassembly and assembly.JEAKUE  electric pallet truck JEAKUE 2 Ton Lithium Battery Electric Pallet truck-F520
