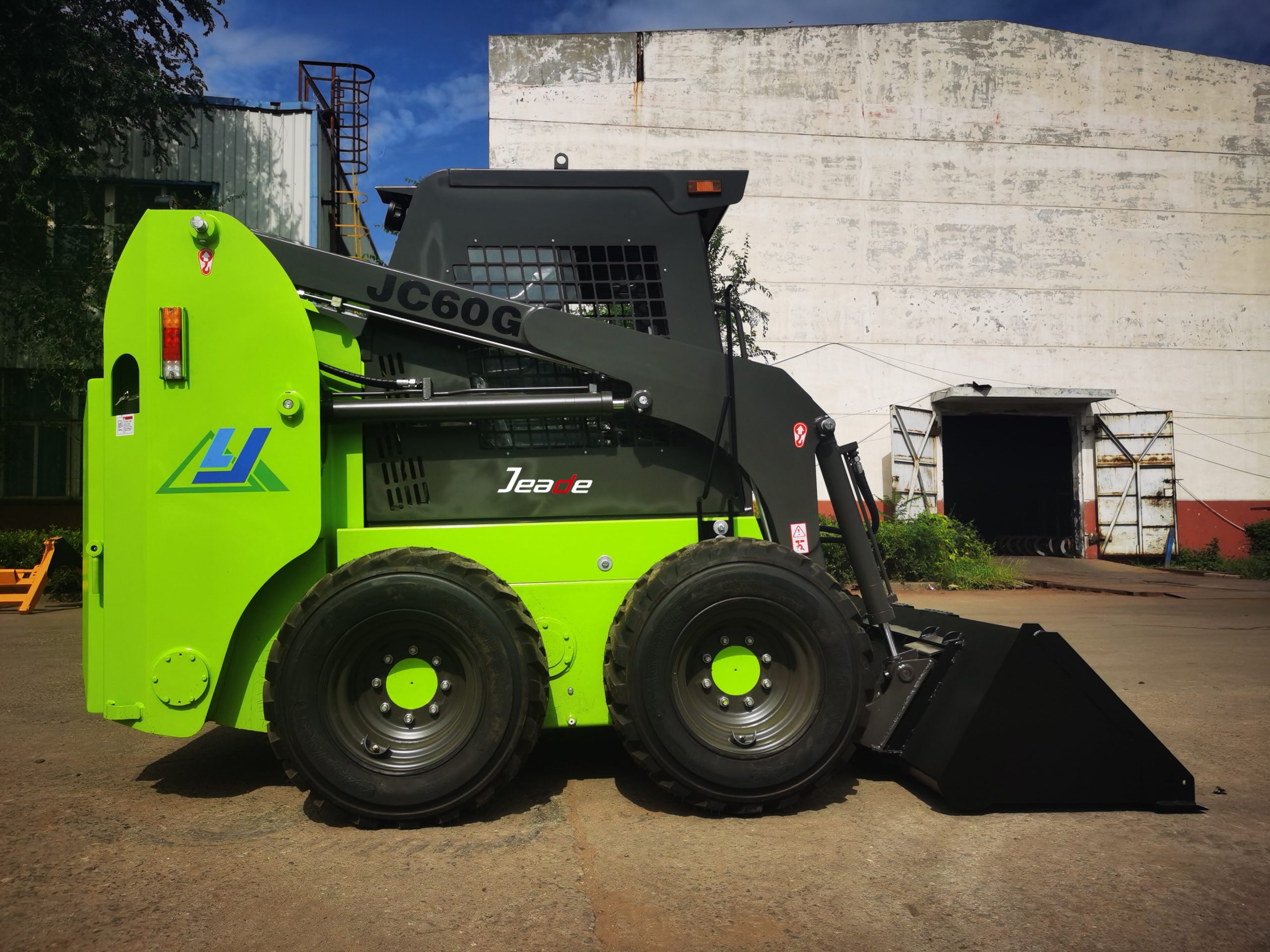

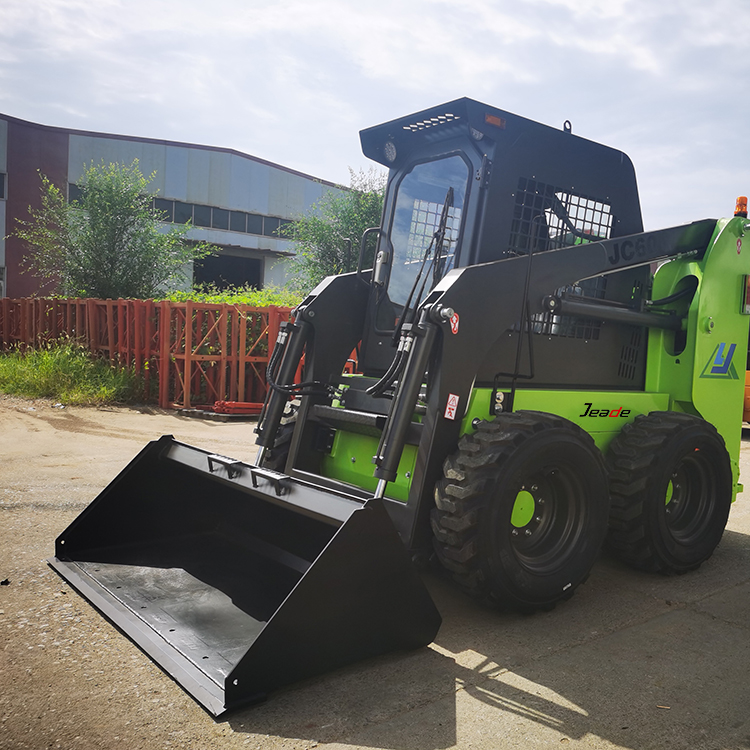

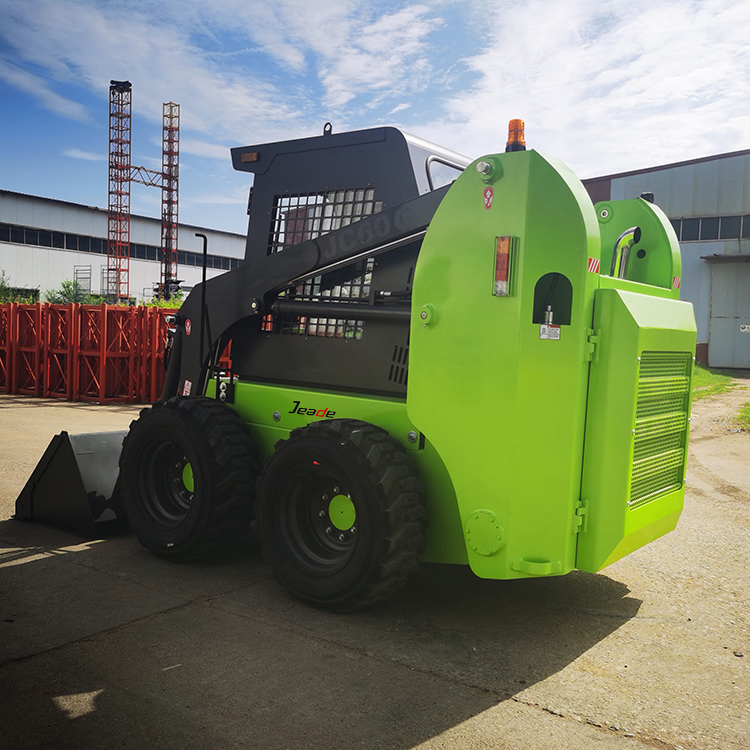

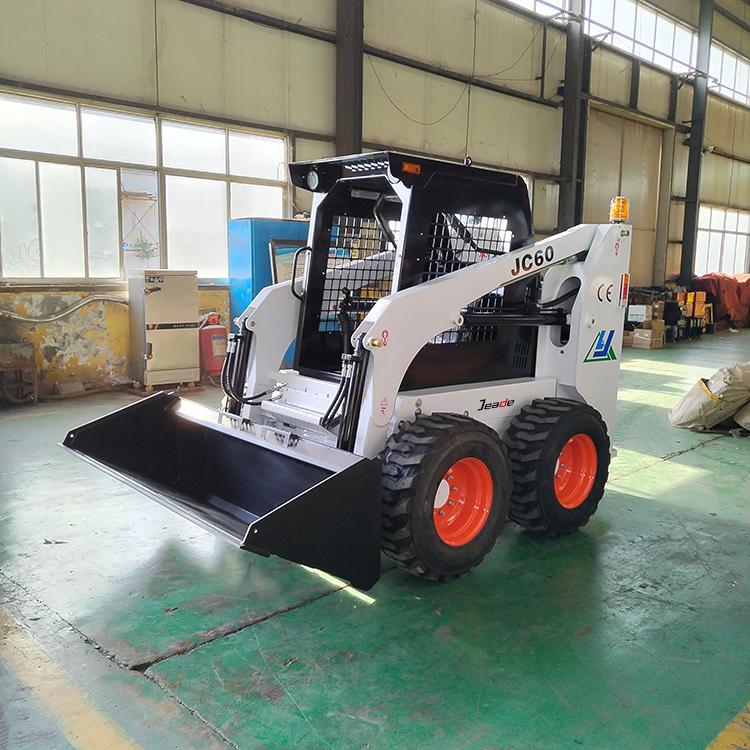

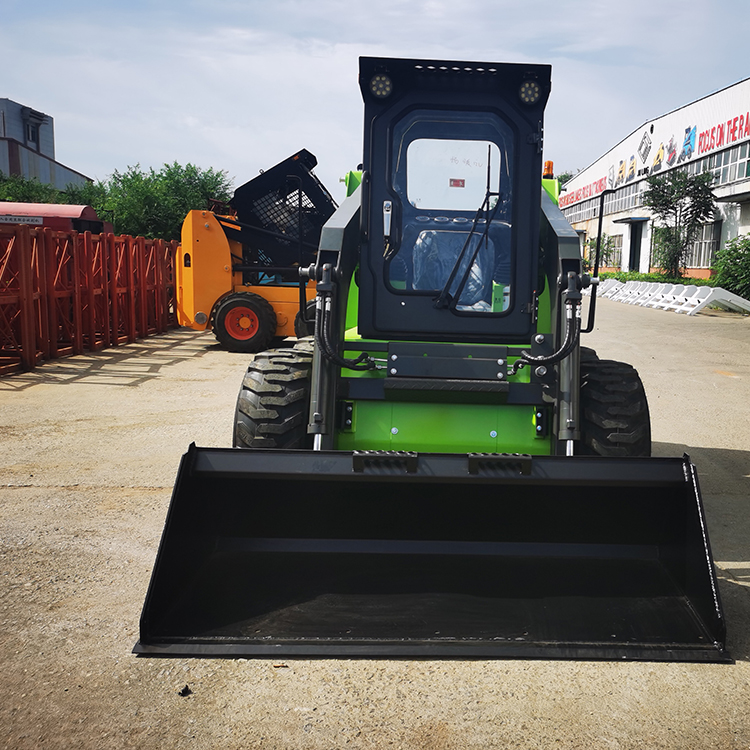

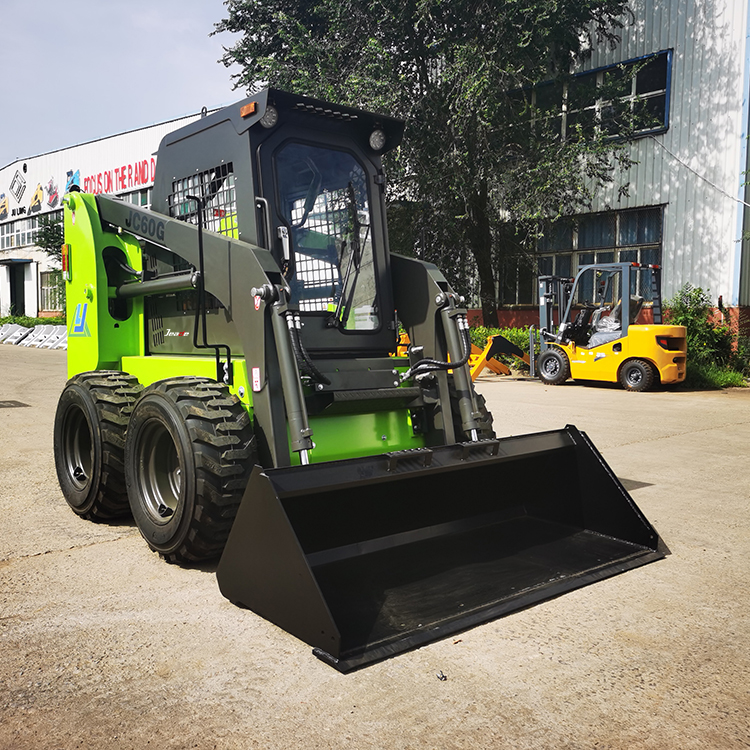

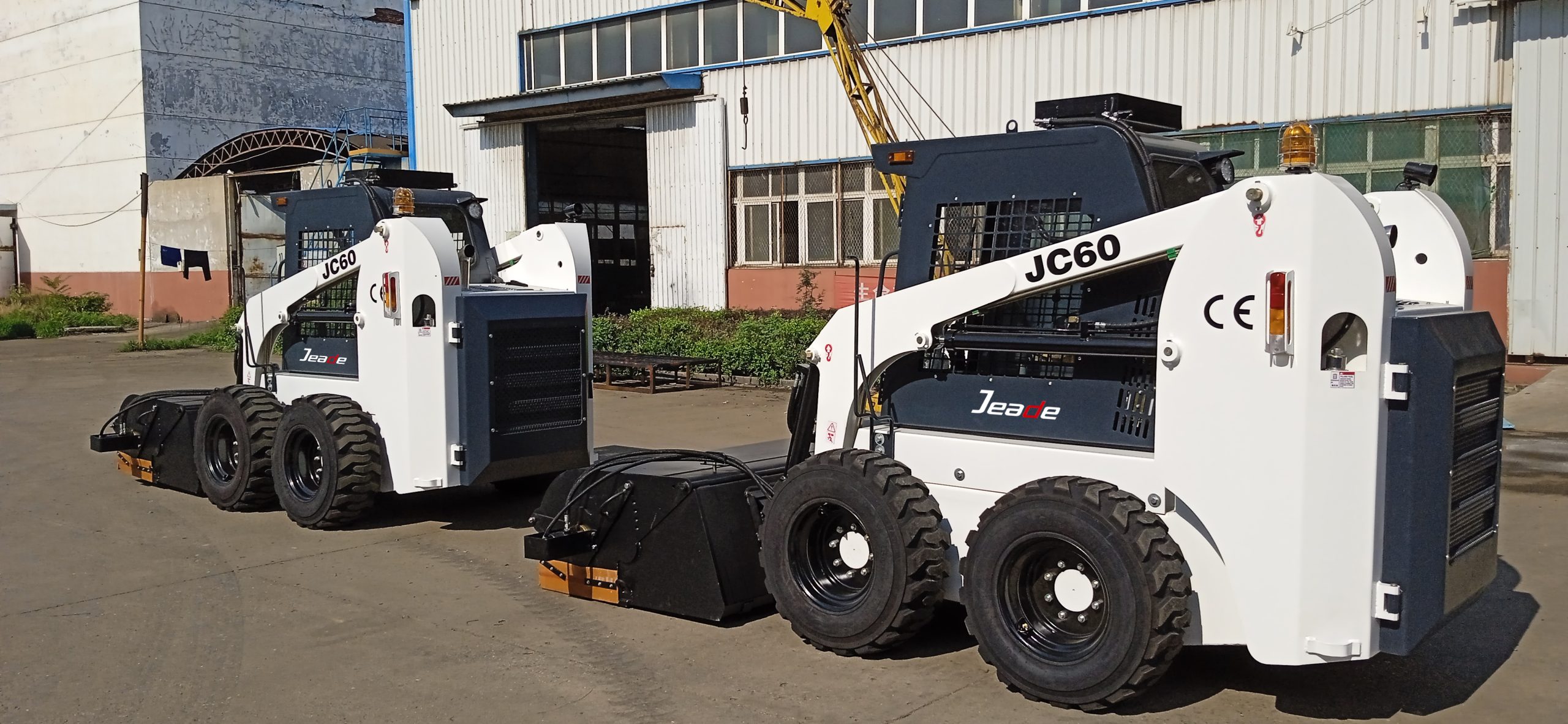

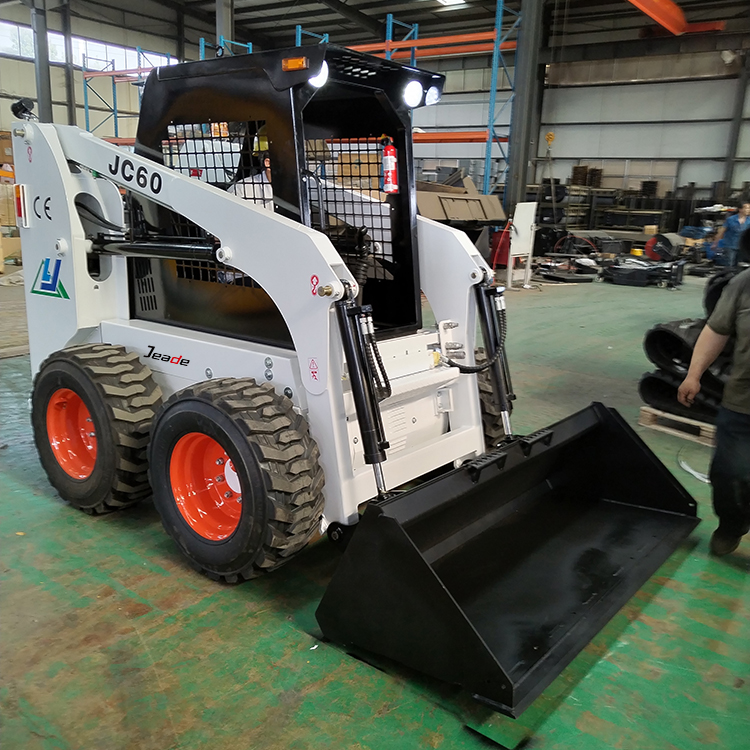

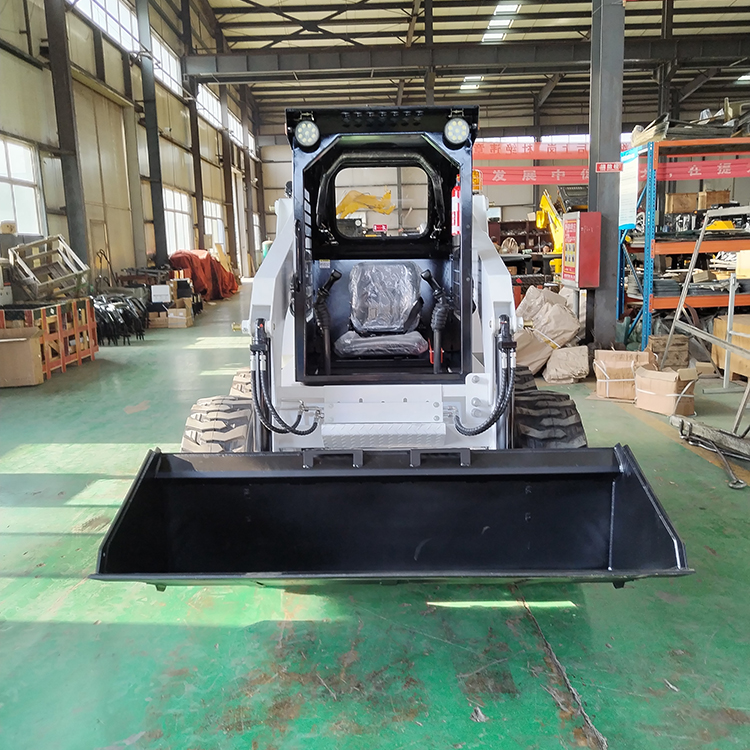

3.2 Ton(7054.78 lb) Diesel Skid Steer Load-JC60

Bucket Capacity: 0.45 (m³) (15.89 ft³)

Rated Load: 850 (Kg) (1873.93 lb)

Operating Weight: 3200 (Kg) (7054.78 lb)

Maximum Dumping Height: 2400(mm) (94.49 in)

Description

	Model	JC60
Performance	Operating weight (kg)	3200
	Rated load (kg)	850
	Bucket capacity (m³)	0.45
	Max Speed (km/h)	12
	Max traction (kN)	≥25.40
	Max breakout (kN)	≥18.4
	Lifting time of boom (s)	7
Engine	Manufacturer	XINCHAI
	Model	A498BPG
	Rated power (kW/rpm)	45/2500
	Engine displacement (L)	3.17
	Emission Standard	ChinaⅡ

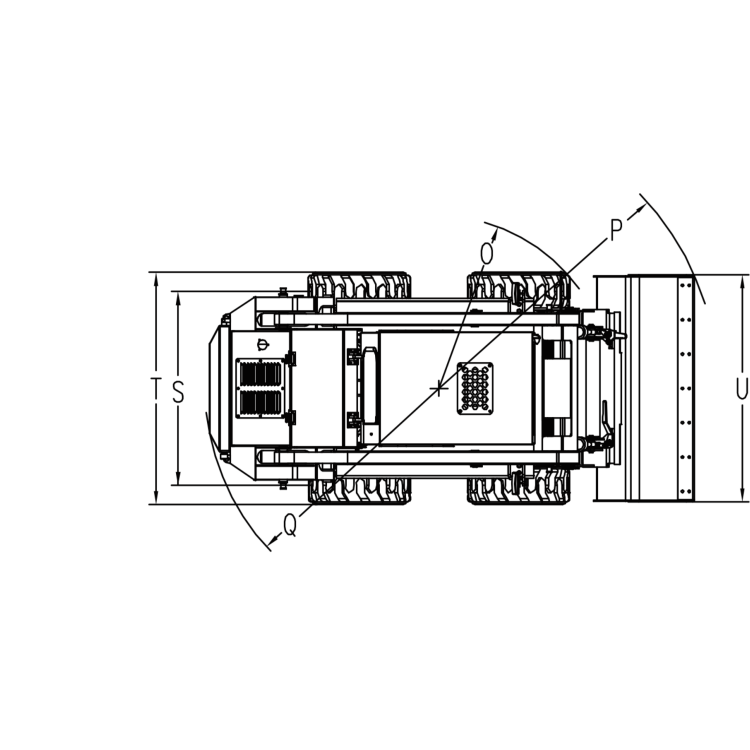

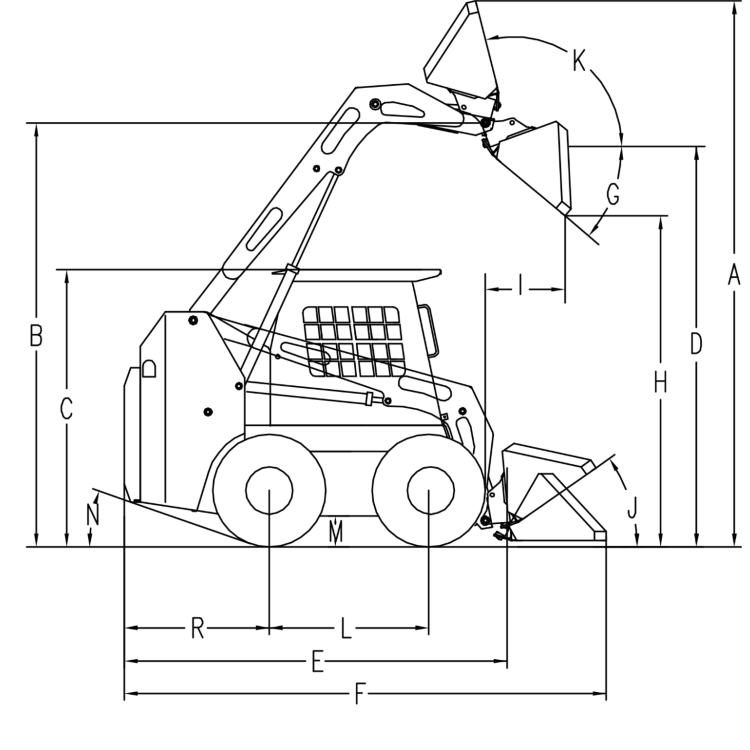

Dimension	Overall operating height (mm)	4000
	Height to bucket hinge pin (mm)	3100
	Height to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	2933
	Without bucket length (mm)	2750
	Overall length with bucket (mm)	3490
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2400
	Dumping reach (mm)	750
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	991
	Ground clearance (mm)	205
	Angle of departure (°)	20
	Front turning radius without bucket (mm)	1198
	Front tuning radius (mm)	1958
	Rear tuning radius (mm)	1728
	Rear axle to bumper (mm)	1208
	Tread width (mm)	1500
	Width (mm)	1880
	Bucket width (mm)	1880

JC60 model skid steer loader is most popular by every customer in the world JEADE 3.2 Ton Diesel Skid Steer Load-JC60

Main features as follow:JEADE 3.2 Ton Diesel Skid Steer Load-JC60

1 Stronger horsepower and durable vehicle frame

2 compact structure maneuverable movement suitable for narrow space operation JEADE 3.2 Ton Diesel Skid Steer Load-JC60

3 Many configurations to optional,adoption world famous brand hydraulic components JEADE 3.2 Ton Diesel Skid Steer Load-JC60

4 Luxury cabin with mechanical or joystick control system JEADE 3.2 Ton Diesel Skid Steer Load-JC60

5 Double accelerograph control

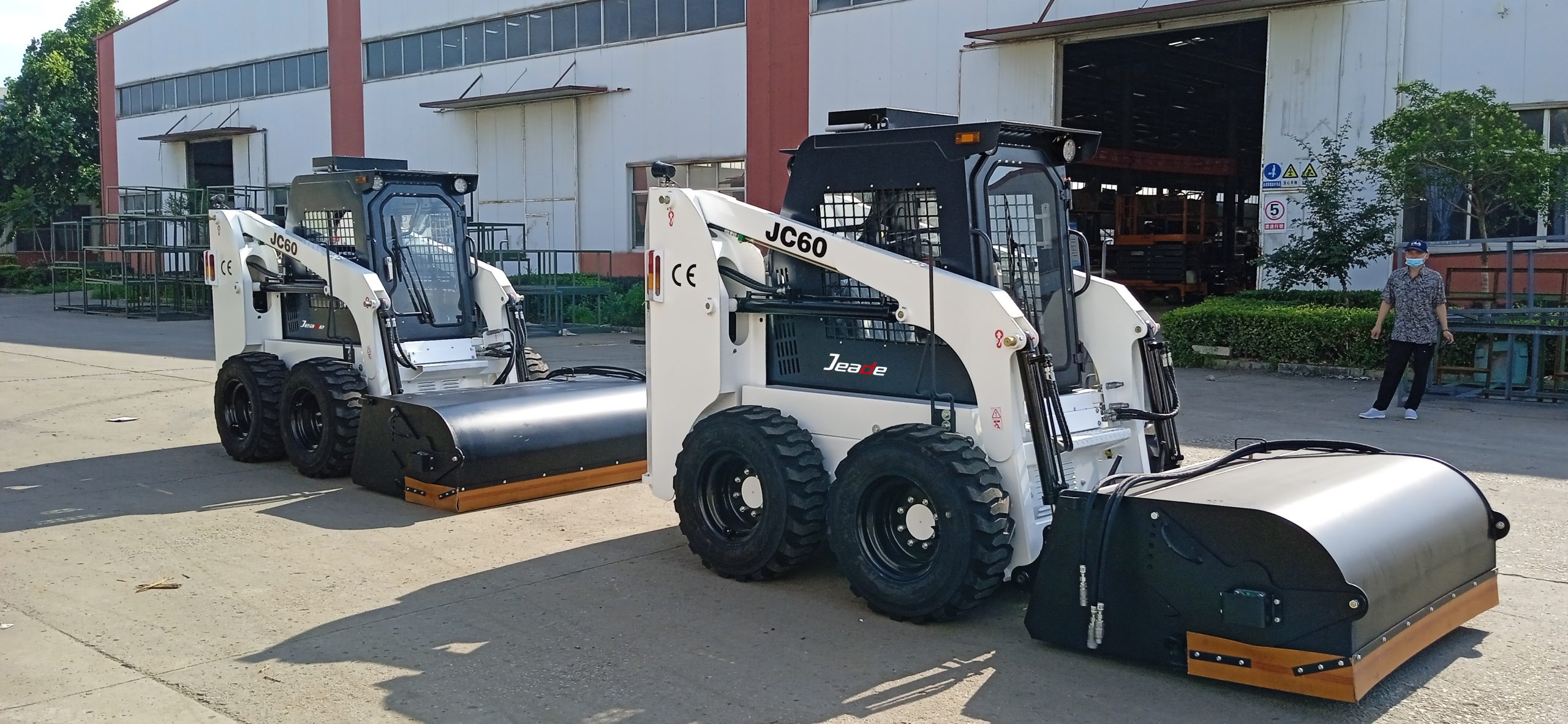

6 Multi-function with a wide range of attachments JEADE 3.2 Ton Diesel Skid Steer Load-JC60

7 Hydraulic brake JEADE 3.2 Ton Diesel Skid Steer Load-JC60

8 Easy to operation and mainterance JEADE 3.2 Ton Diesel Skid Steer Load-JC60

9 Auto-leveling system JEADE 3.2 Ton Diesel Skid Steer Load-JC60
