Description

PRODUCT PARAMETERS

	Model	JC65
Performance	Operating weight (kg)	3400
	Rated load (kg)	950
	Bucket capacity (m³)	0.5
	Max Speed (km/h)	12
	Max traction (kN)	≥28.2
	Max breakout (kN)	≥20
	Lifting time of boom (s)	7
Engine	Manufacturer	XINCHAI
	Model	A498BZG/T
	Rated power (kW/rpm)	55/2500
	Engine displacement (L)	3.17
	Emission Standard	China Ⅱ

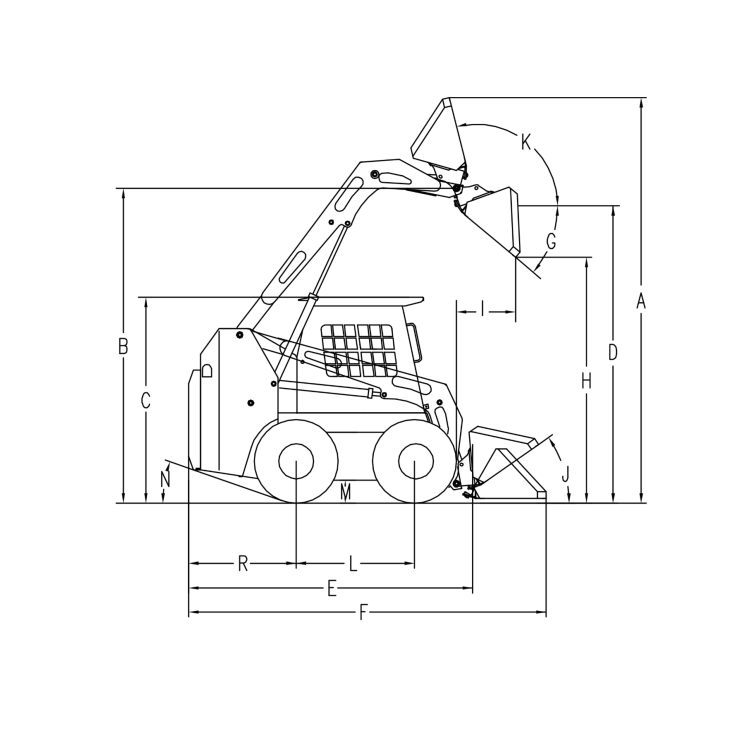

Dimension	Overall operating height (mm)	4070
	Height to bucket hinge pin (mm)	3150
	Height to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	2983
	Without bucket length (mm)	2880
	Overall length with bucket (mm)	3580
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2450
	Dumping reach (mm)	700
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	1115
	Ground clearance (mm)	205
	Angle of departure (°)	20

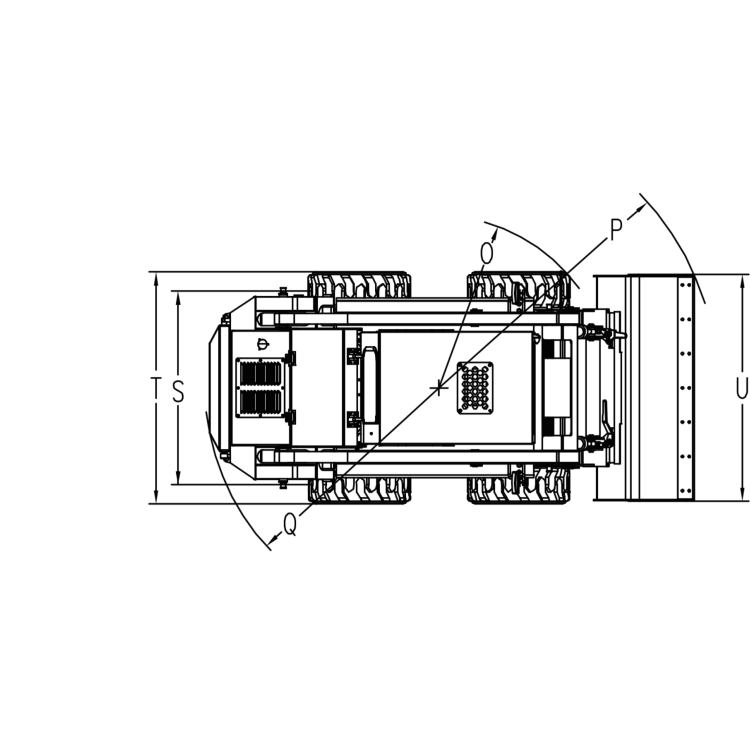

	Front turning radius without bucket (mm)	1250
	Front tuning radius (mm)	2112
	Rear tuning radius (mm)	1774
	Rear axle to bumper (mm)	1082
	Tread width (mm)	1500
	Width (mm)	1880
	Bucket width (mm)	1880

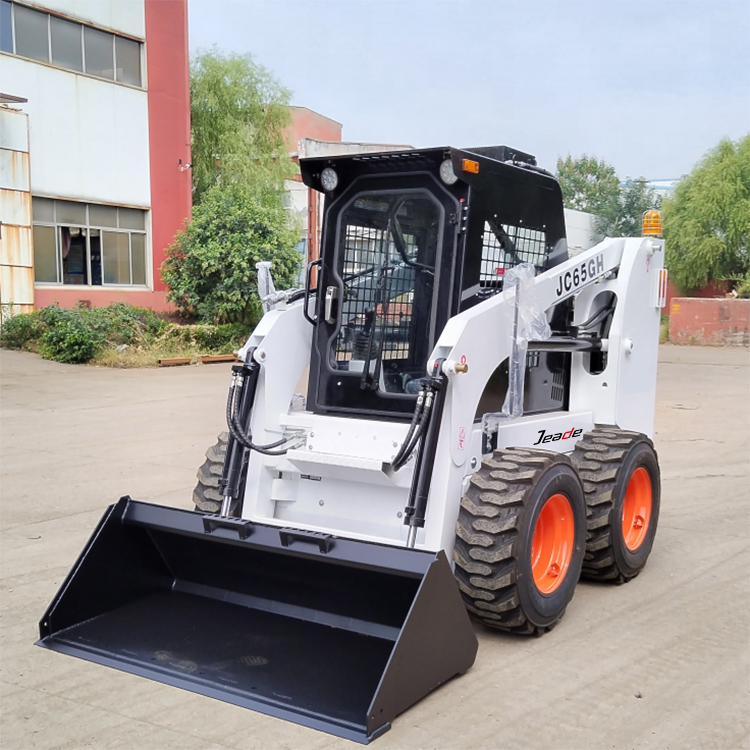

SKID JC65GH model skid steer loader is most popular by every customer in the world JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

Main features as follow:

1 Many configurations to optional,adoption world famous brand components JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

2 Luxury cabin with joystick control system JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

3 Double accelerograph control JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

4 Hydraulic brake

5 High flow double output JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

6 Auto-leveling system

7 flexible steer, compact body and replaceable mulitifunctional tools JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

8 easy to operation and mainterance

The JC65GH strikes an impressive balance, providing excellent lift capabilities, fast cycle times and powerful breakout forces, but with simplified options and configurations. The result is high productivity, reliability and versatility at a great value. JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

Designed to deliver powerful hydraulic performance, high torque and impressive maneuverability, this proven skid-steer loader quickly tackles the tough jobs.  JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

The JC65GH offers exceptional jobsite versatility to accomplish more with one machine. The JC65GH powers a wide range of attachments that make it the go-to machine on virtually any jobsiteJEADE 3.4 Ton Diesel Skid Steer Load-JC65GH

Adopting strengthening design frame,the lifting arm loading capacity is bigger.dumping cylinder is under the horizontal plate of the lifting arm.so it can get effective protection.the dumping height is higher than like wise products JEADE 3.4 Ton Diesel Skid Steer Load-JC65GH
