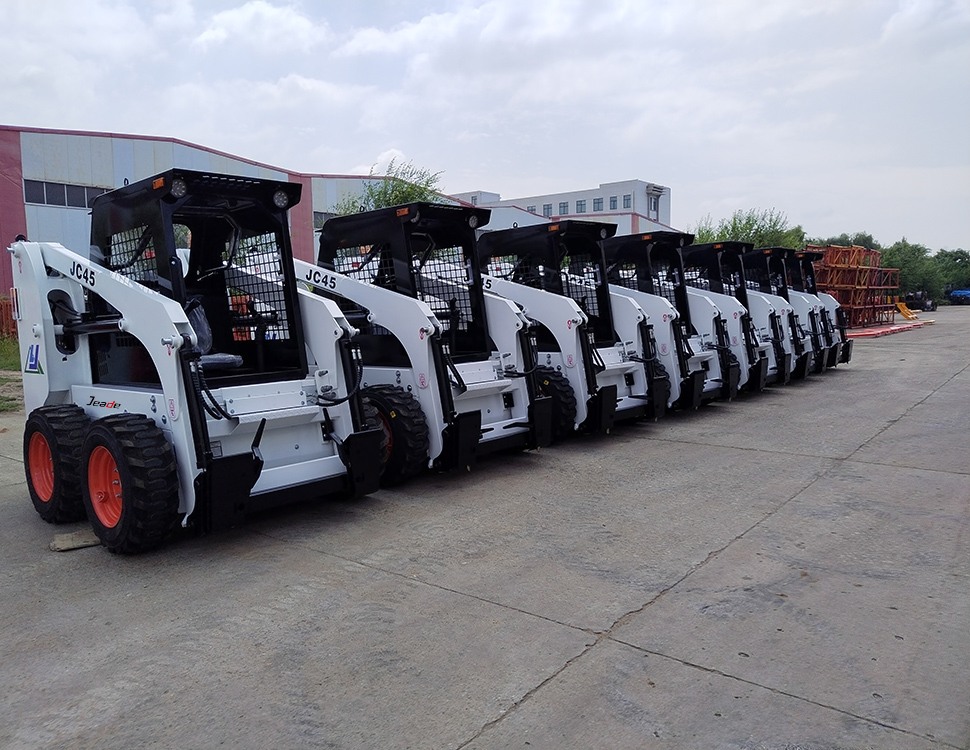

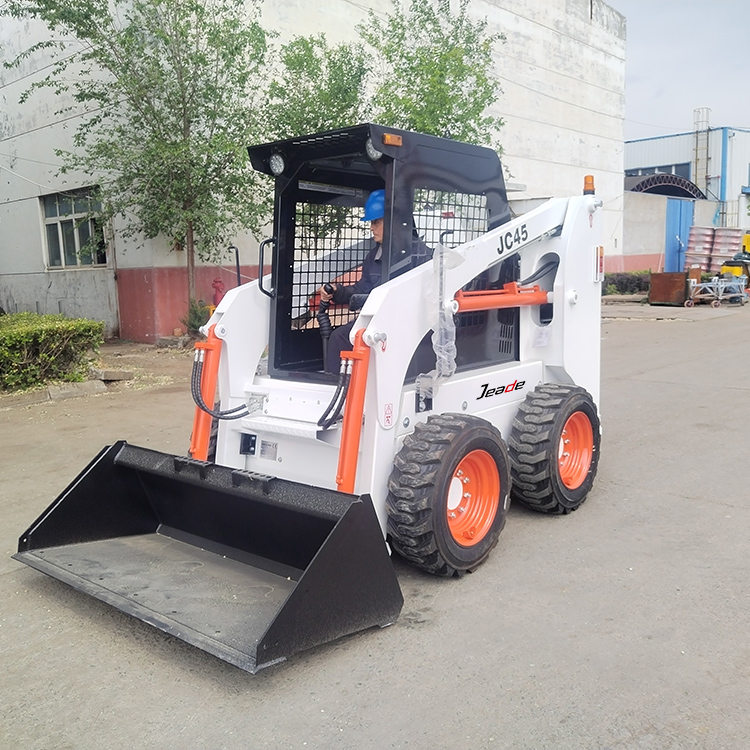

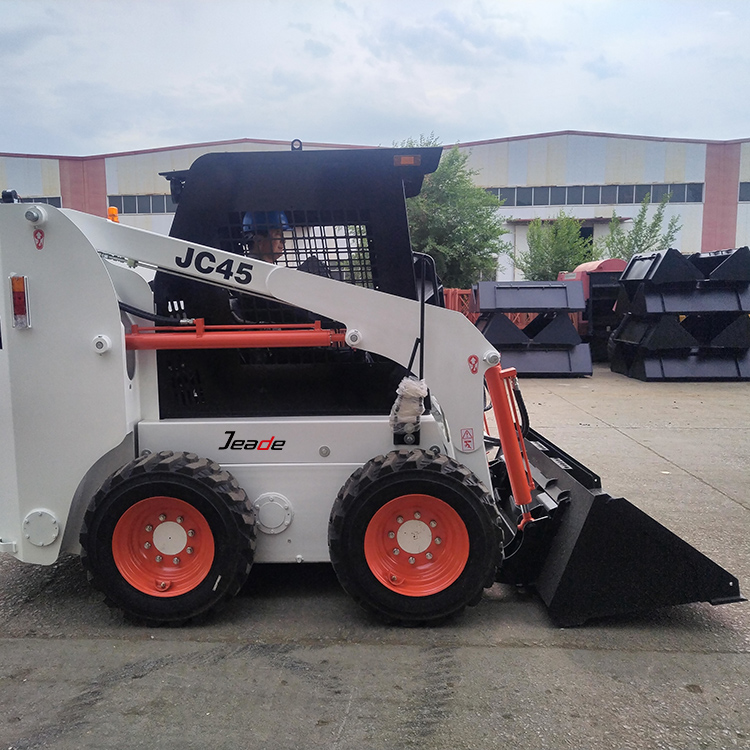

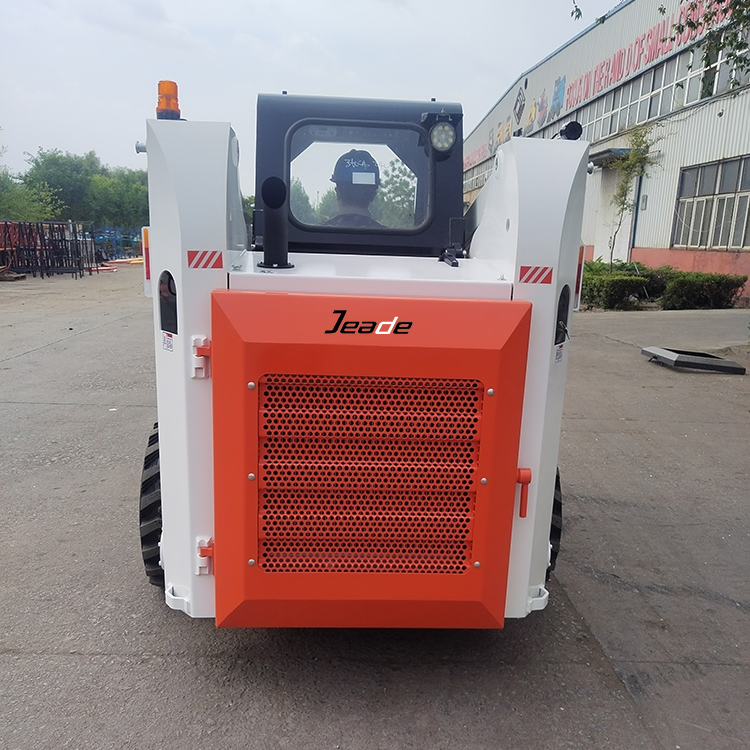

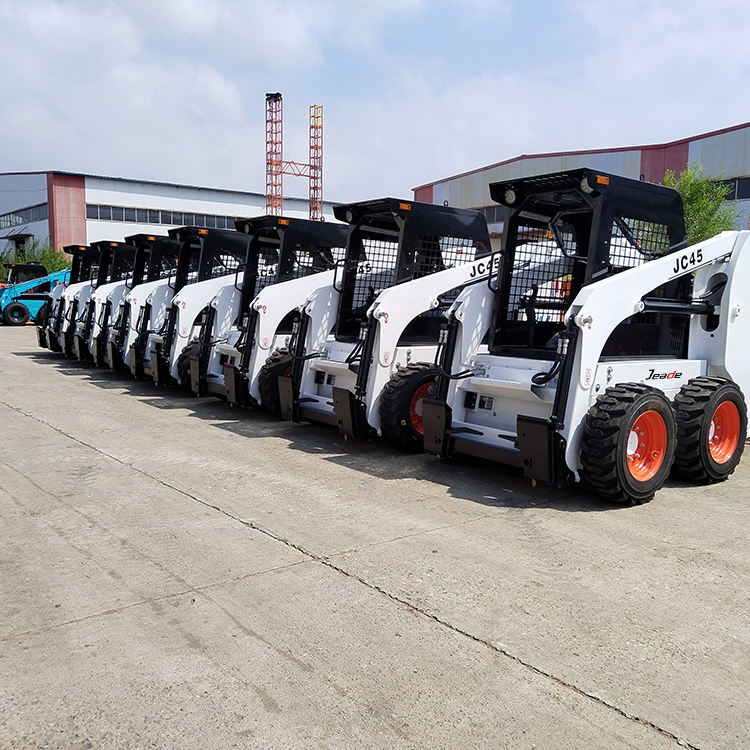

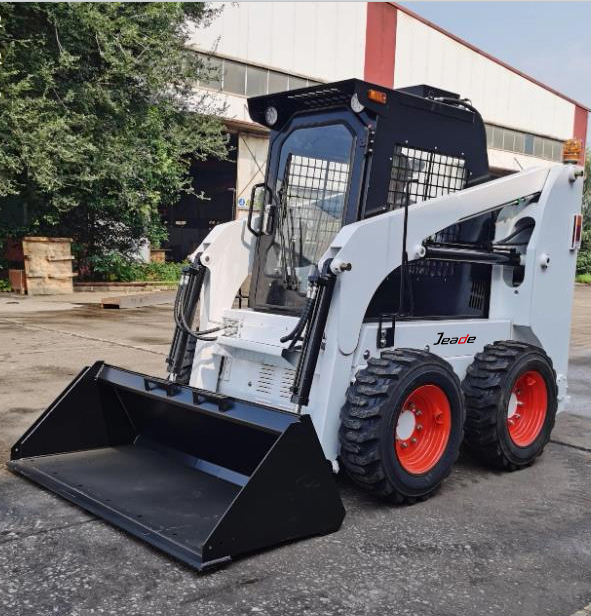

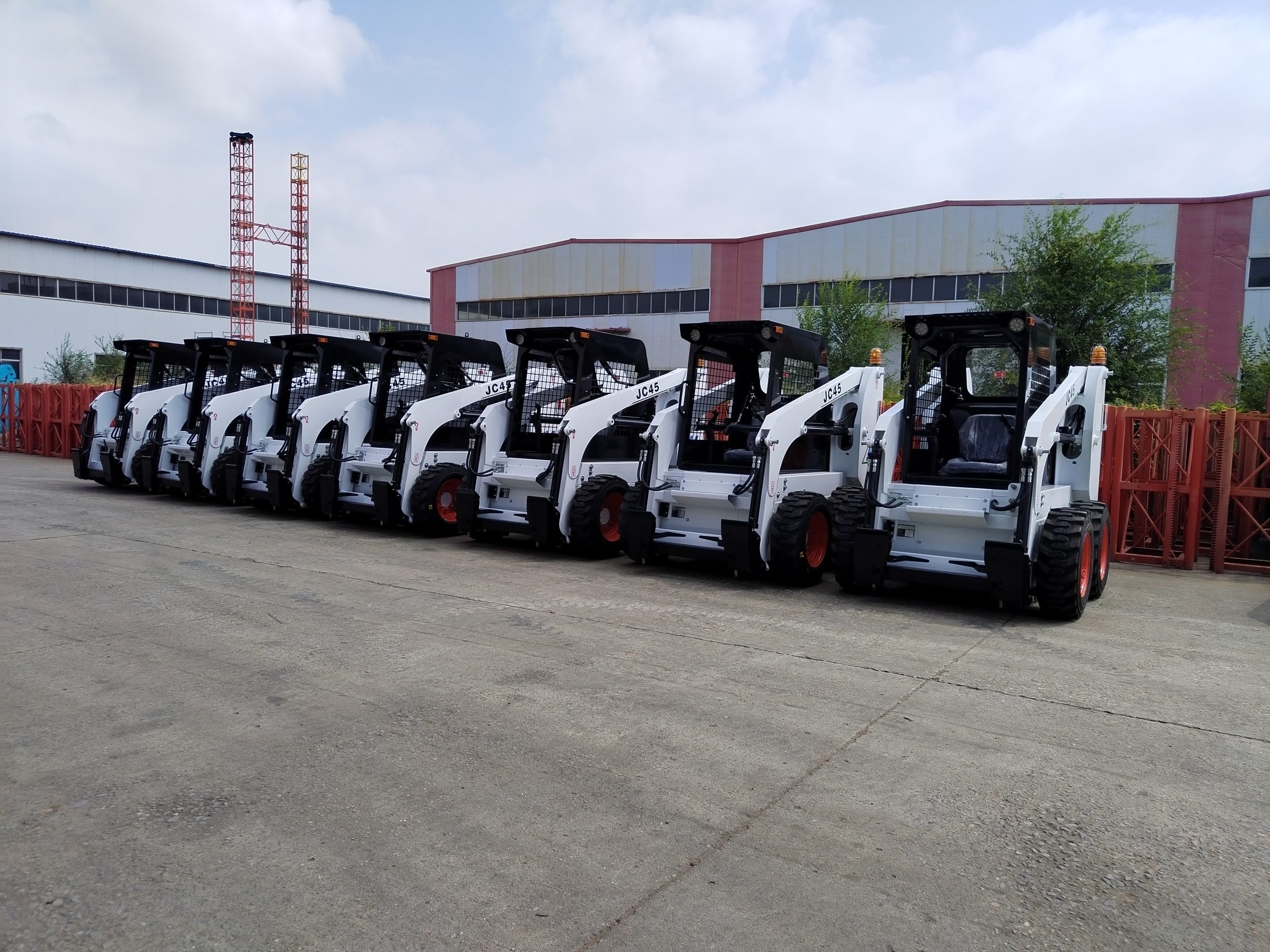

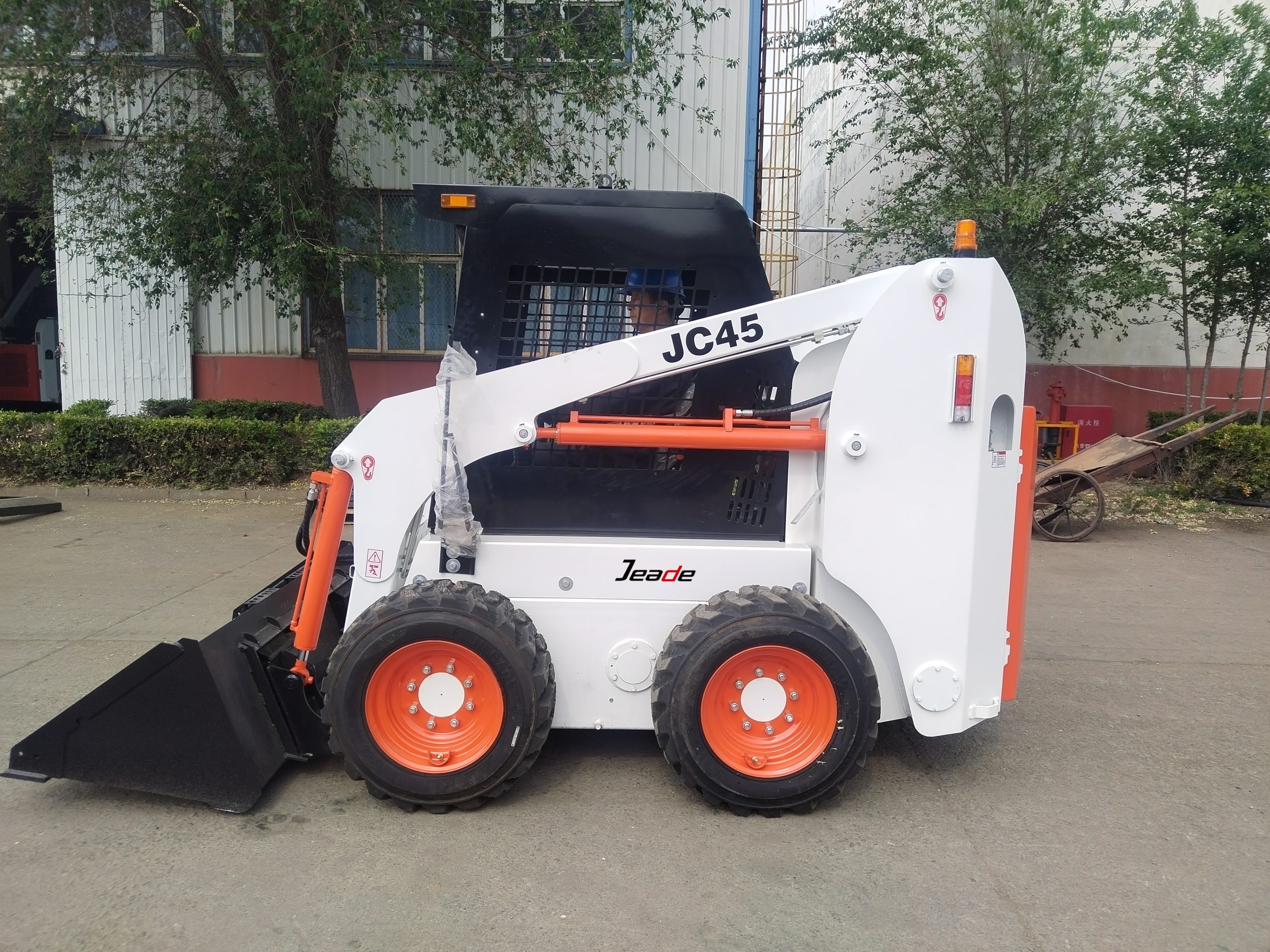

3.1Ton Diesel Skid Steer Load-JC45
Bucket Capacity: 0.4 (m³) 14.13 (ft³)
Rated Load: 700 (Kg) 1543.23 (lb)
Operating Weight: 3100 (Kg) 6834.32 (lb)
Maximum Dumping Height: 2380 (mm) 93.70 (in)
Description
PRODUCT PARAMETERS
| Model | JC45 | |
| Performance | Operating weight(kg) | 3100 |
| Rated load(kg) | 700 | |
| Bucket capacity(m³) | 0.4 | |
| Max Speed(km/h) | 12 | |
| Max traction(kN) | ≥25.40 | |
| Max breakout(kN) | ≥18.4 | |
| Lifting time of boom(s) | 7 | |
| Engine | Manufacturer | Xinchai |
| Model | C490BPG | |
| Rated power(kW/rpm) | 36.7/2650 | |
| Engine displacement(L) | 2.27 | |
| Emission Standard | China II | |
| Dimension | Overall operating height(mm) | 3980 |
| Height to bucket hinge pin(mm) | 3080 | |
| Height to top of cab(mm) | 2140 | |
| Height to bottom of level bucket(mm) | 2913 | |
| Without bucket length(mm) | 2640 | |
| Overall length with bucket(mm) | 3420 | |
| Dumping angle at maximum height(°) | 40 | |
| Dumping height(mm) | 2380 | |
| Dumping reach(mm) | 700 | |
| Rollback of bucket on ground(°) | 30 | |
| Rollback of bucket at full height(°) | 104 | |
| Wheelbase(mm) | 991 | |
| Ground clearance(mm) | 185 | |
| Angle of departure(°) | 20 | |
| Front turning radius without bucket(mm) | 1300 | |
| Front tuning radius(mm) | 2290 | |
| Rear tuning radius(mm) | 1440 | |
| Rear axle to bumper(mm) | 1080 | |
| Tread width(mm) | 1450 | |
| Width(mm) | 1720 | |
| Bucket width(mm) | 1740 |
 |
 |
JC45 model skid steer loader is sales most model ,is most popular by every customer in the world JEADE 3.1Ton Diesel Skid Steer Load-JC45
Main features as follow:
1 High cost performance and efficiency JEADE 3.1Ton Diesel Skid Steer Load-JC45
2 Compact structure,maneuverable movement suitable for narrow space operation JEADE 3.1Ton Diesel Skid Steer Load-JC45
3 Many configurations to optional,adoption world famous brand components JEADE 3.1Ton Diesel Skid Steer Load-JC45
4 Double accelerograph control JEADE 3.1Ton Diesel Skid Steer Load-JC45
5 Multi-function with a wide range of attachments JEADE 3.1Ton Diesel Skid Steer Load-JC45
6 Hydraulic brake JEADE 3.1Ton Diesel Skid Steer Load-JC45
7 Operation and Mainterance conveniently and easily JEADE 3.1Ton Diesel Skid Steer Load-JC45
