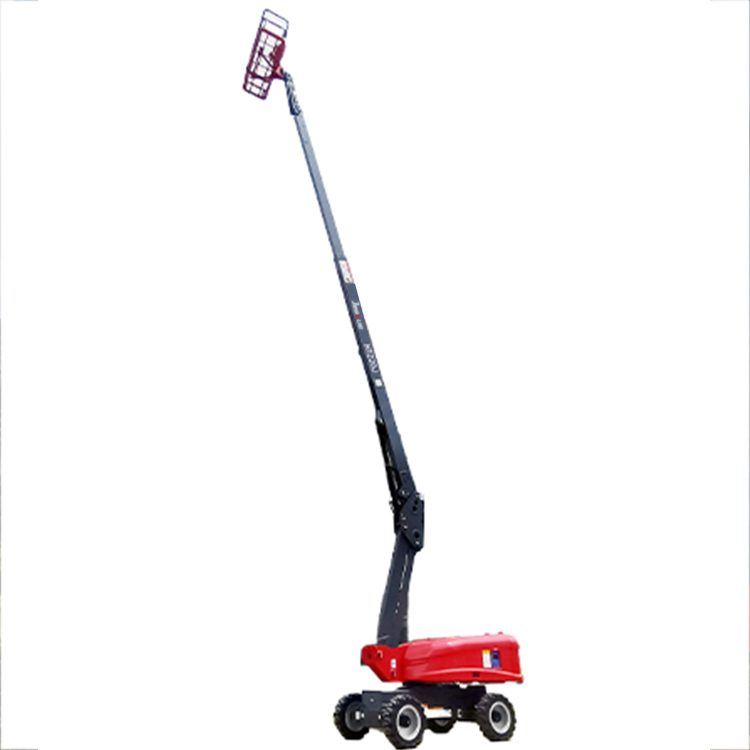

0.45/0.3Ton 22-28M Self-propelled Telescopic Booms-HT226JE/240JE/290JE
Load Capacity(kg):454/300 (1000.89/661.39(lb))
Working height max (m) :22.3-24.3-28.5 (877.95-956.69-1122.05(in))
Weight(kg):9800-10700-13500 (21605.49-23589.46-29762.47(lb))
Description
Product Highlights
★New exterior design, lightweight, heavy load, wide operating range; Compact structural design, suitable for container and clearing vehicle transportation, low transportation cost.
★Lithium power safe and reliable, equipped with BMS system, environmentally friendly, zero emission
★ Large capacity battery with strong endurance
★Tilt protection system, overload protection system, long angle sensing system, anti extrusion device, real-time monitoring of platform load and equipment posture, safer
★ The product comes standard with an IOT system, paired with an intelligent large screen, allowing users to easily control device status anytime, anywhere, and achieve easy device management.”
Safe And Reliable, Good Passability Performance
★Equipped with a load sensitive system, the action response is stable, accurate, fast, safe, reliable, and more energy-efficient
★Hydrostatic leveling system for smoother operation
★40%Gradeability、floating bridge, high torque drive, stronger off-road capability, strong power, equipped with efficient driving system, control smoother
★Max.5°tilt angle, equipped with floating bridge, easily cope with complex conditions”
PRODUCT PARAMETERS
| Model | HT226JE | HT240JE | HT290JE |
| Size | |||
| Max. Working Height | 22.3m | 24.3m | 28.5m |
| Max. Platform Height | 20.3m | 22.3m | 26.8m |
| Max. Outreach | 13.2m | 15.5m | 16.8m/18.9m |

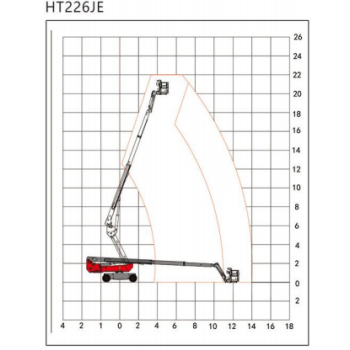

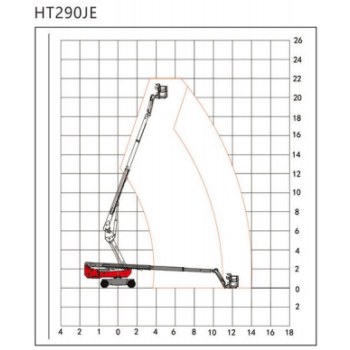

| Maximum horizontal work amplitude | 13.8m | 16.1m | 17.4m/19.5m |

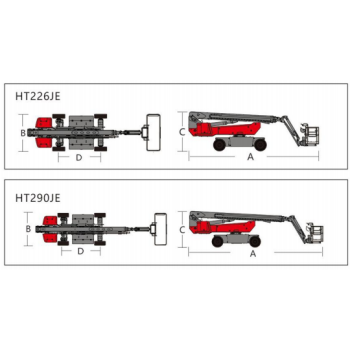

| A Length (stowed) | 8.93m | 10.02m | 11.5m |
| B Width (stowed) | 2.47m | 2.47m | 2.49m |
| C Height(stowed) | 2.7m | 2.7m | 2.84m |
| D Wheelbase | 2.81m | 2.81m | 3m |
| Ground Clearance | 0.29m | 0.29m | 0.3m |
| Platform Size(L*W*H) | 2.44*0.9*1.1m | ||
| Performance | |||
| Lift Capacity (Restricted/Unrestricted) | 454/300kg | 454/300kg | 454/300kg |
| Max.Load number(Restricted/Unrestricted) | 3pers/2pers | ||
| Drive Speed(Stowed) | 5.0km/h | 5.0km/h | 5.1km/h |
| Drive Speed(Raised) | 1.1km/h | 1.1km/h | 1.1km/h |
| Gradeability(4WD) | 40% | 40% | 40% |
| Turntable Rotation(Angle/Continuity) | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | 180° | 180° | 180° |
| Max. Tilt Angle(front to back/side to side) | 5° | 5° | 5° |
| Turing Radius (Inside/Outside) | 2.4m/5.75m | 2.4m/5.75m | 3.67/6.9m |
| Turntable Tailswing(Stowed) | 2.3m | 2.3m | 2.45m |
| Max. Lateral Force(Restricted/Unrestricted) | / | / | / |
| Max. Wind Speed | / | / | / |
| Tire Specification/Type | 33*12-20(solid tire) | 315-55D20 (Foam filled tire) |
36×14-20(solid tire) |
| Power | |||
| Driving/Steering | 4×2 | 4×2 | 4×2 |
| 140L | 140L | 180L | |
| Battery | 48V/460 Ah (Lithium battery) |
48V460AH (Lithium battery) |
80V460AH (Lithium battery) |
| harger | 100-240V AC/60A | 100-240VAC/60A | 100-240V AC/80A |
| Weight | |||
| Weight | 9800kg | 10700kg | 13500kg |
Standard Features
| Hydraulic leveling platform | Over load sensor | Tilt alarm |
| 180°hydraulic rotation platform | 5-inch super-scale colour screen | 4 wheel brake |
| Rear inspect and driving confirm | Diagnosis system | Emergency brake release |
| Three joysticks gradual proportional control | Emergency stop system | 4 wheel drive |
| Horn and buzzer safety warnings | Emergency lowering system | Foam filled tire |
| Flash light | Maximum tilt angle of 5° | Foot switch |
Options Features
| Platform swing gate | Hydraulic oil for extremely cold areas | GPS |
| Platform alternate railing | Pipeline for extremely cold areas | |
| Hydraulic oil cooler | AC power source |
 |
 |
 |
