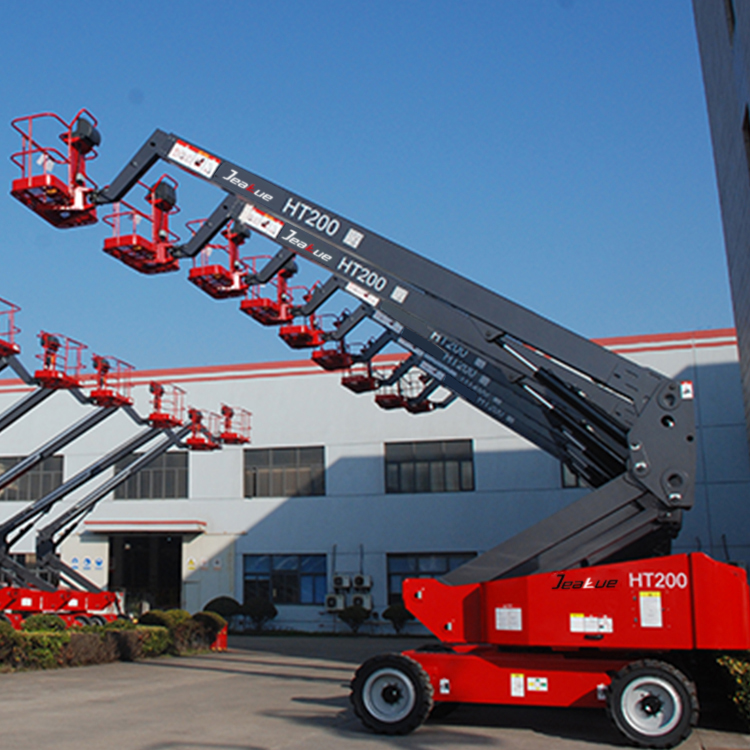

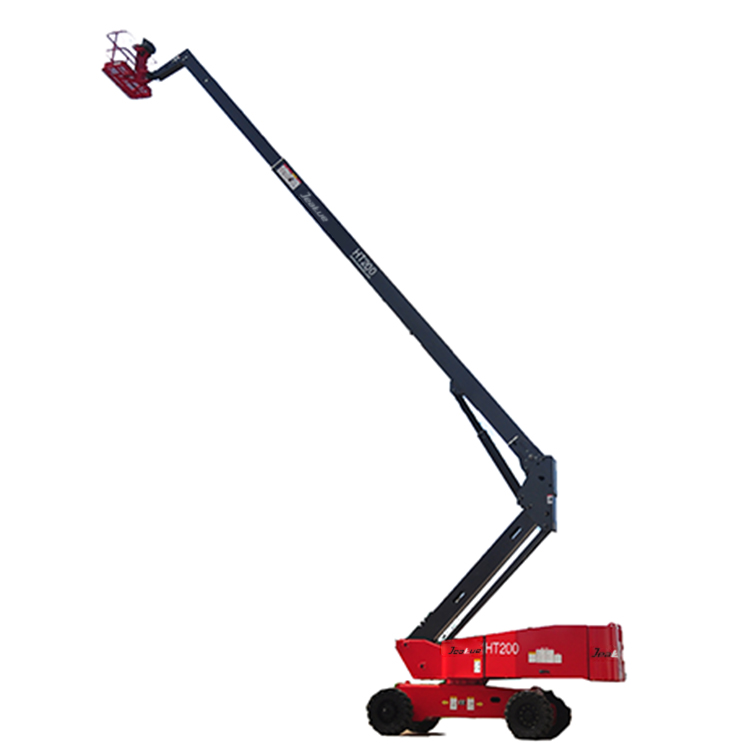

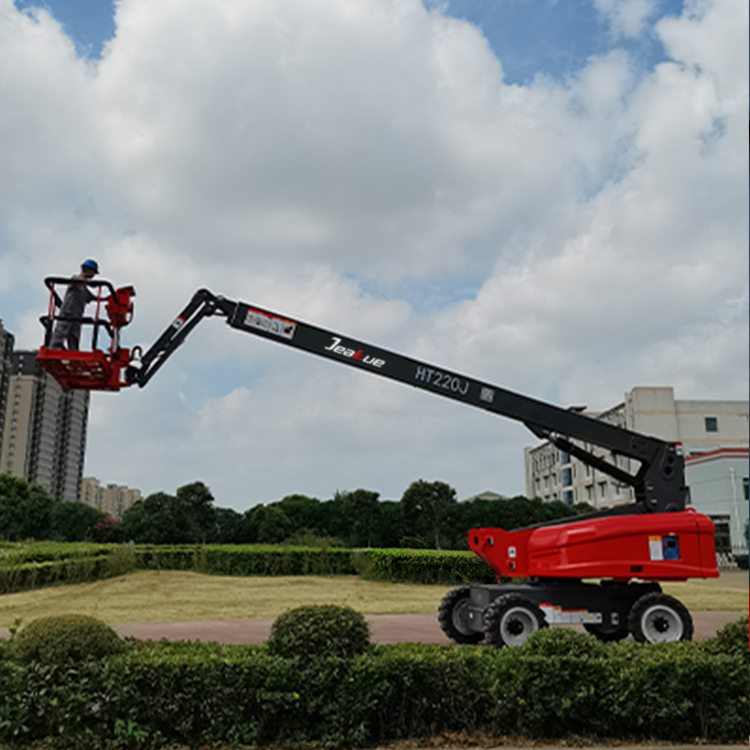

0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT

0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT
0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT - Image 2
0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT - Image 3
0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT - Image 4

0.3Ton 20-22M Self-propelled Telescopic Booms-HT200RT/220JRT

Load Capacity(kg):300 (661.39(lb))

Working height max (m) :20-22 (787.40-866.14(in))

Weight(kg):9375-10280 (20668.33-22663.52(lb))

Categories: , ,

Add to quote

Description

Product Highlights

Efficient and Energy-Saving

★The entire series adopts a hydraulic load sensitive system with characteristics of on-demand functions, energy efficiency, low system heating, and long service life.

Intelligent Control

★The product is controlled by a proportional handle, with more operations controlled by electro-hydraulic proportional control, featuring smooth action and stronger micro movement
★The product comes standard with an IOT system, paired with an intelligent large screen, allowing users to easily control device status anytime, anywhere, and achieve easy device management

Safe and Reliable

★The entire series is equipped with a maximum working angle of 5 degrees as standard, with stronger adaptability to the working range and site
★Our produce is equipped with floating bridge, which can ensure real-time four-wheel landing and easily handle uneven road conditions, making it safer and more reliable

PRODUCT PARAMETERS

Model HT 200RT HT 220JRT
Dimension

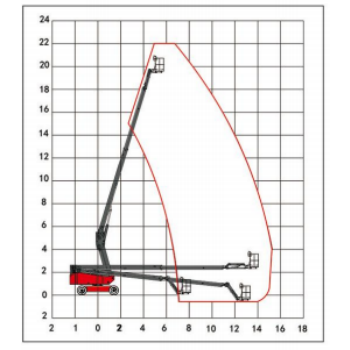

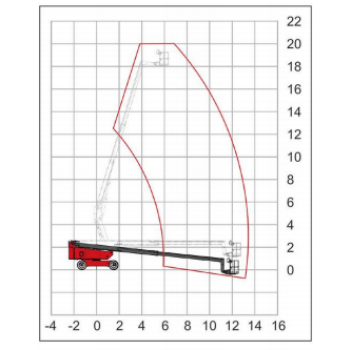

Max. Working Height 20m 22m
Max. Platform Height 18m 20m
Max. Outreach 12.8m 14.05m
Maximum horizontal work amplitude 13.4m 14.65m

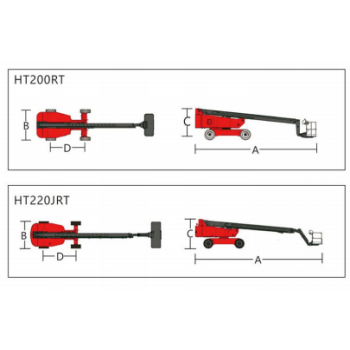

A Length (stowed) 9.5m 10.6m
B Width (stowed) 2.5m 2.5m
C Height(stowed) 2.5m 2.5m
D Wheelbase 2.8m 2.8m
Ground Clearance 0.3m 0.3m
Platform Size 2.44*0.9*1.1m
Performance
Lift Capacity 300kg
Max. Load number 2pers
Drive Speed(Stowed) 4.8km/h
Drive Speed(Raised) 1.0km/h
Gradeability(4WD) 45%
Turntable Rotation(Angle/Continuity) 360°continuous 360°continuous
Platform Rotation 180° 180°
Max. Tilt Angle(front to back/side to side) 5°/3° 5°/3°
Turing Radius(Inside/Outside) 2.9/6.15m 2.9/6.12m
Turntable Tailswing 1.2m 1.6m
Max. Lateral Force(Restricted/Unrestricted) 400N 400N
Max. Wind Speed 12.5m/s 12.5m/s
Tire Specification/Type 355/55D625(foam filled tire)
Power
Drive wheels number x Steering wheels number 4×2 4×2
Engine  (power/speed/specification/brand) Deutz TD2.9L4,55.4kW Euro 5emission standard
Wechai WP2.3NG75E441,55.4kW State IV
Hydraulic Tank Capacity 150L 150L
Diesel Fuel Tank Capacity 100L 100L
Weight
Total Weight 9375kg 10280kg



Standard Features

Hydraulic leveling platform 5-inch super-scale colour screen   Dual speed motor
180°hydraulic rotation platform Diagnosis system   4 wheels brake
Rear inspect and driving confirm Swing out engine   Emergency brake release
Three joysticks gradual proportional control Engine anti-restart protection   4 wheels drive
Horn and buzzer safety warnings Engine preheater   Turntable 360°continuous rotation
Flash light Emergency stop system   Foot switch
Tilt alarm Emergency lowering system   2.44m guardrail
Over load sensor           Maximum tilt angle of 5°

Options Features

Platform swing gate Front driving light
Hydraulic oil cooler AC power source
Hydraulic oil for extremely cold areas GPS
Alarm packages
Platform work lights
