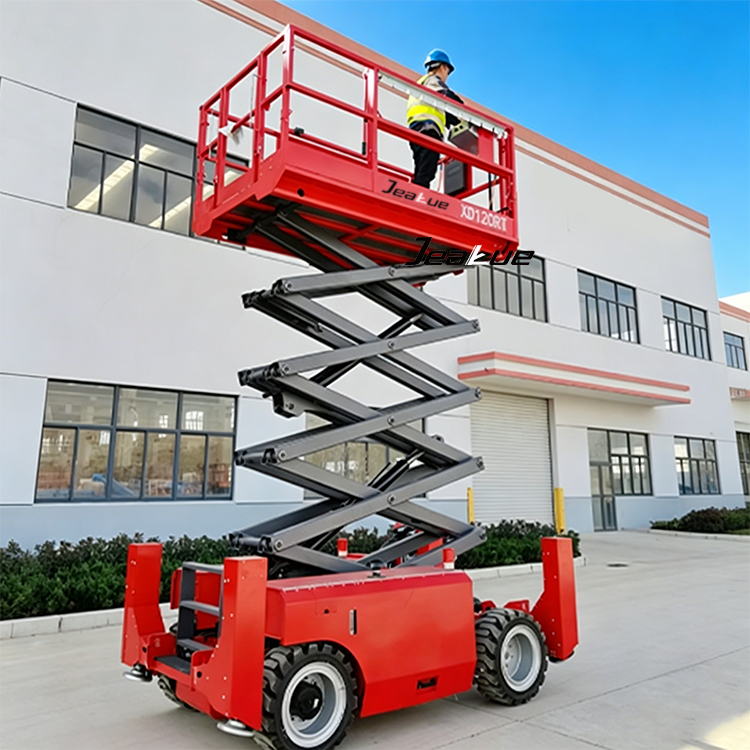

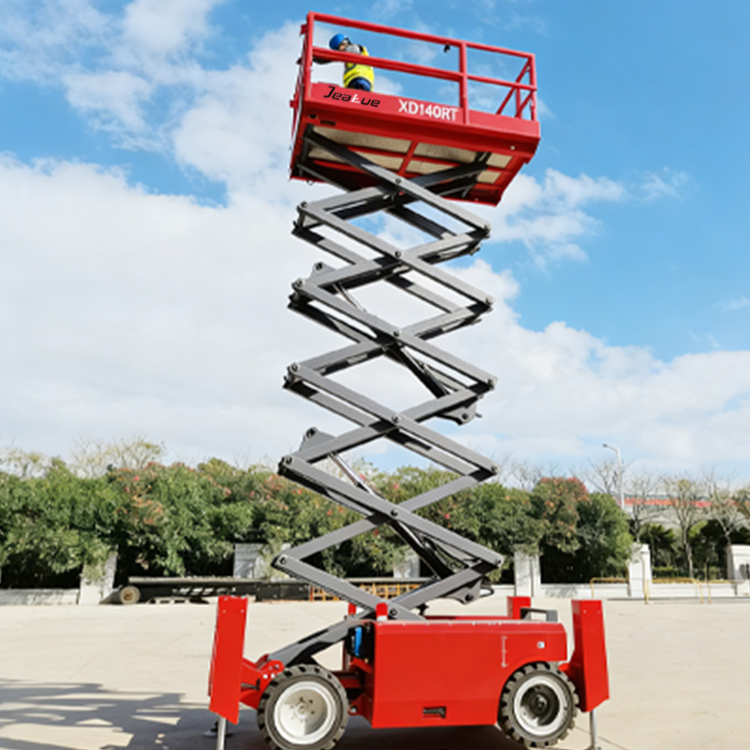

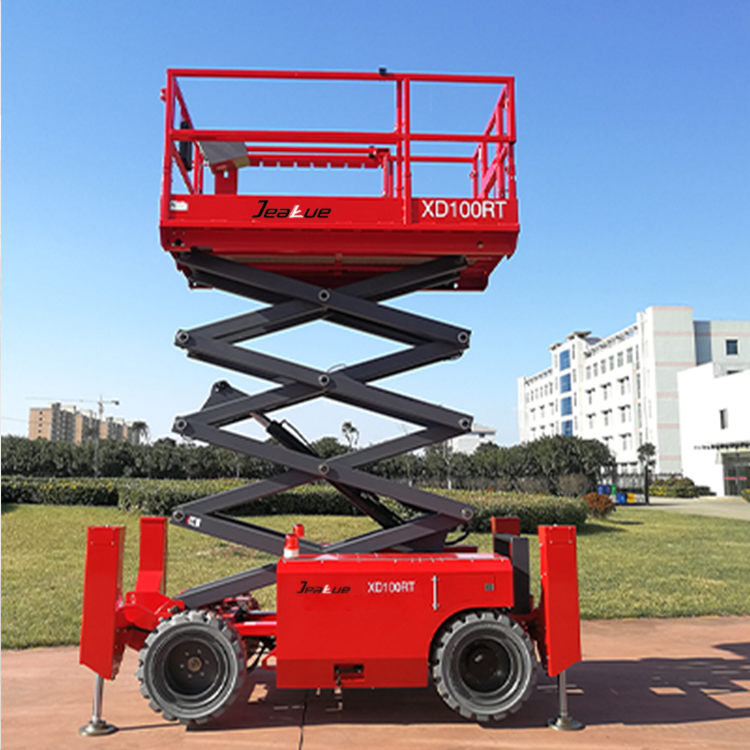

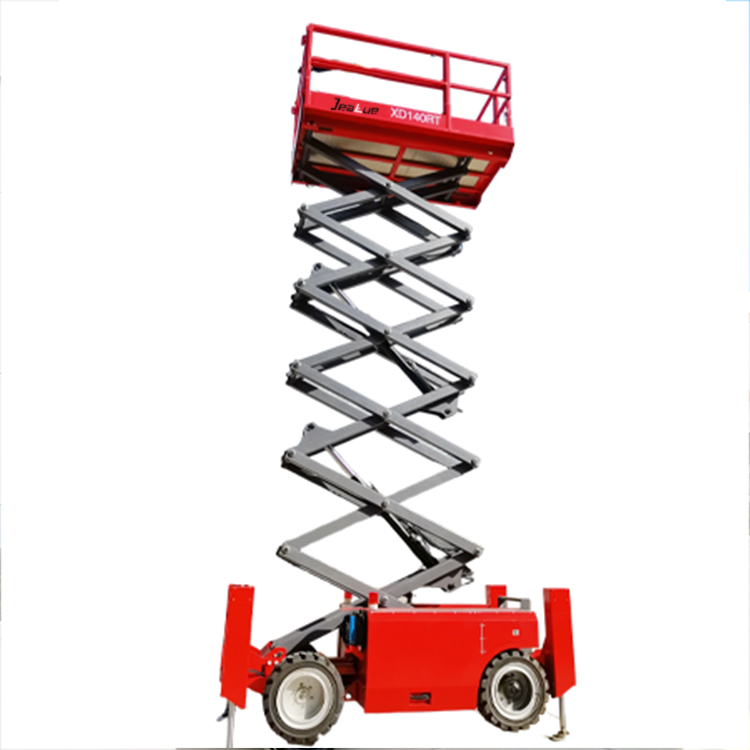

0.35-0.56Ton 10-14M Self-Propelled Rough Terrain Scissor Lift-XD100RT/120RT/140RT
Load Capacity(kg):345-454-567 (760.53-1000.89-1250.02(lb))
Working height max (m) :10-12-14 (393.70-472.44-551.18(in))
Weight(kg):3660-3930-4220 (8068.92-8664.17-9303.51(lb))
Description
Product Highlights
Flexible operation
★Strong Gradeability, easily meet the outdoor needs
High work efficiency
★Single extended Platform
★One button leveling, good for rough terrain road surfaces during work
Easy maintenance
★Double side liftback door design, convenient to maintenance and repair
★Swing out engine for easy maintenance
PRODUCT PARAMETERS
| Model | XD100RT | XD120RT | XD140RT |
| Dimension | |||
| Max. Working Height | 10m | 12m | 14m |

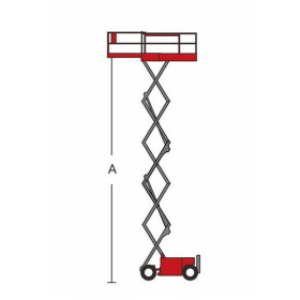

| A Max.Platform Height | 8m | 10m | 12m |

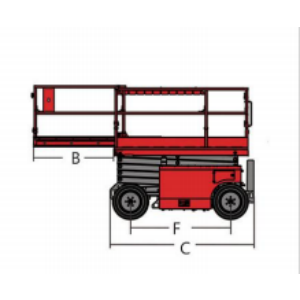

| B Max.Outreach | 1.5m | 1.5m | 1.5m |
| C Length Stowed | 1.27 | 1.39 | 1.52 |
| Length -Platform Extended | 3.18m/2.67m | 3.18m/2.67m | 3.18m/2.67m |
| Length with outriggers after contriction | 1.76m | 1.76m | 1.76m |

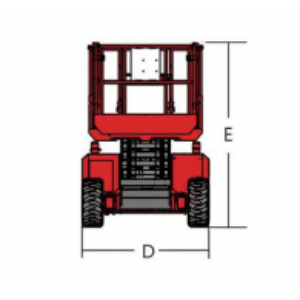

| D Width Stowed | 1.7m | 1.83m | 1.95m |
| E Height Stowed(guardrails unfolded) | 2.4m | 2.52m | 2.65m |
| Height Stowed(guardrails folded) | 1.89m | 1.89m | 1.89m |
| F Wheelbase | 0.17m | 0.17m | 0.17m |
| Ground Clearance | 2.5m×1.6m×1.15m | 2.5m×1.6m×1.15m | 2.5m×1.6m×1.15m |
| Platform Size(L×W×H) | 4m | 4m | 4m |
| Skirting Board Height | 0.15m | 0.15m | 0.15m |
| Performance | |||
| Max.Load number | 4pers | 4pers | 3pers |
| Lifting Capacity | 4pers | 2pers | 2pers |
| Lifting Capacity (extended platform) | 567kg | 454kg | 345kg |
| Drive Speed(Stowed) | 136kg | 136kg | 136kg |
| Drive Speed(Raised) | 4.5km/h | 4.5km/h | 4.5km/h |
| Rising Time | 0.7km/h | 0.7km/h | 0.7km/h |
| Lowering Time | 40s | 45s | 50s |
| Gradeability | 35s | 37s | 42s |
| Turing Radius -inside/outside | 35% | 30% | 30% |
| Tilt Sensor-Front to Back | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m |
| Tilt Sensor-Side to Side | 3° | 3° | 3° |
| Tire Specification/Type | 1.5° | 1.5° | 1.5° |
| Outrigger level ability-front to back | 6.6° | 6.6° | 6.6° |
| Outrigger level ability-side to side | 10.6° | 10.6° | 10.6° |
| Power | |||
| Drive Mode | 3TNV80F/17.8KW Yanmar | ||
| Power Unit Motor (voltage/power) | 4WD×2WS | 4WD×2WS | 4WD×2WS |
| Hydraulic Tank Capacity | 57L | 57L | 57L |
| Battery Specification | 68L | 68L | 68L |
| Control Voltage | \ | \ | \ |
| Charger (Input Voltage/Output Current) | Proportional control | Proportional control | Proportional control |
| Weight | |||
| Weight | 3660kg | 3930kg | 4220kg |
| Weight(with outriggers) | 4120kg | 4390kg | 4680kg |
| Standard | GB/CE | ||
Standard Features
| Proportional controls | 4 Wheel Drive | Foldable guardrails |
| Drivable at fullheight | Emergency lowering button | Emergency stop button |
| Automatic brake system | Diagnosis system | Tilt alarm |
| Explosion-proof oil tubes | Flash light | Hour meter |
| Buzzer | AC power to platform | |
| Safety support bar | Solid Rough Terrain Tires |
Options Features
| Overload sensor | Working light | Airline to platform |
| Automatic leveling hydraulic outriggers | GPS | |
| Foot Switch | Top Stop Sensor | |
| Power socket to platform | Non-marking Rough Terrain Tires |
 |
 |
 |
