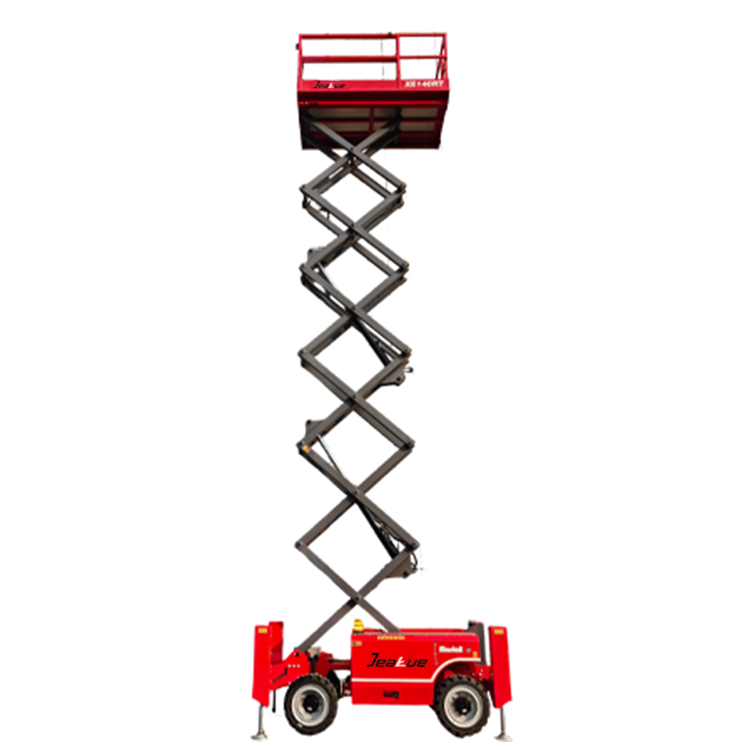

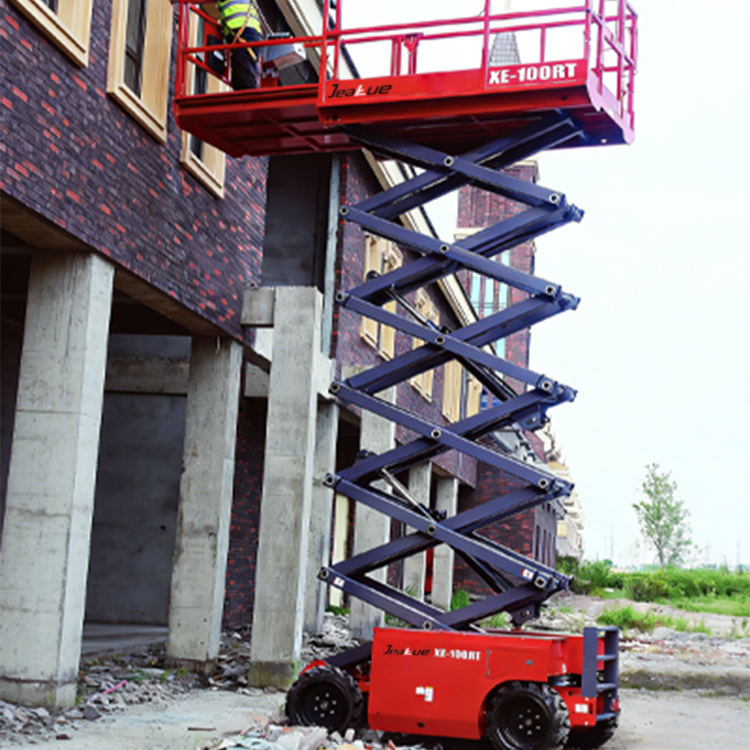

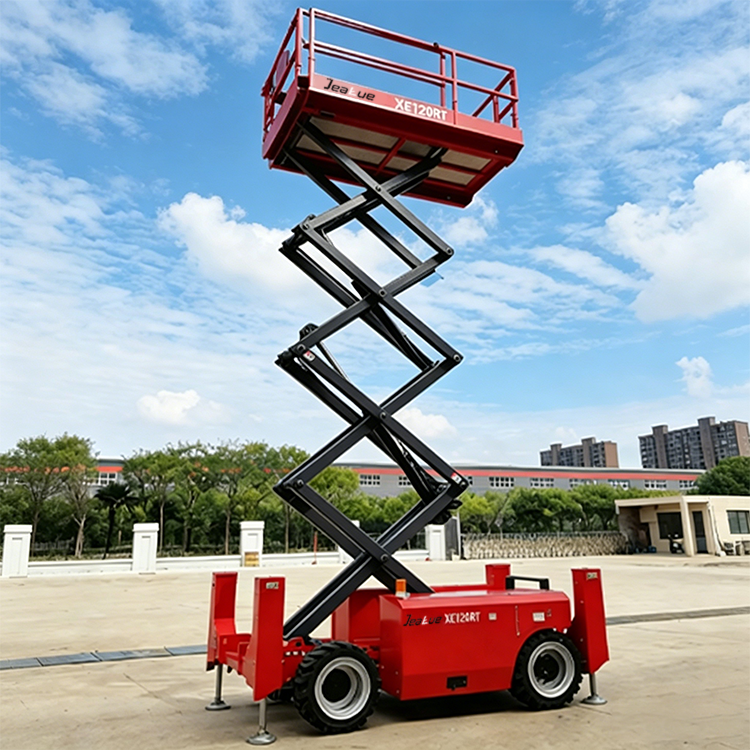

0.35-0.55 Ton 10-14M Self-Propelled Rough Terrain Scissor Lift-XE100RT/120RT/140RT
Load Capacity(kg):345-454-567 (760.53-1000.89-1250.02(lb))
Working height max (m) :10-12-14 (393.70-472.44-551.18(in))
Weight(kg):3710-3980-5020 (8179.15-8774.39-11067.19(lb))
Description
Product Highlights
Flexible operation
★Ultra stable design greatly improves safety factor. compact body, and wide working area
★Folded guardrail for convenient transportation
★Equipped with a Swing axis chassis, fearless of uneven road surfaces for work
★Faults diagnosis system, displaying fault information for rapid troubleshooting
PRODUCT PARAMETERS
| Model | XE100RT | XE120RT | XE140RT |
| Dimension | |||
| Max.Working Height | 10m | 12m | 14m |

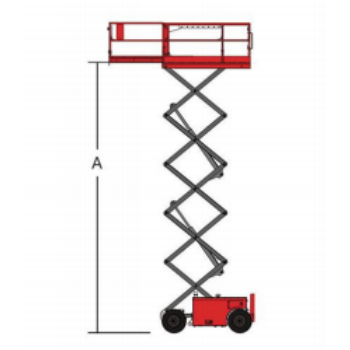

| A Max.Platform Height | 8m | 10m | 12m |

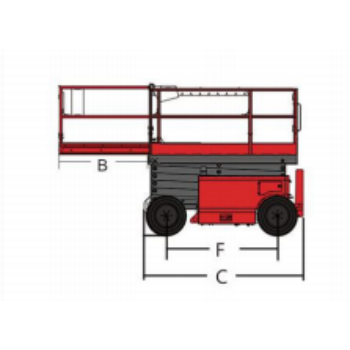

| B Max.Outreach | 1.5m | 1.5m | 1.5m |
| C Length Stowed | 2.71m | 2.71m | 2.71m |
| Length -Platform Extended | 4m | 4m | 4m |
| Length with outriggers | 3.23m | 3.23m | 3.23m |

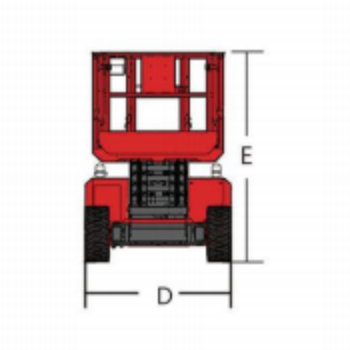

| D Width Stowed | 1.81m | 1.81m | 1.81m |
| E Height Stowed (guardrails unfolded) | 2.62m | 2.74m | 2.87m |
| Height Stowed (guardrails folded) | 1.91m | 2.04m | 2.16m |
| F Wheelbase | 1.89m | 1.89m | 1.89m |
| Ground Clearance | 0.31m | 0.31m | 0.31m |
| Platform Size(L×W×H) | 2.5m*1.6m*1.15m | 2.5m*1.6m*1.15m | 2.5m*1.6m*1.15m |
| Skirting Board Height | 0.15m | 0.15m | 0.15m |
| Performance | |||
| Max.Load number | 4pers | 4pers | 3pers |
| Lifting Capacity | 567kg | 454kg | 345kg |
| Lifting Capacity(extended platform) | 136kg | 136kg | 136kg |
| Drive Speed (Stowed) | 4.5km/h | 4.5km/h | 4.5km/h |
| Drive Speed(Raised) | 0.7km/h | 0.7km/h | 0.7km/h |
| Rising Time | 40s | 45s | 50s |
| Lowering Time | 35s | 37s | 42s |
| Gradeability | 35% | 30% | 30% |
| Turing Radius -inside/outside | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m |
| Tilt Sensor-Front to Back | 3° | 3° | 3° |
| Tilt Sensor-Side to Side | 1.5° | 1.5° | 1.5° |
| Tire Specification/Type | 675mm*280mm | 675mm*280mm | 675mm*280mm |
| Outrigger level ability-front to back | 6.6° | 6.6° | 6.6° |
| Outrigger level ability -side to side | 10.6° | 10.6° | 10.6° |
| Power | |||
| Drive Mode | Electric drive,4WD×2WS | Electric drive,4WD×2WS | Electric drive,4WD×2WS |
| Power Unit Motor (voltage/power) | 48V/4.5kW | 48V/4.5kW | 48V/4.5kW |
| Hydraulic Tank Capacity | 68L | 68L | 68L |
| Battery Specification | 235Ah | 235Ah | 235Ah |
| Control Voltage | 24V | 24V | 24V |
| Charger (Input Voltage/Output Current) | 90-264V/40A | 90-264V/40A | 90-264V/40A |
| Weight | |||
| Weight | 3710kg | 3980kg | 5020kg |
| Weight(with outriggers) | 4170kg | 4440kg | 5480kg |
| Standard | GB/CE | ||
Standard Features
| Proportional controls | Self-lock gate on platform | Single Extended Platform |
| Drivable at full height | Rough-terrain tires | Foldable guardrails |
| Automatic brake system | Emergency lowering button | Emergency stop button |
| Explosion-proof oil tubes | Diagnosis system | Tilt alarm |
| Buzzer | Flash light | Hour meter |
| GPS | AC power to platform |
Options Features
| Overload sensor | Power socket to platform | Top-stop Sensor |
| Automatic leveling hydraulic outriggers | Working light | Non-marking Rough-terrain tires |
| Gps | Swing axis | Electrophoretic coating process |
 |
 |
 |
