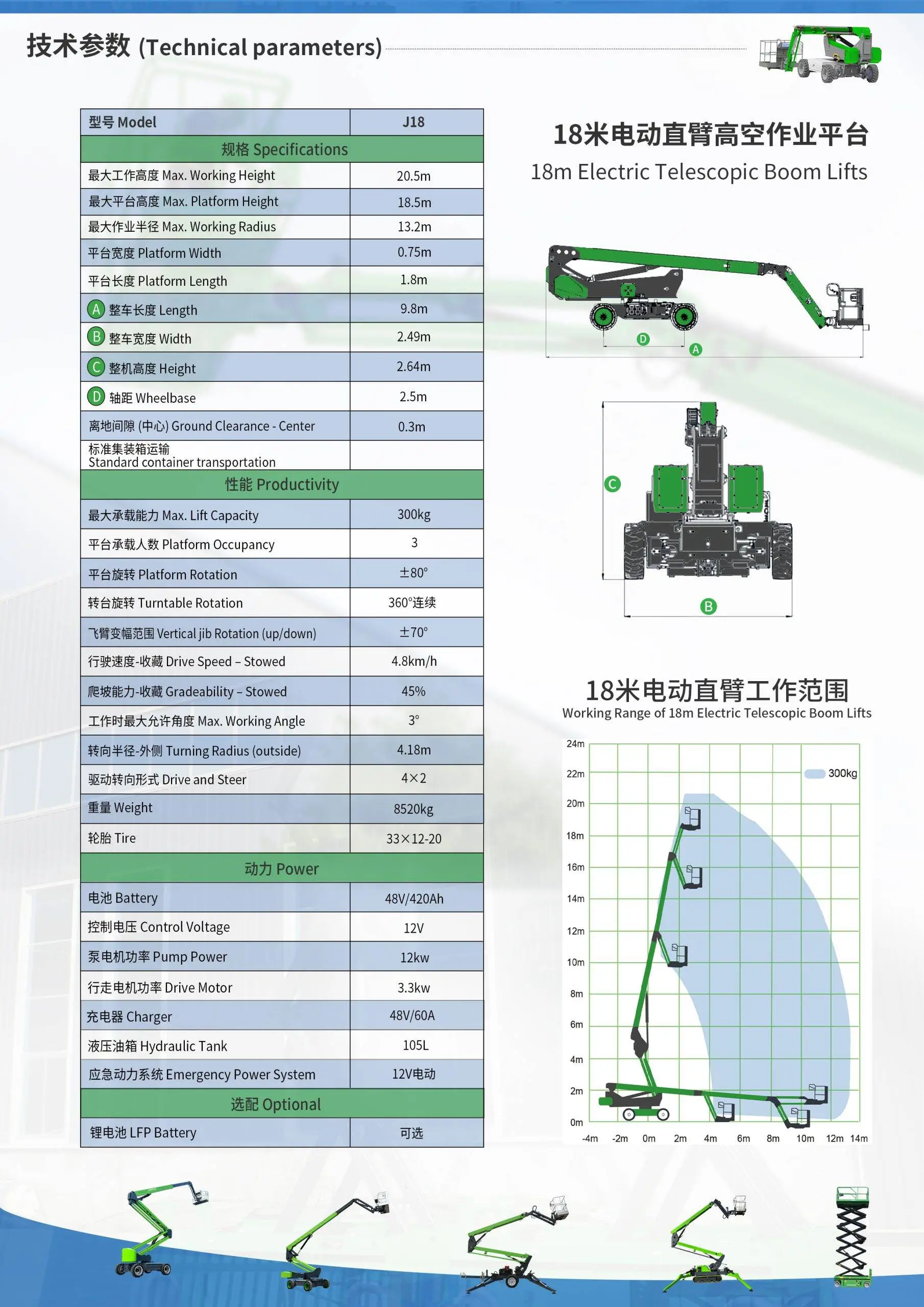

0.3 Ton(661.39lb)18 M(52.49ft) Electric Telescopic Boom Lifts-J18
Max Working Height: 20.5m(67.26ft)
Max Working Radius: 13.2m(43.31ft)
Load Capacity: 300kg(661.39lb)
Machine Weight: 8520kg(18783.39lb)
Description
Product productivity
| Working Platform
Platform size: 1.8m * 0.75m Platform with fully-opened door and two access Load capacity: 300kg Platform rotation:160° Descent & Movement Alarms Tilt Alarm Horn Overload Alarm Motor Overload Protection Platform And Chassis Emergency Stop Emergency Power Unit Four-Wheel Brake System
Power： 420Ah/48V DC Power Supply |
Drive：
Four-Wheel Drive Axle balance
Other Features: Automatic Leveling of Platform Proportional Joystick Controls Drive Enable Hour Meter 360°Turntable Continuous Rotation Positive Traction Four Wheel Drive Telematics Pre-interface Active Defense System Max Gradeability: 45% Boom Self-Weight Lowering System Solid Trace-Less Tire |
Functional Features
The product has advantages of compact structure, heavy load and strong driving capacity, suitable for off-road operation. And it is energy-saving, with long battery life.
300kg loading capacity leads to simple operation.
Strong driving power and 45% of climbing capacity make it convenient to transfer.
It is equipped with trace-less off-road tires and axle balance system, which is applicable to all kinds of indoor and outdoor road conditions.
5m turning radius is maneuverable and flexible, which leads to perfect operation of machine in narrow spaces.
Adopted long endurance and 48V/420Ah large-capacity battery (48V/420Ah lithium battery system is optional) provide longer battery life.
Adopted boom self-weight lowering technology and sensitive hydraulic system make movement of boom steady and energy-saving.
Advanced four wheel AC driven technology and steering differential control technology greatly reduce tire wear and motor overload rate.
The combination of AC pump control and proportional control technology provides a safer and more stable operation experience.
Environmental friendly , zero emission, low noise and traceless driving are suitable for indoor clean and construction operations.
Independent emergency power source guarantees convenient lowering of boom (emergency power source and primary power source share charging plug, bringing intelligent charging and easy operation).
Functional Features
 |
 |
 |
 |
| Environmental friendly , zero emission, low noise and traceless driving are suitable for indoor clean and construction operations.
5m turning radius is maneuverable and flexible, which leads to perfect operation of machine in narrow spaces.
300kg loading capacity leads to simple operation. |
Strong driving power and 45% of climbing capacity make it convenient to transfer.
Advanced four wheel AC driven technology and steering differential control technology greatly reduce tire wear and motor overload rate. |
Adopted long endurance and 48V/420Ah large-capacity battery (48V/420Ah lithium battery system is optional) provide longer battery life.
Adopted boom self-weight lowering technology and sensitive hydraulic system make movement of boom steady and energy-saving.
|
Independent emergency power source guarantees convenient lowering of boom (emergency power source and primary power source share charging plug, bringing intelligent charging and easy operation). |
 |
 |
 |
 |
| Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient. It provides chassis tilt protection, emergency landing, safe speed limit, flexible start and stop technology and other protective measures. | Full proportional control of walking and jib movements
Confirmation of driving High and low speed options Machine power display Key fault light alarm |
Aluminum alloy working platform
· light in weight · high in strength · anti-rust · easy to disassemble
Alternative options: Steel working platform is optional. |
Counterweight mold design
100% cast iron
Beautiful and compact |
 |
 |
 |
| Plastic drag chain, industry-leading
Lightweight and extremely stable structure |
The battery is produced by
QUIMO BATTERY. QUIMO BATTERY is a lead-acid battery specially used for aerial work boom lifts, and 8 batteries provide a strong power of 48V/420Ah for the J18. |
The hydraulic valve is produced by SANT( HydraForce ).
SANT is the most famous brand producing valves in China, with stable and safe product performance. Its valve core is from brand Hydraforce, which comes from Bosch Company in Germany. It enhance the performance, value, safety and durability of the machine. |
