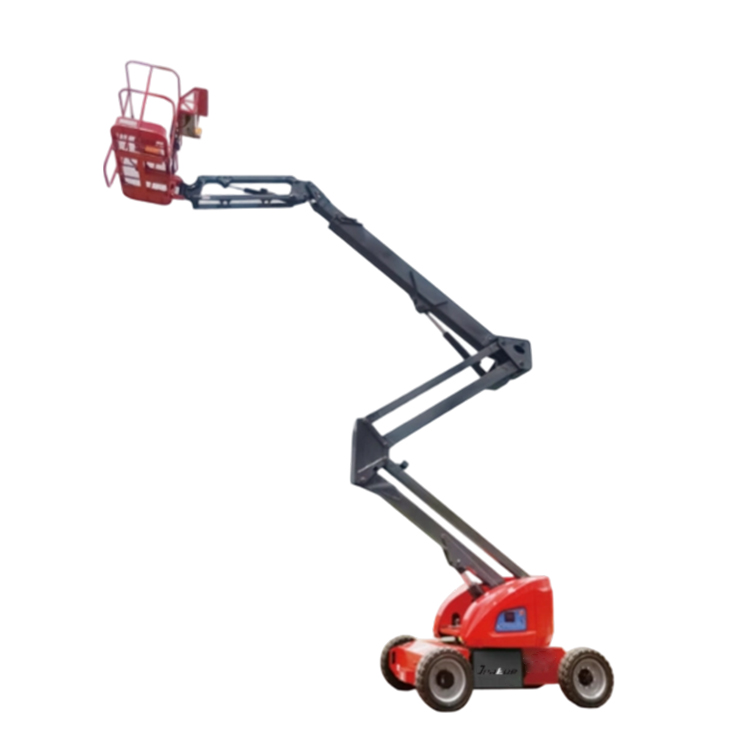

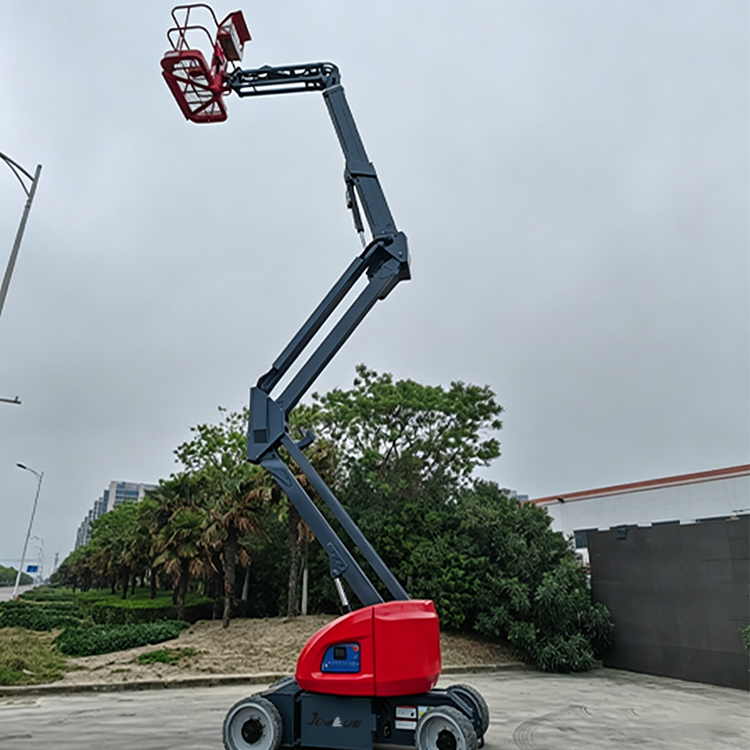

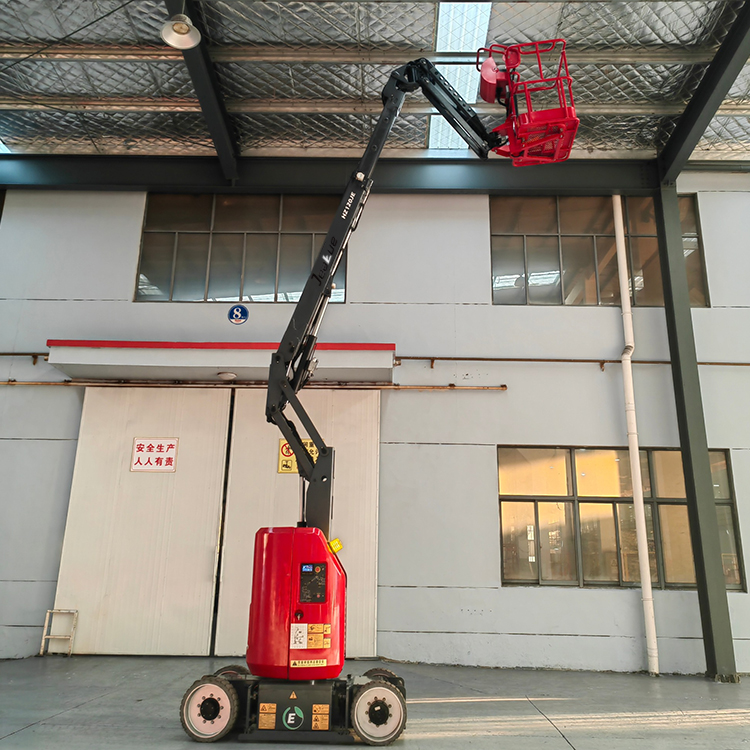

0.2Ton 12M Self-propelled Articulated Booms-HZ120E
Load Capacity(kg):200 (440.92(lb))
Working height max (m) :12 (472.44(in))
Weight(kg):4000 (8818.48(lb))
Description
Product Highlights
★Electric drive, green and environmentally friendly
★Zero emissions, meeting the strict requirements of indoor and outdoor emissions on construction sites
Compact Structure
★The entire series adopts compact design, while also considering high maintenance, and has stronger ability to operate in narrow and complex working conditions.
Excellent Performance
★Equipped with a maximum working angle of 3 degrees as standard, the entire series have stronger adaptability to the working range and site.
★230kg load capacity, adaptable to multiple scenarios and working conditions
Low Maintenance Costs
★Compared to diesel power, battery maintenance costs are lower, reducing overall operating costs.
Electric Drive
★Low cost, low noise, low maintenance, green environmental friendly and energy conservation
PRODUCT PARAMETERS
| Model | HZ 120E |
| Dimension | |

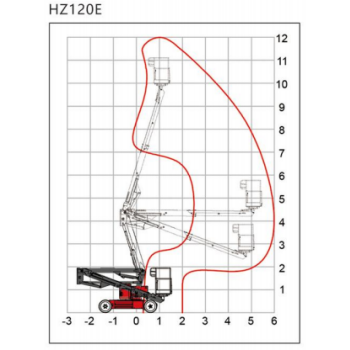

| Max. Working Height | 12m |
| Max. Platform Height | 10m |
| Max.Outreach | 6m |
| Max.Up and Over Clearance | 4.2m |

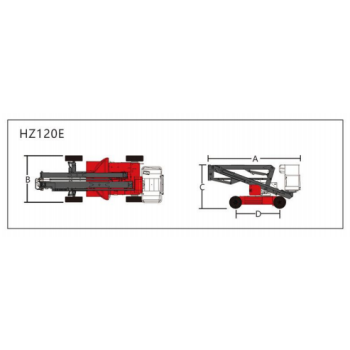

| A Length (stowed) | 4.2m |
| B Width (stowed) | 1.5m |
| C Height (stowed) | 1.96m |
| D Wheelbase | 1.96m |
| Ground Clearance | 0.18m |
| Platform Size | 1.16×0.65×1.1m |
| Performance | |
| Lift Capacity | 200kg |
| Turntable Rotation | 360°non-continuous |
| Platform Rotation | / |
| Drive Speed(Stowed) | 4km/h |
| Drive Speed(Raised) | 1km/h |
| Gradeability | 25% |
| Turing Radius(Inside) | 1.9m |
| Turing Radius(Outside) | 4.2m |
| Turntable Tailswing | 0 |
| Max.Tilt Angle(front to back/side to side) | 5°/3° |
| Drive wheels number x Steering wheels number | 2×2 |
| Tire Specification/Type | 22*7*16(solid tire) |
| Power | |
| Battery Specifications | DC48/225Ah |
| DC24V | |
| Hydraulic Tank Capacity | 32L |
| Weight | |
| Total Weight | 4000kg |
Standard Features
| Hydraulic leveling platform | Mechanical release of driving brake | Horn and buzzer safety warnings |
| Automotive grade full tube sheath protection | Platform rotation | Maximum tilt angle of 3° |
| Tilt alarm | Over load sensor | Flash light |
| Emergency stop system | Emergency lowering down | Diagnosis system |
Options Features
| AC wiring to platform | T-BOX(GPS) |
| Non-marking Solid Tires |
 |
 |
