0.23-0.3Ton 17-20M Self-propelled Articulated Booms-HZ160/180/200JE
Load Capacity(kg):230-300/400(Restricted) (507.15-661.39/881.85(lb))
Working height max (m) :16.5-17.8-20.3 (649.61-700.79-799.21(in))
Weight(kg):7482-7554-9650 (16494.98-16653.72-21274.56(lb))
Description
Product Highlights
★Electric drive, green and environmentally friendly
★Zero emissions, meeting the strict requirements of indoor and outdoor emissions on construction sites
Compact Structure
★The entire series adopts compact design, while also considering high maintenance, and has stronger ability to operate in narrow and complex working conditions.
Excellent Performance
★Equipped with a maximum working angle of 3 degrees as standard, the entire series have stronger adaptability to the working range and site.
★230kg load capacity, adaptable to multiple scenarios and working conditions
Low Maintenance Costs
★Compared to diesel power, battery maintenance costs are lower, reducing overall operating costs.
Electric Drive
★Low cost, low noise, low maintenance, green environmental friendly and energy conservation
PRODUCT PARAMETERS
| Model | HZ 160JE | HZ 180JE | HZ 200JE |
| Dimension | |||

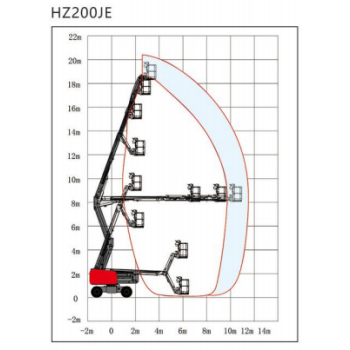

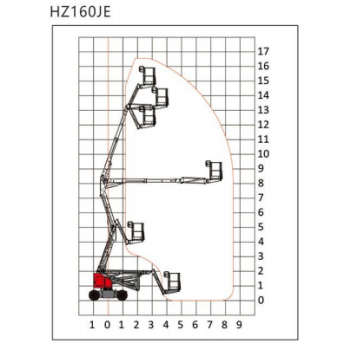

| Max. Working Height | 16.5m | 17.8m | 20.3m |
| Max. Platform Height | 14.8m | 16.1m | 18.3m |
| Max. Outreach | 8.04m | 9.44m | 11.3m |
| Max. Up and Over Clearance | 8.077m | 8.077m | 8.1m |

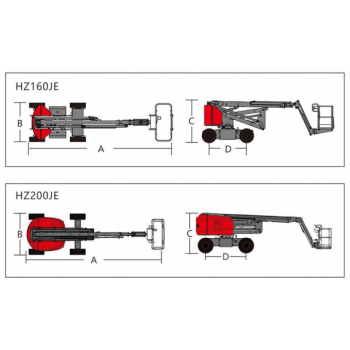

| A Length (stowed) | 5.98m | 6.88m | 8.35m |
| B Width (stowed) | 1.804m | 1.804m | 2.49m |
| C Height(stowed) | 2.166m | 2.152m | 2.48m |
| D Wheelbase | 1.89m | 1.89m | 2.5m |
| Ground Clearance | 0.179m | 0.179m | 0.35m |
| Platform Size | 1.75×0.76×1.1m | 1.5×0.76×1.1m | 1.83×0.76×1.1m |
| Performance | |||
| Lift Capacity | 230kg | 230kg | 300kg/400kg(Restricted) |
| Turntable Rotation | 360°Non-continuous | 360°Non-continuous | 360°Non-continuous |
| Platform Rotation | 180° | 180° | 180° |
| Drive Speed(Stowed) | 4.8km/h | 4.8km/h | 6.1km/h |
| Drive Speed(Raised) | 1km/h | 1km/h | 1.1km/h |
| Gradeability | 30% | 30% | 40% |
| Turing Radius(Inside) | 1.15m | 1.15m | 2.38m |
| Turing Radius(Outside) | / | / | 5.69m |
| Turntable Tailswing | 0 | 0 | 0 |
| Max. Tilt Angle(front to back/side to side) | 5°/3° | 5°/3° | 5°/3° |
| Drive wheels number x Steering wheels number |
2×2 | 2×2 | 4×2 |
| Tire Specification/Type | 250-15/7.0 | 250-15/7.0 | 355/55D625(foam filled tire) |
| Power | |||
| Battery Specifications | DC48/320Ah | DC48/320Ah | DC48V/445Ah |
| Voltage | DC12V | DC12V | DC24V |
| Hydraulic Tank Capacity | 42L | 42L | 60L |
| Weight | |||
| Total Weight | 7482kg | 7554kg | 9650kg |
Standard Features
| Hydraulic leveling platform | Mechanical release of driving brake | Horn and buzzer safety warnings |
| Automotive grade full tube sheath protection | Platform rotation | Maximum tilt angle of 3° |
| Tilt alarm | Over load sensor | Flash light |
| Emergency stop system | Emergency lowering system | Diagnosis system |
Options Features
| AC wiring to platform | T-BOX(GPS) |
| Non-marking Solid tires |
 |
 |
 |
