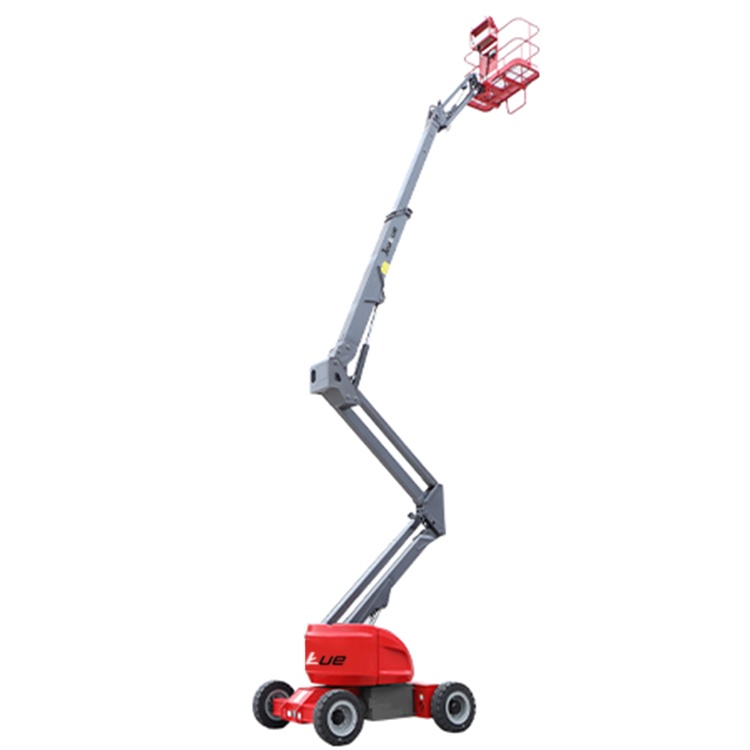

0.23-0.3Ton 17M Self-propelled Articulated Booms-HZ170JE/170J
Load Capacity(kg):230-300 (507.15-661.39(lb))
Working height max (m) :17 (669.29(in))
Weight(kg):6800-7500 (14991.41-16534.67(lb))
Description
Product Highlights
★Electric drive, green and environmentally friendly
★Zero emissions, meeting the strict requirements of indoor and outdoor emissions on construction sites
Compact Structure
★The entire series adopts compact design, while also considering high maintenance, and has stronger ability to operate in narrow and complex working conditions.
Excellent Performance
★Equipped with a maximum working angle of 3 degrees as standard, the entire series have stronger adaptability to the working range and site.
★230kg load capacity, adaptable to multiple scenarios and working conditions
Low Maintenance Costs
★Compared to diesel power, battery maintenance costs are lower, reducing overall operating costs.
Electric Drive
★Low cost, low noise, low maintenance, green environmental friendly and energy conservation
PRODUCT PARAMETERS
| Model | HZ 170JE | HZ 170J |
| Dimension | ||

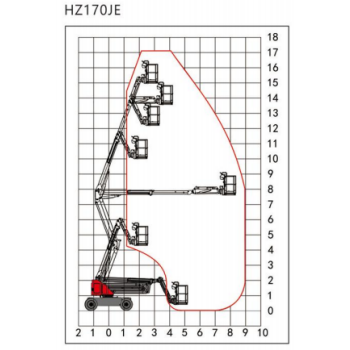

| Max.Working Height | 17.11m | 17m |
| Max.Platform Height | 15.11m | 15m |
| Max.Outreach | 8.37m | 9.12m |
| Max.Up and Over Clearance | 7.65m | 7.2m |

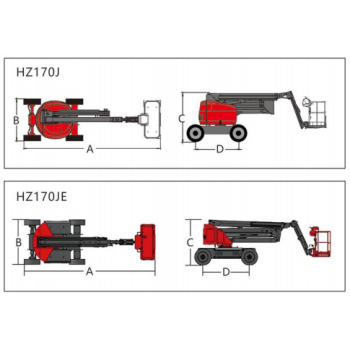

| A Length (stowed) | 6.78m | 6.99m |
| B Width (stowed) | 2.3m | 1.77m |
| C Height (stowed) | 2.25m | 2.17m |
| D Wheelbase | 2.32m | 2m |
| Ground Clearance | 0.33m | 0.21m |
| Platform Size | 1.8×0.76×1.1m | 1.5×0.76×1.1m |
| Performance | ||
| Lift Capacity | 300kg | 230kg |
| Turntable Rotation | 360°non-continuous | 360°non-continuous |
| Platform Rotation | 0/180° | 0/180° |
| Drive Speed(Stowed) | 5km/h | 5km/h |
| Drive Speed(Raised) | 1km/h | 1km/h |
| Gradeability | 30% | 30% |
| Turing Radius(Inside) | 1.1m | 1.1m |
| Turing Radius(Outside) | 3.5m | 3.5m |
| Turntable Tailswing | 0 | 0 |
| Max.Tilt Angle(front to back/side to side) | 5°/3° | 5°/3° |
| Drive wheels numberx Steering wheels number | 2×2 | 2×2 |
| Tire Specification/Type | 600*190(solid tire) | 240-55D17.5(foam filled tire) |
| Power | ||
| Battery Specifications | DC48/320Ah | DC48/320Ah |
| Voltage | DC12V | DC12V |
| Hydraulic Tank Capacity | 40L | 35L |
| Weight | ||
| Total Weight | 7500kg | 6800kg |
Standard Features
| Hydraulic leveling platform | Mechanical release of driving brake | Horn and buzzer safety warnings |
| Automotive grade full tube sheath protection | Platform rotation | Maximum tilt angle of 3° |
| Tilt alarm | Over load sensor | Flash light |
| Emergency stop system | Emergency lowering down | Diagnosis system |
Options Features
| AC wiring to platform | Manual Box |
| Non-marking solid tires | T-BOX(GPS) |
 |
 |
