Description

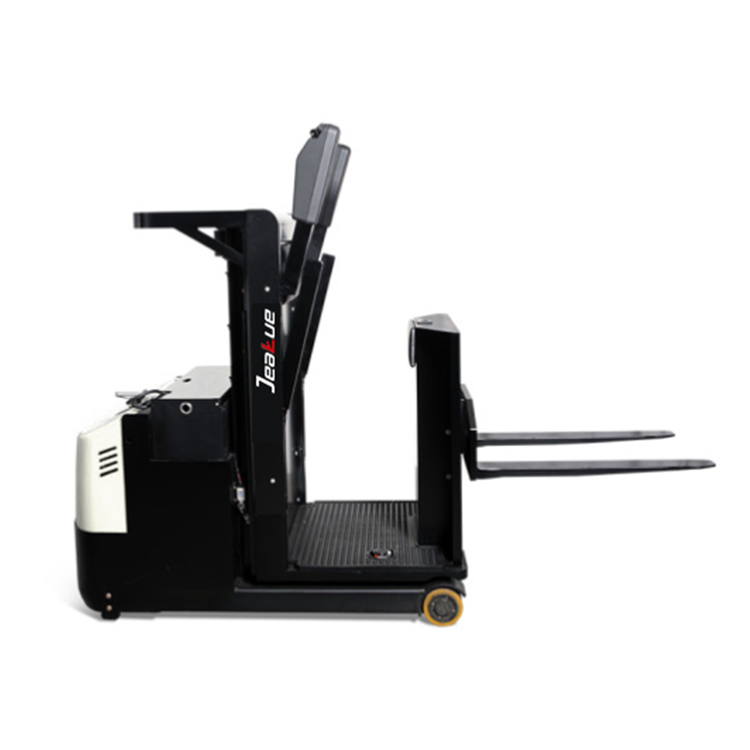

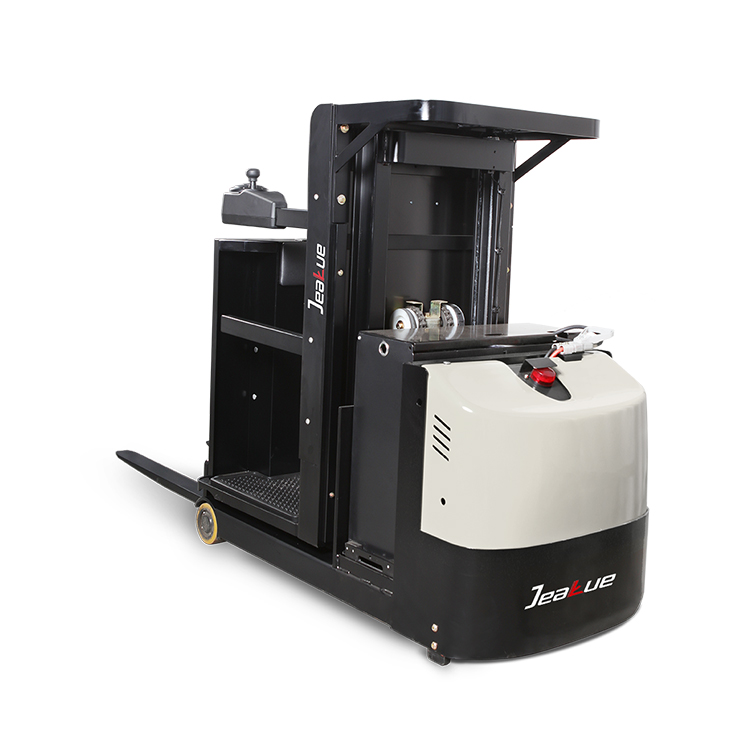

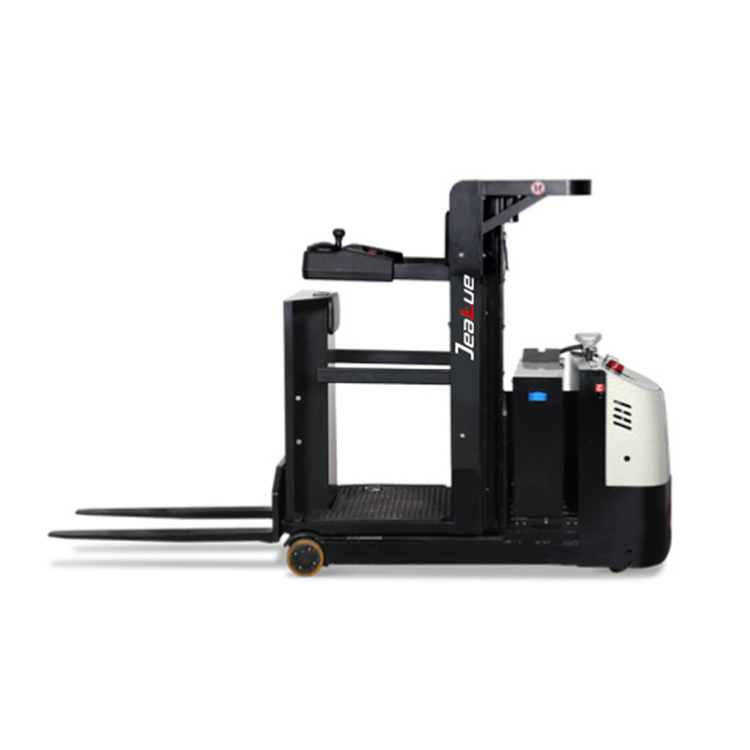

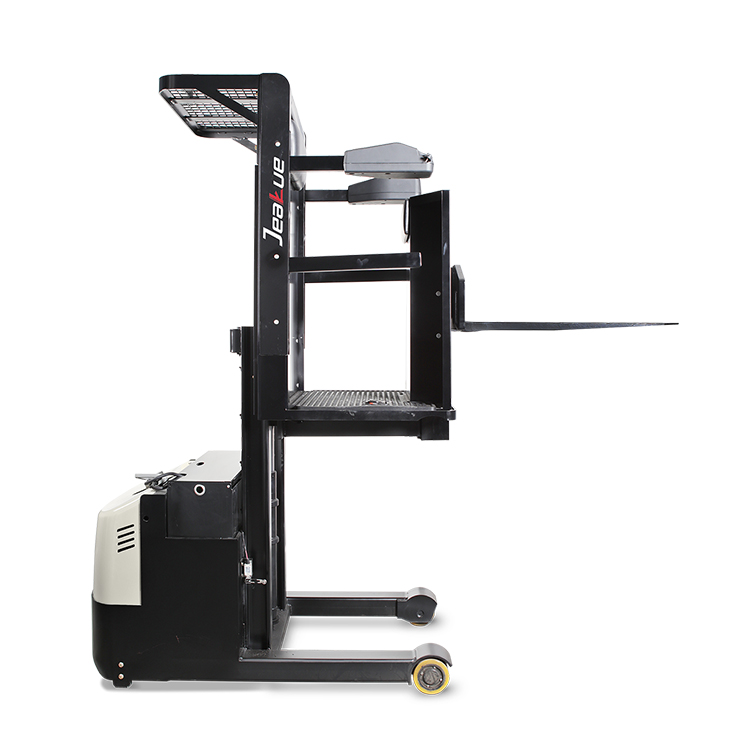

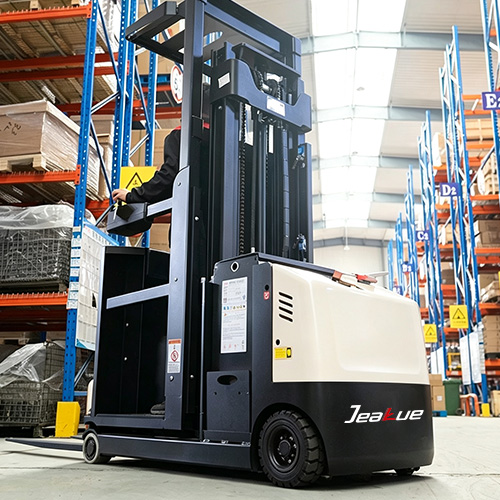

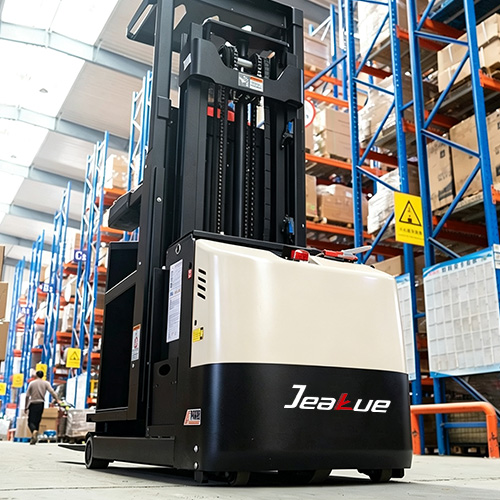

Explore the EOP7-1

With a 700 kg load capacity and compact 800 mm chassis, the EOP7-1 is designed for both box picking and pallet handling in narrow warehouse aisles. Its dual lifting system provides stability and flexibility, while the wide operator view ensures safety and precision. Powered by a 24V/360Ah battery, it delivers strong performance with lifting speeds of up to 0.16 m/s.
1.Dual lifting system

Provides both load and operator lifting, ensuring stability during pallet handling and precise positioning during order picking.

2.Compact and agile design

With a width of only 800 mm and a turning radius of 1470 mm, the EOP7-1 is ideal for maneuvering in narrow aisles and confined spaces.

3.Efficient power system

Equipped with a 24V/360Ah battery and a 3 kW lift motor, the truck delivers fast lifting speeds and reliable power for continuous operations.

4.Safety and operator visibility

A wide operating view enhances precision and safety, while optional warning systems such as reversing buzzers and rear lamps provide extra security in busy warehouse environments.

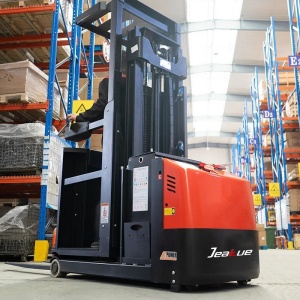

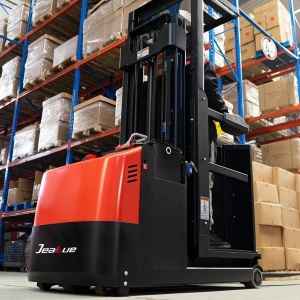

Application

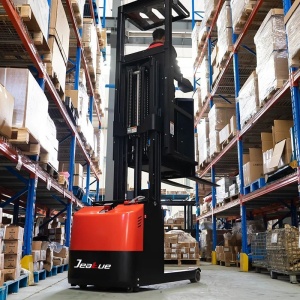

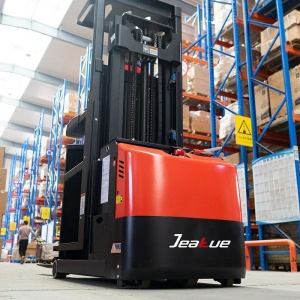

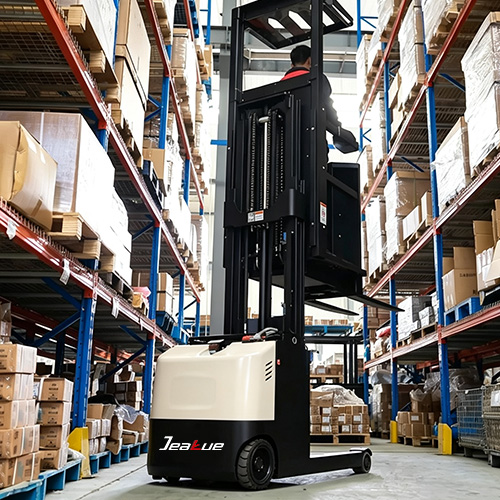

The EOP7-1 is suited for medium-level order picking in e-commerce, retail distribution, and logistics centers. With a turning radius of just 1470 mm, it easily maneuvers in confined warehouse spaces. Its standing operator platform ensures efficiency during frequent pick cycles, while optional configurations such as extended forks, external charger, or additional buzzers adapt the truck to specific warehouse needs.

About the EOP7-1

The EOP7-1 brings efficiency, safety, and flexibility to medium-level order picking. With its compact chassis and dual lifting system, it combines stability with agility in narrow aisles. Operators benefit from clear forward visibility, ergonomic standing controls, and multiple safety options, including buzzer and warning lamps. A maintenance-free AC drive motor and 24V/360Ah battery ensure consistent performance with minimal downtime. Optional features such as external charging, different fork lengths, and operator alert systems make the EOP7-1 a versatile solution for a wide range of order-picking environments.

FAQs

What is the load capacity of the EOP7-1?

The EOP-X2-1 supports up to 700 kg, making it suitable for both pallet handling and box picking.
How compact is the EOP7-1 for warehouse use?

With a chassis width of 800 mm and a turning radius of 1470 mm, it is designed for easy maneuvering in narrow aisles and confined storage areas.
What type of battery powers the EOP7-1?

It is equipped with a 24V/360Ah battery and a 3 kW lift motor, delivering strong lifting performance and reliable runtime.
What makes the EOP7-1 safe for operators?

The EOP7-1 features a wide operator view for clear visibility, stable dual lifting system, and optional safety enhancements like reversing buzzers and warning lamps.
What applications is the EOP7-1 best suited for?

It is ideal for order picking in e-commerce, retail, and logistics warehouses where medium-level picking and efficient maneuvering in narrow aisles are essential.

PRODUCT PARAMETERS

Load Capacity	700kg(1543.24lb) Electric Order Picker
Fork Dimensions	915/100/35mm(36.02/3.94/1.38in)(I xe x s)
Battery Voltage/Nominal Capacity	24V360Ah lead-acid battery
Turning Radius	1470mm(57.87in)
Lift Height	1800mm(70.87in)
Steering Design	Electric Steering Power
Service Weight	1620Kg(3571.49lb)
Product Color	Ivory/Red/Customization
Travel Speed, Laden/Unladen	6/6 km/h
Motor power	2.5KW

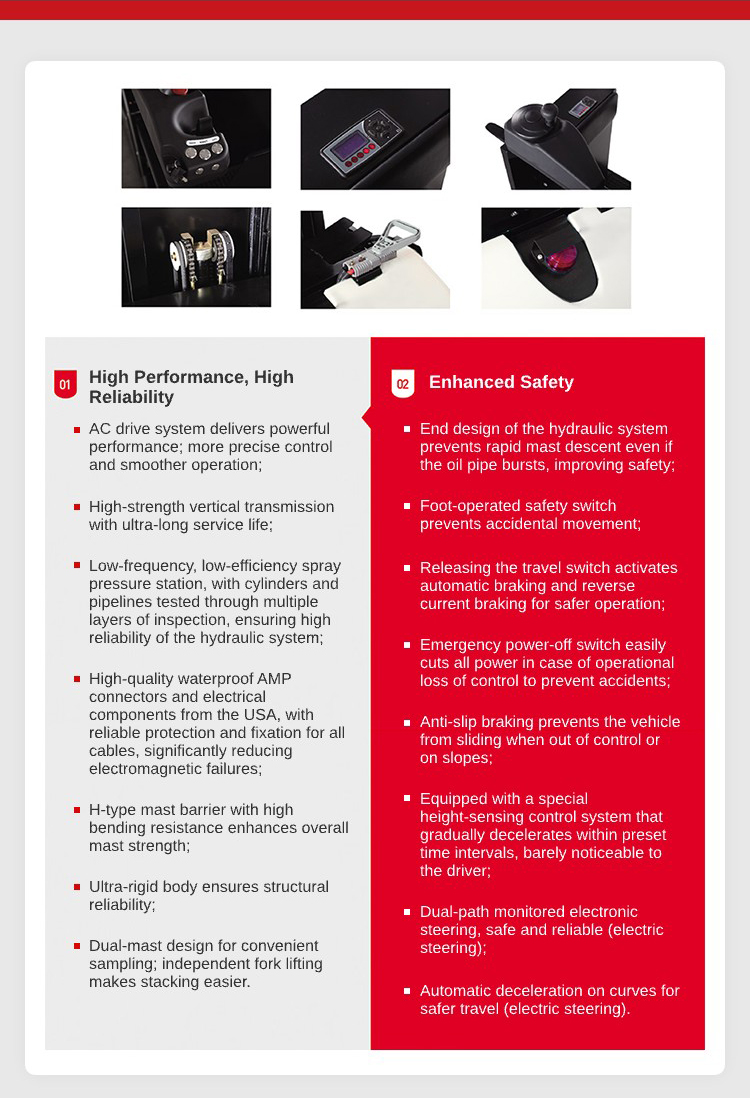

1 High Performance, HighReliability 700kg JEAKUE Electric Order Pickers
AC drive system delivers powerful performance;moreprecisecontrol and smoother operation;
JEAKUE Electric Order Pickers High-strength vertical transmission with ultra-long service life;
Low-frequency,low-efficiency spray pressure station,with cylinders and pipelines tested through multiple layers of inspection, ensuring high reliability of the hydraulic system;
High-quality waterproof AMP connectorsand electrical components from the USA, with reliableprotection and fixation for all cables, significantly reducing electromagnetic failures;
H-type mast barrier with high bending resistance enhances overall mast strength;
JEAKUE Electric Order Pickers Ultra-rigid body ensures structural reliability:
Dual-mast design for convenient sampling: independent fork lifting makes stacking easier.

2 Enhanced Safety JEAKUE Electric Order Pickers
End design of the hydraulic system prevents rapid mast descent even if the oil pipe bursts, improving safety:
Foot-operated safety switch prevents accidental movement;
Releasing the travel switch activates automatic braking and reverse current braking for safer operation;
Emergency power-off switch easily cuts all power in case of operational loss of control to prevent accidents;
Anti-slipbraking prevents thevehicle from sliding when out of control or on slopes;
Equipped with a special height-sensing control system that gradually decelerates within preset time intervals, barely noticeable to
the driver;
JEAKUE Electric Order Pickers Dual-path monitored electronic steering, safe and reliable (electric steering):
Automatic deceleration on curves for safer travel(electrc steering).

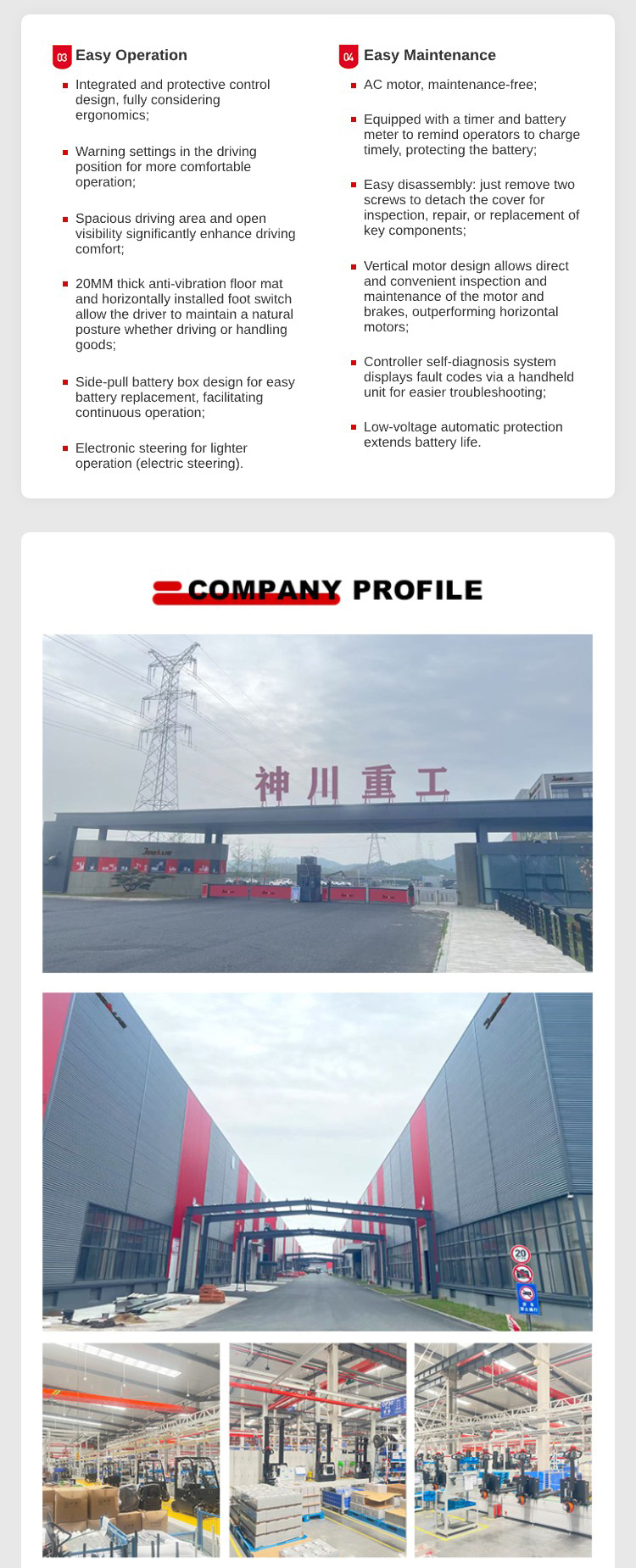

3 Easy Operation JEAKUE Electric Order Pickers
Integrated and protective control design, fully considering ergonomics;
Warning settings in the driving position for more comfortable operation;
Spacious driving area and open visibility significantly enhance driving comfort;
20MM thick anti-vibration floor mat and horizontally installed foot switch allow the driver to maintain a natural posture whether driving or handling goods;
Side-pull battery box design for easy battery replacement,facilitating continuous operation;
Electronic steering for lighter operation (electric steering).

4 Easy Maintenance JEAKUE Electric Order Pickers
JEAKUE Electric Order Pickers AC motor, maintenance-free;
Equipped with a timer and battery meter to remind operators to charge timely, protecting the battery;
Easy disassembly: just remove two screws to detach the cover for inspection,repair,or replacement of key components;
Vertical motor design allows direct and convenient inspection and maintenance of the motor and brakes,outperforming horizontal
motors;
Controller self-diagnosis system displays fault codes via a handheld unit for easier troubleshooting:
JEAKUE Electric Order Pickers Low-voltage automatic protection extends battery life.JEAKUE 0.7 Ton Electric Order Picker
