Description

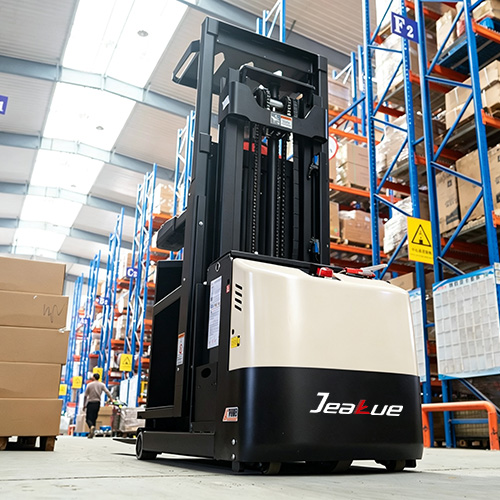

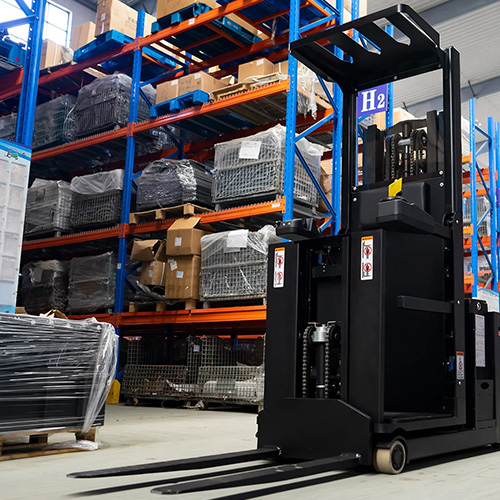

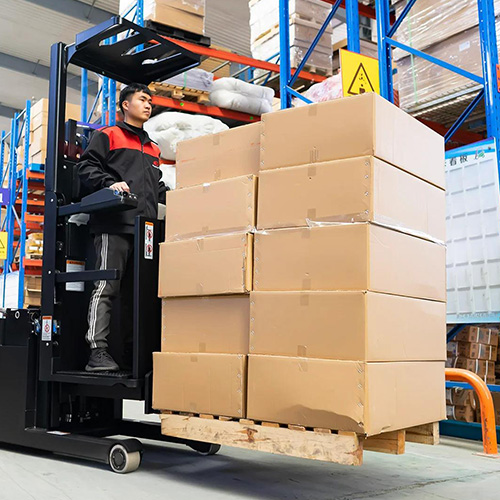

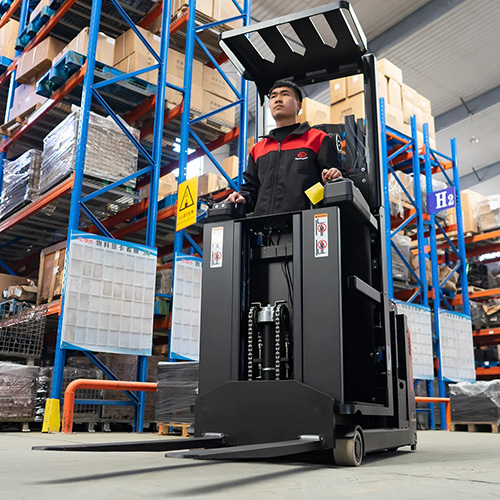

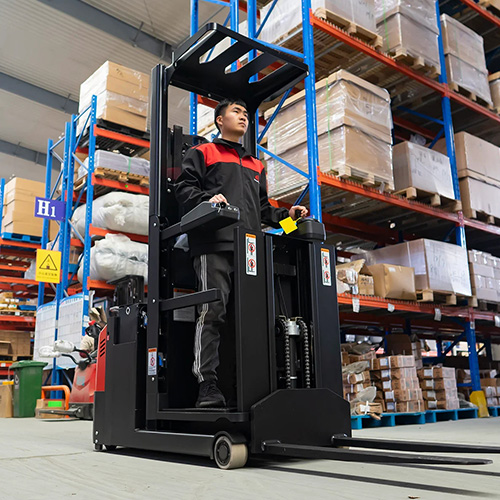

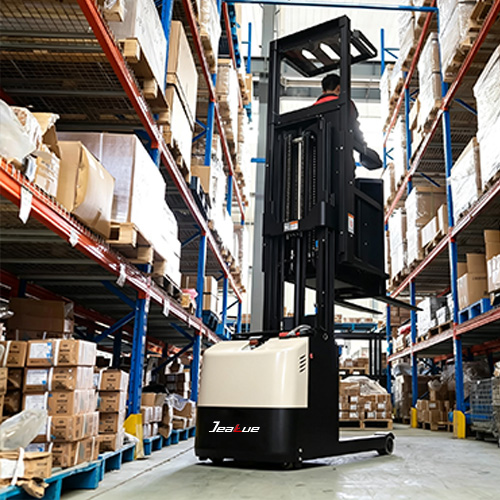

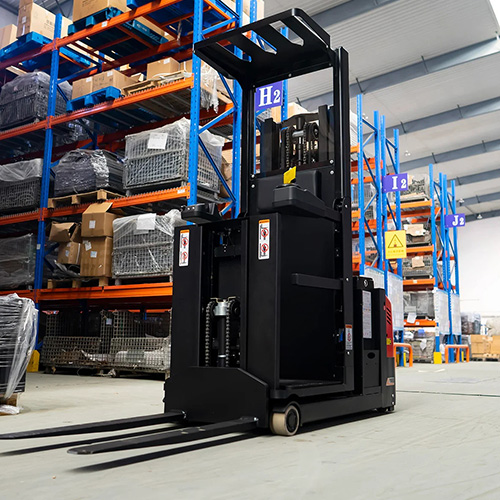

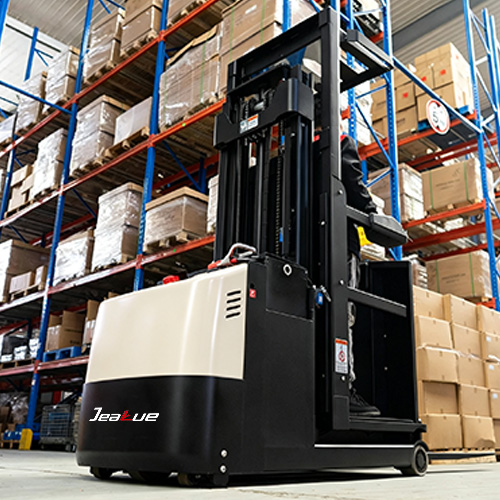

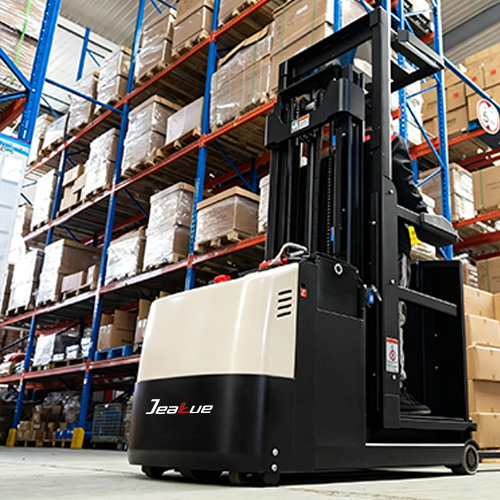

Explore the EOP07-3

With a 700 kg load capacity and lift heights up to 2.9 meters (picking height 5.1 m), the EOP07-3 offers stability, precision, and maneuverability. Its compact 800 mm chassis and turning radius of 1515 mm ensure smooth operation in narrow aisles. Powered by a 24V/360Ah battery and 3 kW lift motor, it provides reliable runtime and strong performance.
1.Efficient medium-level picking

With lift heights up to 2.9 m and a maximum picking height of 5.1 m, the EOP07-3 is designed for efficient access to medium-level racking.

2.Compact and stable chassis

At only 800 mm wide with a turning radius of 1515 mm, the truck provides excellent maneuverability, even in narrow aisles and busy warehouse environments.

3.Reliable Li-ion-ready battery system

Standard with a 24V/360Ah battery, the EOP07-3 supports opportunity charging and can be paired with optional external chargers for longer operations.

4.Operator-focused design and safety

The elevated standing platform, ergonomic tiller, and electronic steering reduce operator fatigue, while safety is enhanced through wide visibility, electromagnetic braking, and optional warning systems.

Application

The EOP07-3 is ideal for medium-level order picking in e-commerce, retail, and warehouse operations. Its elevated stand height (up to 3.0 m) ensures easy access to racking, while proportional lifting and lowering guarantee accuracy and care when handling goods. With a wide field of view, stable mast design, and optional safety add-ons such as warning lamps or buzzers, it adapts to diverse warehouse environments.

About the EOP07-3

The EOP07-3 combines efficiency and operator safety in one compact, reliable machine. With a dual lifting system and robust mast design, it ensures smooth and accurate picking at medium heights. Operators benefit from an elevated standing platform, ergonomic controls, and electronic steering for reduced fatigue. The 24V/360Ah battery with optional external charger supports extended runtime and fast charging. With safety features like electromagnetic brakes, wide visibility, and customizable warning systems, the EOP07-3 is a versatile solution for modern order-picking operations.

FAQs

What is the maximum load capacity of the EOP07-3?

The EOP07-3 supports up to 700 kg, making it ideal for box picking and pallet handling at medium rack levels.
How high can the EOP07-3 reach?

It offers a maximum lift height of 2.9 meters, allowing operators to pick at heights up to 5.1 meters.
What type of battery powers the EOP07-3?

The EOP07-3 is powered by a 24V/360Ah battery, with optional external chargers available for extended runtime and quick recharging.
How compact is the EOP07-3 for narrow aisle operations?

With a chassis width of 800 mm and a turning radius of 1515 mm, it is perfectly suited for maneuvering in tight warehouse spaces.
What safety features are included in the EOP07-3?

Safety is ensured through electromagnetic braking, a wide operator field of view, stable mast design, and optional add-ons like warning lamps and reversing buzzers.

PRODUCT PARAMETERS

Load Capacity:	700 kg(1543.24lb)
Battery Voltage/Nominal Capacity:	24V/360Ah Lead-acid battery
Turning Radius:	1515mm(59.65in)
Lift Height	3200/3600mm(125.98/141.73in)
Fork Dimensions:	1150/170/55mm(45.28/6.69/2.17in)(l x e x s)
Tyre type:	Pneumatic tyre
Stering Design:	Electric steering power
Service Weight:	1780/1794KG(3924.23/3955.19lb)
Product Color：	Ivory/Red/Customization





01
High Performance, High Reliability JEAKUE  700kg Electric Order Picker

AC drive system delivers powerful performance; more precise control and smoother operation;

High-frequency wave inverter with ultra-long service life; Low-frequency amplifier and pressure station, with cylinders and pipelines tested through multiple layers of inspection, ensuring high reliability of the hydraulic system;

High-quality waterproof AMP connectors and electrical components from the USA, with reliable protection and fixation for all wires and cables, significantly reducing electrical failures;

H-type mast channel steel with high bending resistance enhances overall mast strength;

Ultra-rigid body ensures structural reliability;

Dual-mast design for convenientsampling; independent fork lifting makes maintenance easier.JEAKUE 0.7Ton Electric Order Picker 3.2M/3.6M

03
Easy Operation  JEAKUE 700kg Electric Order Picker
Integrated and protective control design, fully considering ergonomics;
Warning settings in the driving position for more comfortable operation;
Spacious driving area and open installation requirements significantly enhance driving comfort;
20MM thick anti-vibration flooring and horizontally installed foot switch allow the driver to maintain a natural posture whether driving or maneuvering;
Side-mounted battery box design for easy battery replacement, facilitating maintenance tasks;
Electronic steering for lighter operation (electric steering)

04
Easy Maintenance JEAKUE  700kg Electric Order Picker
AC motor, maintenance-free;
Equipped with a timer and battery meter to remind operators to charge timely, protecting the battery;
Easy disassembly: just remove two screws to detach the cover for inspection,repair, or replacement of key components;
Vertical motor design allows direct and convenient inspection and maintenance of the motor and brakes, outperforming horizontal motors;
Controller self-locking diagnosis system displays fault codes via a handheld unit for easier troubleshooting;
Low-voltage automatic protection extends battery life.
