Description

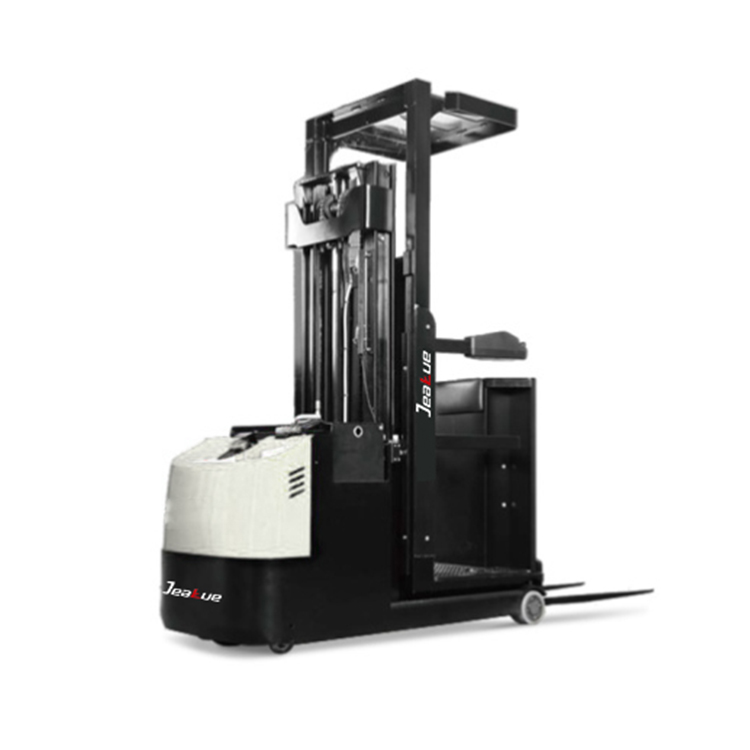

Explore the EOP10

With a load capacity of 1000 kg and lift heights of 3.2 to 3.6 meters (picking heights up to 5.8 m), the EOP10 ensures efficient order picking at medium rack levels. Its compact 860 mm chassis and turning radius of 1600 mm provide maneuverability in narrow aisles, while the 24V/360Ah battery delivers consistent power and runtime.
1.High lifting capacity

With a 1000 kg load capacity and lift heights up to 3.6 meters, the EOP10 supports stable, efficient picking at medium rack levels.

2.Compact and agile design

At only 860 mm wide with a turning radius of 1600 mm, the truck is ideal for confined warehouse aisles and tight operating conditions.

3.Reliable Li-ion-ready battery system

Equipped with a 24V/360Ah battery and integrated 50A charger, the EOP10 provides consistent runtime and supports opportunity charging with optional external systems.

4.Operator comfort and safety

Ergonomic standing platform, wide mast visibility, electronic steering, and electromagnetic brakes ensure operator comfort and safe operation during intensive shifts.

Application

The EOP10 is designed for warehouses, retail distribution centers, and logistics hubs requiring stable, safe, and efficient order picking. Its strong mast and dual lifting system ensure reliable handling, while proportional lift and lowering enhance precision. Operators benefit from wide mast visibility, an ergonomic standing platform, and optional safety add-ons such as warning lamps and buzzers for use in busy environments.

About the EOP-X2-4

The EOP10 combines power, stability, and operator-focused design to deliver high-efficiency order picking. With lift heights up to 3.6 meters and a maximum picking height of 5.8 meters, it provides flexibility for medium-level racking. The 24V/360Ah battery with integrated 50A charger supports reliable daily use, while electronic steering and electromagnetic braking guarantee safety and control. Optional extras such as external chargers, battery side pull, and multiple buzzer configurations allow the EOP07-1 to be tailored to diverse operational needs.

FAQs

What is the maximum load capacity of the EOP10?

The EOP10 supports up to 1000 kg, making it suitable for heavier order-picking tasks compared to smaller models.
How high can the EOP10 lift?

It offers lift heights between 3.2 and 3.6 meters, allowing operators to reach picking heights up to 5.8 meters.
What type of battery does the EOP10 use?

The truck is powered by a 24V/360Ah battery with an integrated 50A charger, with optional external chargers available for extended runtime.
How compact is the EOP10 for warehouse operations?

With a chassis width of 860 mm and a turning radius of 1600 mm, the EOP10 is designed to maneuver effectively in narrow aisles.
What safety features are included?

The EOP10 ensures operator safety with electronic steering, electromagnetic brakes, wide mast visibility, and optional add-ons such as warning lamps and buzzers.

PRODUCT PARAMETERS

Load Capacity	1000kg(2204.62lb) Electric Order Picker
Fork Dimensions	1070/100/40mm(42.13/3.94/1.57in)(I xe x s)
Battery Voltage/Nominal Capacity	24V360Ah lead-acid battery
Turning Radius	1600mm(62.99in)
Lift Height	3000mm(118.11in)
Steering Design	Electric Steering Power
Service Weight	2020Kg(4453.34lb)
Product Color	Ivory/Red/Customization
Travel Speed, Laden/Unladen	8/8 km/h
Motor power	3.3KW

01 High Performance, High Reliability JEAKUE Electric Order Pickers
AC drive system delivers powerful performance; more precise control and smoother operation;
JEAKUE Electric Order Pickers High-strength vertical transmission with ultra-long service life;
Low-noise,low-failure hydraulic station with multi-layer tested cylinders and pipelines, ensuring high reliability of the hydraulic system;
High-quality waterproof AMP connectors and electrical components from the USA, with reliable protection and fixation for all wires and cables, significantly reducing electrical failures;
H-shaped mast channel steel with high bending resistance enhances overall mast strength;
Ultra-rigid body ensures structural reliability:
Dual-mast design for easy sampling: Independent fork lifting simplifies load handling.

02 Enhanced Safety JEAKUE Electric Order Pickers
Explosion-proof hydraulic system design prevents rapid mast descent even if oil pipes burst, improving safety:
JEAKUE Electric Order Pickers Foot-operated safety switch prevents accidental movement;
Releasing the travel switch activates automatic braking and reverse current braking for safer operation;
Emergency power-off switch allows quick shutdown of all ower in case of loss of control to prevent accidents;
Anti-slip braking prevents sliding during loss of control or slope operation;
Continuous height-sensing control system enables gradual deceleration within preset intervals for seamless operation;
Dual-path monitored electronic steering for safety and reliability (electric steering):
JEAKUE Electric Order Pickers Auto-speed reduction on curves for safer travel (electric steering).

03 Easy Operation JEAKUE Electric Order Pickers
Integrated and protected control design prioritizes ergonomics;
JEAKUE Electric Order Pickers Ergonomic operator seat with backrest enhances comfort;
Spacious cabin and unobstructed load-viewing area significantly improve comfort;
2oMM thick shock-absorbing floor mat and flush-mounted foot switch ensure natural standing posture during operation;
Side-access battery box design simplifies battery replacement and maintenance;
JEAKUE Electric Order Pickers Electronic steering for effortless control (electric steering).

04 Easy Maintenance JEAKUE Electric Order Pickers
JEAKUE Electric Order Pickers AC motor requires no maintenance;
Built-in hour meter and battery gauge remind operators to charge timely,protecting the battery:
Easy disassembly: Remove just 2 screws to access key components for inspection or replacement;
Vertical motor design simplifies maintenance of motor and brakes, outperforming horizontal motors;
Controller self-diagnosis system displays error codes via handheld unit for quick troubleshooting;
JEAKUE Electric Order Pickers Low-voltage auto-protection extends battery life.JEAKUE 1.136 Ton Electric Order Picker
