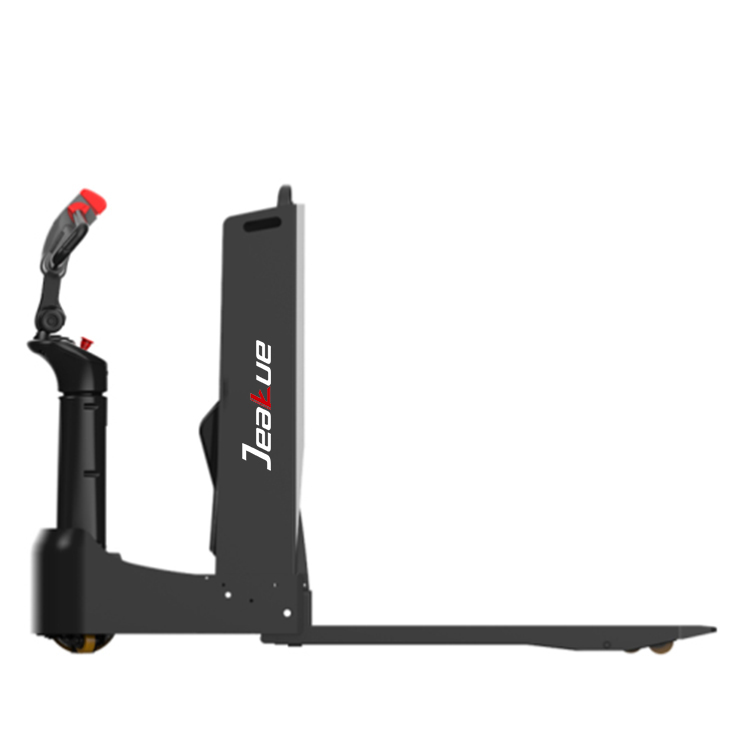

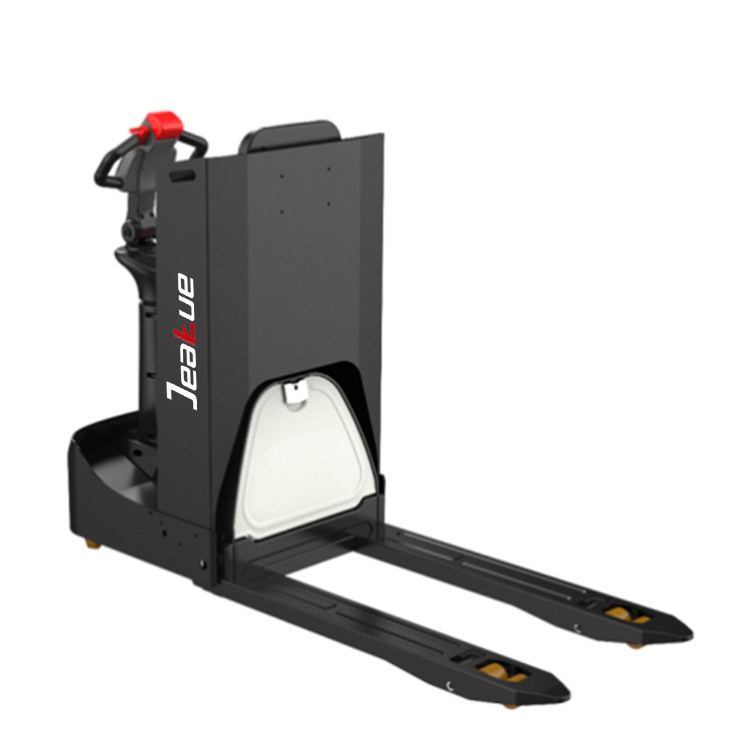

1.2 Ton(2645.55lb) Low-level Electric Order Picker
Load Capacity:1200kg(2645.55lb) Electric Order Picker
Lift Height:105mm(4.13in)
Battery:48V20Ah lithium battery
Description
PRODUCT PARAMETERS
| Load Capacity | 1200kg(2645.55lb) Electric Order Picker |
| Fork Dimensions | 1150/150/55mm(5.28/5.91/2.17in)( l x e x s) |
| Battery Voltage/Nominal Capacity | 48V20Ah lithium battery |
| Turning Radius | 1760mm(69.29in) |
| Lift Height | 105mm(4.13in) |
| Steering Design | Mechanical |
| Service Weight | 250Kg(551.16lb) |
| Product Color | Ivory/Red/Customization |
| Travel Speed, Laden/Unladen | 6/6.5 km/h |
| Max Gradeability,Laden/Unladen | 8/16% |
| Motor power | 1KW |
01 Stand-on Design for Higher Efficiency JEAKUE Electric Order Pickers
The vehicle features a fully enclosed stand-on design.providing stronger driving safety and higher work efficiency
02 High-power Motor with Excellent Climbing Ability JEAKUE Electric Order Pickers
Standard 1000w high-power drive motor with excellent climbing ability (8%6/16% loaded/unloaded)
03 Ergonomic Operator Compartment JEAKUE Electric Order Pickers
Ergonomic operator compartment design for comfortable operation, with adjustable backrest to meet different user needs
Step-on generator activation requires stable standing position to operatetravel, ensuring safety
04 Innovative Floating Drive Structure for Smoother Operation JEAKUE Electric Order Pickers
Spring-type floating drive structure provides smoother crossing over obstacles and more stable travel
05 48V Electrical System for Better Endurance JEAKUE Electric Order Pickers
Equipped with 48V20Ah lithium battery featuring quick-release design and strong endurance
06 Mechanical Steering for Easier Maintenance JEAKUE Electric Order Pickers
07 Small Turning Radius for Use in Narrow Spaces JEAKUE 1.2 Ton Electric Order Picker
Download
Video
