2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z

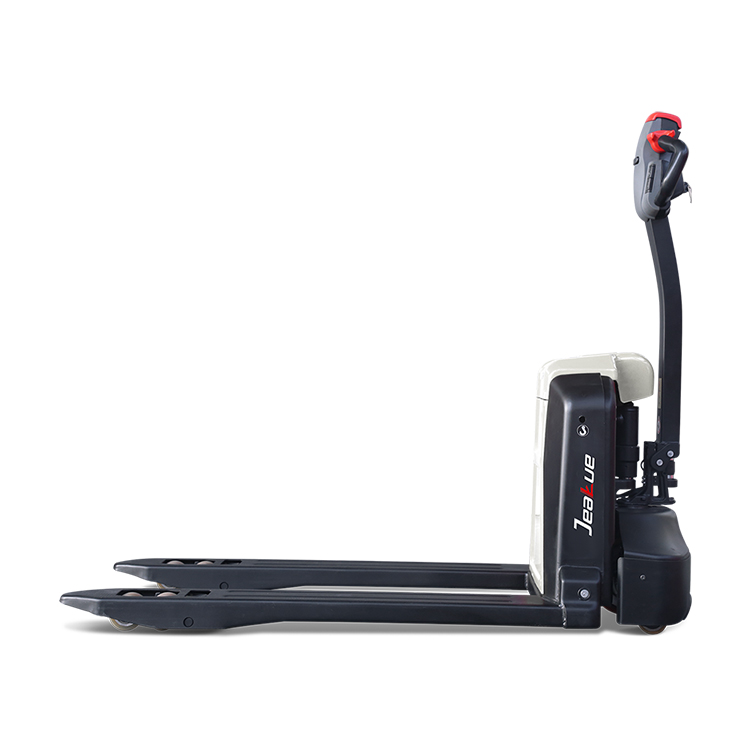

2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z - Image 2

2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z - Image 3

2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z - Image 4

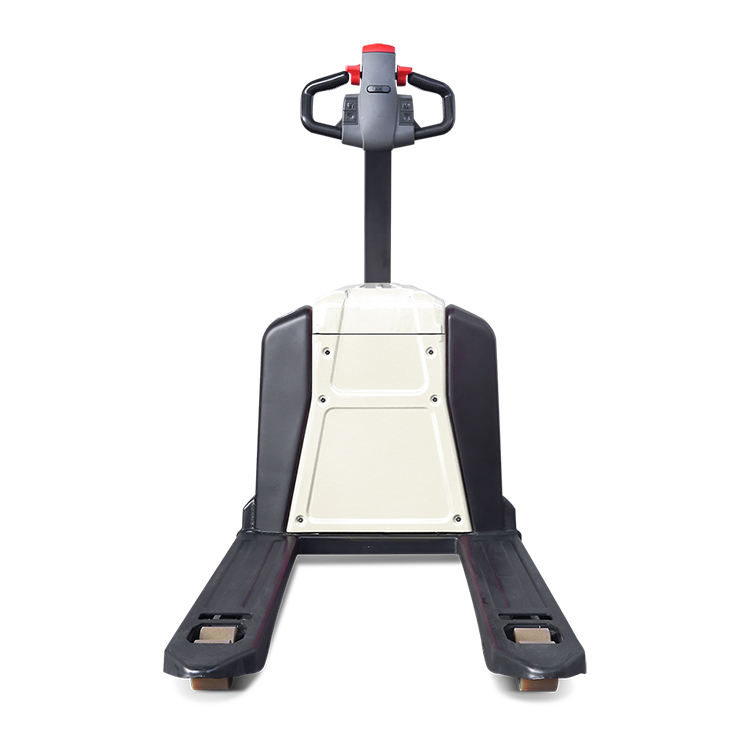

2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z - Image 5

2 Ton (4409.24 lb) Lithium Battery Pallet Truck -205Z

Load Capacity:2000kg(4409.24 lb) Electric Pallet Truck

Lift Height: 115mm(4.53in)

Battery Voltage:48V30Ah lithium battery

Categories: -Pedestrian, –Material Handling, –Pallet Trucks

Add to quote

Description

Explore the 205Z

The 205z combines stability, strength, and compactness in one design. With a load capacity of 2 tons, floating stabilizing wheels, and a 48V/30Ah removable Li-ion battery, it ensures safe and agile operation. Its integrated charger and optional fast charging provide maximum flexibility, while the plug-in/out battery design with protective metal cover improves safety and reliability.
1.Stable and safe handling

Industrial floating stabilizing wheels come as standard, providing excellent stability and smooth load transport, even on slightly uneven floors.

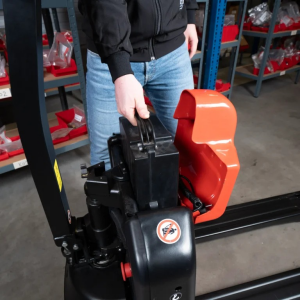

2.Advanced battery system

Equipped with a 48V/30Ah removable Li-ion battery with BMS and CAN technology, the 205Z offers safety, reliability, and the flexibility of optional 30Ah capacity.
3.Brushless drive technology

The brushless DC motor eliminates the need for carbon brush replacement, improving efficiency and reducing maintenance while ensuring stronger driving power.
4.Compact & maneuverable

With only 400 mm fork face length and 170 kg service weight, the 205z is compact enough for tight aisles but strong enough to handle loads up to 2 tons.

Application

Ideal for warehouses, retail, and logistics environments, the 205z is designed for operations requiring both high load capacity and maneuverability. Its compact chassis (400 mm fork face length) makes it suitable for confined spaces, while the stabilizing wheels ensure balance even on uneven surfaces. Thanks to optional fork dimensions, larger battery capacities, and additional attachments, it adapts to diverse customer requirements.

About the 205z

The 205z showcases JK’s innovation in lithium-powered pallet trucks. Built with a second-generation drive system and brushless DC motor, it reduces maintenance and delivers powerful, reliable performance. The Li-ion battery with BMS and CAN communication ensures safety and convenience, while the floating battery cartridge protects connections.

Standard features include an emergency disconnect and hourmeter, while options such as different fork sizes, higher-capacity batteries, and fast chargers allow customers to tailor the truck to their operations. Compact, safe, and cost-effective, the EPL185 sets a new standard for industrial pallet handling.

FAQs

What is the maximum load capacity of the 205Z?

The 205Z can handle up to 1.8 tons, offering higher performance than standard 1.5-ton pallet trucks.
What makes the 205Z more stable than other models?

It comes equipped with industrial floating stabilizing wheels as standard, which improve balance and ensure smooth operation even on slightly uneven floors.
What type of battery powers the 205Z?

The truck is powered by a removable 48V/30Ah Li-ion battery with BMS and CAN communication. An optional 30Ah battery is available for longer runtime.
How does the 205Z reduce maintenance costs?

Its brushless DC drive motor eliminates the need for carbon brush replacement, improving durability and lowering long-term service costs.
Is the 205Z suitable for confined spaces?

Yes. With a compact 400 mm fork face length and a service weight of only 170 kg, the 205Z is easy to maneuver in narrow aisles and tight warehouse environments.

PRODUCT PARAMETERS

Load Capacity	2T(4409.24 lb) Electric Pallet Truck
Fork Dimensions:	1150/150/55mm(45.28/5.91/2.17in)(lxexs)
Distance between fork-arms:	685/540mm(26.97/21.26in)
Battery Voltage/Nominal Capacity:	48V30Ah lithium battery
Turning Radius:	1330mm(52.36in)
Lift Height：	115mm(4.53in)
Steering Design:	Mechanical
Service Weight	170Kg(374.79lb）
Product Color	Ivory/Red/Customization
