Description

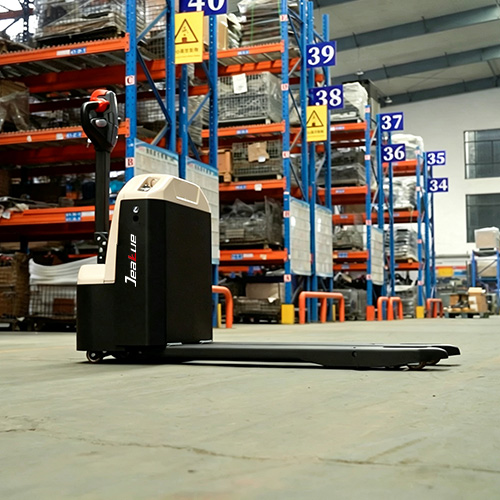

Explore the 202

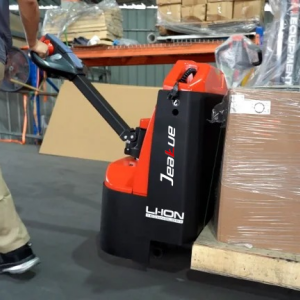

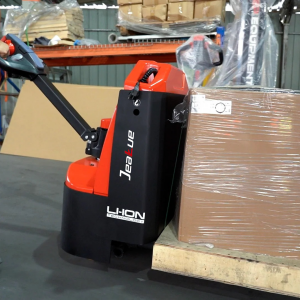

With a load capacity of 2000 kg and a chassis length of just 470 mm, the 202 combines strength and compactness. Its 24V/100Ah Li-ion battery with integrated 30A charger ensures fast, flexible charging, while the unique synchronous castor wheels deliver excellent stability and gradeability on uneven surfaces.

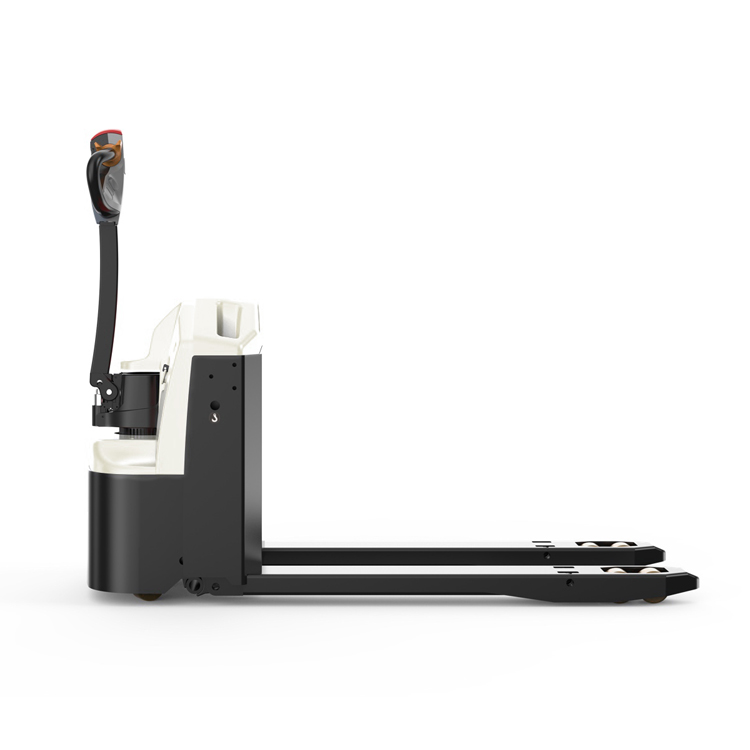

1.Ultra-slim design for confined spaces

With only 470 mm chassis length and a turning radius of 1320 mm, the 202 is built to maximize maneuverability in tight environments such as lorries, narrow aisles, and compact warehouses. This compact size also optimizes transport and reduces freight costs.

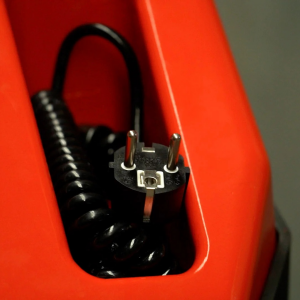

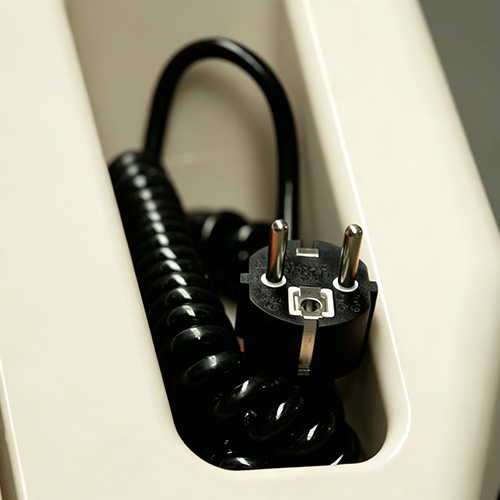

2.Lithium technology with integrated charger

Equipped with a 24V/100Ah Li-ion battery and 30A integrated charger, the 202 supports fast opportunity charging with zero maintenance. This provides maximum uptime in multi-shift operations and greater operational flexibility.

3.Unique synchronous castor wheels

The 202 adopts synchronized castor wheels that ensure superior stability and gradeability, even when operating on ramps or uneven floors. This advanced design minimizes tipping risks and provides smoother load handling.

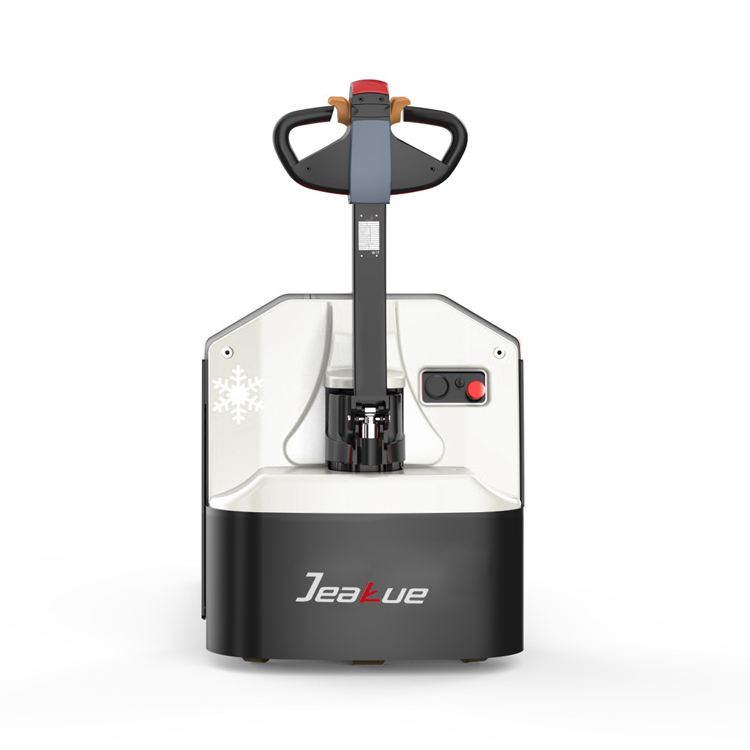

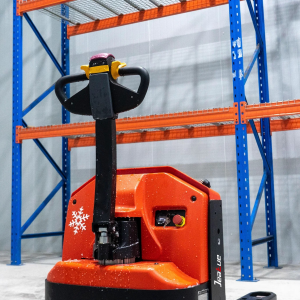

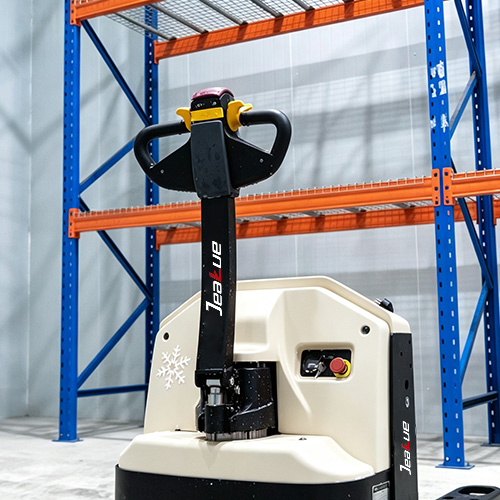

4.Cold storage option available

The 202 cold storage version is equipped with waterproof tiller head, heated Li-ion battery, rubber drive wheel, and low-temperature hydraulic oil, enabling reliable operation in frozen conditions down to -20°C.

5.Durability and user convenience

Built with market-proven components, the 202 guarantees long-term reliability. Options like keypad entry and telematics further enhance convenience and allow integration with modern fleet management systems.

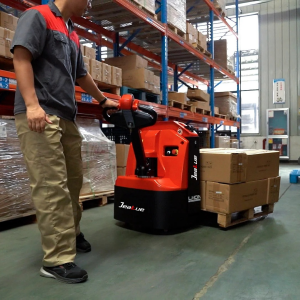

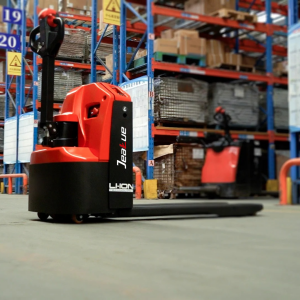

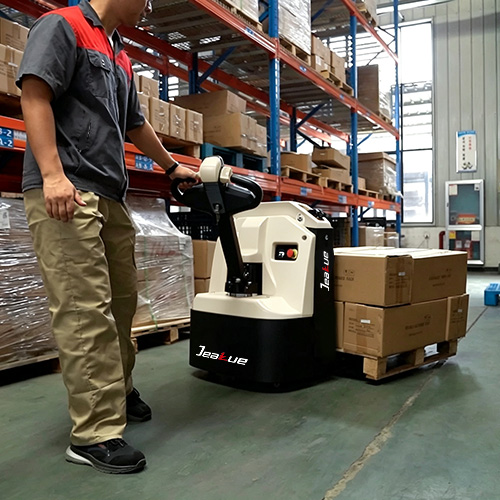

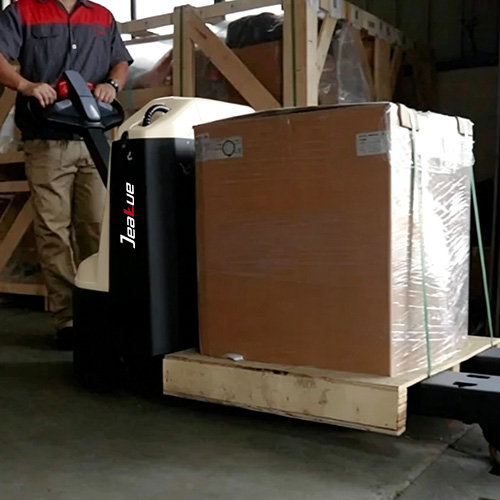

Application

The 202 is ideal for warehouses, distribution hubs, and retail environments where space utilization is critical. Thanks to its compact design and small turning radius (1320 mm), it easily navigates lorries and narrow aisles. The cold storage version (0 ~ -20°C) with waterproof components, heated battery, rubber wheels, and low-temperature hydraulic oil makes it suitable for frozen food and pharmaceutical logistics.

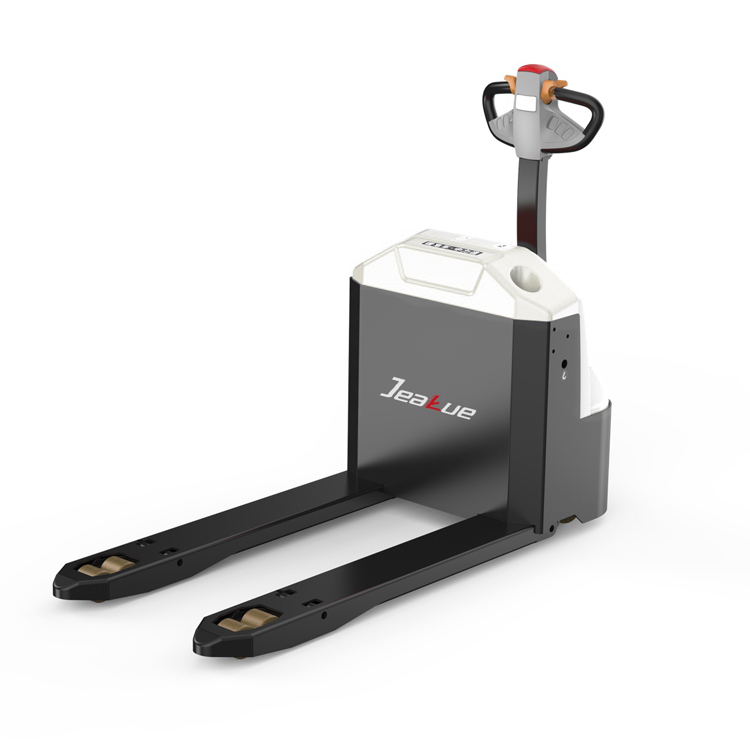

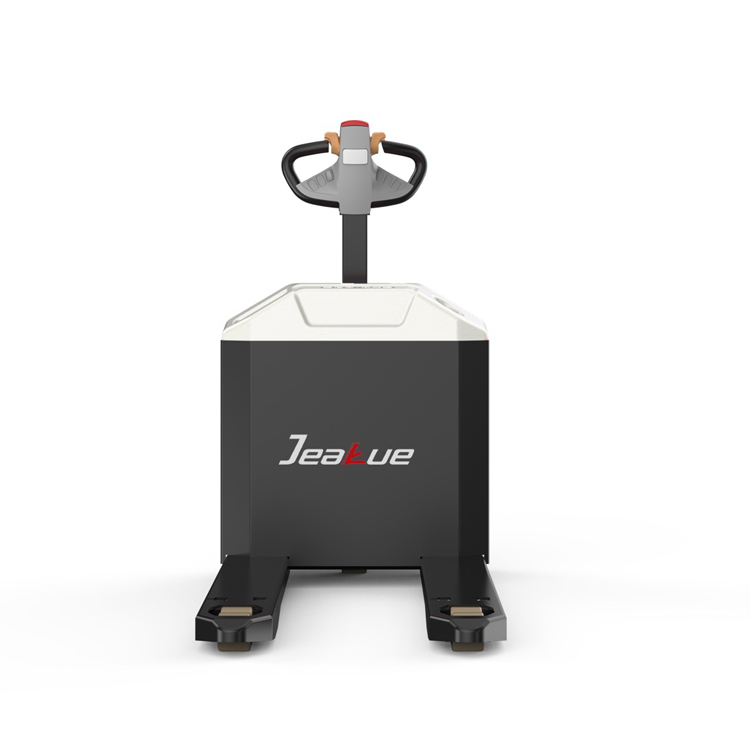

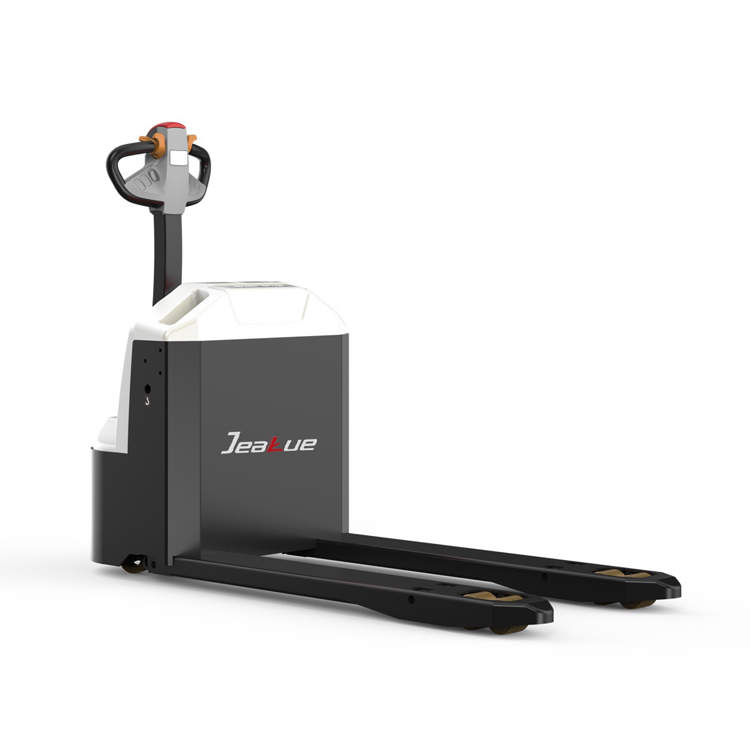

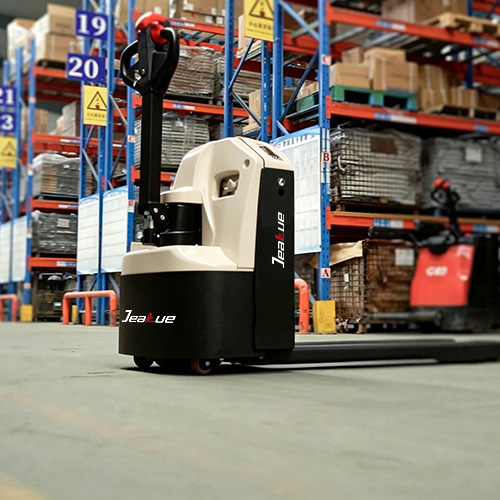

About the 202

The 202 redefines heavy-duty pallet handling with a compact, Li-ion powered design. Equipped with a powerful AC vertical drive motor, integrated charger, and robust castor system, it offers unmatched efficiency and durability.

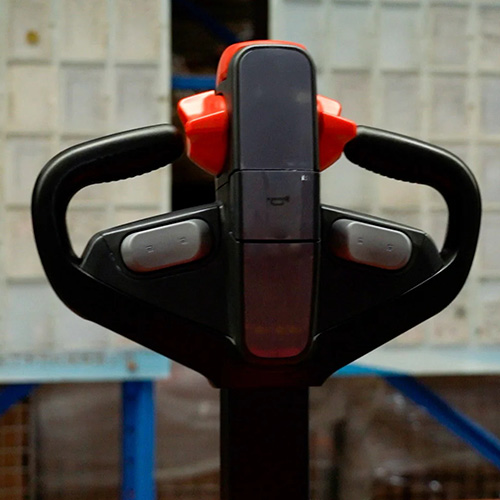

Standard features include a 100Ah Li-ion battery, maintenance-free design, and ergonomic tiller head with turtle button for precise control in confined spaces. Optional upgrades such as keypad access, telematics, and cold storage configuration allow businesses to tailor the 202 to diverse applications, from high-turnover warehouses to temperature-controlled supply chains.

FAQs

What is the maximum load capacity of the 202?

The 202 can handle up to 2.0 tons, making it a reliable solution for heavy-duty warehouse and distribution tasks.
What type of battery does the 202 use?

It is powered by a 24V/100Ah Li-ion battery with an integrated 30A charger. This design supports fast opportunity charging and reduces downtime during multi-shift operations.
How does the 202 ensure stability during operation?

The truck features unique synchronous castor wheels that improve stability and gradeability, even when operating on ramps or uneven floors.
Is there a cold storage version of the 202?

Yes. The cold storage configuration includes a heated Li-ion battery, waterproof tiller head, rubber drive wheel, and low-temperature hydraulic oil, making it suitable for environments down to -20°C.
Are there customization options available for the 202?

Yes. Options include keypad access, telematics integration for fleet management, and various fork sizes to adapt the truck to different applications.

PRODUCT PARAMETERS

Load Capacity	2T(4409.24 lb) Electric Pallet Truck
Fork Dimensions:	1150/170/55mm(45.28/6.69/2.17in)(lxexs)
Distance between fork-arms:	685/540mm(26.97/21.26in)
Battery Voltage/Nominal Capacity:	24V100Ah lithium battery
Turning Radius:	1320mm(51.97in)
Lift Height：	125mm(4.92in)
Steering Design:	Mechanical
Service Weight	320Kg(705.48lb)
Product Color	Ivory/Red/Customization

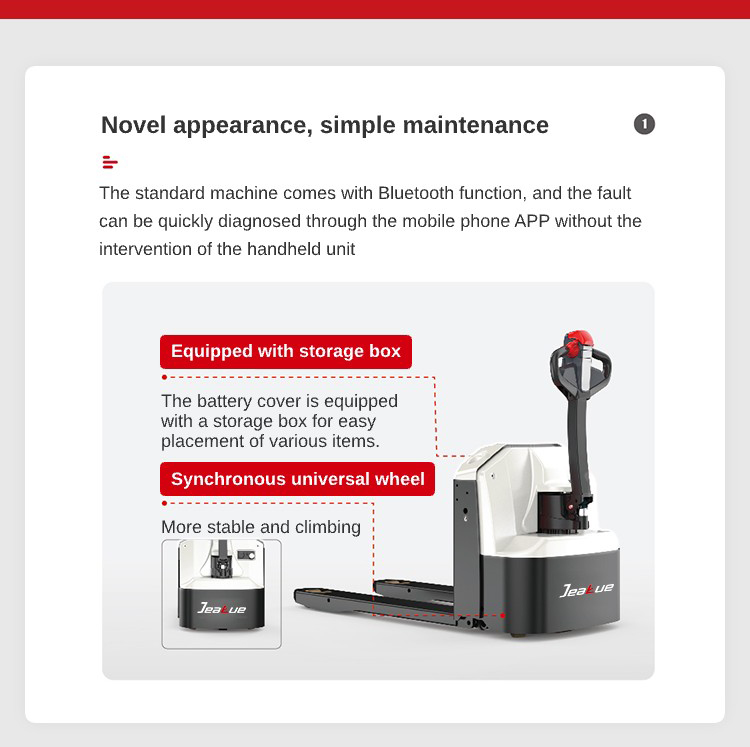

1 Novel appearance, simple maintenance JEAKUE 2T Electric Pallet Truck

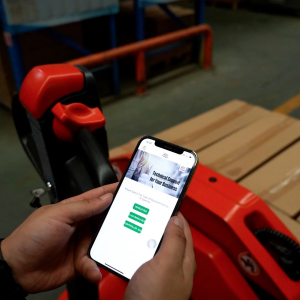

The standard machine comes with Bluetooth function, and the fault can be quickly diagnosed through the mobile phone APP without the
intervention of the handheld unit.

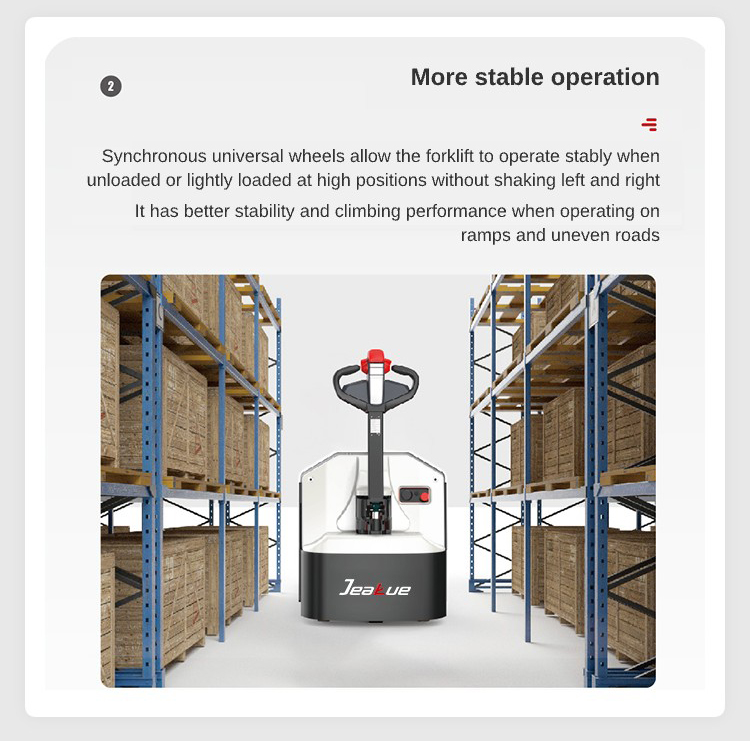

2 More stable operation JEAKUE 2T Electric Pallet Truck
Synchronous universal wheels allow the forklift to operate stably when unloaded or lightly loaded at high positions without shaking left and right.It has better stability and climbing performance when operating on ramps and uneven roads

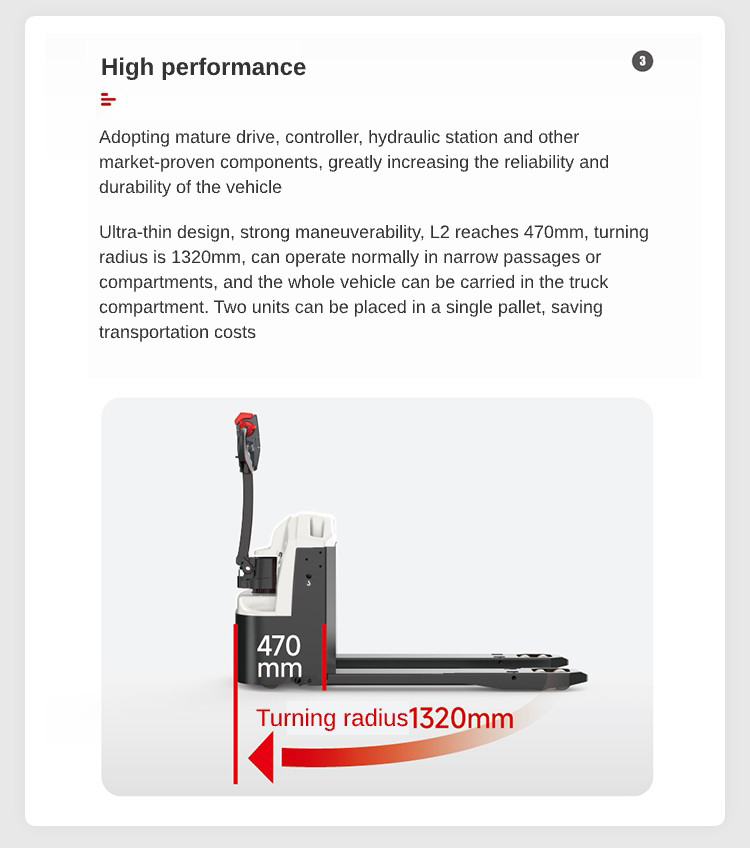

3 High performance JEAKUE 2T Electric Pallet Truck
Adopting mature drive,controller,hydraulic station and other market-provencomponents,greatly increasingthereliability and
durability of the vehicle Ultra-thindesign, strong maneuverabilit,L2 reaches 47Omm, turning radius is 132Omm, can operate normally in narrow passages or compartments, and the whole vehicle can be carried in the truck compartment.Two units can be placed in a single palet,saving transportation costs

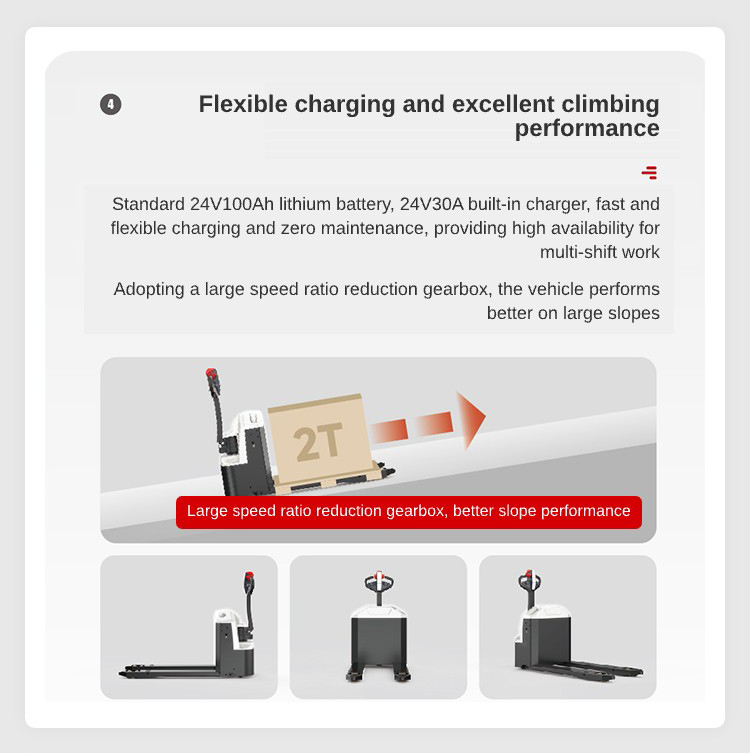

4 Flexible charging and excellent climbing performance JEAKUE 2T Electric Pallet Truck
Standard 24V100Ah lithium battery,2430A built-in charger,fast and flexible charging and zero maintenance, providing high availability for multi-shift work.Adopting a large speed ratio reduction gearbox,the vehicle performs better on large slopes.

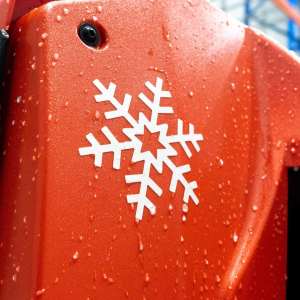

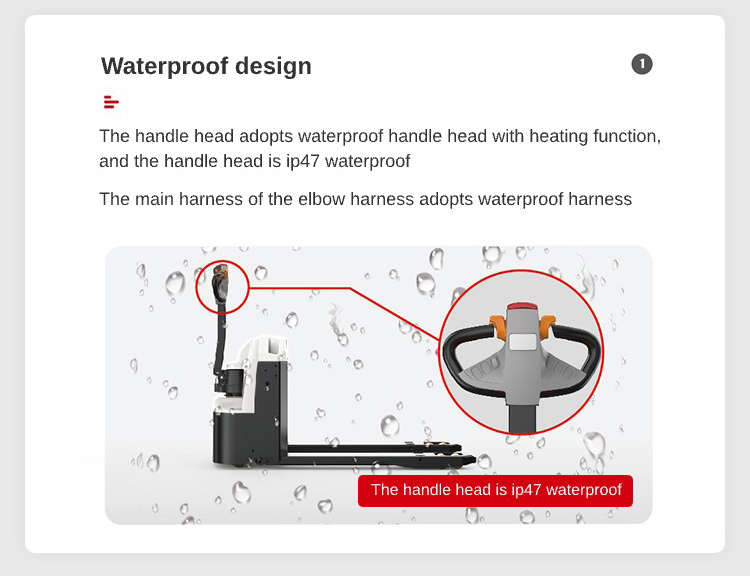

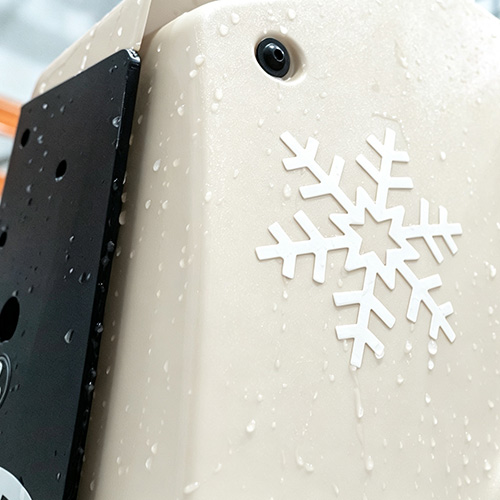

5 Waterproof design JEAKUE 2T Electric Pallet Truck

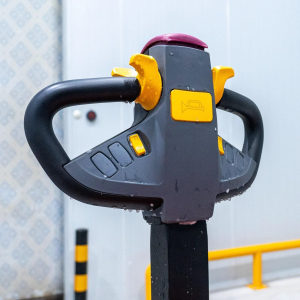

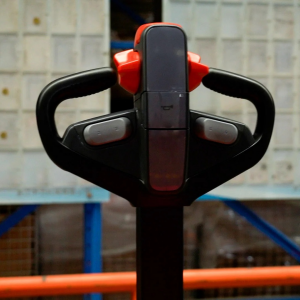

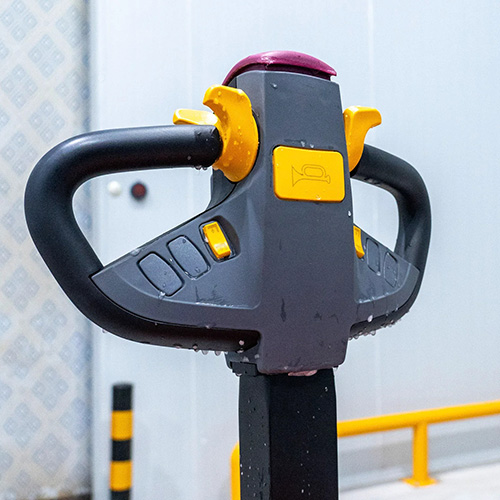

The handle head adopts waterproof handle head with heating function,and the handle head is ip47 waterproof
The main harness of the elbow harness adopts waterproof harness

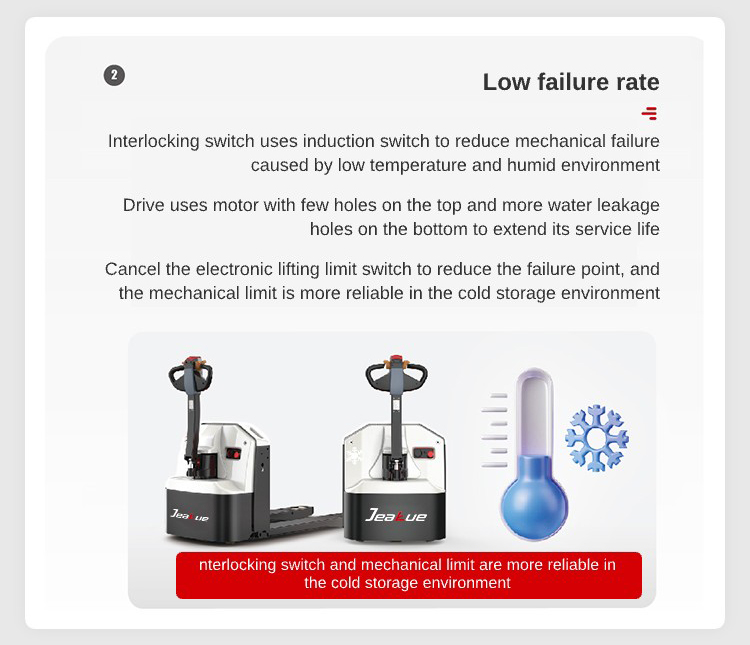

6 Low failure rate JEAKUE 2T Electric Pallet Truck
Interlocking switch uses induction switch to reduce mechanical failure caused by low temperature and humid environment
Drive uses motor with few holes on the top and more water leakage holes on the bottom to extend its service life
Cancel the electronic lifting limit switch to reduce the failure point, and the mechanical limit is more reliable in the cold storage environment.

7 Normal operation in low temperature environment JEAKUE 2T Electric Pallet Truck
The charger has CAN, and can charge normally in low temperature environment
The lithium battery has heating function, and can work normally in low temperature environment

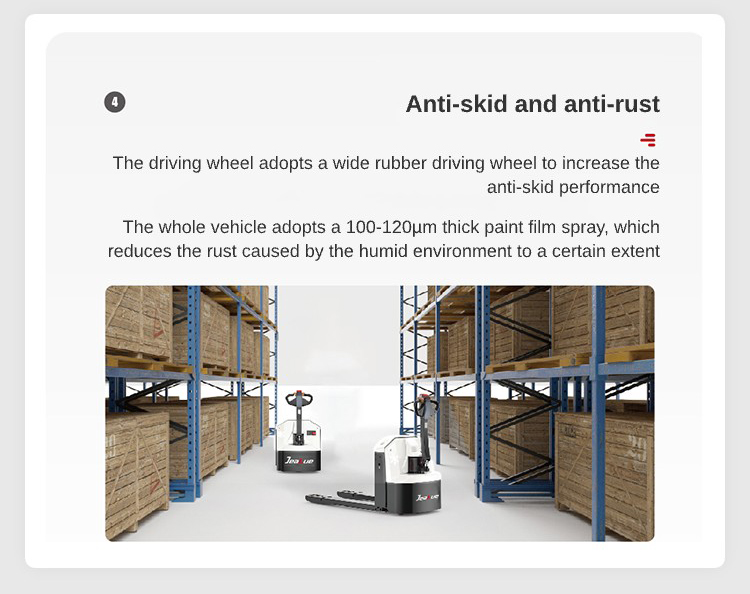

8 Anti-skid and anti-rust JEAKUE 2T Electric Pallet Truck
The driving wheel adopts a wide rubber driving wheel to increase the anti-skid performance
The whole vehicle adopts a 100-12Oum thick paint film spray,which reduces the rust caused by the humid environment to a certain extent JEAKUE 2 Ton Lithium Battery Electric Pallet Truck -202
