Description

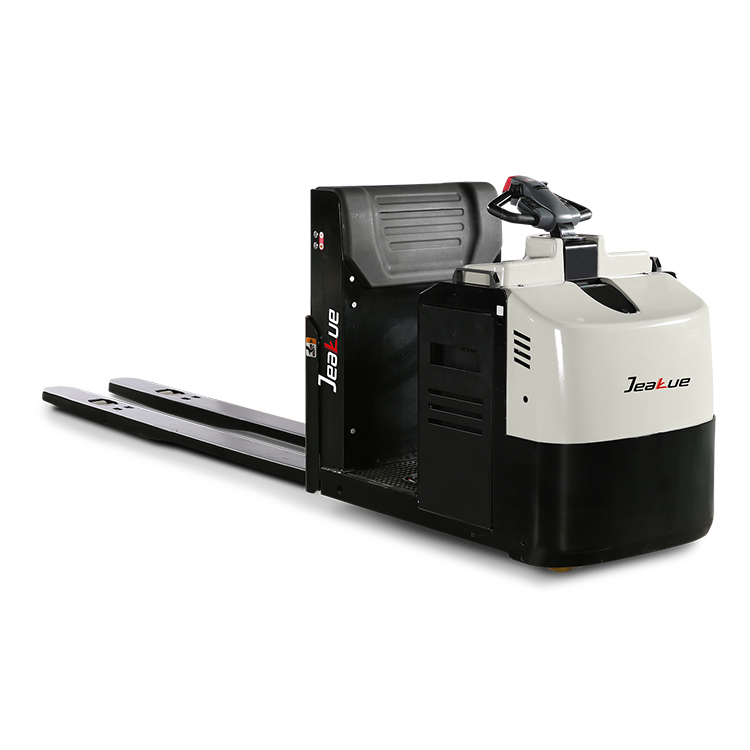

Explore the EOP20-RAP

The EOP20-RAP is designed for fast, efficient horizontal order picking. Powered by a robust 24V AC drive system and 360Ah lead-acid battery, it achieves speeds up to 12 km/h unladen while maintaining stability and smoothness. Featuring electronic power steering, high-strength gearbox, and durable hydraulic system, it delivers long-term reliability and control in busy warehouse environments.
1.High-efficiency AC drive system

The EOP20-RAP’s AC drive motor delivers powerful acceleration and smooth control, reaching speeds up to 12 km/h unladen. Its vertical gearbox and hydraulic cylinder design enhance reliability and minimize maintenance requirements.

2.Electronic Power Steering (EPS)

The EPS system provides effortless maneuverability and precise steering response, reducing operator fatigue during long shifts and ensuring easy control in tight warehouse spaces

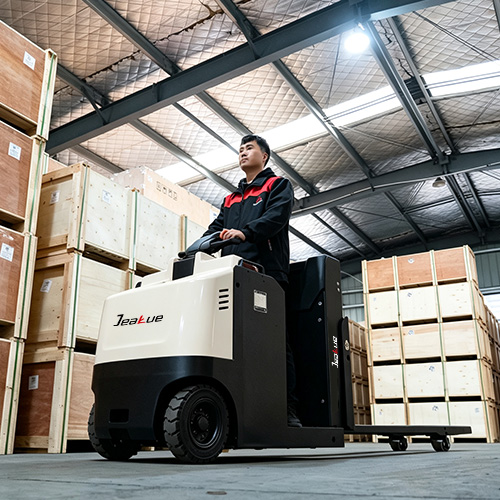

3.Operator safety and comfort

A safety foot switch, automatic braking, and emergency disconnect protect the operator from mishandling or uncontrolled movement. The spacious standing platform, cushioned backrest, and ergonomic tiller design enhance operator comfort throughout the day.

4.Easy maintenance and flexible configuration

The side-opening battery compartment simplifies battery replacement and service access. Optional side-pull trolley, PU or rubber drive wheels, and different fork dimensions make the EOP20-RAP adaptable to varied logistics applications.

Application

Ideal for high-throughput warehouses, distribution centers, and retail logistics, the EOP20-RAP optimizes low-level order picking and pallet transport. Its standing operator platform ensures easy mounting and visibility, while its compact dimensions and 2390 mm turning radius allow effortless maneuvering in narrow aisles. Optional configurations such as double or single load wheels, patterned PU drive wheels, and side battery extraction adapt it to different operational needs.

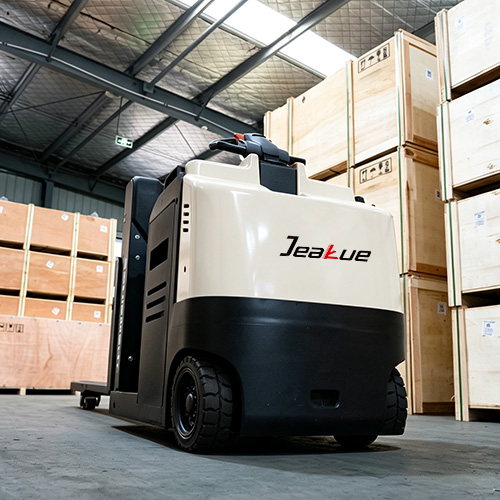

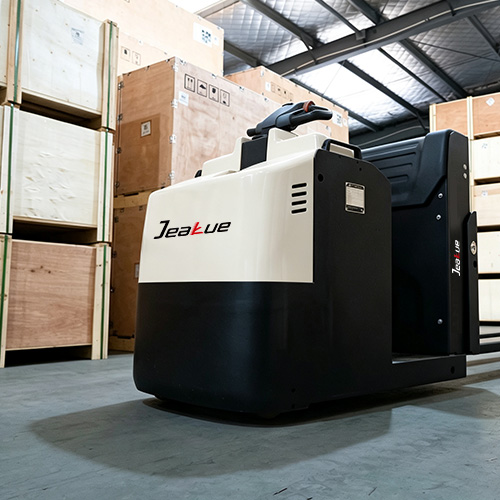

About the EOP20-RAP

The EOP20-RAP represents a blend of performance, comfort, and safety in the low-level order picking category. Equipped with an AC traction motor, it provides strong torque and precise control, ensuring seamless acceleration and braking. The electronic power steering (EPS) system minimizes operator effort, allowing smooth handling during long shifts.

A high-strength vertical gearbox and low-noise hydraulic system extend service life and reduce maintenance. For safety, the truck includes automatic braking, emergency power disconnect, and anti-slip functions to prevent uncontrolled movement.

The ergonomically designed tiller head with integrated controls, backrest cushion, and vibration-absorbing platform ensure operator comfort and efficiency. With optional side battery extraction and quick-access maintenance design, the EOP20-RAP guarantees uptime and reliability for demanding operations.

FAQs

What is the load capacity and main performance of the EOP20-RAP?

The EOP20-RAP offers a 2.0-ton load capacity and reaches travel speeds up to 12 km/h (unladen). Its AC drive motor delivers strong torque for quick acceleration, while the truck remains stable and smooth during heavy-duty operation in busy warehouse environments

What type of power system does the EOP20-RAP use?

This model is powered by a 24V/360Ah lead-acid battery and a high-efficiency AC traction motor. The configuration provides consistent energy output, long runtime, and supports side battery extraction for quick and easy replacement

How does the Electronic Power Steering (EPS) improve operation?

The EPS system reduces steering effort and improves precision, especially in narrow aisles or during repetitive picking tasks. It minimizes operator fatigue while enhancing control, safety, and productivity during long shifts

What safety features are included on the EOP20-RAP?

The truck is equipped with automatic braking, an emergency power disconnect, and a safety foot switch that prevents unintentional movement. The anti-slip platform and stable chassis design ensure maximum operator safety even at high speed

How does the design of the EOP20-RAP enhance operator comfort and efficiency?

The operator platform features a vibration-dampening design, cushioned backrest, and ergonomic tiller head with integrated controls. These elements create a comfortable, intuitive, and fatigue-free working environment ideal for high-frequency order picking



                       PRODUCT PARAMETERS

Load Capacity:	2000 kg(4409.25lb)
Battery Voltage/Nominal Capacity:	24V/360Ah Lead-acid battery
Turning Radius:	2390mm(94.09in)
Lift Height	120mm(4.72in)
Fork Dimensions:	1150/170/55mm(45.28/6.69/2.17in)(l x e x s)
Tyre type:	Pneumatic tyre
Stering Design:	Electric steering power
Service Weight:	940KG(2072.35lb)
Product Color：	Ivory/Red/Customization





1.High Performance, High Reliability JEAKUE  2000kg Electric Order Picker
AC drive system delivers powerful performance; more precise control and smoother operation.
High-strength vertical gearbox with ultra-long service life.
Low-noise, low-failure hydraulic station;cylinders and pipelines undergo multiple layers of testing to ensure high reliability.
High-quality waterproof connectors andelectrical components from American AMP; all wires and cables are securely protected and fixed, significantly reducing electrical failures.
High-speed travel (unloaded speed up to 12KM/H)for efficient transportation.



2
Enhanced Safety  JEAKUE 2000kg Electric Order Picker
Foot-operated safety switch prevents accidental movement.
Releasing the travel switch activates automatic braking and reverse current braking for safer operation.
Emergency power-off switch easily cuts all power in case of operational loss of control to avoid accidents.
Anti-slip braking function prevents the vehicle from sliding during loss of control or slope travel.
Dual-circuit monitoring electronic steering ensures safety and reliability (electric steering).
Automatic speed reduction on curves for safer travel (electric steering).

3
Easy Operation JEAKUE  2000kg Electric Order Picker
Ergonomic handle head design with conveniently placed buttons for effortless operation.
Driver’s seat equipped with a backrest for enhanced comfort.
Spacious driving space and shock-absorbing pedal design significantly improve driving comfort.
Side-pull battery box design allows easy battery replacement for continuous operation.
Constant-speed travel design enables random picking without dismounting.
Electronic steering for lighter and more convenient operation (electric steering).

4
Easy Maintenance JEAKUE  2000kg Electric Order Picker 2000kg Electric Order Picker
AC motor requires no maintenance.
Equipped with an hour meter and battery gauge to remind operators to charge in time, protecting the battery.
Easy disassembly of the body; just remove 2 screws to detach the cover for inspection, repair, or replacement of key components.
Vertical motor design allows direct and convenient inspection and repair of the motor and brakes, outperforming horizontal motors.
Controller self-diagnosis system displays fault codes via a handheld unit for easier troubleshooting.
Low-voltage automatic protection extends battery life.JEAKUE 2 Ton Electric Order Picker
