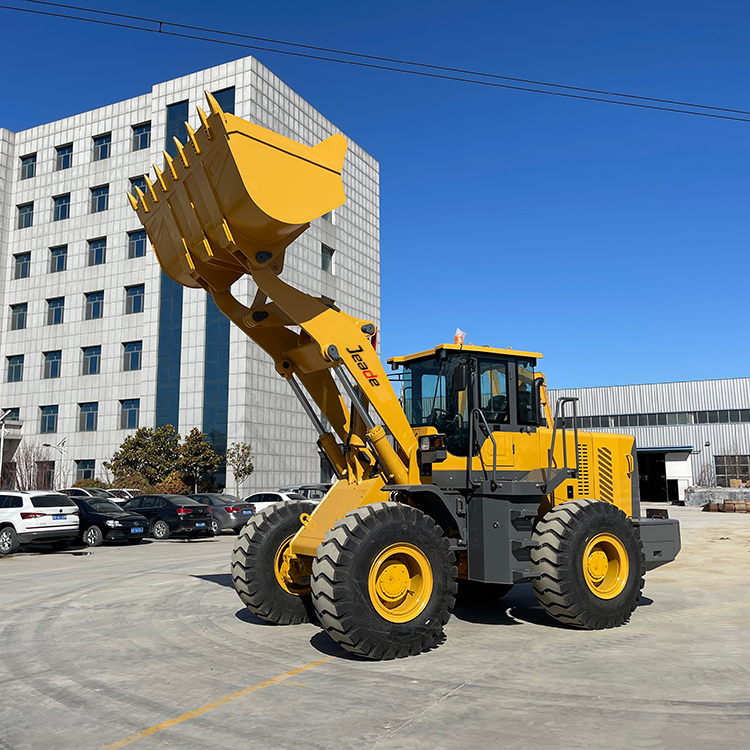

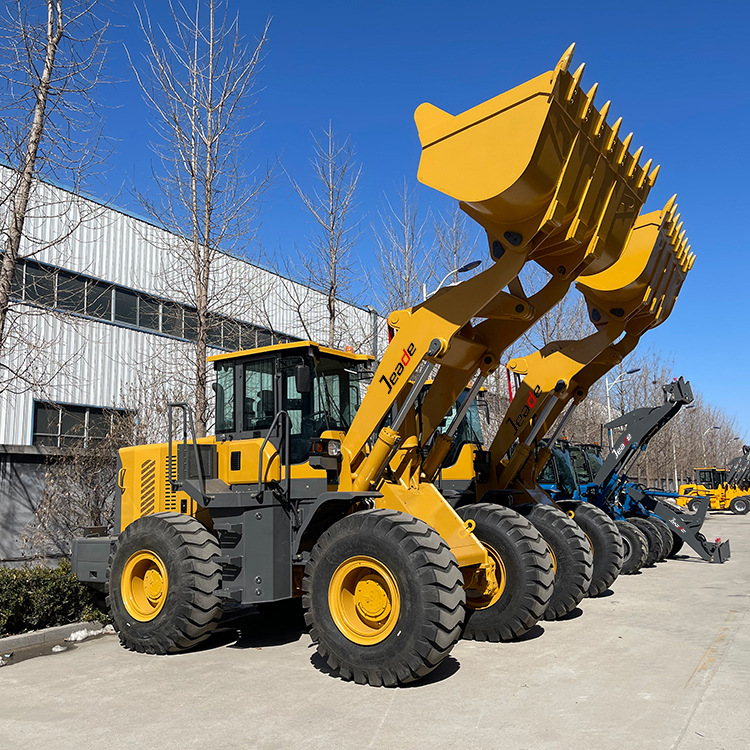

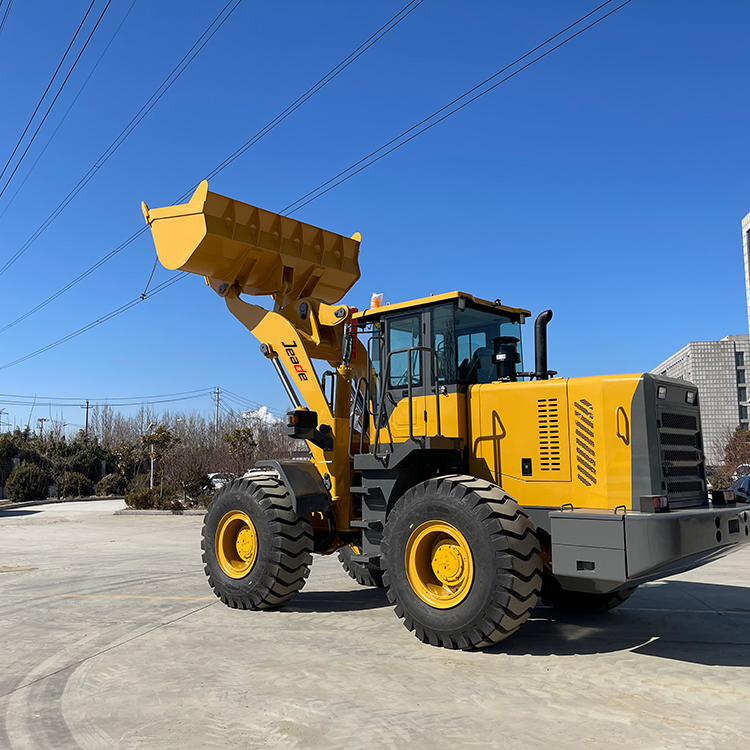

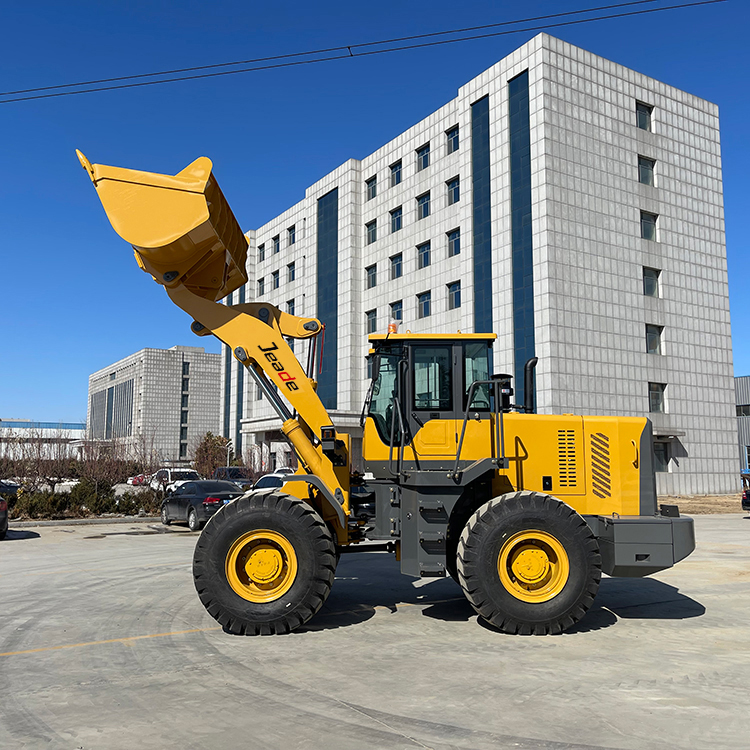

5 Ton(11023.11lb) Diesel Wheel Loader-DA953

Rated Load:5000kg(11023.11lb)

Lifting Height:.3050mm(120.08in)

Bucket rated capacity:3 m³(105.94ft³)

Description

Performance	rated loading (kg)	5000
	overall weight (kg)	16100
	rated bucket capacity (CBM)	3
	maximum tractive force (kN）	150
	maximum breakout force (kN）	160
	maximum grade ability（°）	28
	maximum dump height（mm）	3050
	maximum dump reach（mm）	1148
	overall dimension (L×W×H) （mm）	775330243423
	minimum turning radius（outside of wheels）（mm）	5900
Engine	model	WEICHAI WD10G220E23
	type	lnline water cooled, four stroke
	No. of cylinder-bore/stroke （mm）	6-126×130
	displacement （L）	9.726
	rated power（kW）	162
	idel speed (r/min)	800-850
	rated speed (r/min)	2000
	maximum torque N.m @speed r/min	950 @ 1500-1700
	min fuel-consume ratio	≤210g/kw.h
Transmission system	torque converter	ZL50
	gearbox mode	Power shift planetary structure
		Mechanical， 2forward shift 1 reverse shift
	maximum speed	38km/h
Drive axles	main reducing mode	Bevel gear grade l reduction
	wheel base (mm)	2920
	wheel tread(mm)	2245
	ground clearance(mm)	500
Hydraulic system	system working pressure (Mpa)	20
	boom lifting time (s)	4.8
	total time (s)	9.2
	fuel tank capacity (L)	200
		Air-assist hydraulic brake, disc brake
		Manual disc brake
Tyre	type specification	23.5-25
	front tyre pressure （kPa）	400
	rear tyre pressure （kPa）	350
