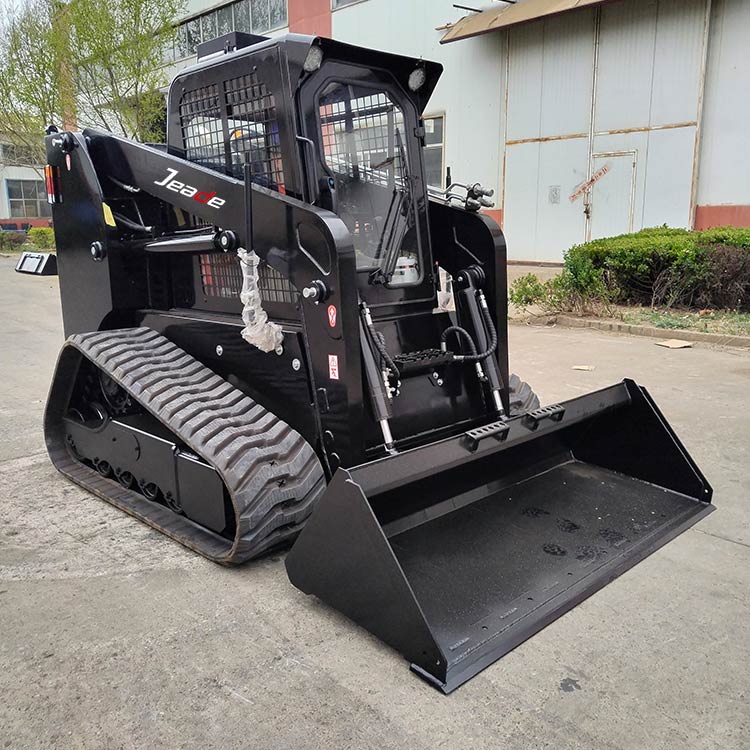

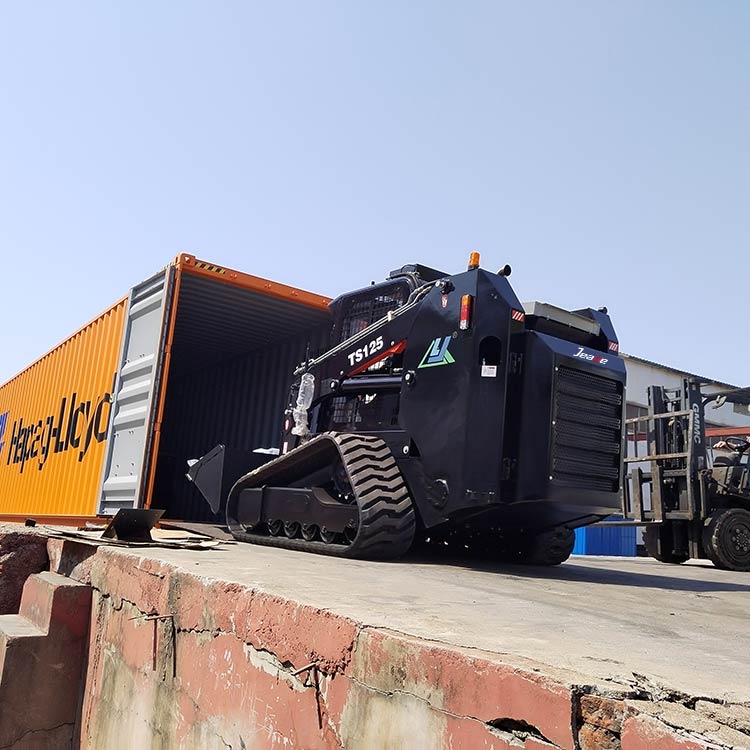

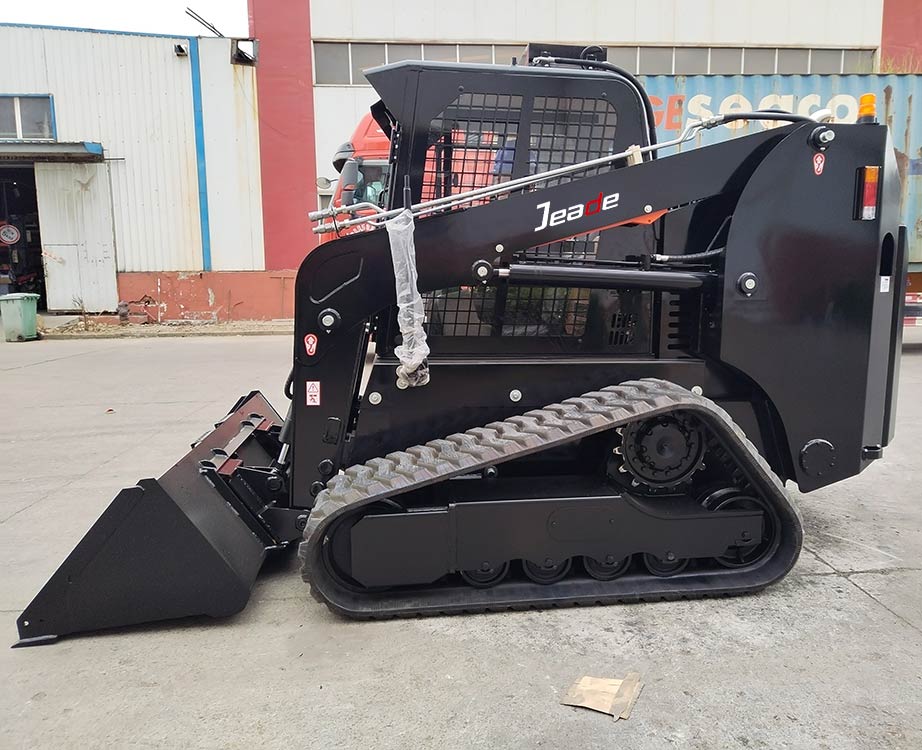

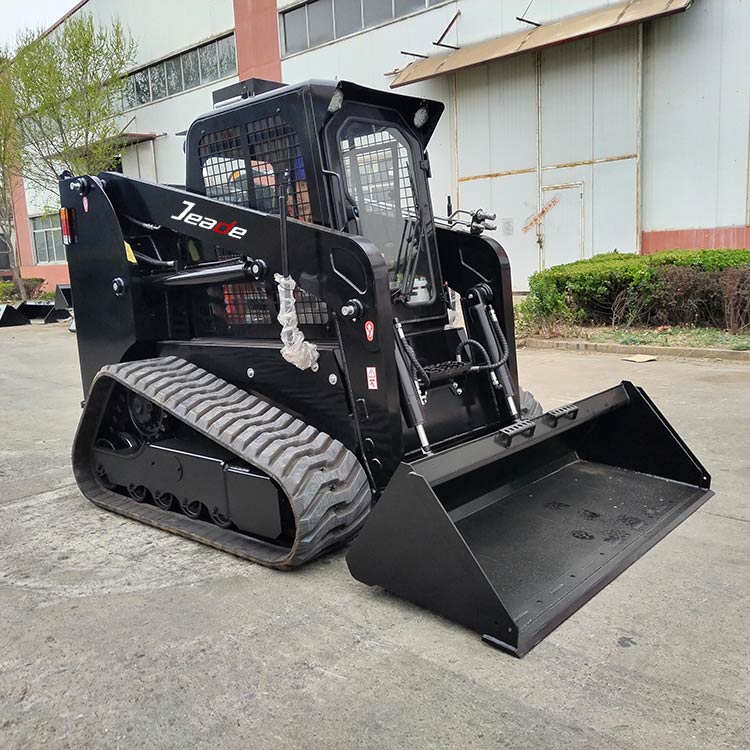

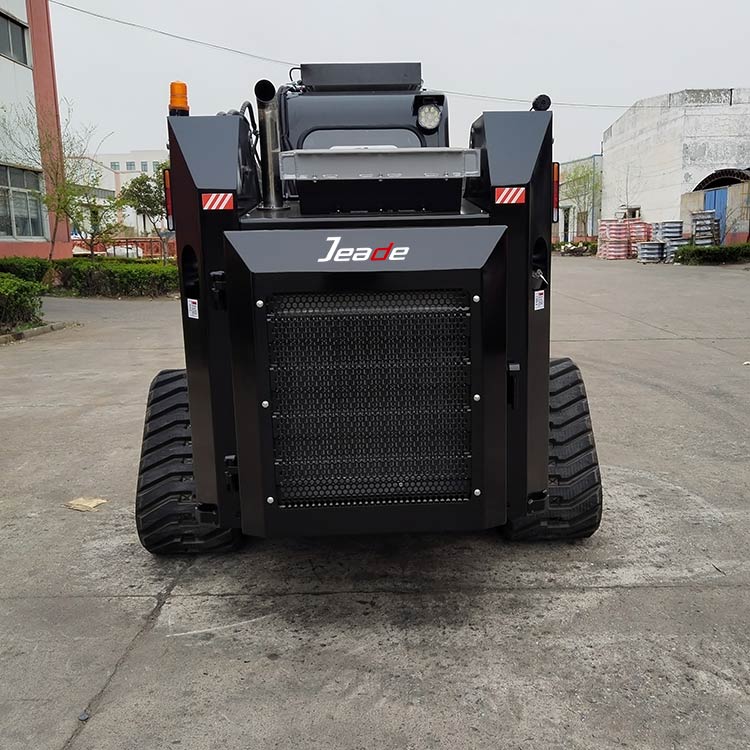

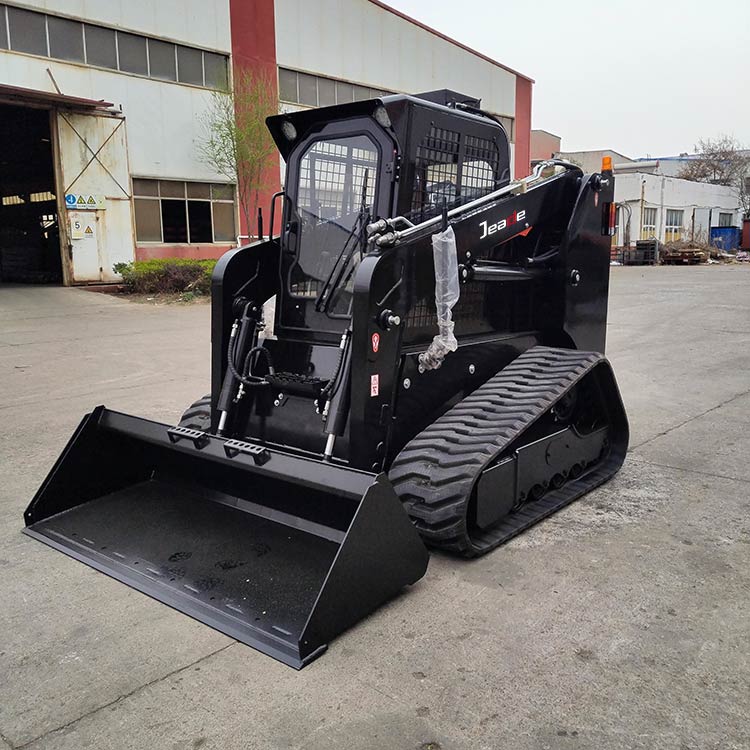

5 Ton(11023.10lb) Diesel Skid Steer Load With Black Colour-TS125

Bucket Capacity: 0.75 (m³) 26.49 (ft³)

Rated Load: 1500 (Kg) 3306.93 (lb)

Operating Weight: 5000 (Kg) 11023.10 (lb)

Maximum Dumping Height: 2450(mm) 96.46(in)

Description

	Model	TS125
Performance	Operating weight (kg)	5100
	Rated load (kg)	1500
	Bucket capacity (m³)	0.75
	Max Speed (km/h)	12/18
	Max traction (kN)	>32
	Max breakout (kN)	≥22
	Lifting time of boom (s)	7
Engine	Manufacturer	HUAICHAI
	Model	WP4.1
	Rated power (kW/rpm)	103/2300
	Engine displacement (L)	4.088
	Emission Standard	China Ⅲ

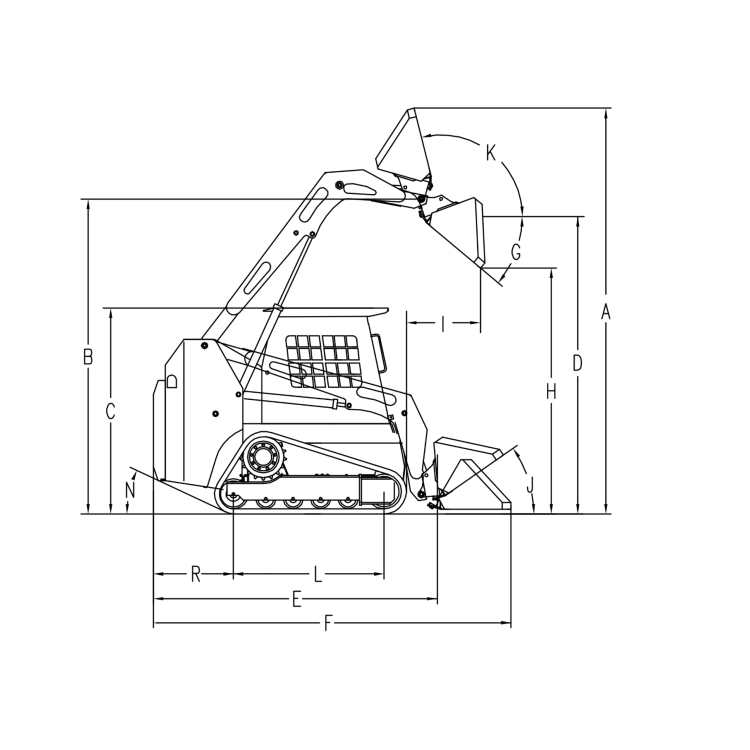

Dimension	Overall operating height (mm)	4070
	Height to bucket hinge pin (mm)	3150
	Height to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	2983
	Without bucket length (mm)	3000
	Overall length with bucket (mm)	3795
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2450
	Dumping reach (mm)	700
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	1500
	Ground clearance (mm)	200
	Angle of departure (°)	20

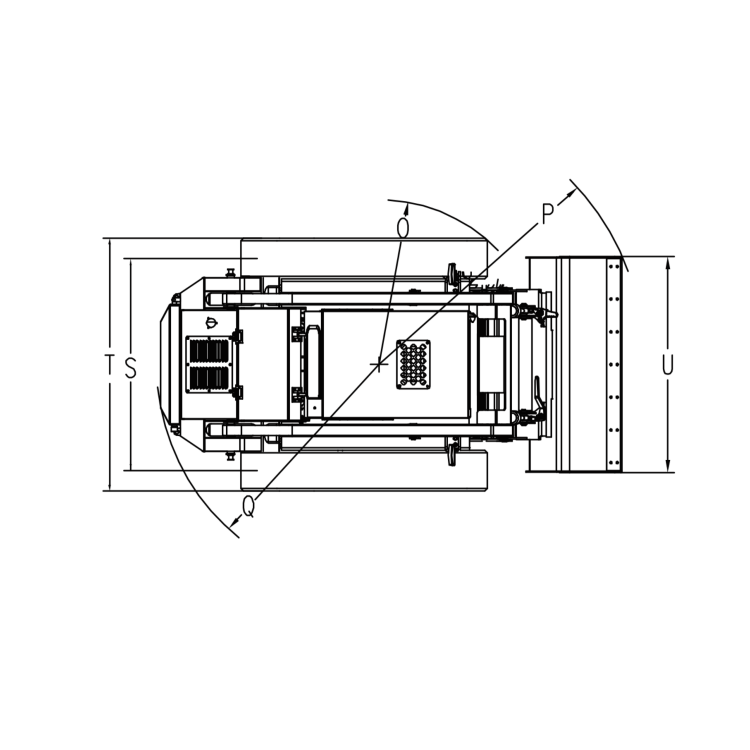

	Front turning radius without bucket (mm)	1365
	Front tuning radius (mm)	2200
	Rear tuning radius (mm)	1742
	Rear axle to bumper (mm)	938
	Tread width (mm)	1674
	Width (mm)	2124
	Bucket width (mm)	2134
