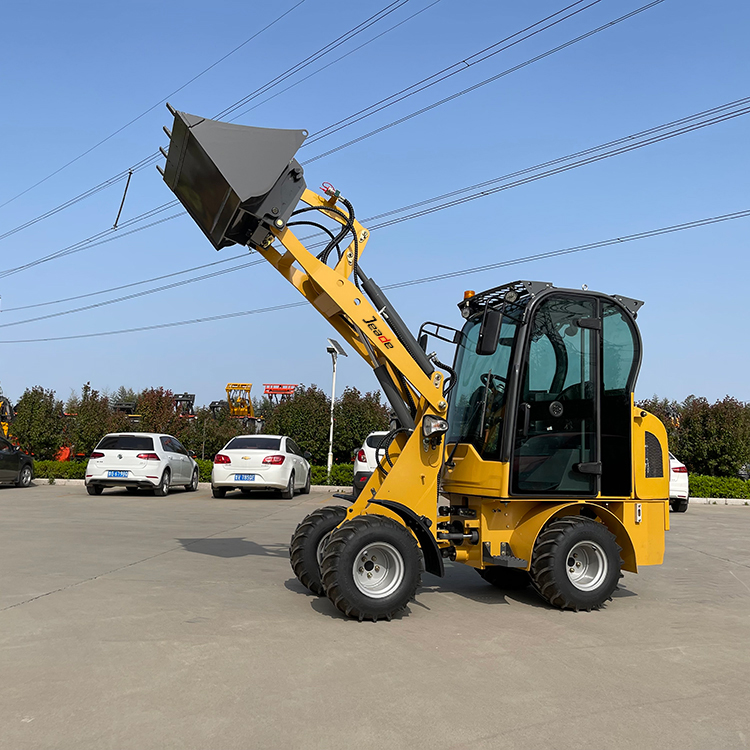

0.6 Ton(1322.77lb) Diesel Wheel Loader

Rated Load:600kg(1322.77lb)

Lifting Height:1821mm(71.69in)

Bucket rated capacity:0.26 m³(9.18ft³)

Description

	rated loading (kg)	600
	overall weight (kg)	1700
	rated bucket capacity (CBM)	0.26
	maximum tractive force (kN）	16.7
	maximum breakout force (kN）	13
	maximum grade ability（°）	20
	maximum dump height（mm）	1821
	maximum dump reach（mm）	829
	overall dimension (L×W×H) （mm）	367211502216
	minimum turning radius（outside of wheels）（mm）	2466
	Oscillation angle	8°
Engine	model	KUBOTA D1105
	type	lnline water cooled, four stroke
	No. of cylinder-bore/stroke （mm）	3—78×78.4
	displacement （L）	1.123
	rated power（kW）	18.2
	idel speed (r/min)	850-900
	rated speed (r/min)	3000
	maximum torque N.m @speed r/min	70.4@2200
Transmission system	Type	Closed piston pump
	gear shift	Electric, Stepless
	maximum speed	12km/h
Drive axles	main reducing mode	Bevel gear grade l reduction
	wheel base (mm)	1378
	wheel tread(mm)	850
	ground clearance(mm)	330
Hydraulic system	system working pressure (Mpa)	18
	boom lifting time (s)	3.2
	total time (s)	6.3
	fuel tank capacity (L)	40
	function of leveling automatically	yes
Brake system	service brake	Hydrostatic brake
Brake system	parking brake	Manual drum brake
Tyre	type specification	26*12.12
	front tyre pressure （kPa）	350
	rear tyre pressure （kPa）	350
