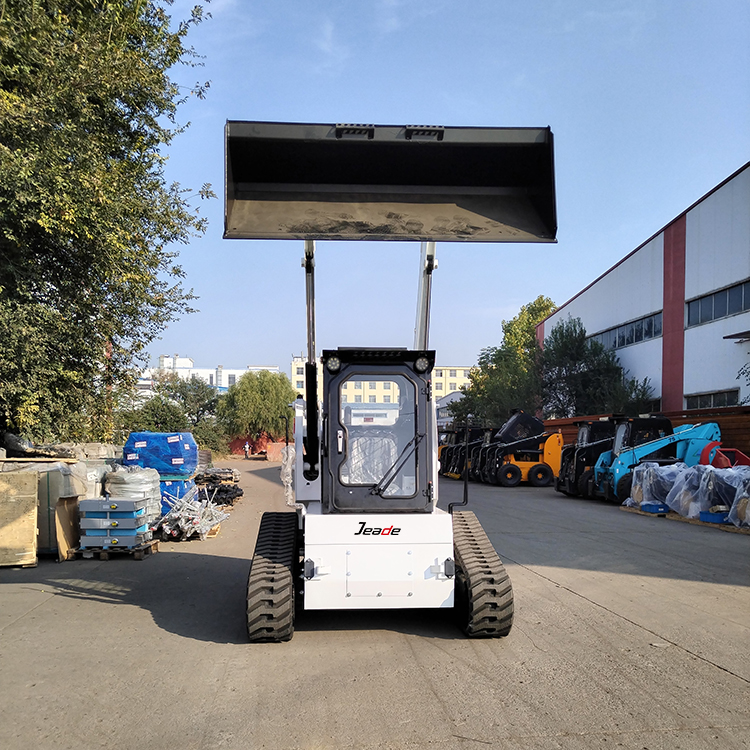

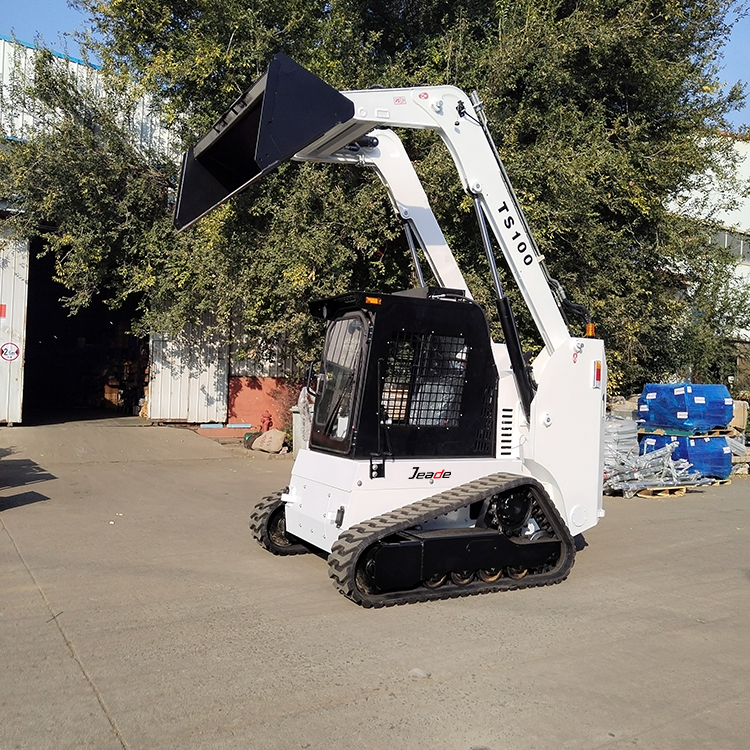

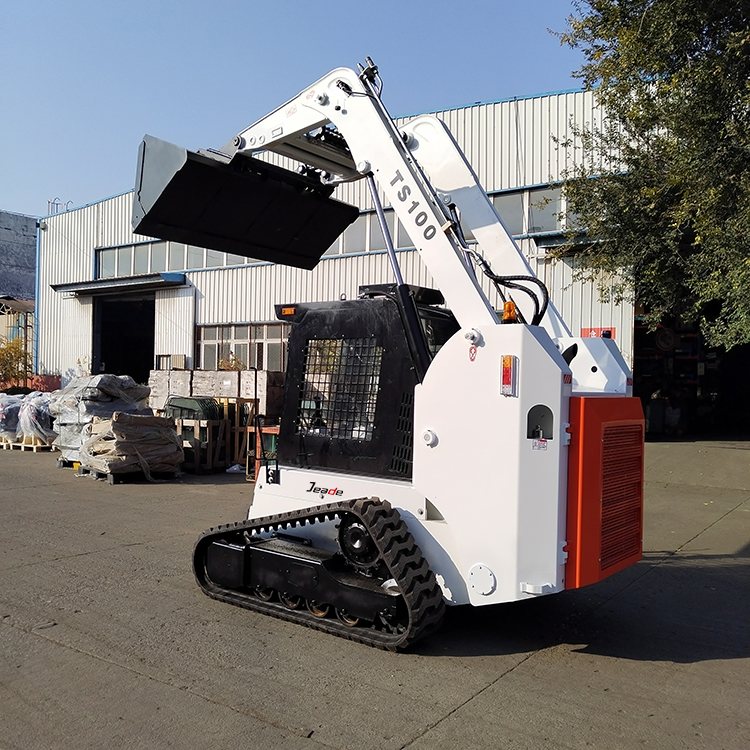

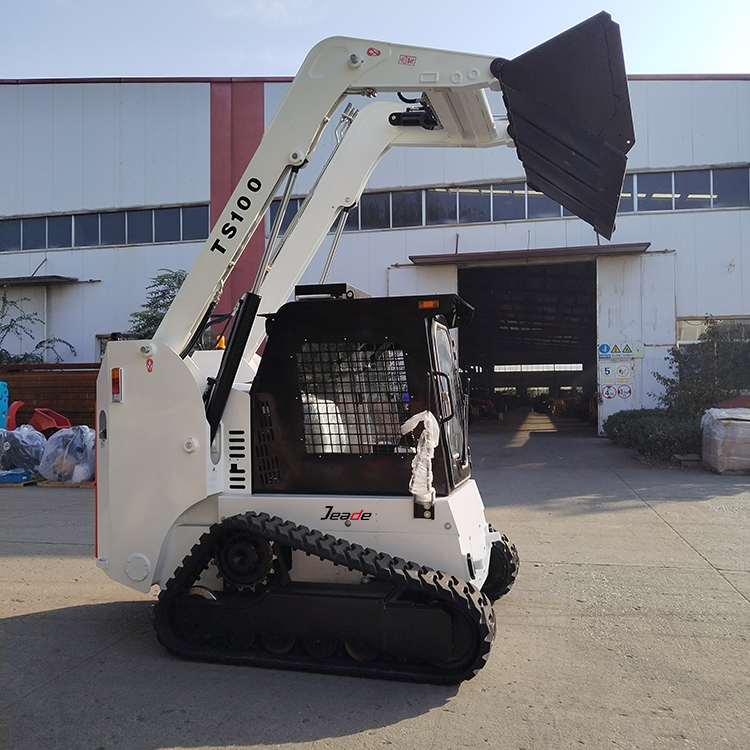

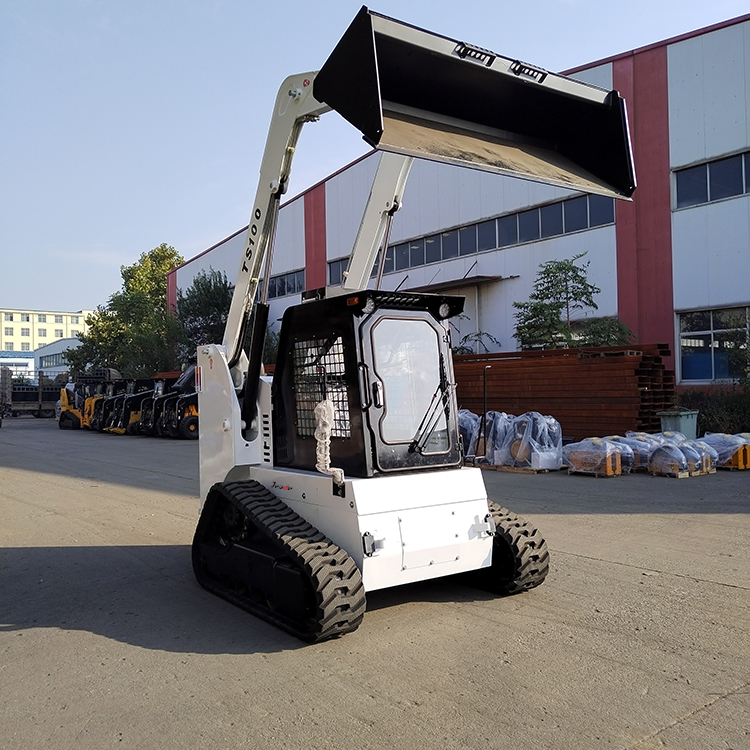

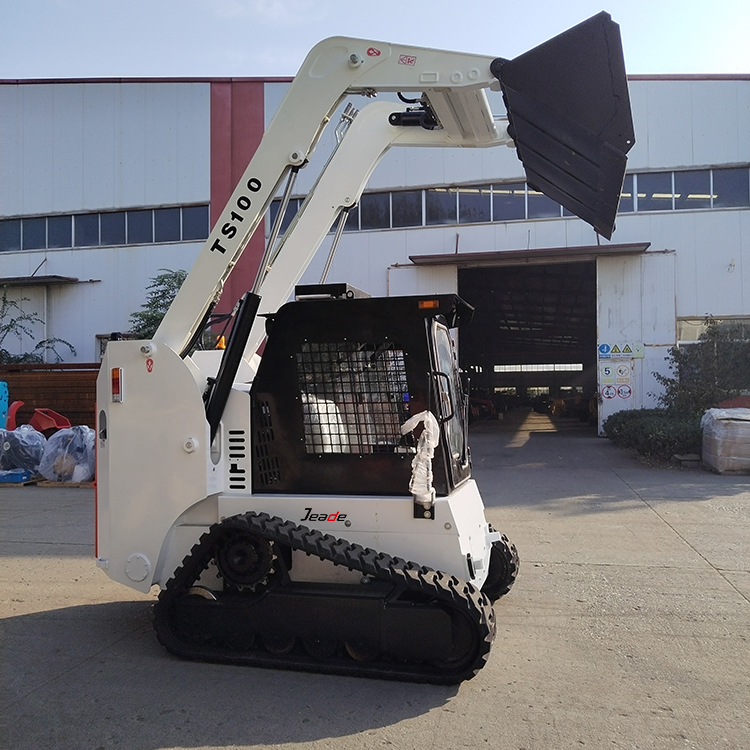

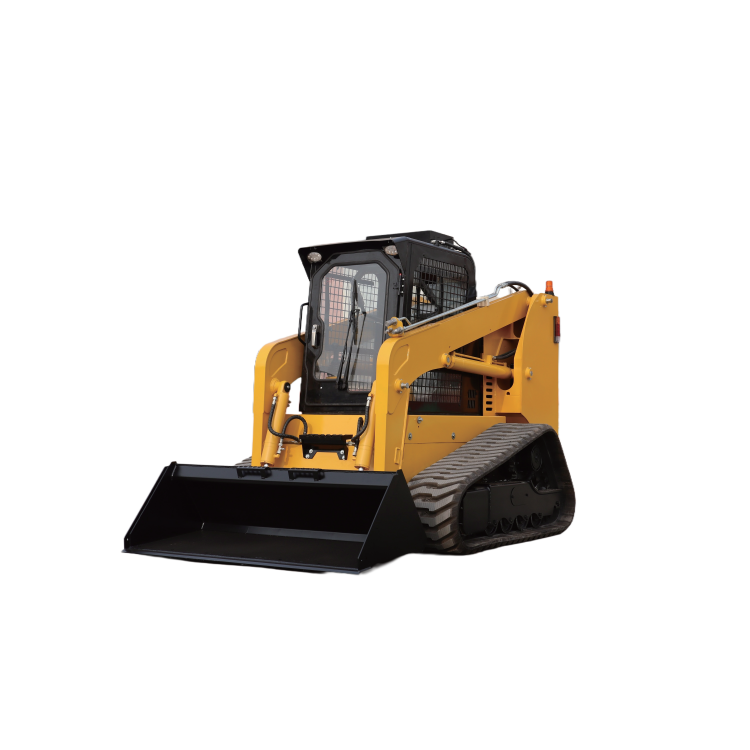

4.8 Ton(10582.18 lb) Diesel Skid Steer Load-TS100X

Bucket Capacity: 0.6 (m³) (21.19 ft³)

Rated Load: 1200 (Kg) (2645.54 lb)

Operating Weight: 4800 (Kg) (10582.18 lb)

Maximum Dumping Height: 2450(mm) (96.46 in)

Description

	Model	TS100X
Performance	Operating weight (kg)	4800
	Rated load (kg)	1200
	Bucket capacity (m³)	0.6
	Max Speed (km/h)	12/18
	Max traction (kN)	>30
	Max breakout (kN)	≥20
	Lifting time of boom (s)	7
Engine	Manufacturer	WEICHAI
	Model	WP4.1
	Rated power (kW/rpm)	74/2200
	Engine displacement (L)	4.088
	Emission Standard	China Ⅲ

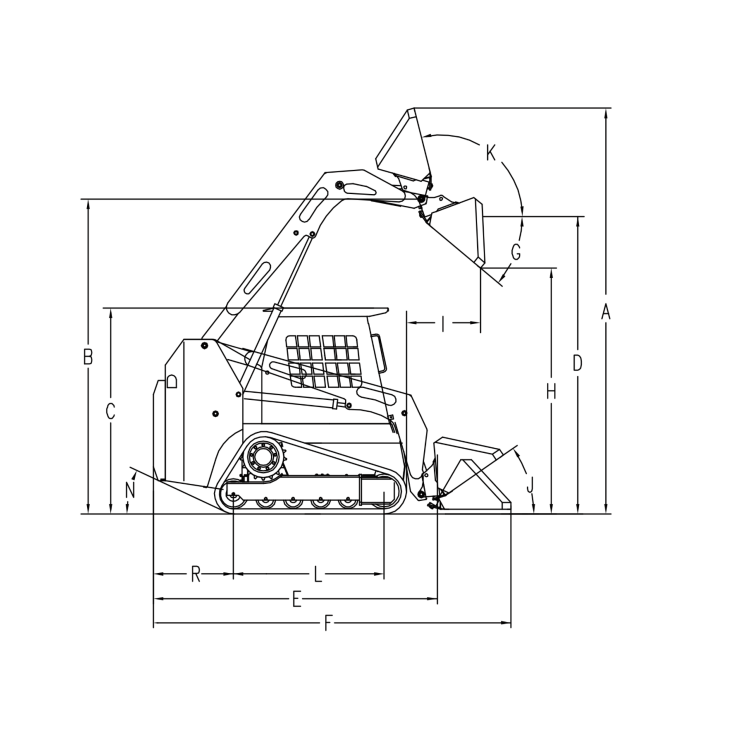

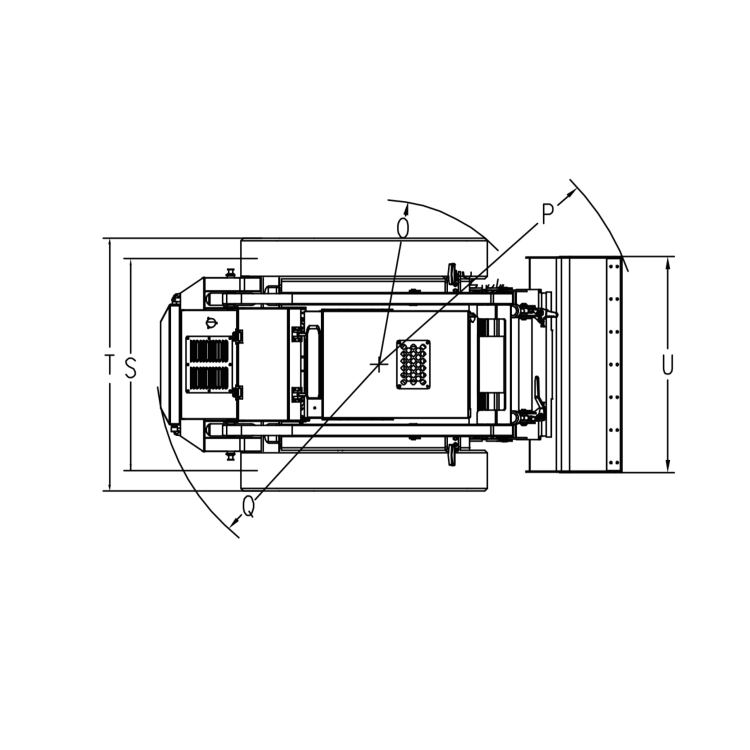

Dimension	Overall operating height (mm)	4800
	Height to bucket hinge pin (mm)	3150
	Height to top of cab (mm)	2160
	Height to bottom of level bucket (mm)	2983
	Without bucket length (mm)	3000
	Overall length with bucket (mm)	3795
	Dumping angle at maximum height (°)	40
	Dumping height (mm)	2450
	Dumping reach (mm)	700
	Rollback of bucket on ground (°)	30
	Rollback of bucket at full height (°)	104
	Wheelbase (mm)	1500
	Ground clearance (mm)	200
	Angle of departure (°)	20
	Front turning radius without bucket (mm)	1365
	Front tuning radius (mm)	2439
	Rear tuning radius (mm)	1617
	Rear axle to bumper (mm)	938
	Tread width (mm)	1654
	Width (mm)	1994
	Bucket width (mm)	2030

TS100 model skid steer loader is most popular by every customer in the world JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

Main features as follow:

1 Stronger horsepower and durable vehicle frame JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

2 maneuverable movement suitable for narrow space and rough territory operation JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

3 Many configurations to optional,adoption world famous brand components JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

4 Luxury cabin with joystick control system JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

5 Double accelerograph control JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

6 Multi-function with a wide range of attachments JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

7 Hydraulic brake JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

8 High flow double output JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

9 Extended wheelbase JEADE 4.8 Ton Diesel Skid Steer Load-TS100X

10 Auto-leveling system JEADE 4.8 Ton Diesel Skid Steer Load-TS100X
