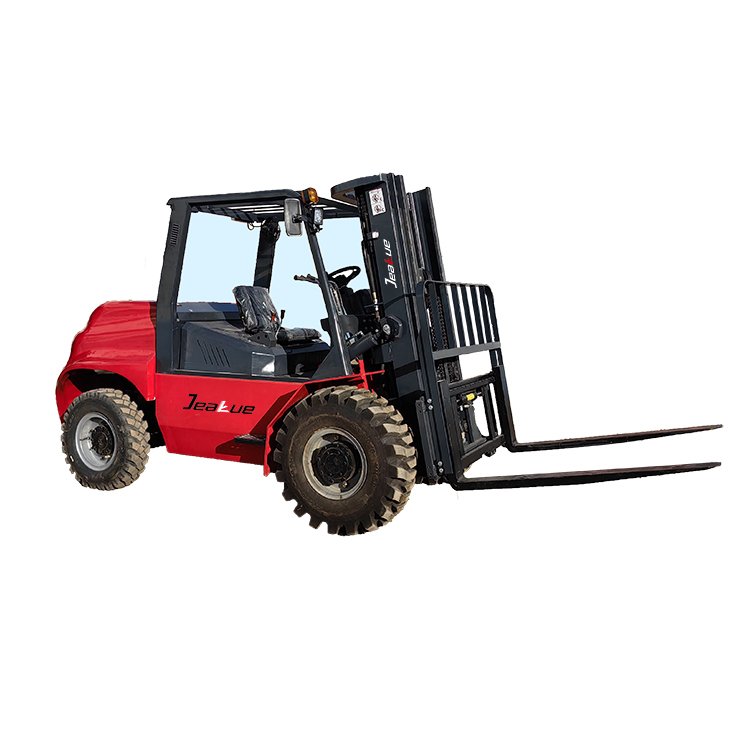

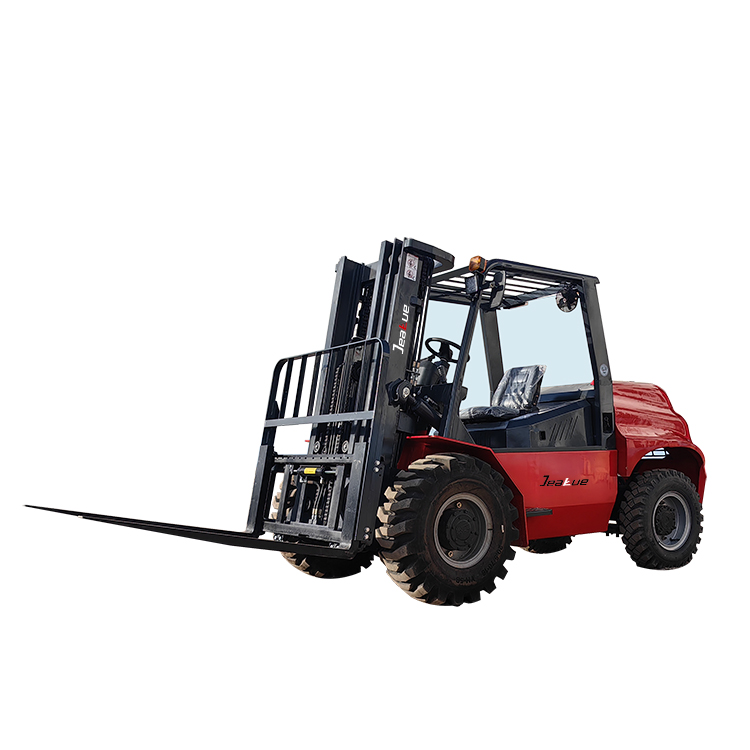

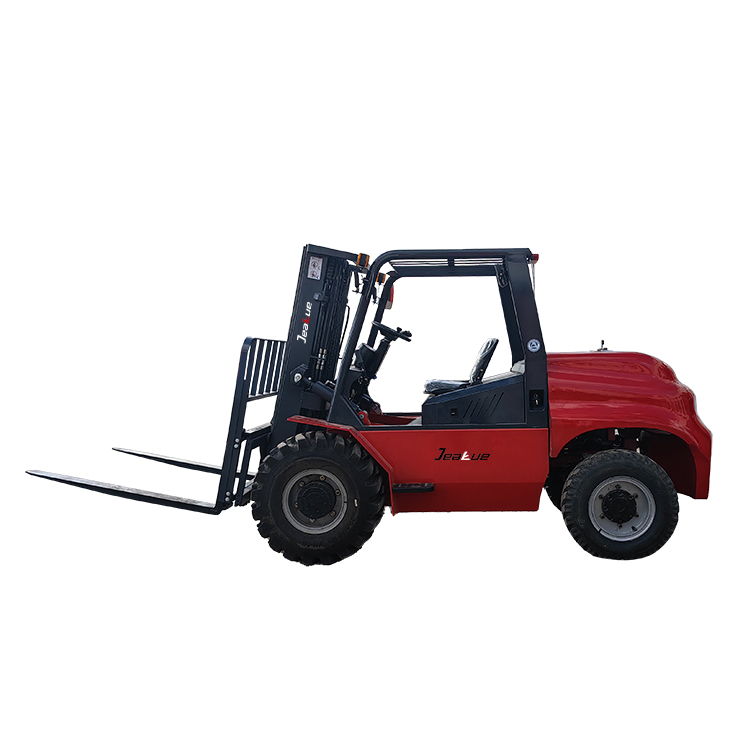

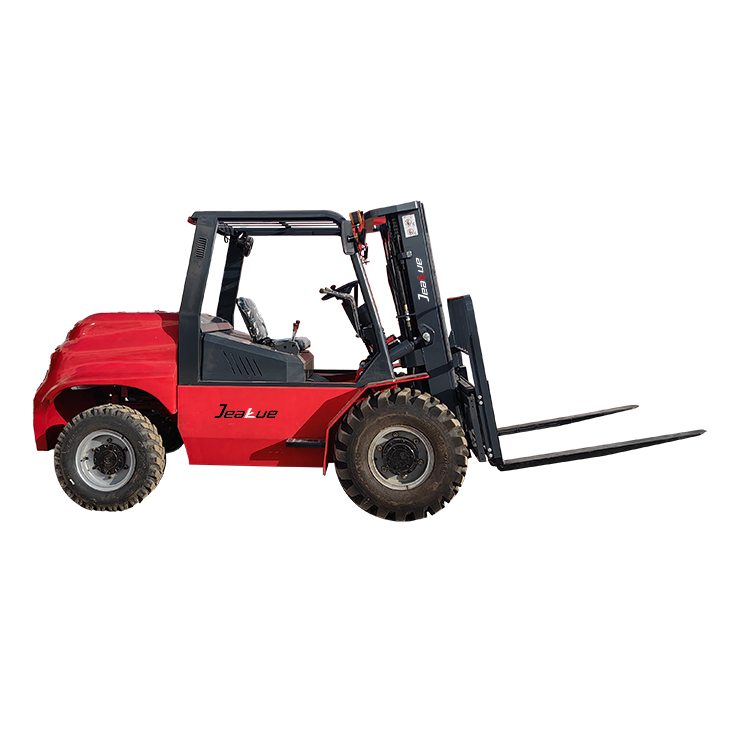

3.5 Ton(7716.18lb) Integrated Four-wheel Drive Off-road Forklift-CPCD35
Load capacity:3500kg(7716.18lb)
Lift height:3000mm(9.84ft)
Product Color: Ivory/Red/Customization
Description
Specification
| Model | Parameter |
| model | CPCD35 |
| Rated load | 3500kg |
| Load center distance | 500mm |
| Lifting height | 3000mm |
| Full height of gantry | 2200mm |
| Full height at（roof protection frame) | 2200mm |
| Full length(without fork) | 3280mm |
| Full width | 1680mm |
| Wheelbase | 2150mm |
| Towing pin height | 800mm |
| Minimum ground clearance(at gantry) | 260mm |
| Fork pitch outside(max/min) | 1110/240mm |
| Track width(front/rear) | 1400mm |
| Outside of minimum turning radius | 2600mm |
| Inside of minimum turning radius | 920mm |
| Gantry inclination (front/rear) | Front 10°Rear 12° |
| Fork size | 1220*45*120mm |
| Maximum driving speed (full load/no load) | 27/28km/h |
| Total weight | 4850kg |
| Width of door lever | 160mm |
| Tire type | Semi-Solid Tire |
| Front tire | Chaoyang 20.5-16 Semi-Solid Tire |
| Rear tire | Chaoyang 7.50-16 Semi-Solid Tire |
| Service brake | Hydraulic brake |
| Parking brake | Mechanical brake |
| Engine model | Weifang 490 Turbocharged |
| Torque converter model | 265 |
| Engine power | 58kw |
| Number of transmission shifts | Front 2, Rear 2 |
Download
Video
Related products
-
- 28-30 Ton(61729.4/66138.6lb) Balanced Heavy-Duty Diesel Forklift Truck
- Rate Capacity:28000-30000 kg(61729.4/66138.6lb) Lift Height:3500-8100mm(137.8/318.9 in) Product Color: Ivory/Red/Customization
-
- 2-2.5-3-3.5 Ton(4409.25/5511.56/6613.87/7716.18lb) Diesel Forklift Truck With Domestic Engine
- Rate Capacity:2000kg-2500kg-3000kg-3500kg(4409.25/5511.56/6613.87/7716.18lb) Lift Height:3000mm(118.11in) Product Color: Ivory/Red/Customization
-

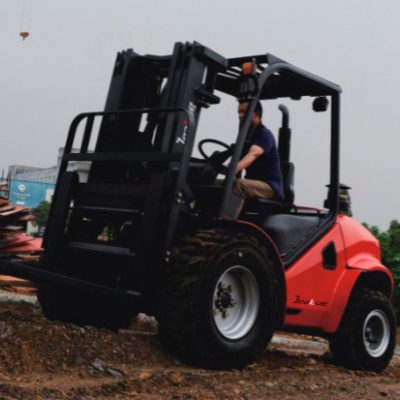

- 2.5-3 Ton(5511.55/6613.86lb) Four Wheels Drive Rough Terrain Forklift
- Rate Capacity:2500kg-3000kg(5511.55/6613.86lb) Lift Height:3000mm(118.11in) Xinchai 4D32G31
-
- 6 Ton(13227.74lb) Front Steering Off-road Forklift-CPCD60
- Load capacity:6000kg(13227.74lb) Lift height:3000mm(9.84ft) Product Color: Ivory/Red/Customization
-

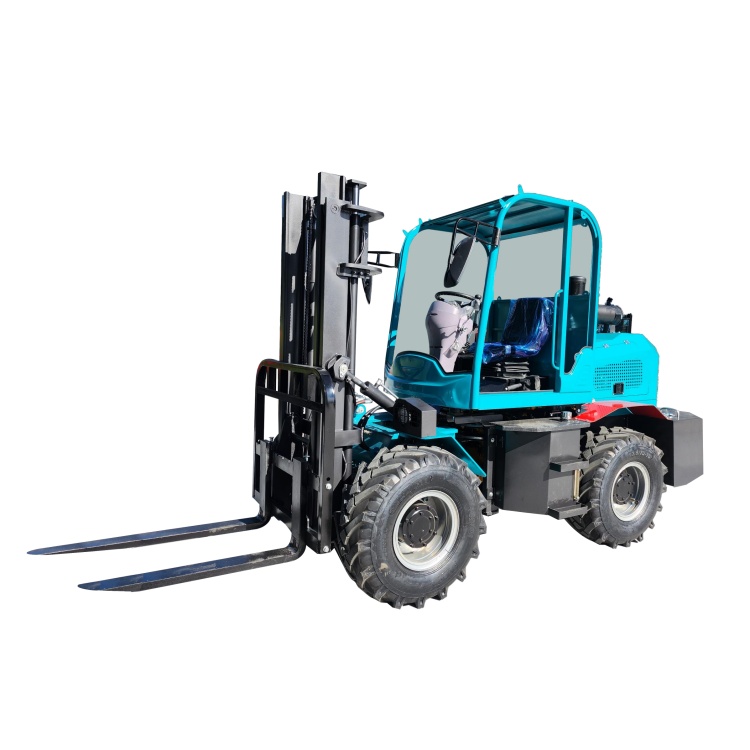

- 2.5 Ton(5511.56lb) Front Steering Off-road Forklift-CPCD25
