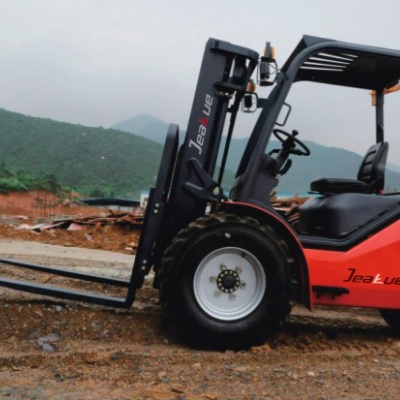

2.5-3 Ton(5511.55/6613.86lb) Four Wheels Drive Rough Terrain Forklift

Rate Capacity:2500kg-3000kg(5511.55/6613.86lb)

Lift Height:3000mm(118.11in)

Xinchai 4D32G31

Description

Parameters	Symbol	Unit	Value
Model			FD25	FD30
Power Type			Diesel	Diesel
Rated Capacity		kg	2500	3000
Load Centre		mm	500	500
Service weight		kg	4800	5080
Tyre Type(Front/Rear)			Pneumatic Tire
Wheel number X = drive wheel (Front/Rear)			2X/2X
Tyre Size (Front)			14-17.5-14PR
Tyre Size (Rear)			10.0/75-15.3-12PR
Front Tread	W1	mm	1217
Rear Tread	W2	mm	1206
Wheelbase	L4	mm	1920
Fork Size (LxWxT)	L1	mm	1220x120x40	1220x125x45
Mast Tilt Angle (F/R)	a/β	deg	10/12
Lift Height	H	mm	3000
Mast Lowered Height	H1	mm	2235	2265
Free Lift Height	H5	mm	160	165
Mast Extended Height	H2	mm	4224	4342
Length to Face of Fork	L	mm	3110
Overall Width	W	mm	1560
Overhead Guard Height	H3	mm	2260
Front Overhang	L2	mm	580
Rear Overhang	L3	mm	610
Turning Radius (outside)	r	mm	3200
Ground Clearance (Bottom of mast)	H4	mm	270
Min.intersecting aisle	Ra	mm	2780
Min.right angle stacking aisle width	RASA	mm	5200
Max.Travel Speed (Full load/No load)		km/h	21/22	20/21
Lifting Speed (Full load/No load)		mm/s	530/560	510/550
Lowering Speed (Full load/No load)		mm/s	≤600/≥300
Max.Gradeability (Full load)		%	50	40
Engine Model			Xinchai 4D32G31
Rated output/r.p.m		kW/rpm	36.8/2500
Rated torque/r.p.m		Nm/rpm	186/1600–1800
No.of Cylinder			4
Bore × Stroke		mm	98 × 105
Displacement		L	3.167
Emission Standards			China II
Fuel Tank Capacity		L	60
Battery (Voltage/Capacity)		V/Ah	12/80
Transmission Type			Hydraulic
Stage FWD/RVS			2/1 Power Shift
Operating Pressure		MPa	18
