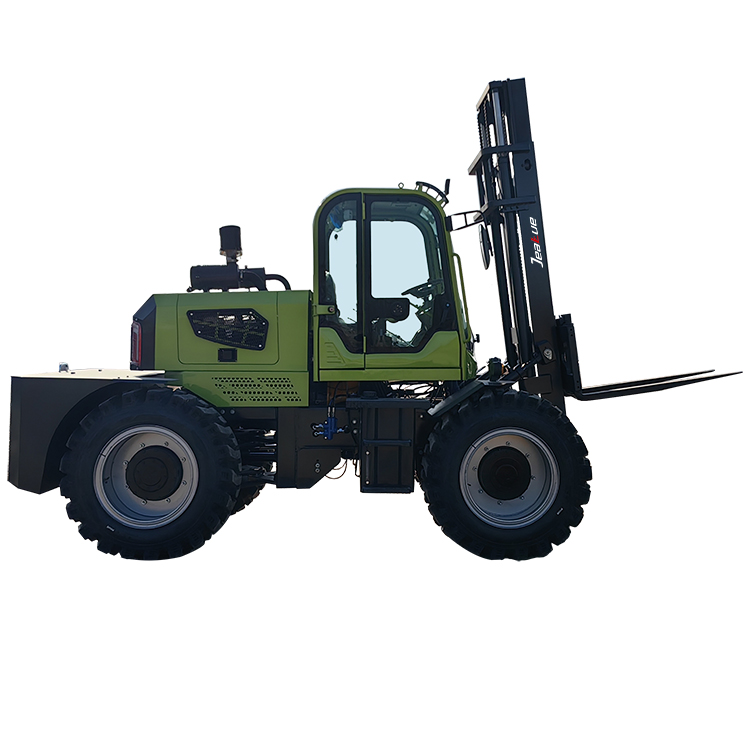

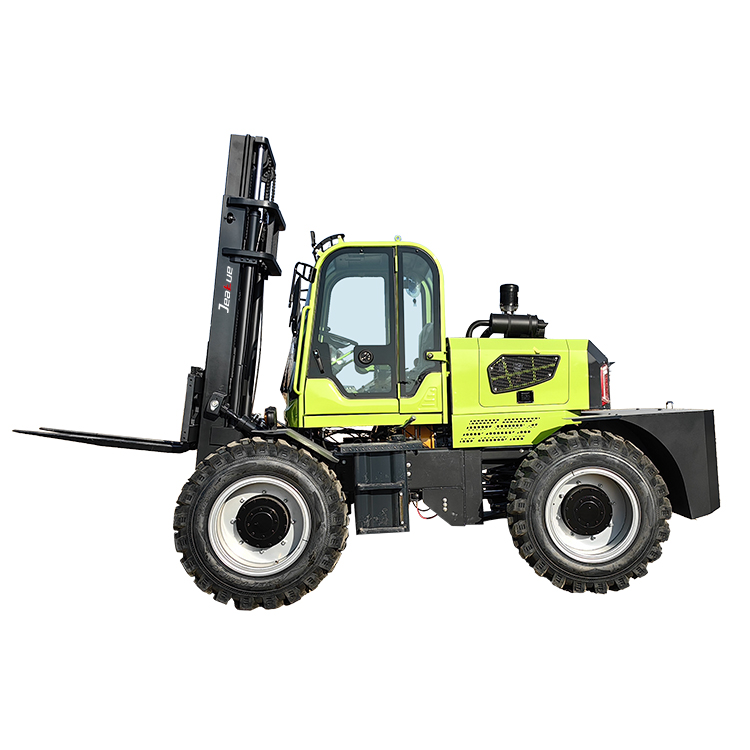

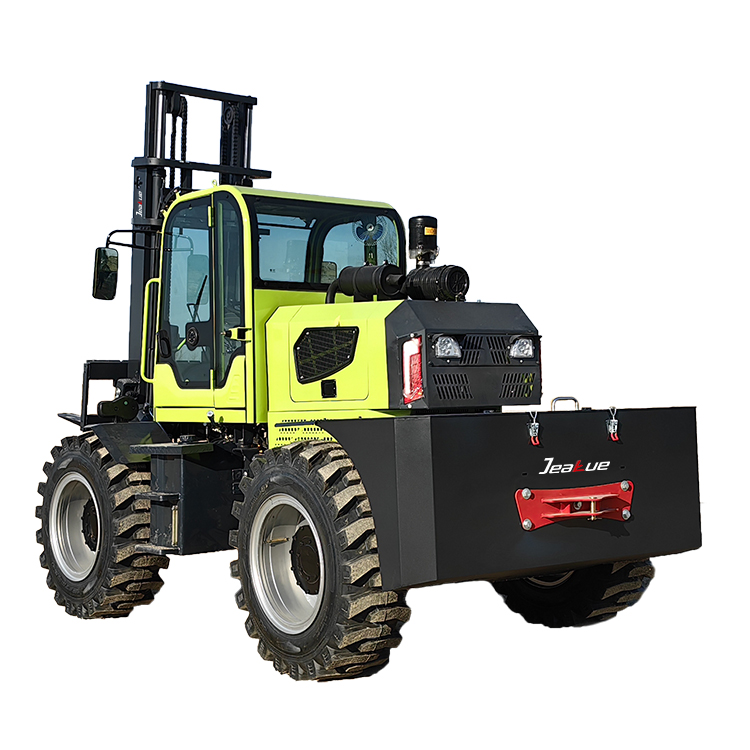

5 Ton(11023.11lb) Rear Steering Off-road Forklift

Load capacity:5000kg(11023.11lb)

Lift height:3000mm(9.84ft)

Product Color: Ivory/Red/Customization

Description

Model	Parameter
model	CPCD50
Rated load	5000kg
Load center distance	500mm
Lifting height	3000mm
Full height of gantry	2350mm
Full height at（roof protection frame)	2620mm
Full length(without fork)	4070mm
Full width	2100mm
Wheelbase	2350mm
Towing pin height	820mm
Minimum ground clearance(at gantry)	260mm
Fork pitch outside(max/min)	1350/300mm
Track width(front/rear)	1540mm
Outside of minimum turning radius	3900mm
Inside of minimum turning radius	1800mm
Gantry inclination (front/rear)	Front10° Rear12°
Fork size	122050150mm
Maximum driving speed (full load/no load)	35/40km/h
Total weight	5700kg
Width of door lever	180mm
Tire type	Pneumatic Tire
Front tire	16/70-24
Rear tire	16/70-24
Service brake	Hydraulic brake
Parking brake	Mechanical brake
Engine model	Weifang4102
Torque converter model	300
Engine power	78kw
Number of transmission shifts	2Front2Rear
